IG Power Source Circuit

CIRCUIT DESCRIPTION

This is the power source for the A/C amplifier assy and servomotor, etc.

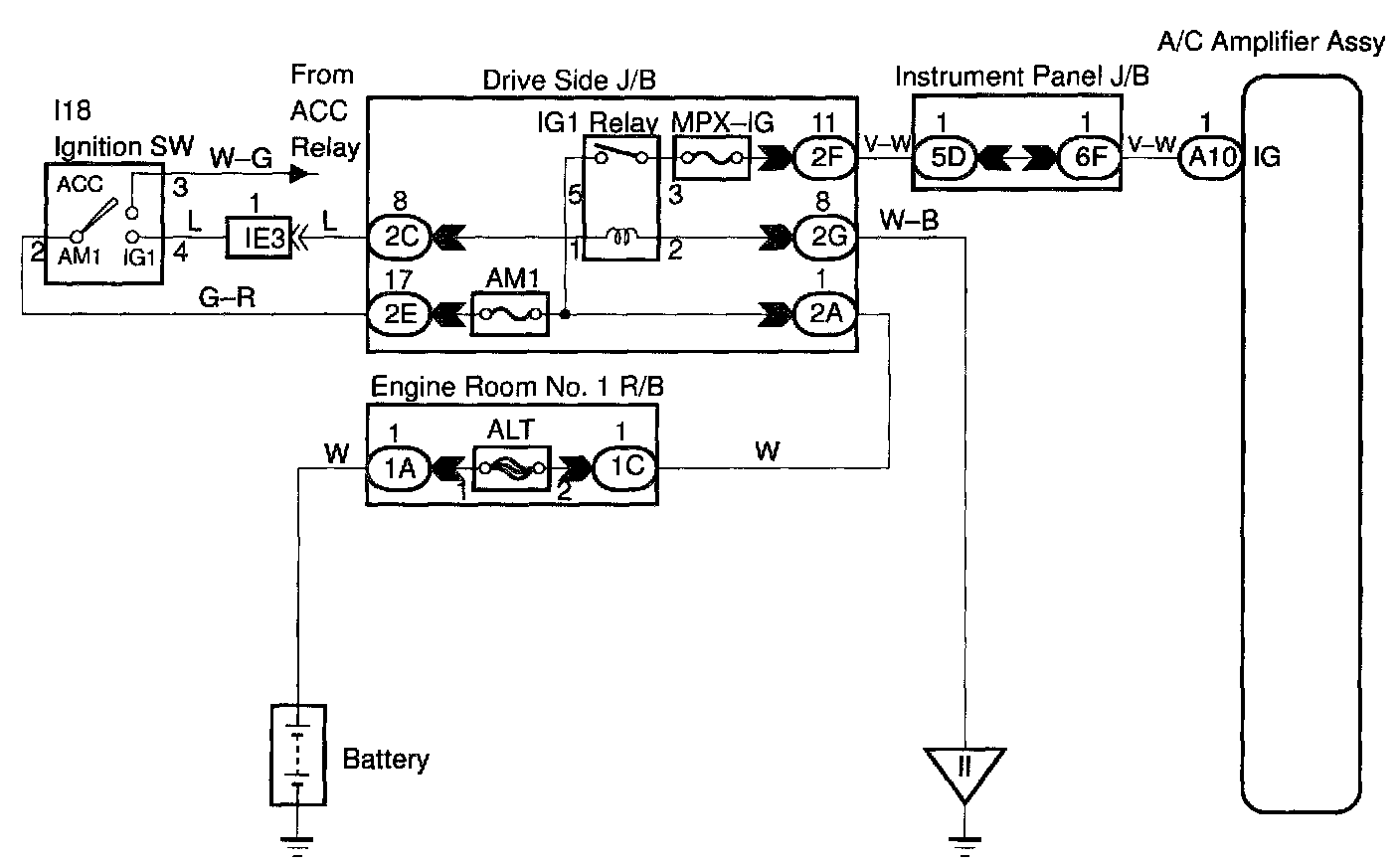

Wiring Diagram:

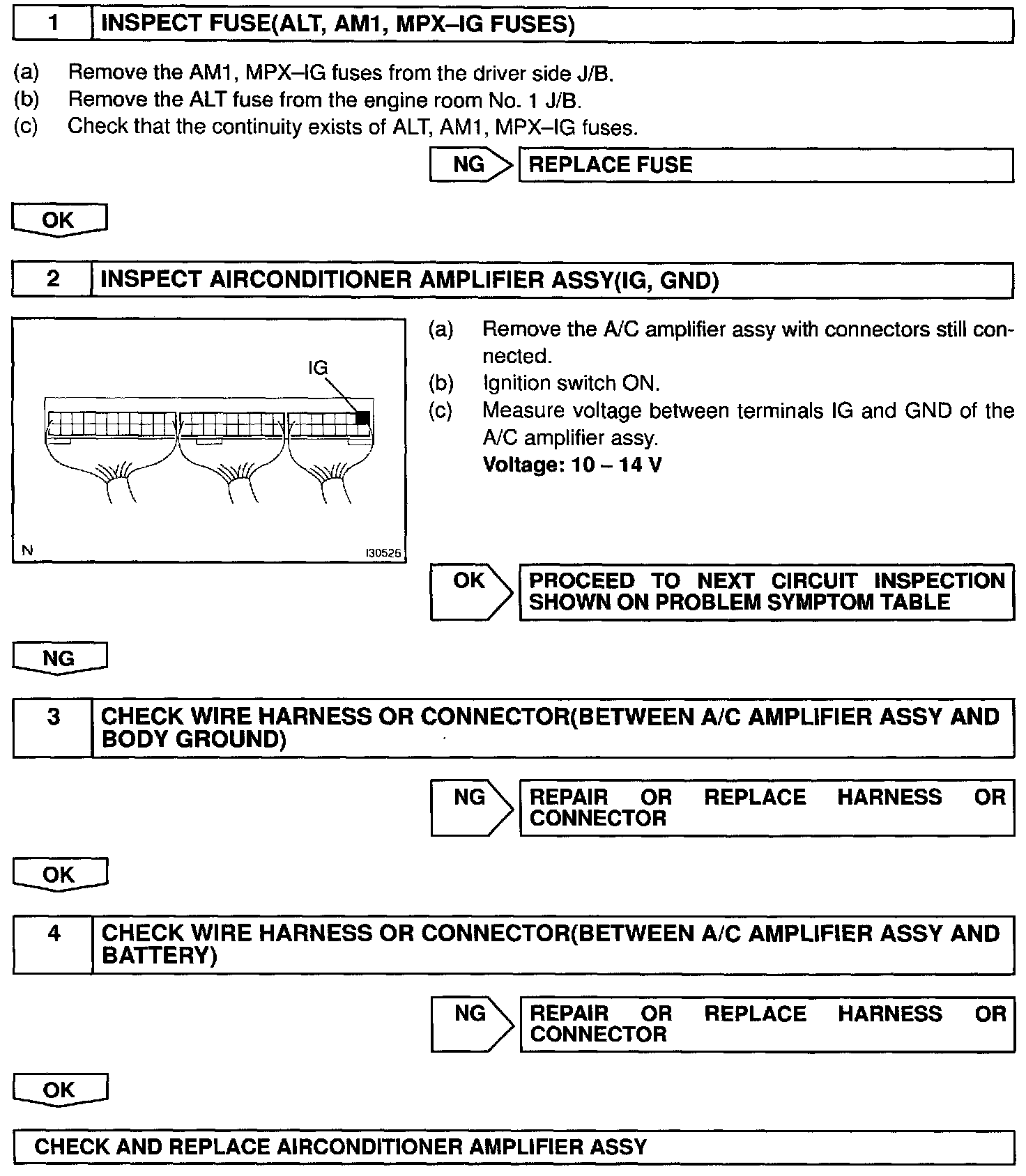

Step 1 - 4:




INSPECTION PROCEDURE
