Compressor Magnetic Clutch Circuit

CIRCUIT DESCRIPTION

The air conditioning amplifier outputs the magnetic clutch ON signal from terminal MPX to the ECM receives this signal, it sends a signal from terminal ACMG and switches the magnetic clutch relay ON, thus turning on the magnetic clutch.

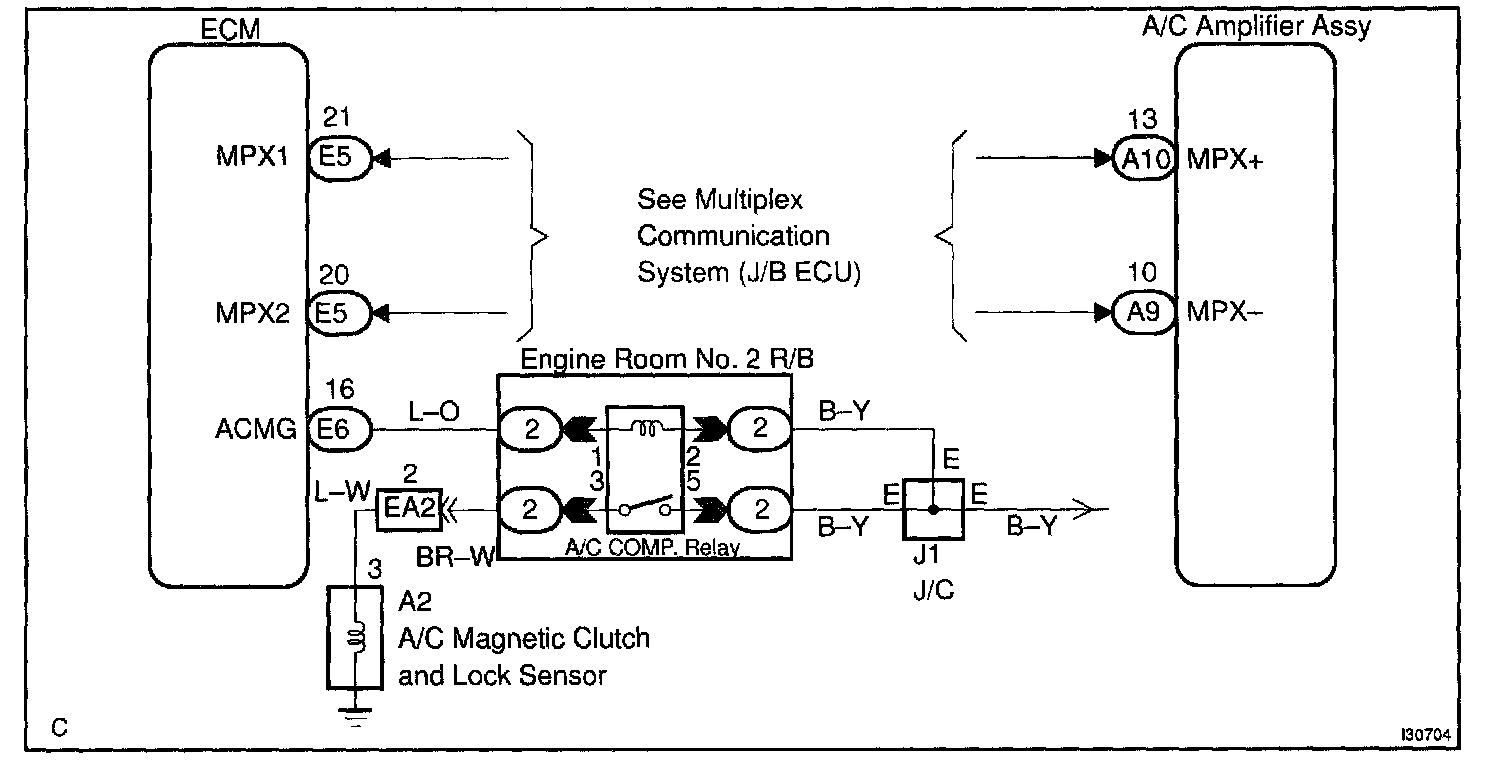

Wiring Diagram:

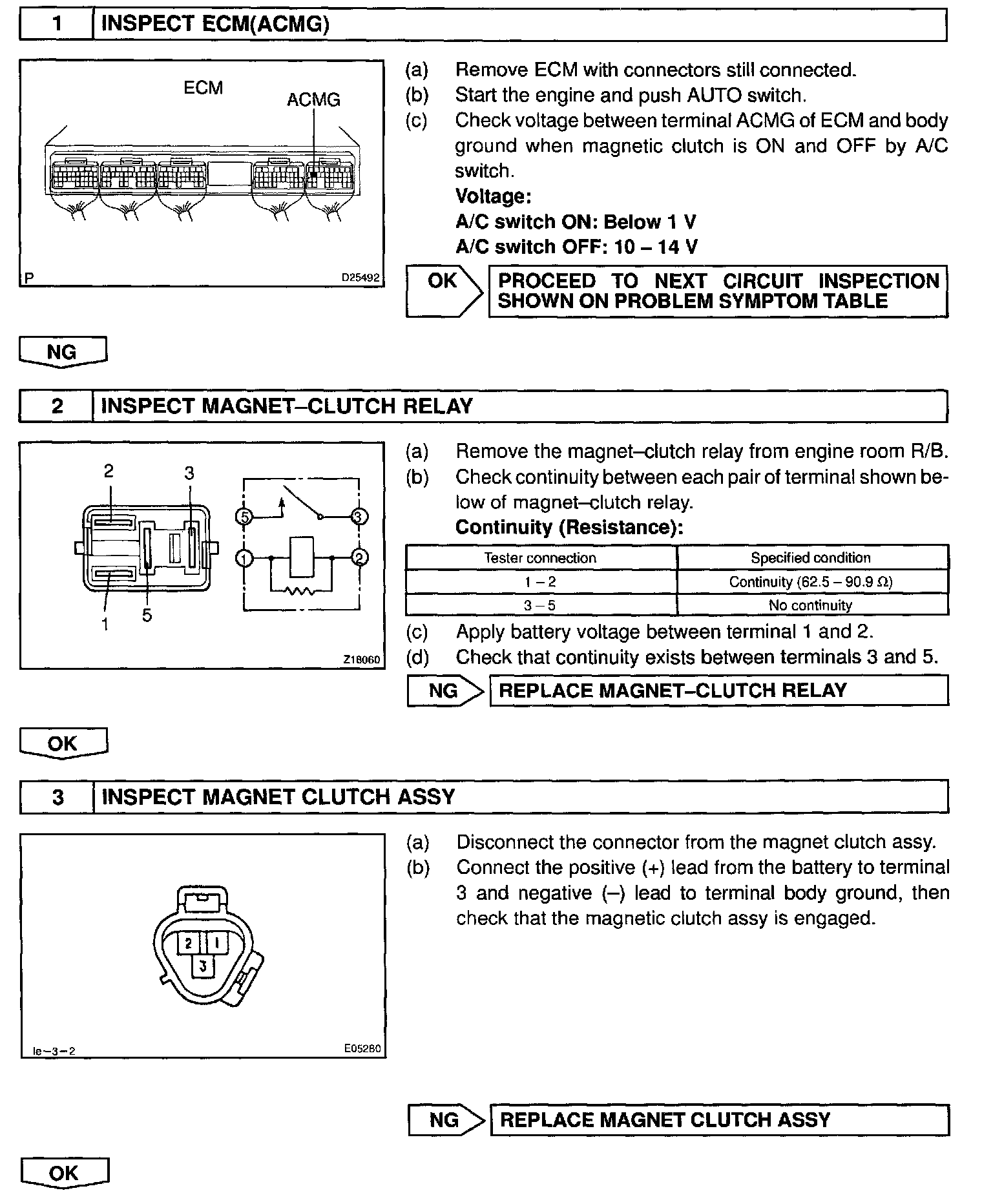

Step 1 - 3:

Step 4 - 5:

INSPECTION PROCEDURE
