Cylinder Head Cover Gasket
REPLACEMENT1. REMOVE V-BANK COVER
2. REMOVE INTAKE AIR CONNECTOR PIPE
3. REMOVE IGNITION COIL ASSY
4. REMOVE CYLINDER HEAD COVER SUB-ASSY

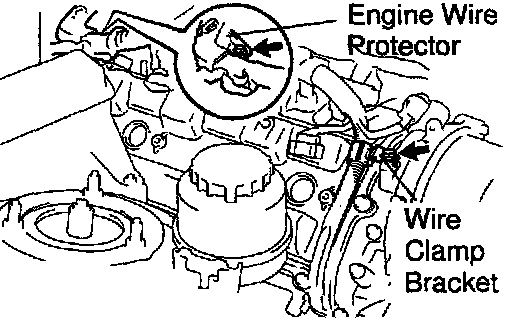

a. Remove the bolt, and disconnect the wire clamp bracket from the camshaft bearing cap.
b. Remove the bolt, and disconnect the engine wire protector from the cylinder head.
c. Remove the 9 bolts, 9 seal washers and cylinder head cover.
5. REMOVE CYLINDER HEAD COVER GASKET
6. INSTALL CYLINDER HEAD COVER SUB-ASSY

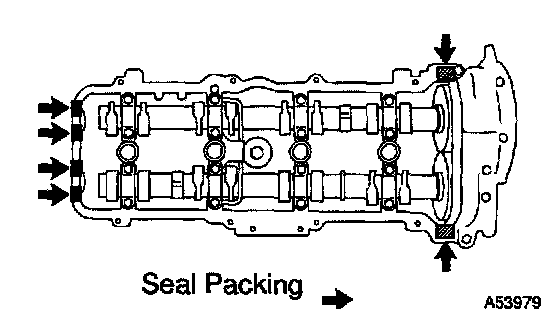

a. Apply seal packing to the cylinder heads as shown in the illustration.
Seal packing: Part No. 08826-0080 or equivalent
NOTICE:
- Remove any oil from the contact surface.
- Install the oil pan within 5 minutes after applying seal packing.
- Do not start the engine within 2 hours after installing.
b. Install the gasket to the cylinder head cover.
c. Install the seal washer to the bolt.
d. Install the cylinder head cover with the 9 bolts. Uniformly tighten the bolts in several passes.
Torque: 6.0 Nm (60 kgf-cm, 53 inch lbs.)
e. Install the wire clamp bracket on the engine wire to the cylinder head.
f. Install the wire clamp bracket on the engine wire to the camshaft bearing cap.
7. INSTALL IGNITION COIL ASSY
Torque: 7.5 Nm (80 kgf-cm, 66 inch lbs.)
8. INSTALL INTAKE AIR CONNECTOR PIPE
Torque: 5.0 Nm (50 kgf-cm, 41 inch lbs.)
9. INSTALL V-BANK COVER
Torque: 5.0 Nm (50 kgf-cm, 41 inch lbs.)
