Oil Pump Seal Replacement
REPLACEMENT1. REMOVE TIMING BELT
2. REMOVE CRANKSHAFT TIMING PULLEY
a. Using SST, remove the crankshaft timing pulley.
SST 09950-50012 (09951-05010, 09952-05010, 09953-05010, 09953-05020, 09954-05010)
NOTICE: Do not turn the timing pulley.
3. REMOVE OIL PUMP SEAL

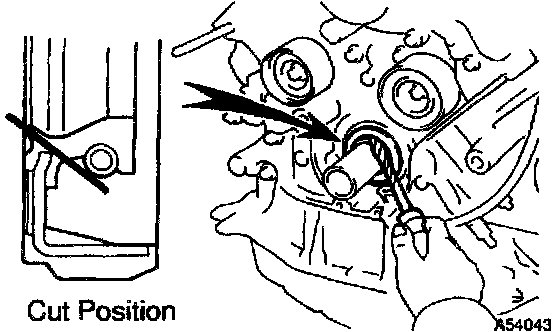

a. Using a knife, cut off the oil seal lip.
b. Using a screwdriver with taping its tip, pry out the oil seal.
c. After the removal, check if the crankshaft is not damaged.
If it is damaged, mend it with a sandpaper (#400).
4. INSTALL OIL PUMP SEAL
a. Apply MP grease to a new oil seal lip.
NOTICE: Keep the lip off foreign materials.

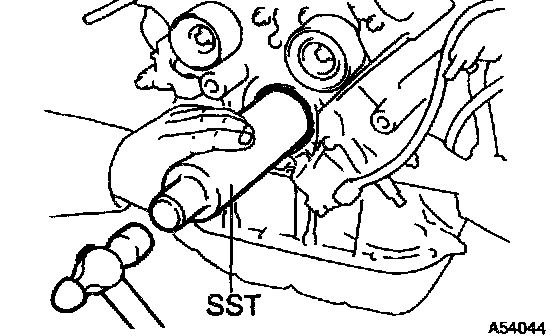

b. Using SST and a hammer, tap in the oil seal until its surface is flush with the oil pump edge.
SST 09316-60011 (09316-00011)
NOTICE:
- Wipe off extra grease on the crankshaft.
- Be careful not to tap the oil seal slantingly.
5. INSTALL CRANKSHAFT TIMING PULLEY
a. Align the timing pulley set key with the key groove of the pulley.

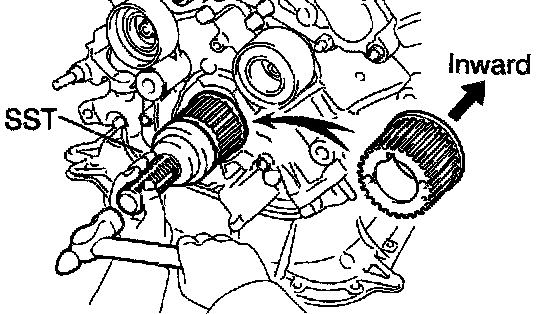

b. Using SST and a hammer, tap in the timing pulley, facing the flange side inward.
SST 09223-46011
6. INSTALL TIMING BELT
