Rear Bumper Cover / Fascia
Rear Bumper Cover / Fascia

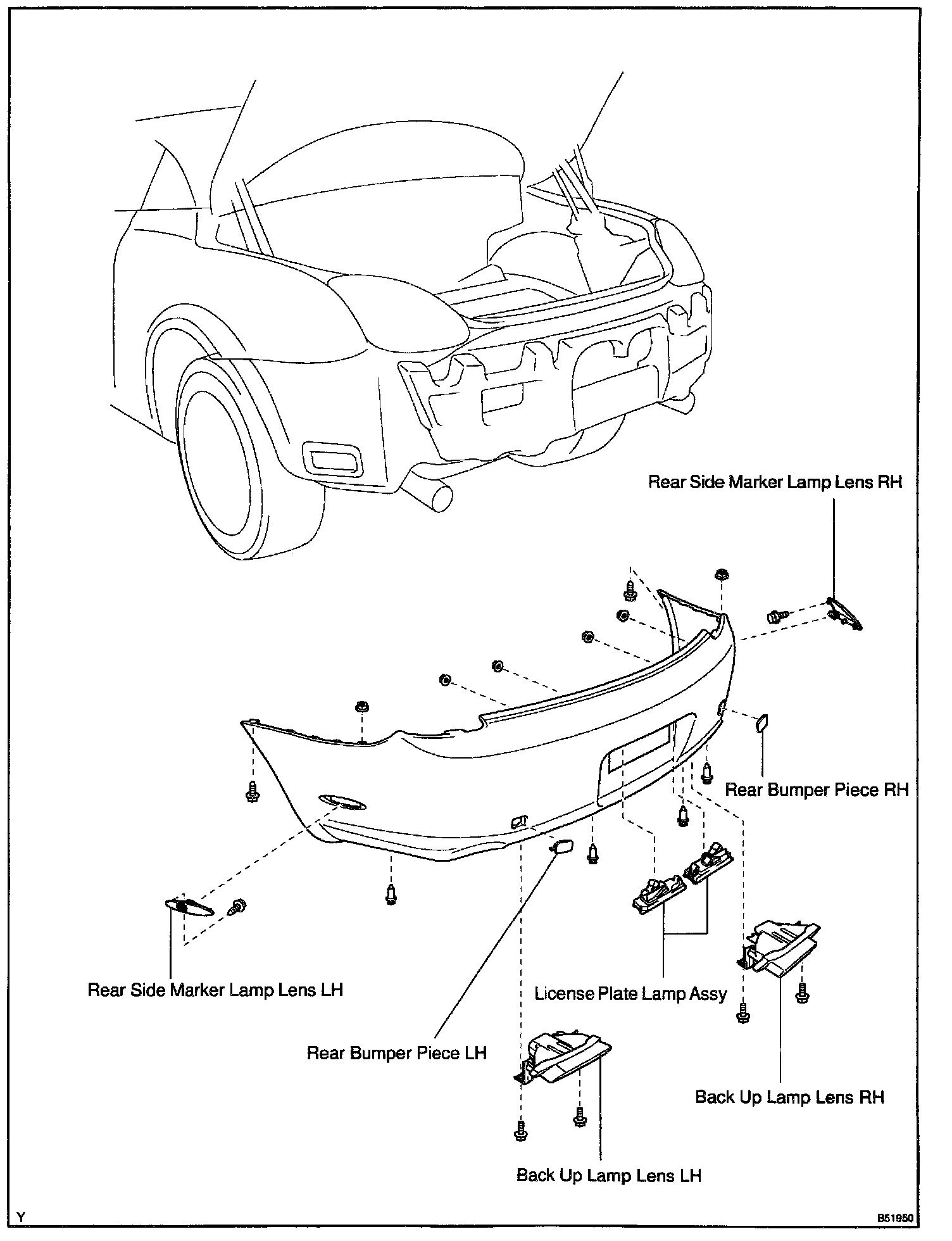

Rear Bumper Cover Part 1:
Rear Bumper Cover Part 2:

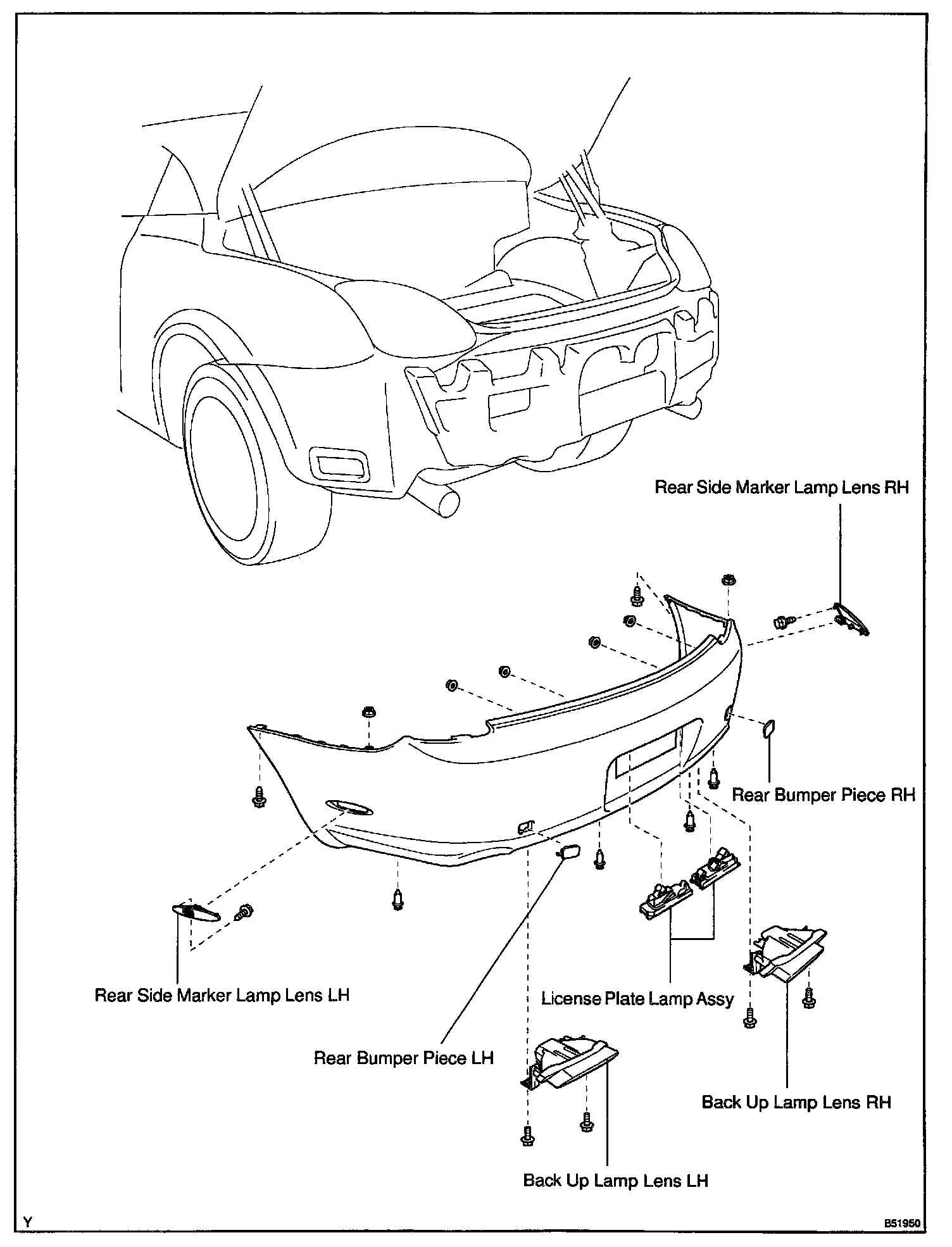

Rear Bumper Cover:
Front Bumper Cover:
