Home >> Lexus >> 2002 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust Pipe

Exhaust Pipe

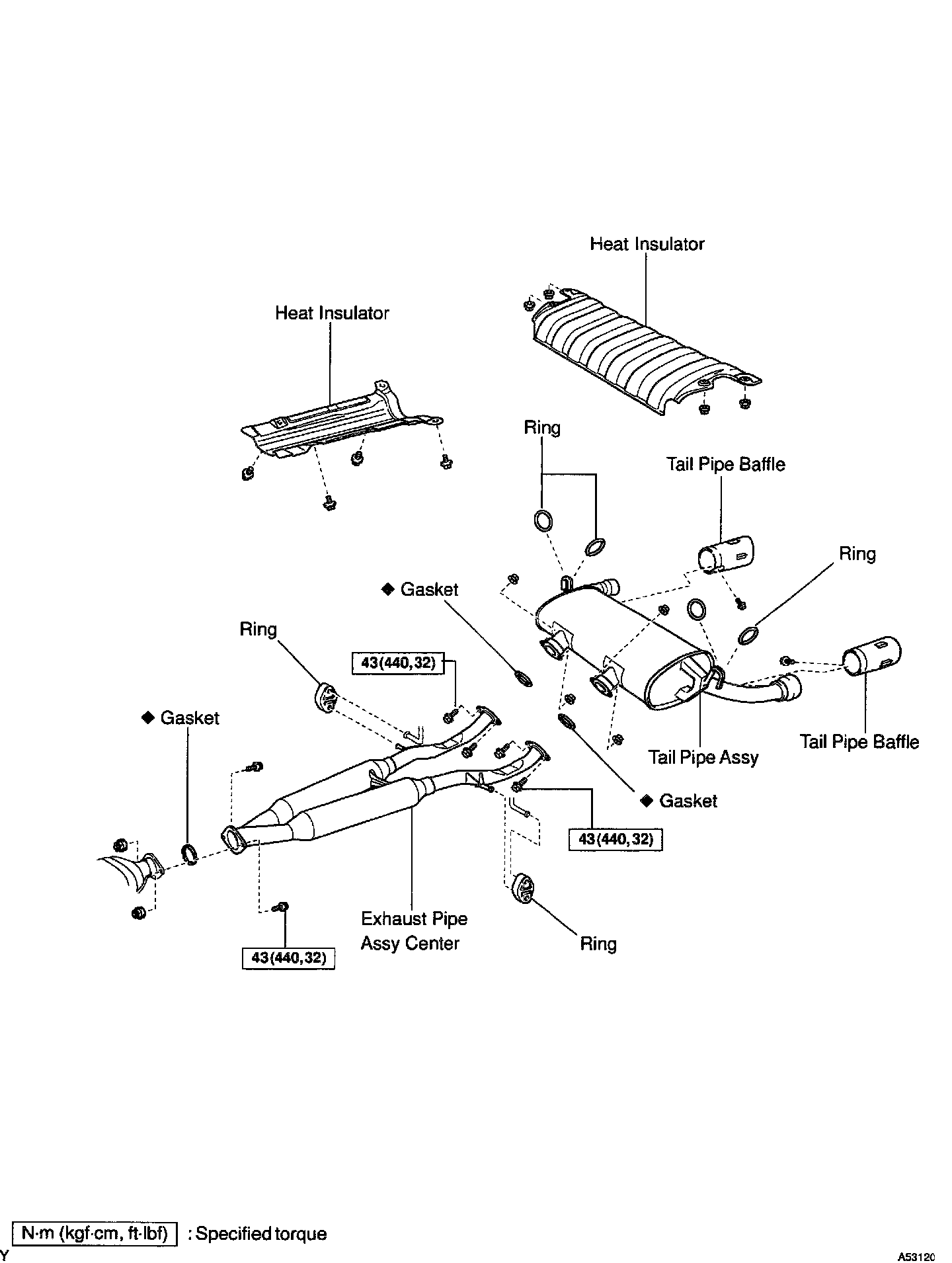

EXHAUST PIPE REPLACEMENT W/ RELATED COMPONENTS
