Cylinder Head Cover Gasket No. 2

CYLINDER HEAD COVER GASKET NO.2 REPLACEMENT W/ RELATED COMPONENTS

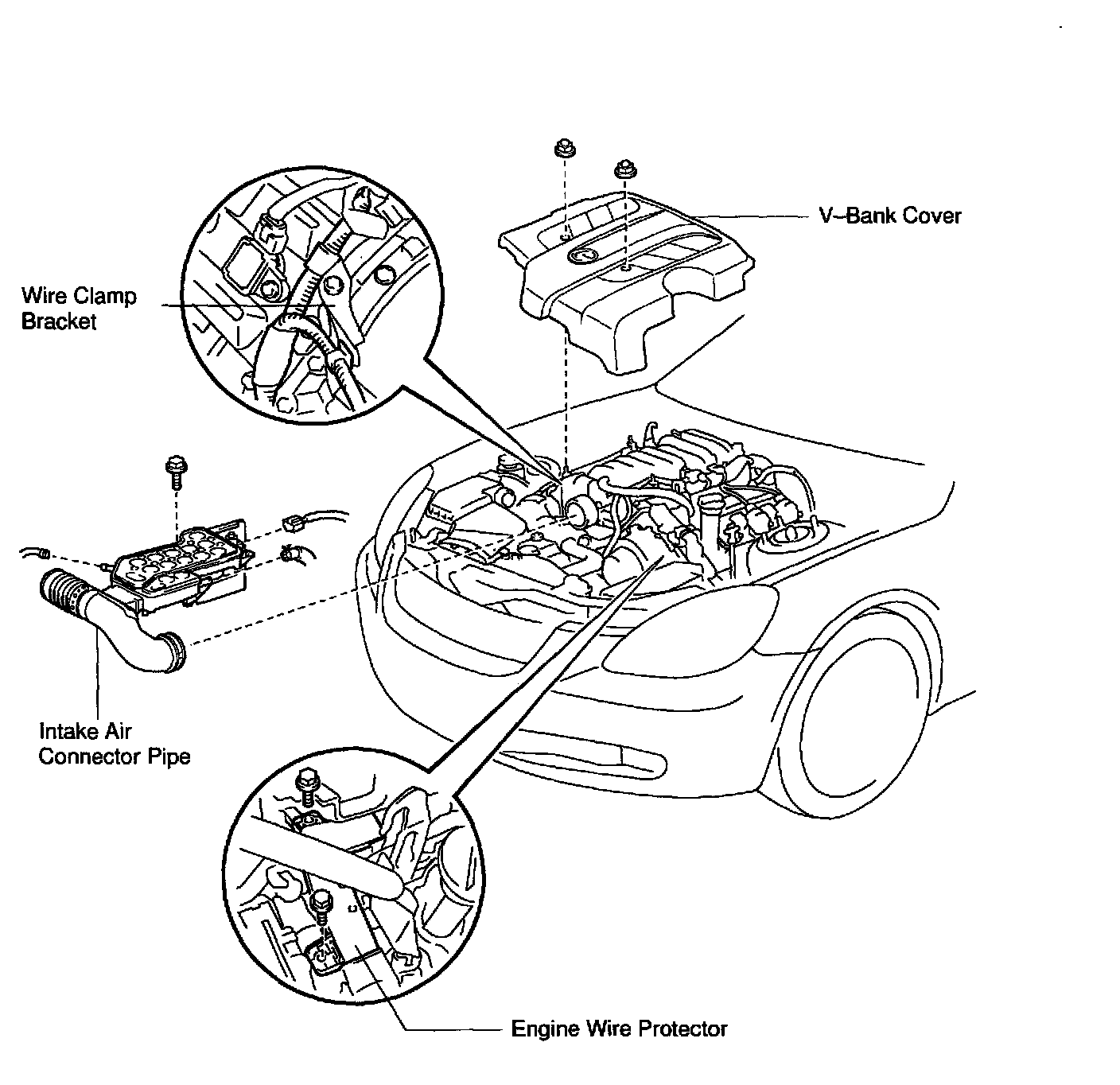

Part 1 of 2

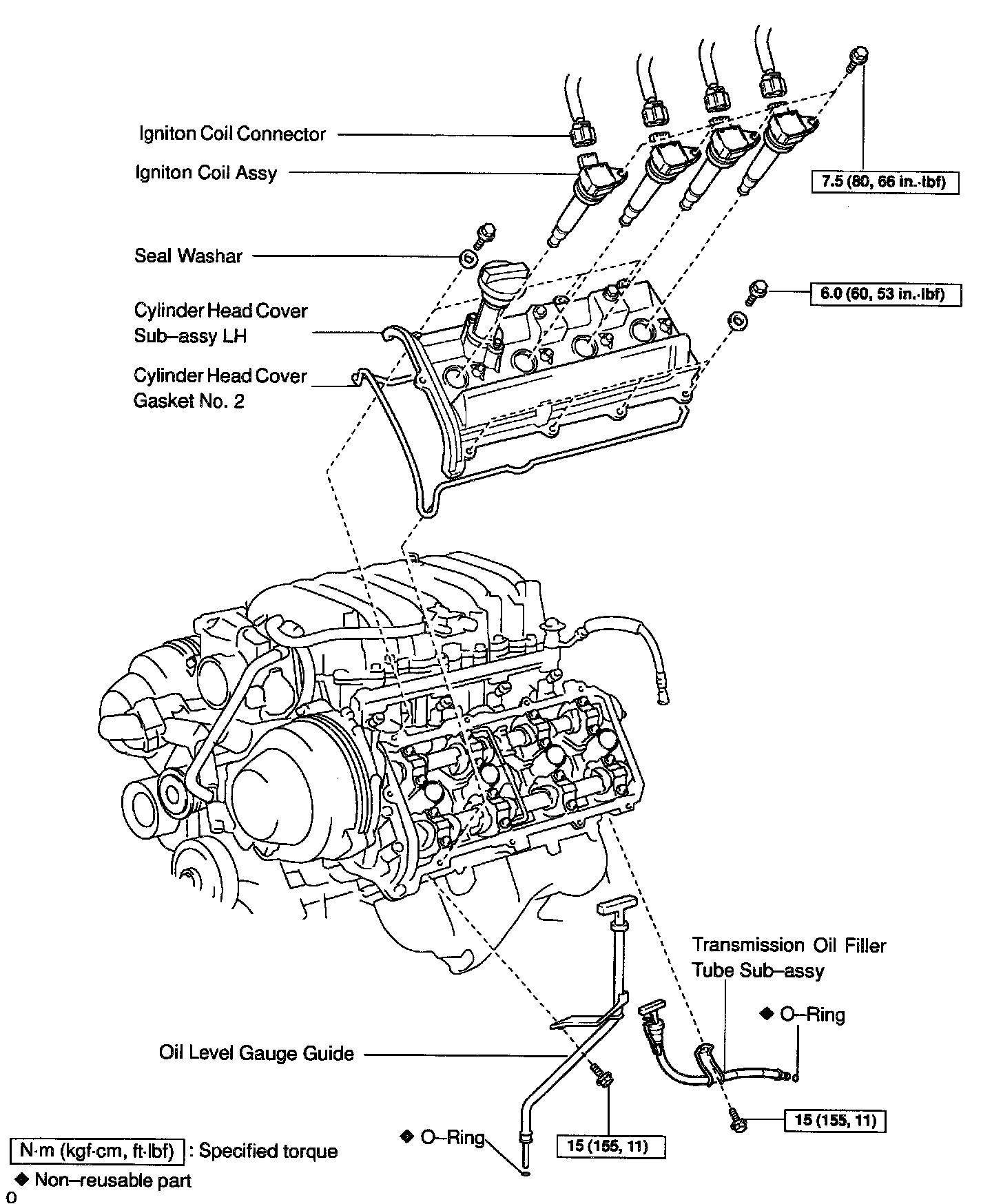

Part 2 of 2
