Cylinder Head Cover Gasket

CYLINDER HEAD COVER GASKET REPLACEMENT W/ RELATED COMPONENTS

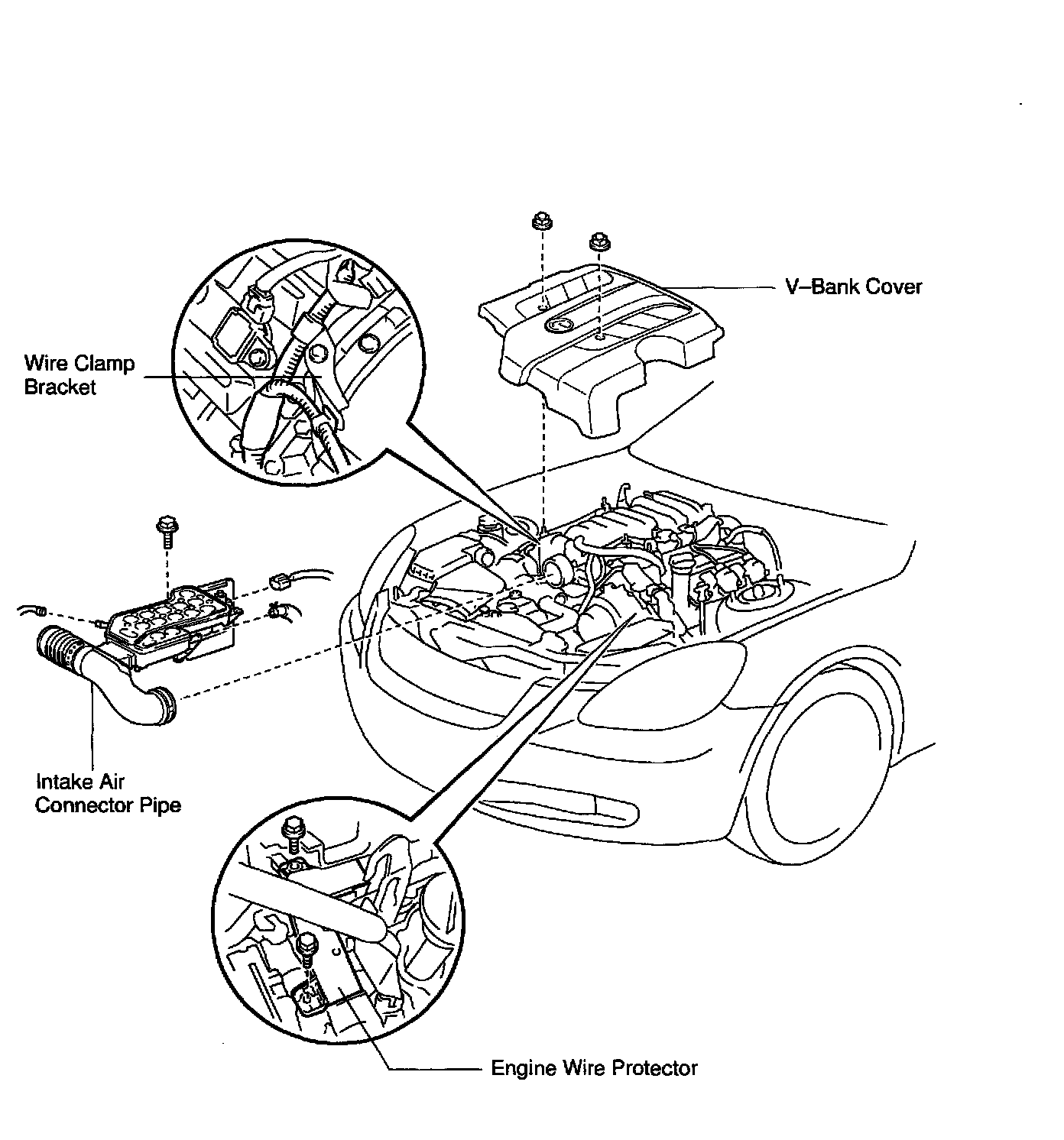

Part 1 of 2

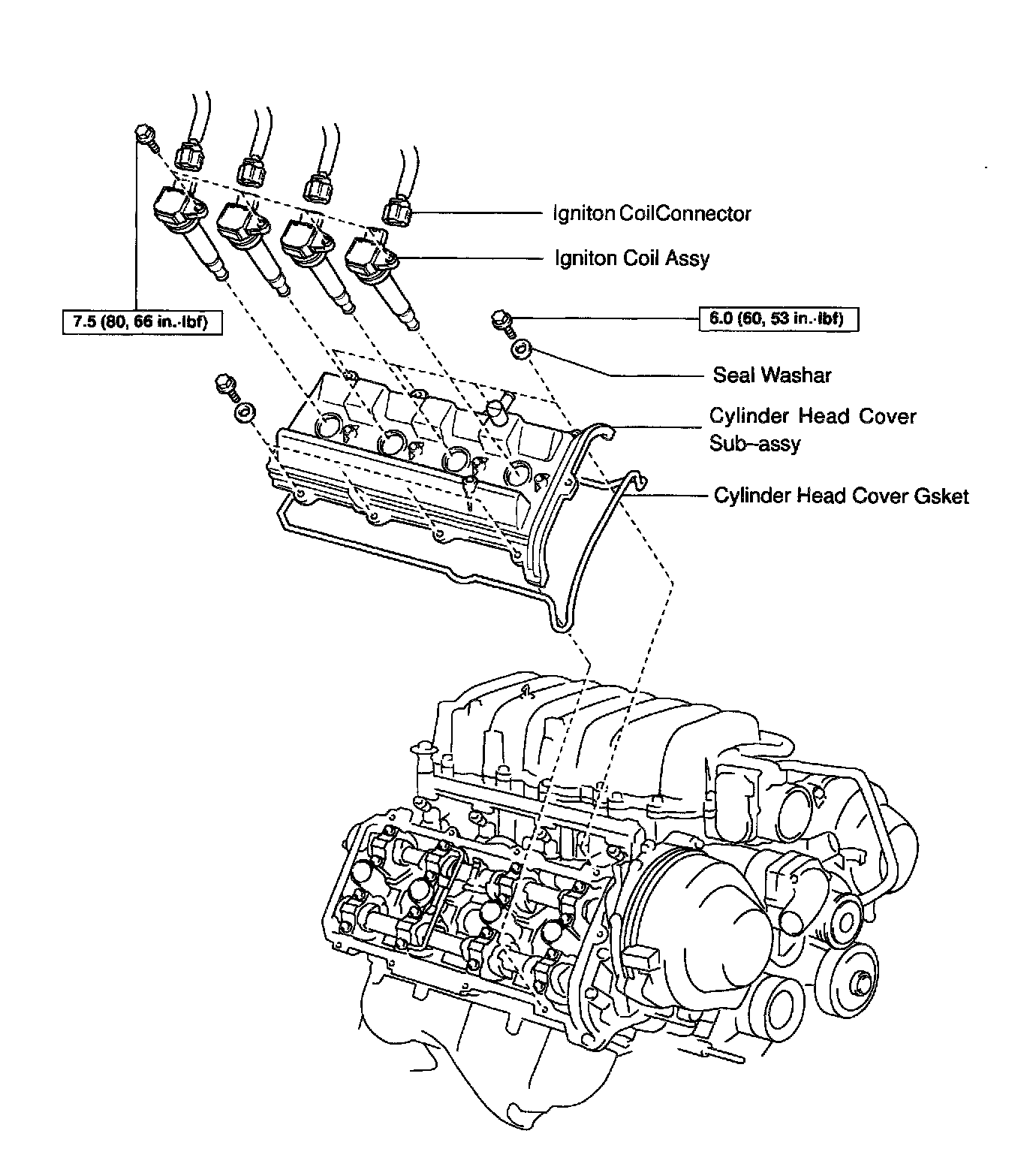

Part 2 of 2
