Parking Brake Cable No. 3
REPLACEMENTPARKING BRAKE CONTROL PEDAL ASSEMBLY:
PARKING BRAKE CABLE ASSEMBLY NO.1:
PARKING BRAKE CABLE ASSEMBLY NO.2:
PARKING BRAKE CABLE ASSEMBLY NO.3:
COMPONENTS W/ RELATED COMPONENTS
Part 1 of 5
Part 2 of 5
Part 3 of 5
Part 4 of 5
Part 5 of 5
HINT:
For parking brake cable No. 2, employ the same procedure to the No. 3.
1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH
3. REMOVE REAR DISC
[42431]
4. REMOVE PARKING BRAKE SHOE STRUT LH
[47614]
5. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET
[47406A]
6. REMOVE PARKING BRAKE SHOE ASSEMBLY LH NO.1
[46580]
SST 09718-00010
7. REMOVE PARKING BRAKE SHOE ASSEMBLY LH NO.2
[46590]
SST 09718-00010
8. REMOVE PARKING BRAKE SHOE LEVER LH
[47612]
9. SEPARATE PARKING BRAKE CABLE ASSEMBLY NO.3
[46430]

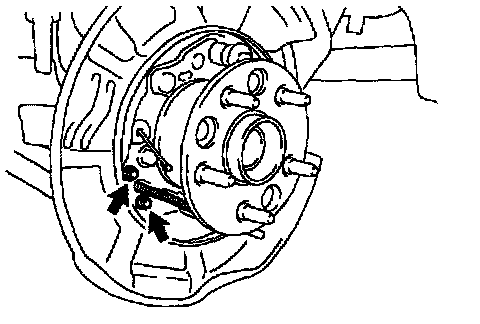

(a) Remove the 2 bolts, and disconnect the parking brake cable No. 3 from the backing plate.
10. REMOVE FRONT FLOOR BRACE CENTER
[57533A]
11. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH
[52298]
12. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH
[52297]
13. SEPARATE OXYGEN SENSOR
[89465]
14. REMOVE EXHAUST PIPE
15. REMOVE FRONT FLOOR HEAT INSULATOR NO. 1.
[58151]
16. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
[46439]
17. REMOVE PARKING BRAKE CABLE ASSEMBLY NO. 3
[46430]

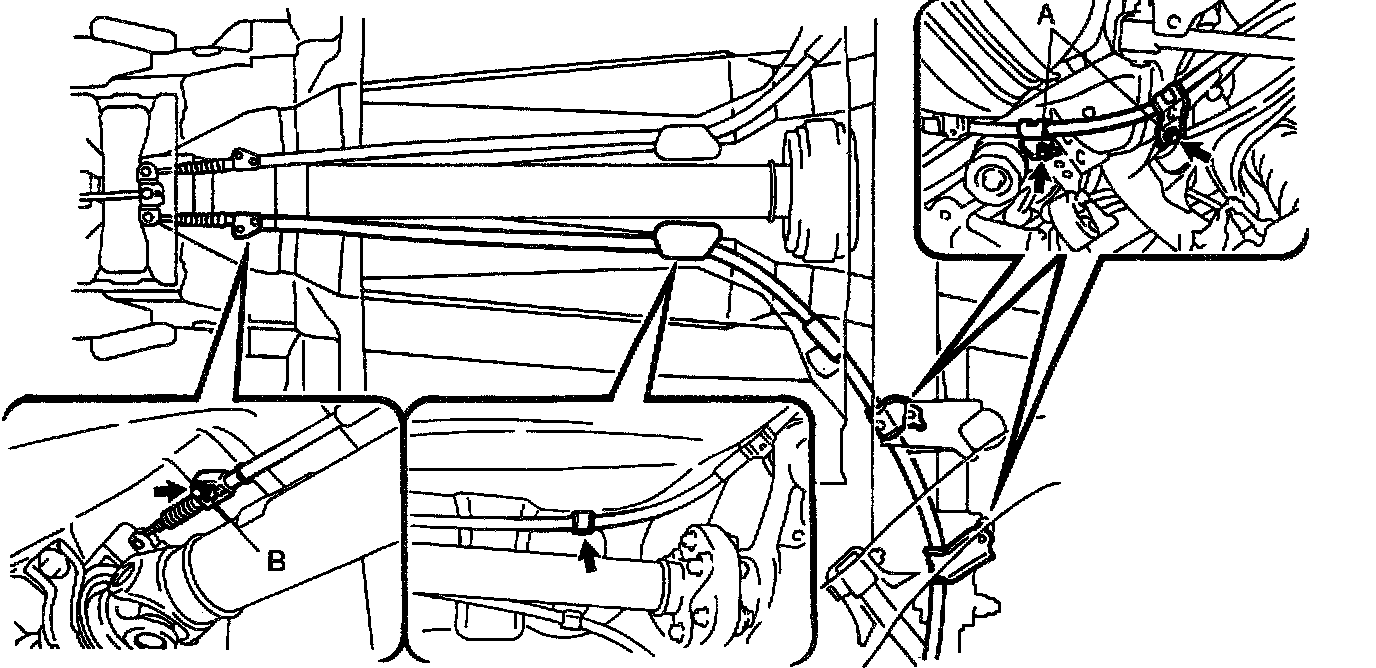

(a) Remove the 3 bolts and disconnect the parking brake cable No. 3 from the body.
(b) Disconnect the parking brake cable No. 3 from the parking brake intermediate lever sub-assembly, and remove the parking brake cable No. 3.
(c) Remove the 2 cable support brackets from the parking brake cable No. 3.
18. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.3
[46430]
(a) Install the 2 cable support brackets to the parking brake cable No. 3.
(b) Install the parking brake cable No. 3 to the parking brake intermediate lever sub-assembly.
(c) Install the parking brake cable No. 3 to the clamp.
(d) Install the parking brake cable No. 3 to the body with the 3 bolts.
Torque:
Bolt A: 18.6 Nm (190 kgf-cm, 19 ft. lbs.)
Bolt B: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
19. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
[46439]
20. INSTALL FRONT FLOOR HEAT INSULATOR NO.1
[58151]
21. INSTALL EXHAUST PIPE
22. INSTALL OXYGEN SENSOR
[89465]
23. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH
[52297]
24. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH
[52298]
25. INSTALL FRONT FLOOR BRACE CENTER
[57533A]
26. CONNECT PARKING BRAKE CABLE ASSEMBLY NO. 3
[46430]

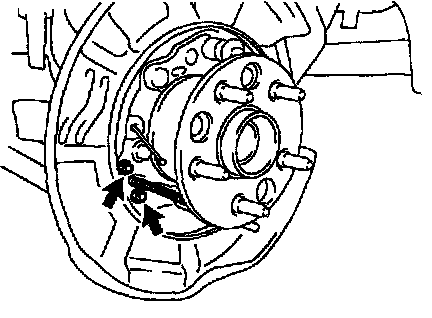

(a) Install the parking brake cable No. 3 with the 2 bolts to the backing plate.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
27. APPLY HIGH TEMPERATURE GREASE
28. INSTALL PARKING BRAKE SHOE LEVER LH
[47612]
29. INSTALL PARKING BRAKE SHOE ASSEMBLY LH NO. 2
[46590]
SST 09718-00010
30. INSTALL PARKING BRAKE SHOE ASSEMBLY LH NO. 1
[46580]
SST 09718-00010
31. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET
[47406A]
32. INSTALL PARKING BRAKE SHOE STRUT LH
[47614]
33. CHECK PARKING BRAKE INSTALLATION
34. INSTALL REAR DISC
[42431]
35. ADJUST PARKING BRAKE SHOE CLEARANCE
36. CONNECT REAR DISC BRAKE CALIPER ASSEMBLY LH
37. INSTALL REAR WHEEL
(a) Install the rear wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
(b) Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
38. CHECK PARKING BRAKE PEDAL TRAVEL
39. ADJUST PARKING BRAKE PEDAL TRAVEL
40. CHECK EXHAUST GAS LEAK
