VSC Warning Light Circuit (Does Not Light Up)

CIRCUIT DESCRIPTION

If the ECU stores DTC, the VSC warning light lights on the combination meter.

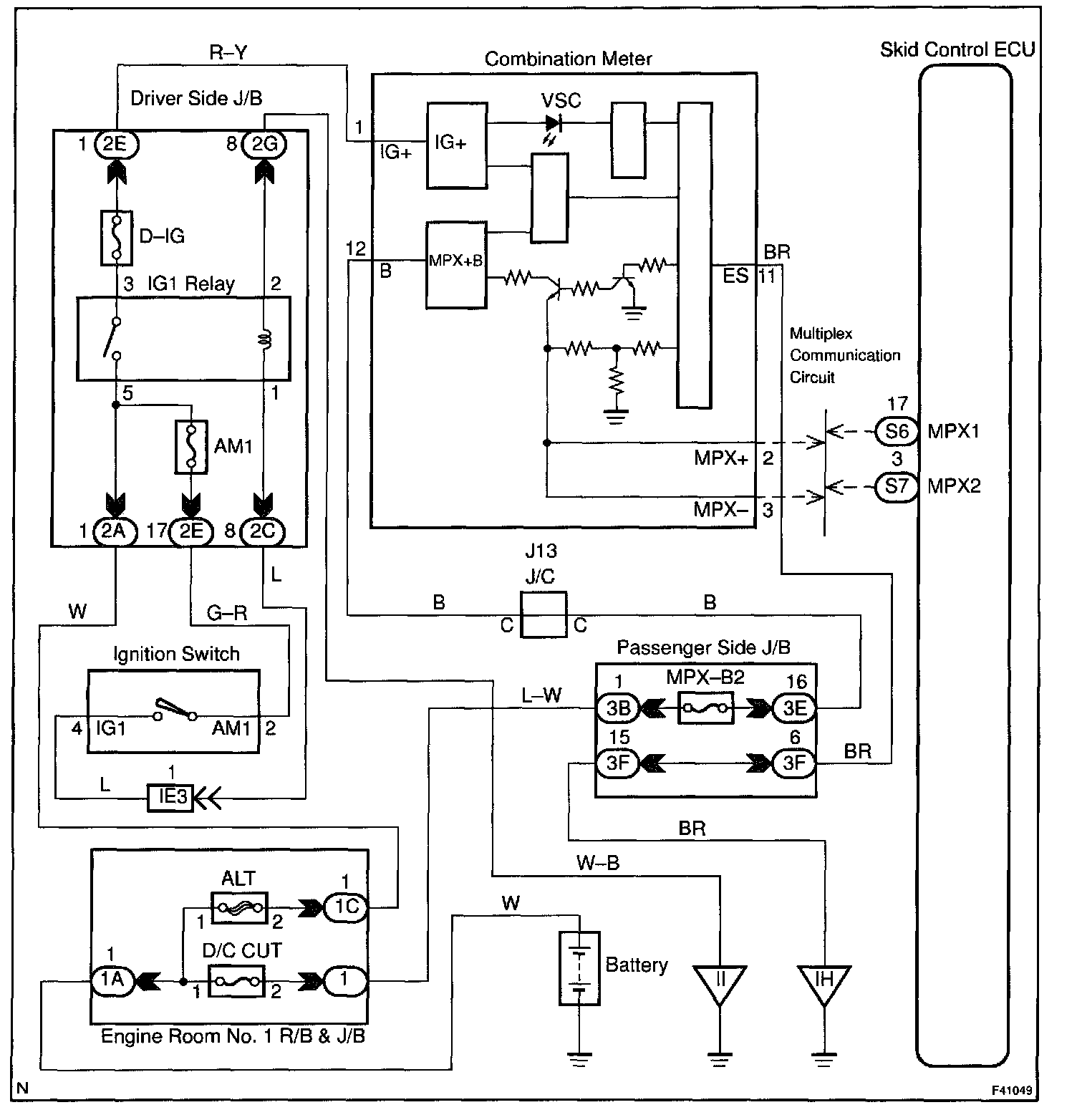

Wiring Diagram:






Step 1 - 3:

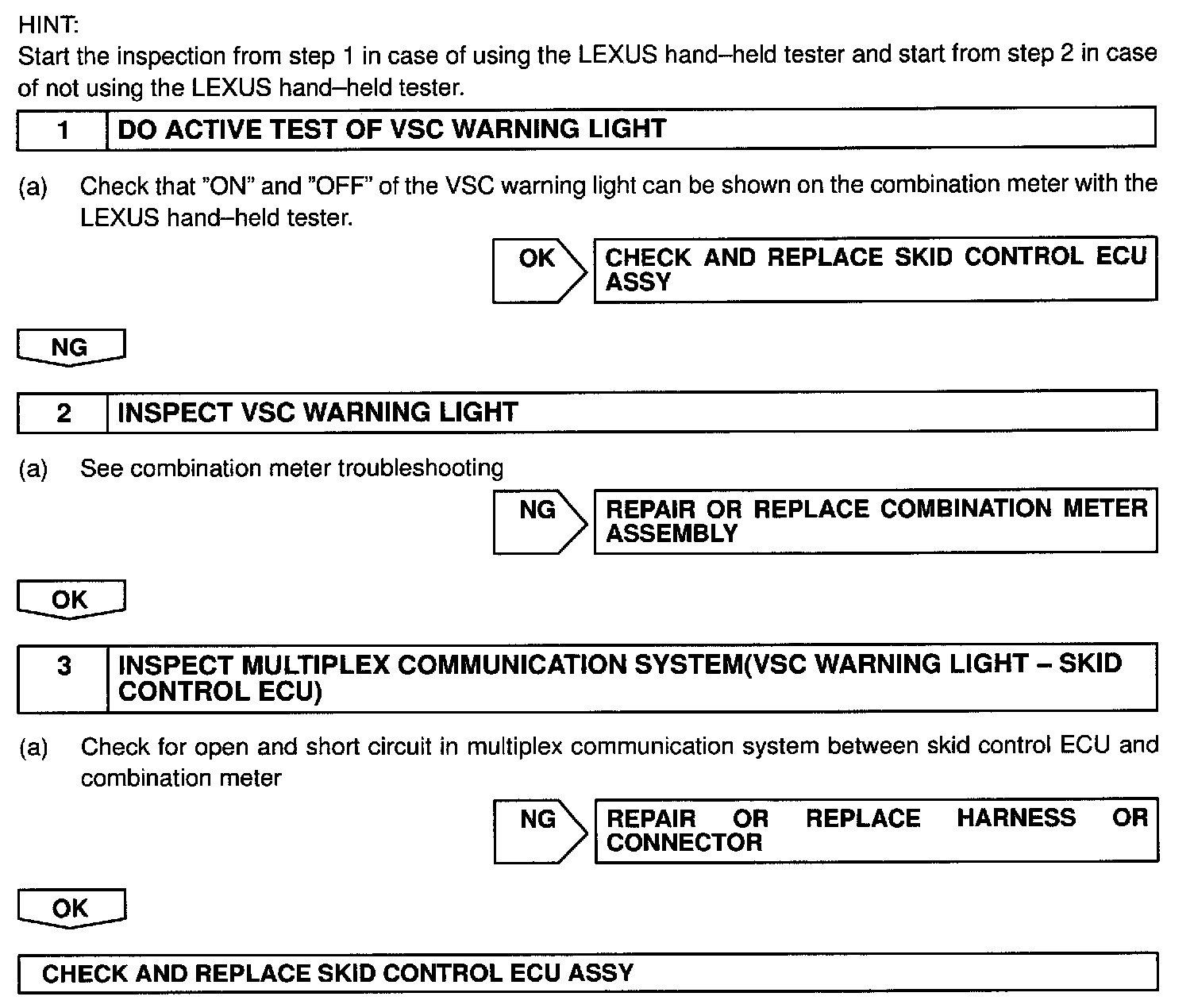

INSPECTION PROCEDURE
