RESTORING OPERATION IS IMPOSSIBLE (WHEN NOT USING HAND-HELD TESTER)

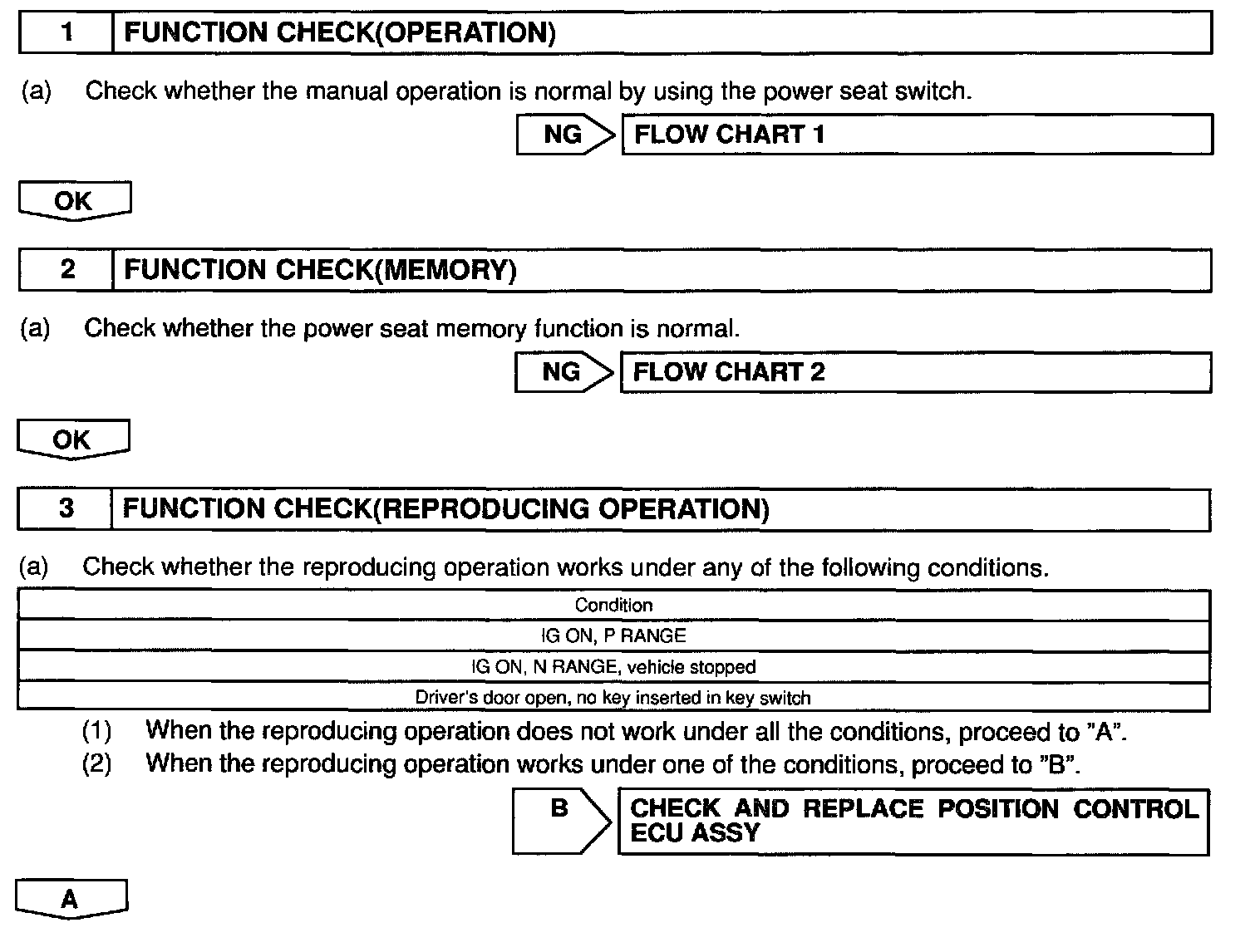

Step 1 - 3:
Step 4:
INSPECTION PROCEDURE
