Position Cannot Be Memorized (W/O Hand-Held Tester)

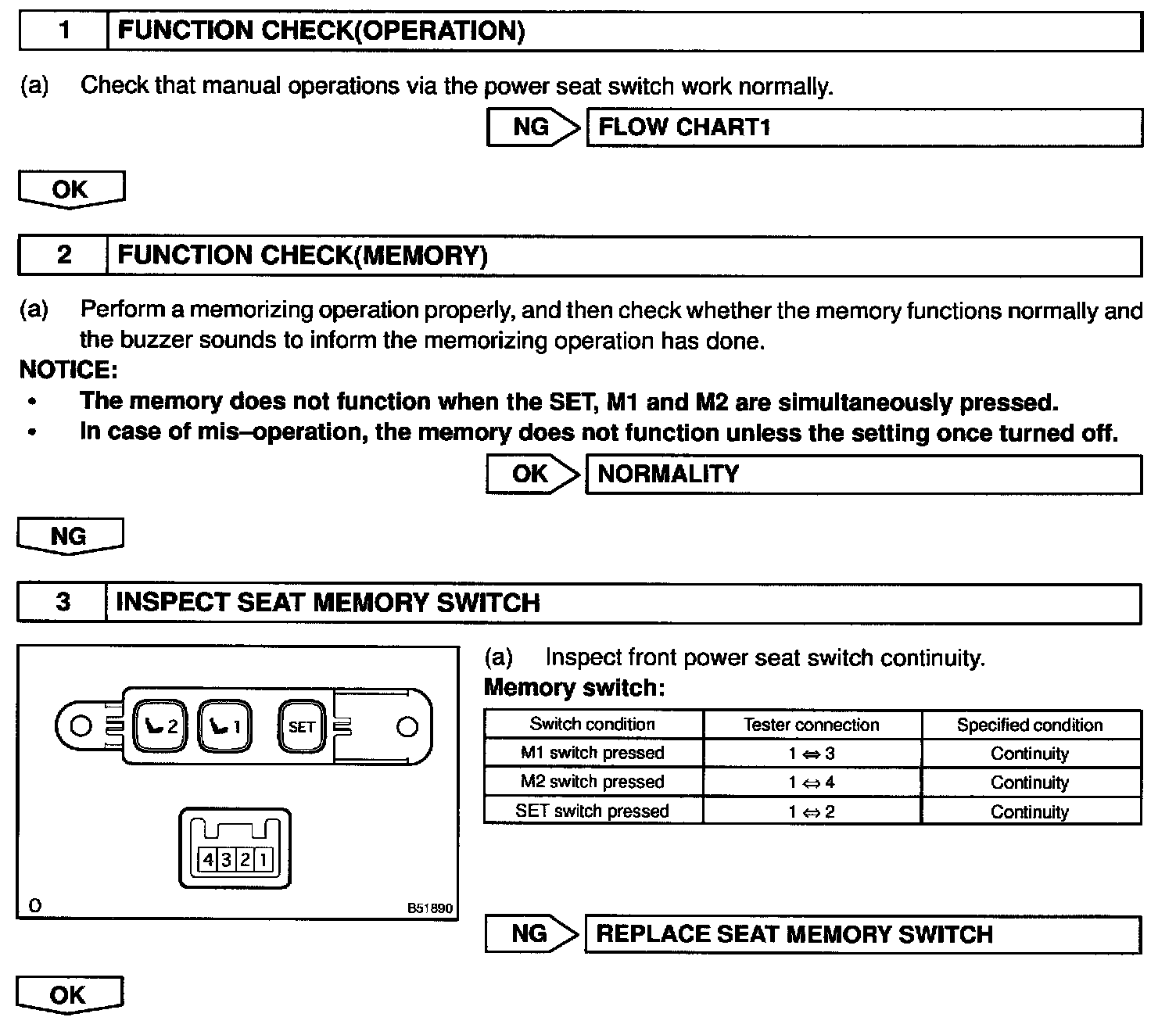

Step 1 - 3:

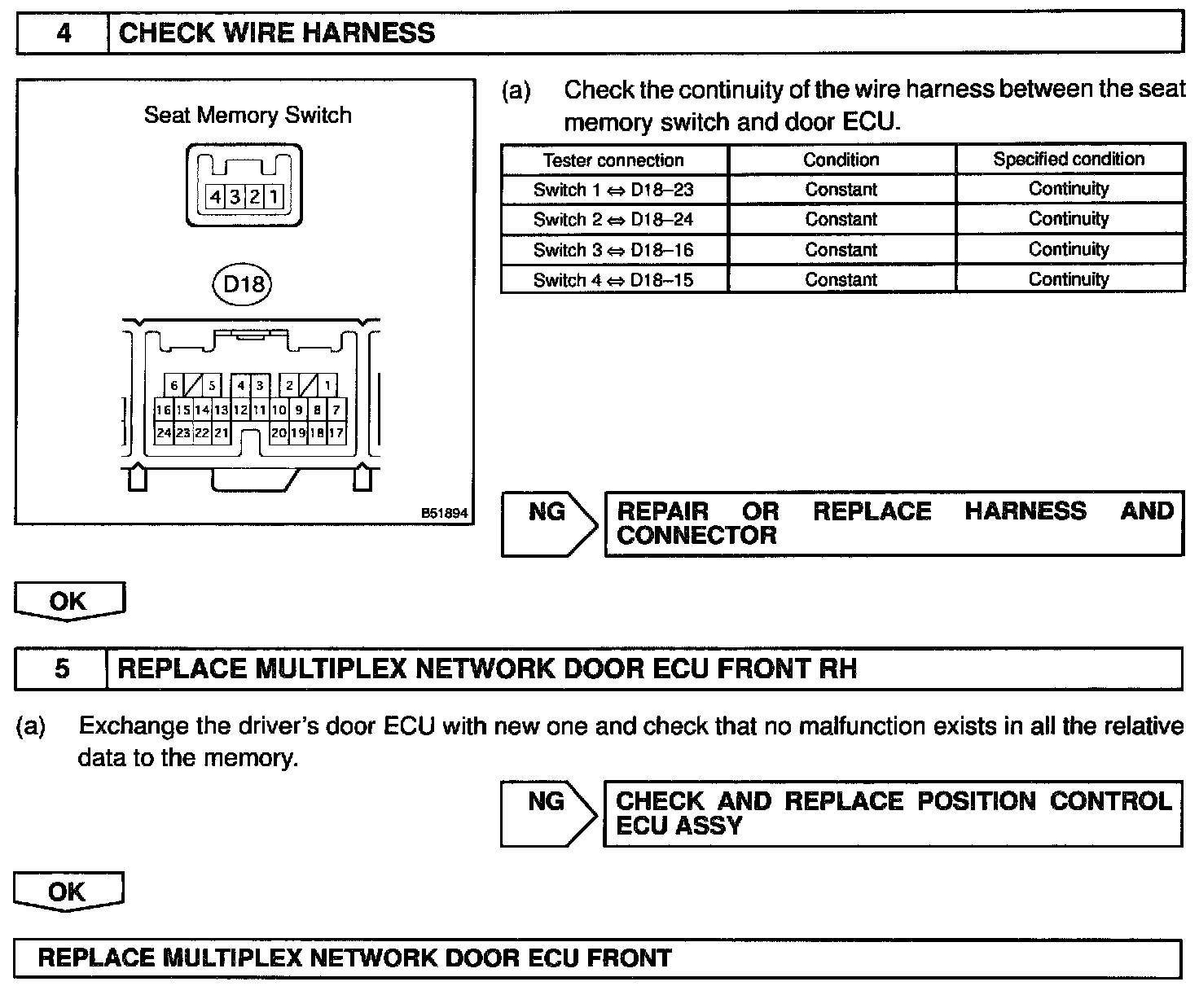

Step 4 - 5:




INSPECTION PROCEDURE
