Position Cannot Be Memorized

FUNCTION DESCRIPTION

When the set button of the memory adjusting switch is pressed, the door ECU directs the front seat ECU multiply to memorize the value of each position sensor.

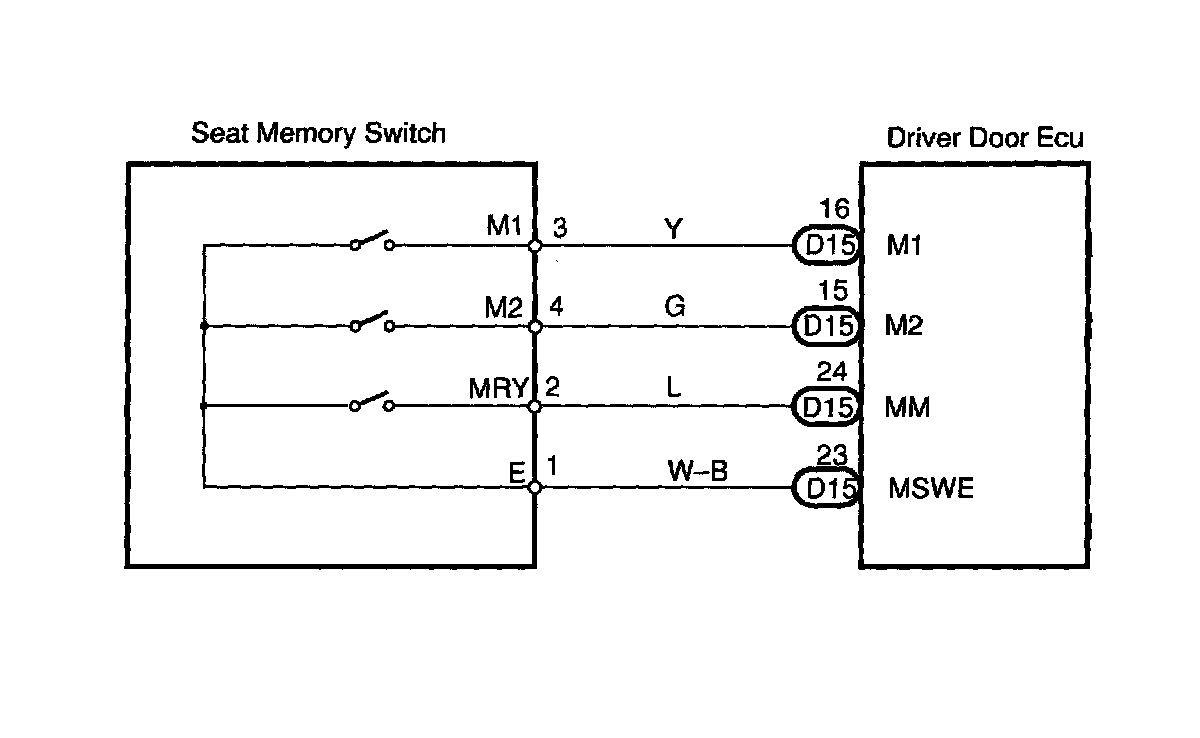

Wiring Diagram:

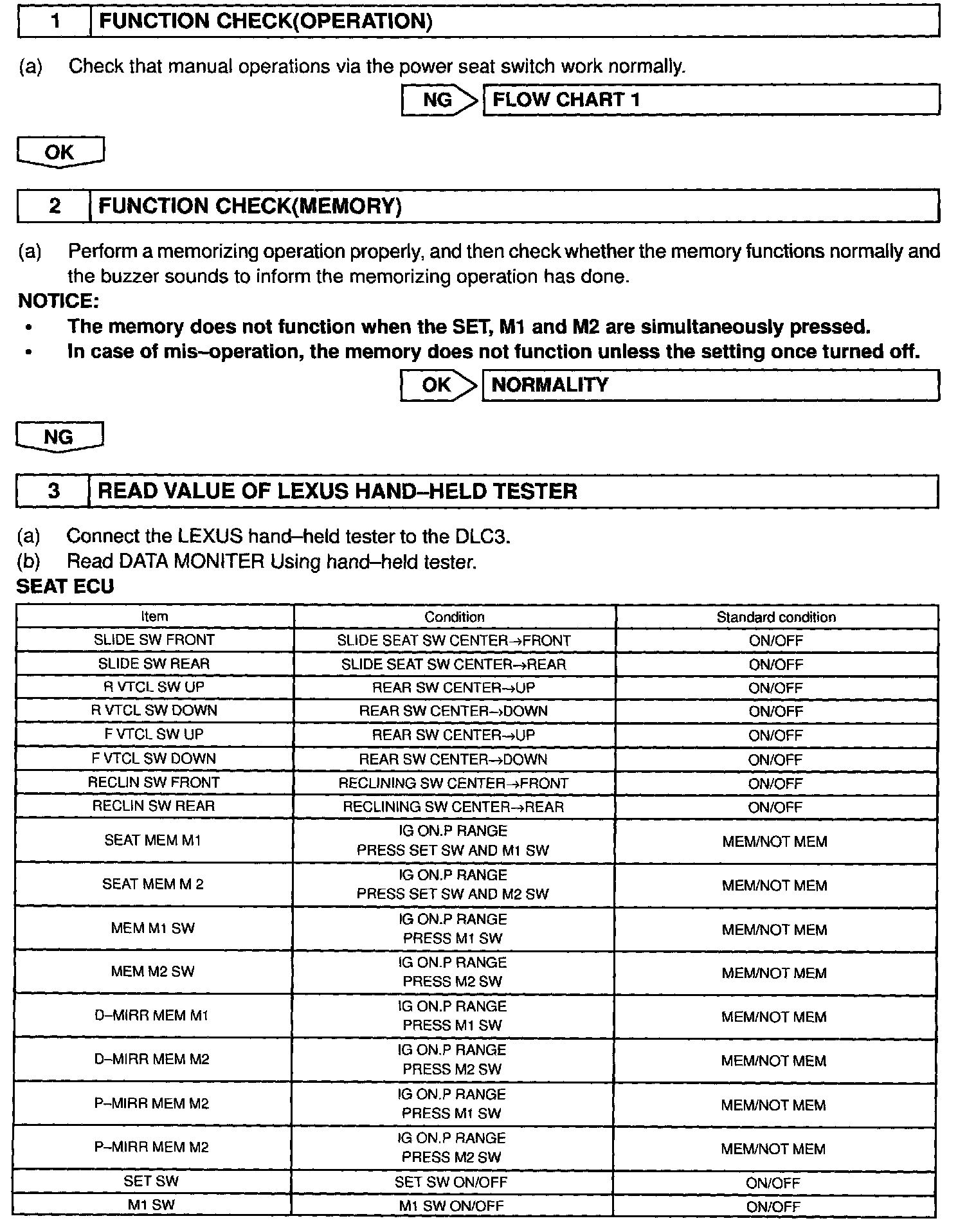

Step 1 - 3:

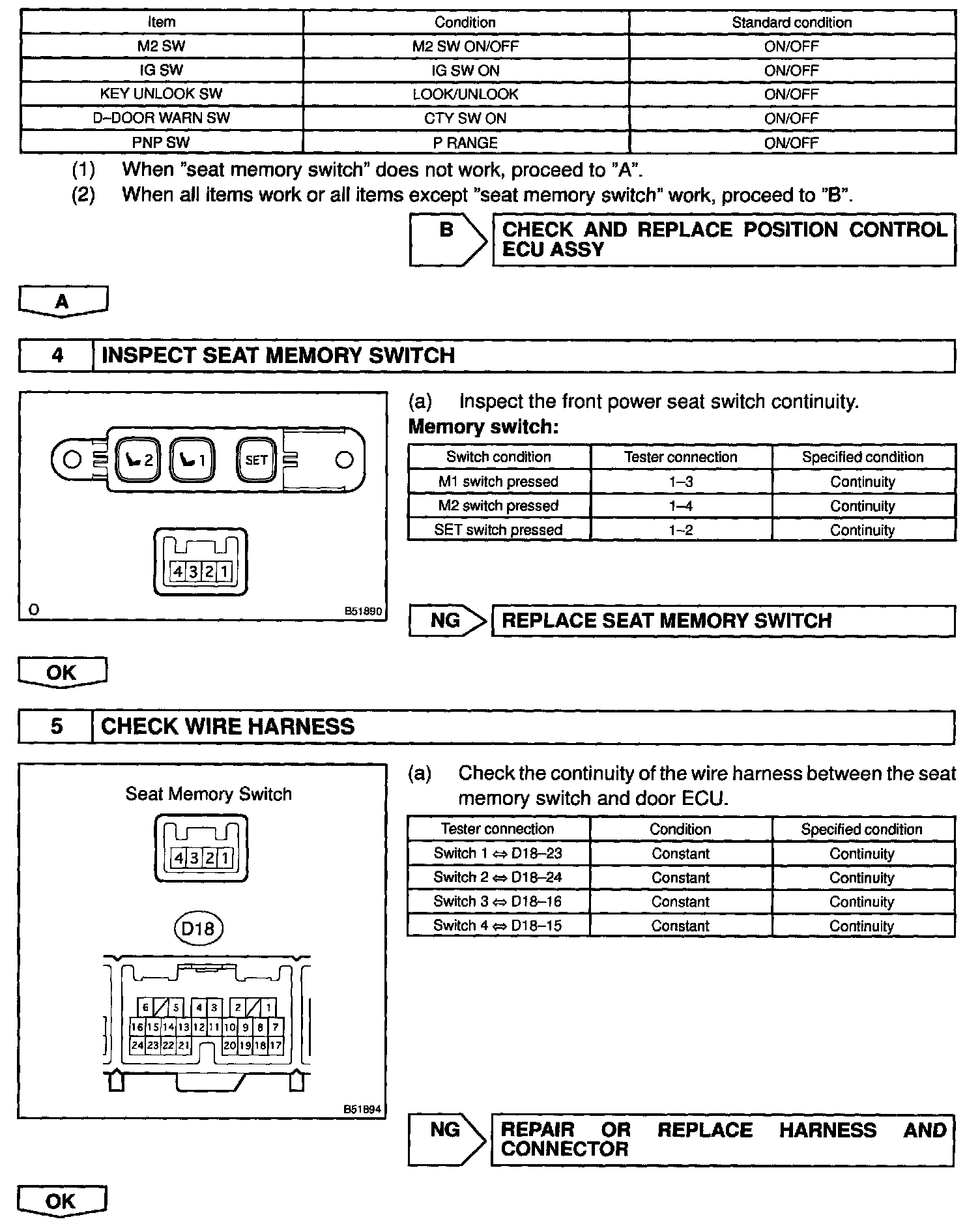

Step 3 (Continued) - 5:

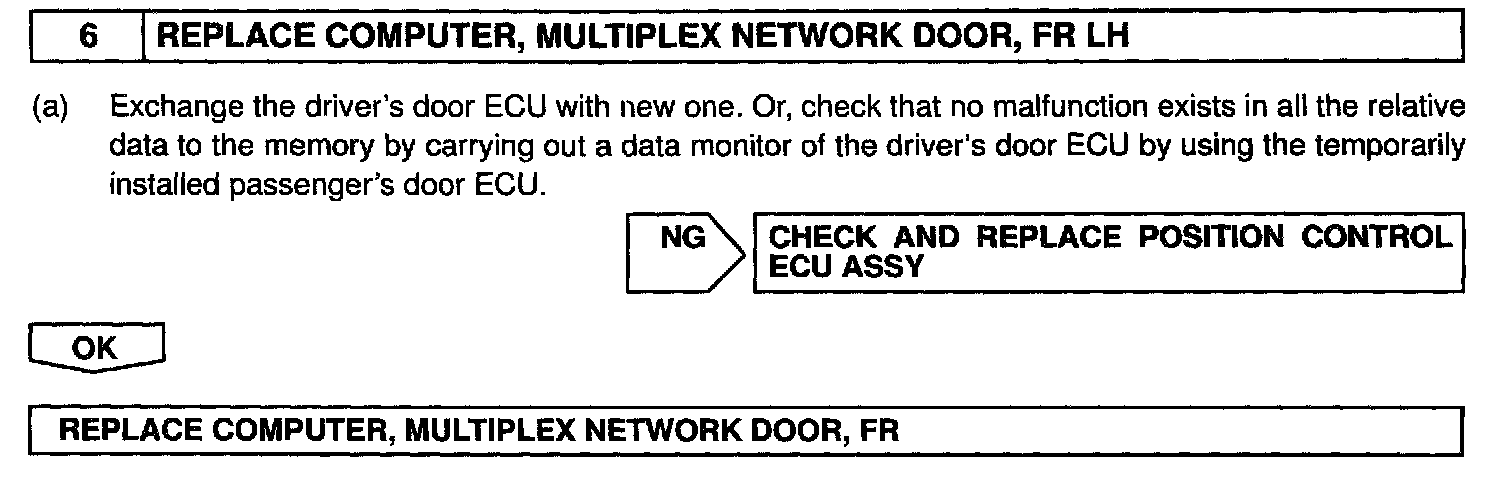

Step 6:

INSPECTION PROCEDURE
