MANUAL OPERATION IS IMPOSSIBLE (WHEN NOT USING HAND-HELD TESTER)

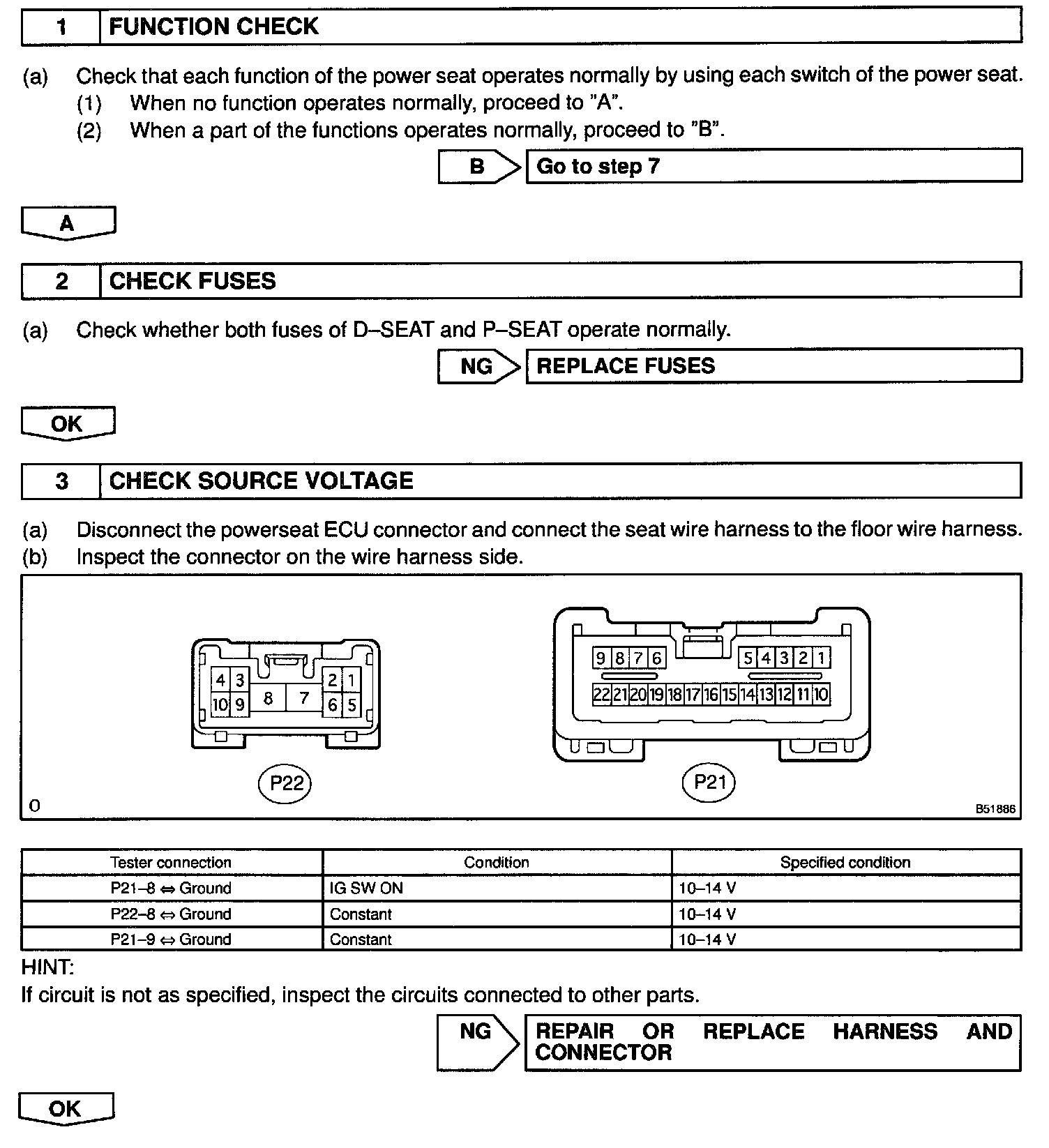

Step 1 - 3:
Step 4 - 5:

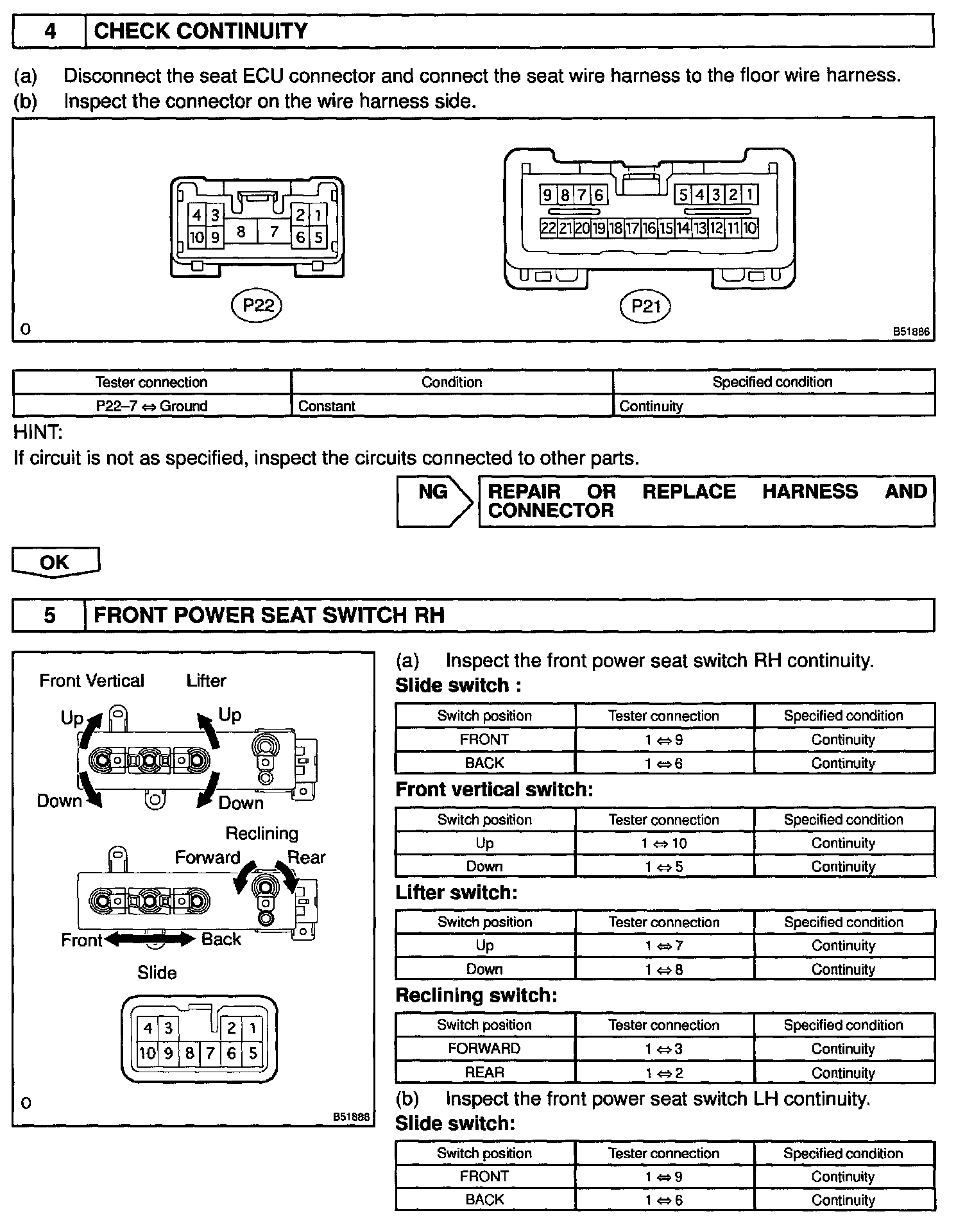

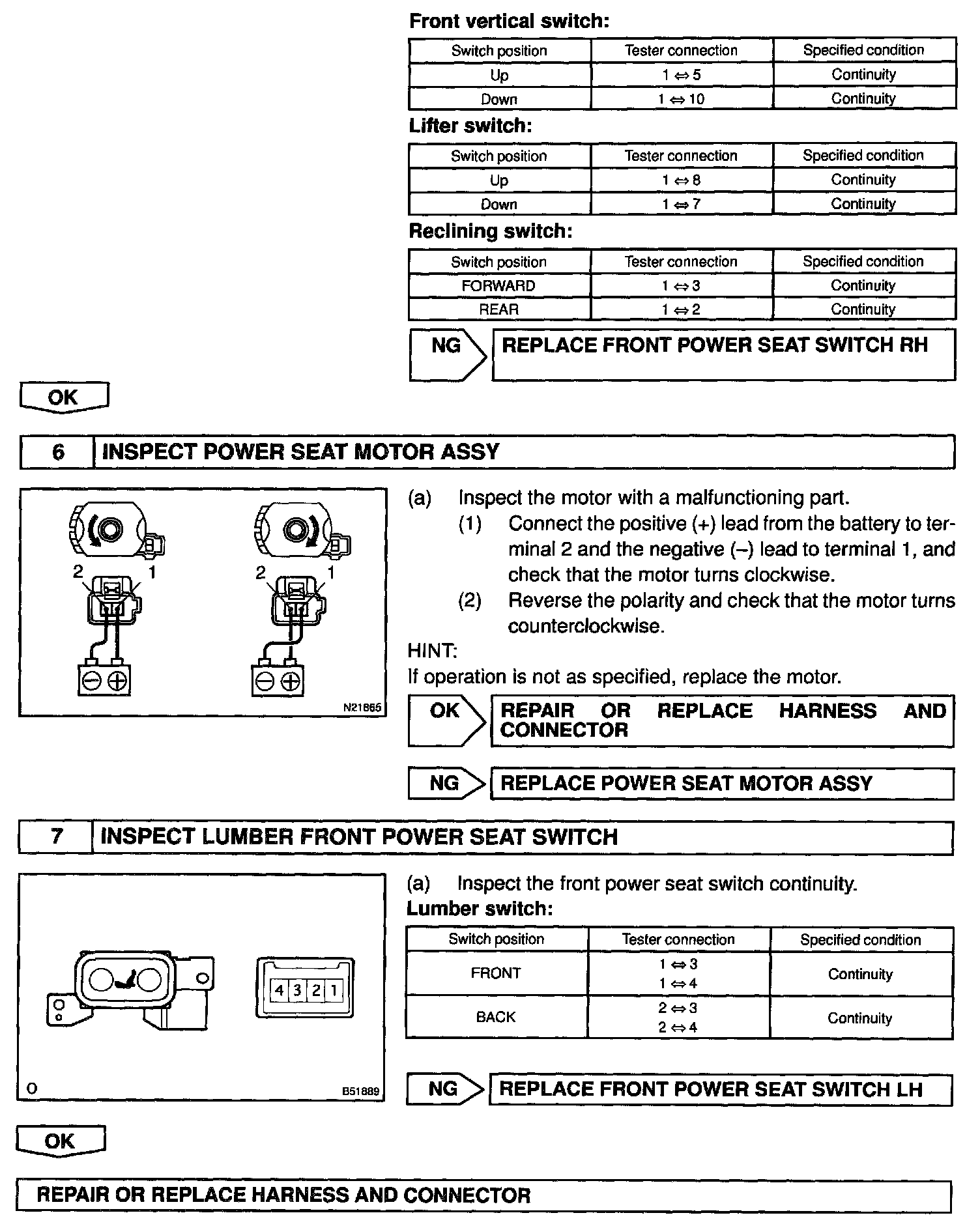

Step 5 (Continued) - 7:
INSPECTION PROCEDURE
