Manual Operation Is Impossible

CIRCUIT DESCRIPTION

Signals of the front power seat switch are monitored by the power seat ECU that driver's each motor.

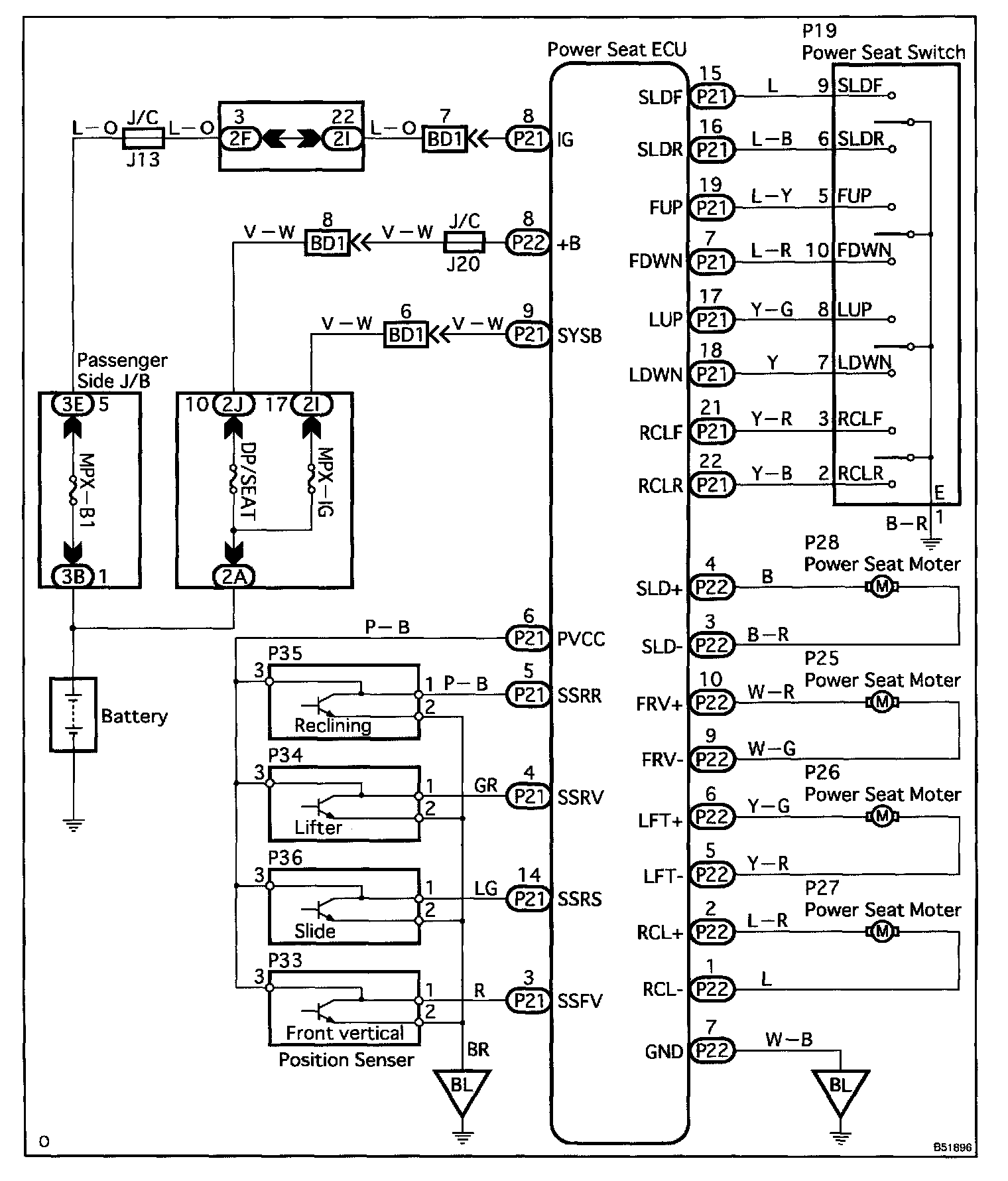

Wiring Diagram:

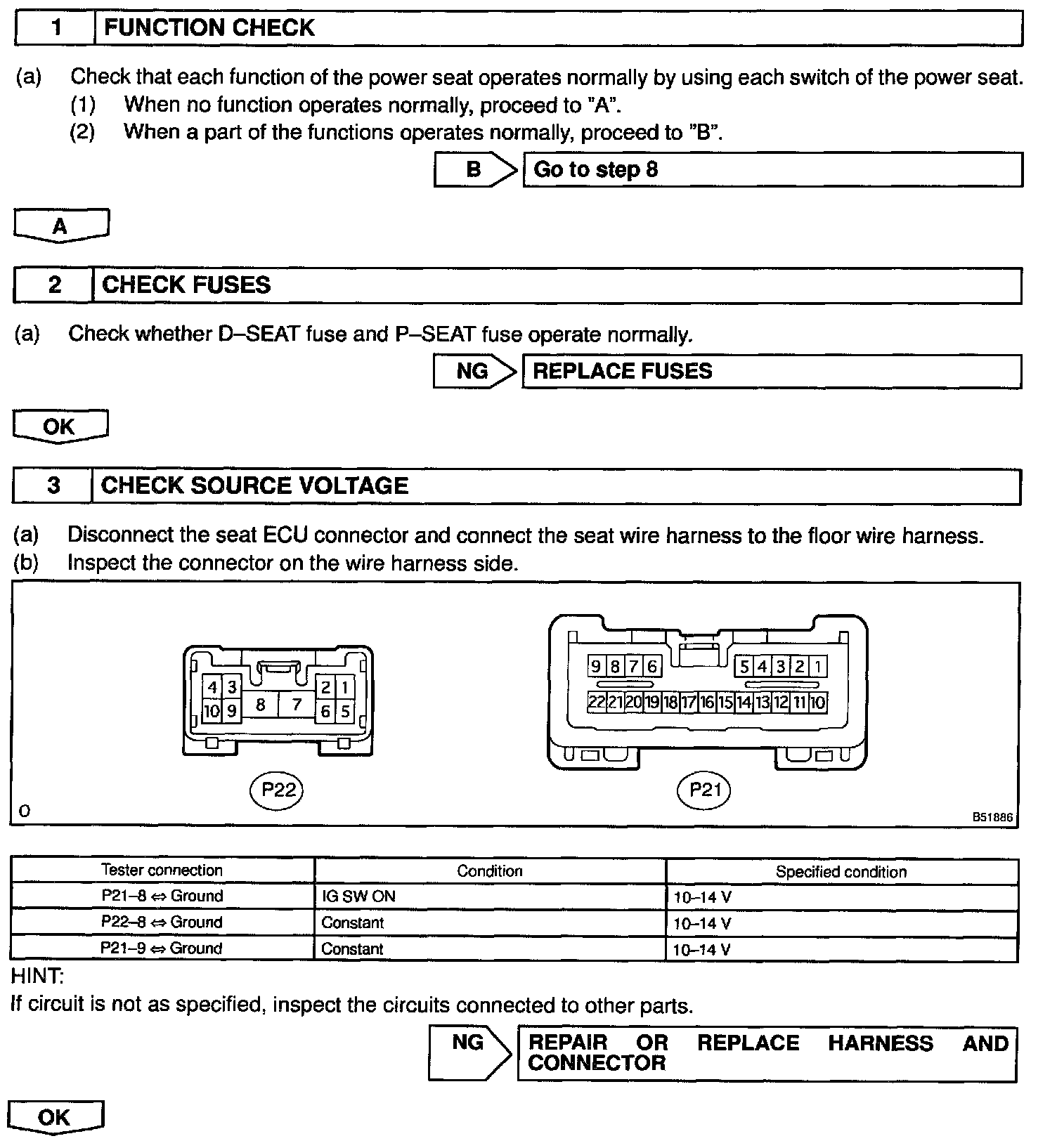

Step 1 - 3:

Step 4 - 5:

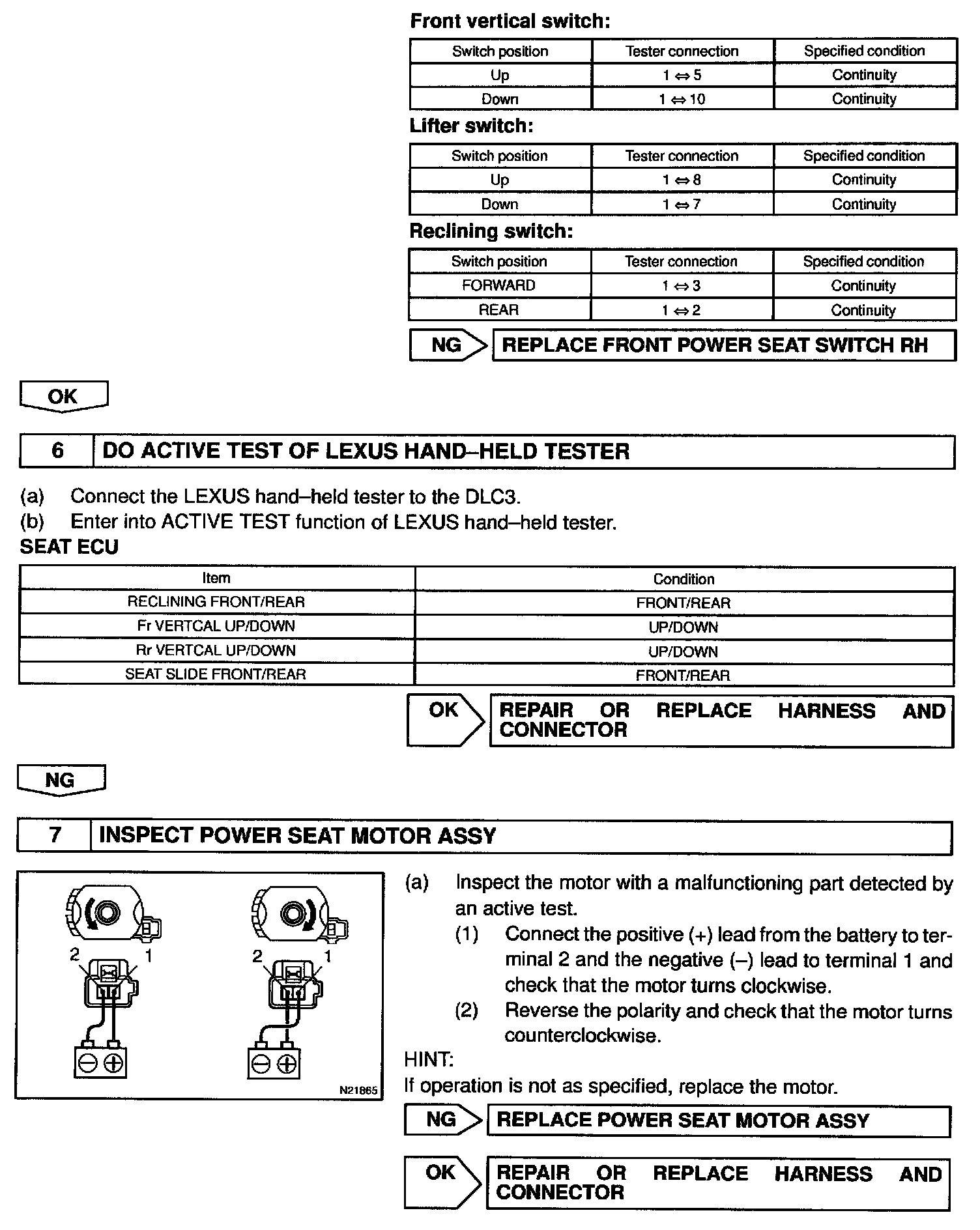

Step 5 (Continued) - 7:

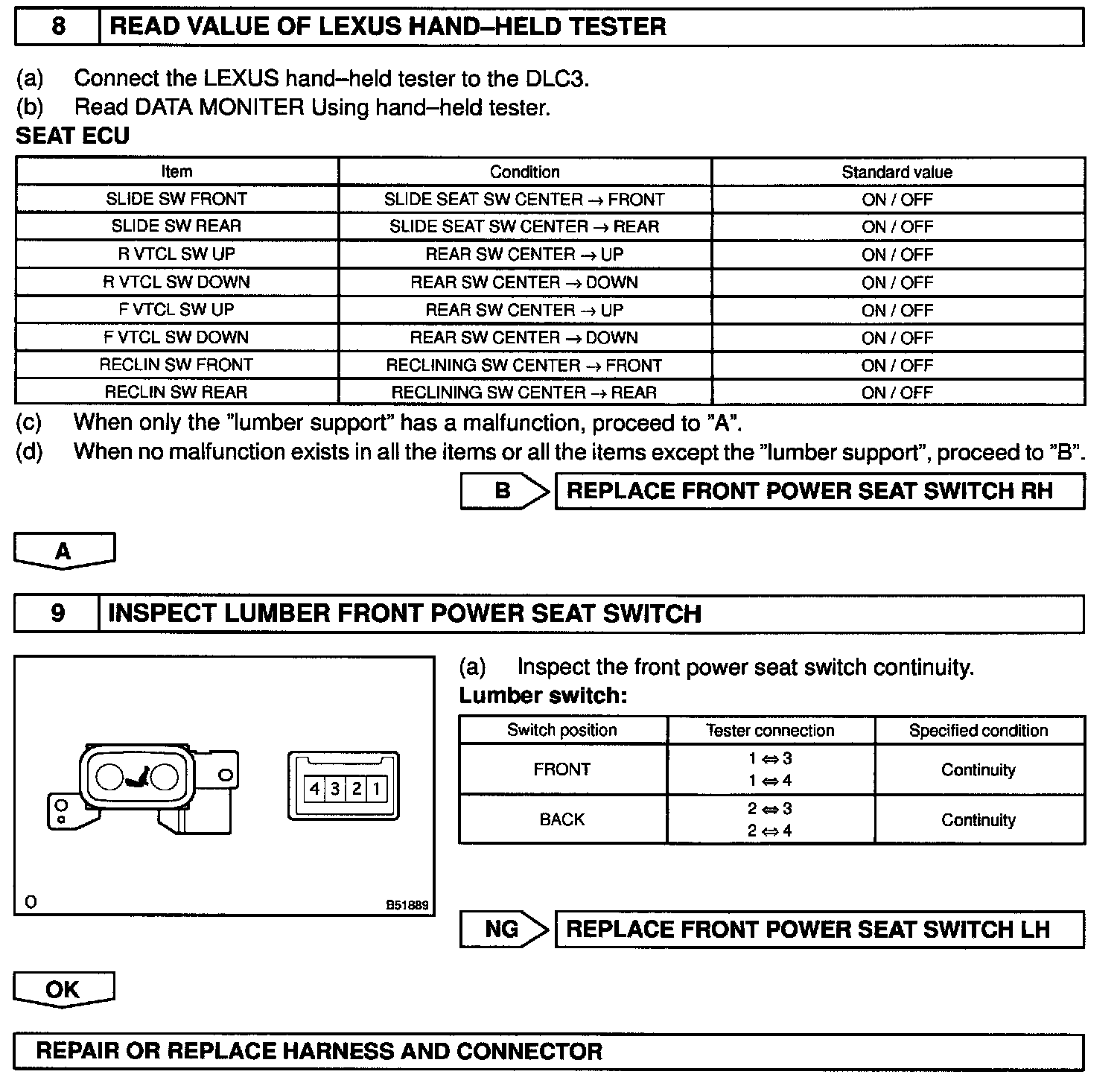

Step 8 - 9:

INSPECTION PROCEDURE
