Pinout Values and Diagnostic Parameters

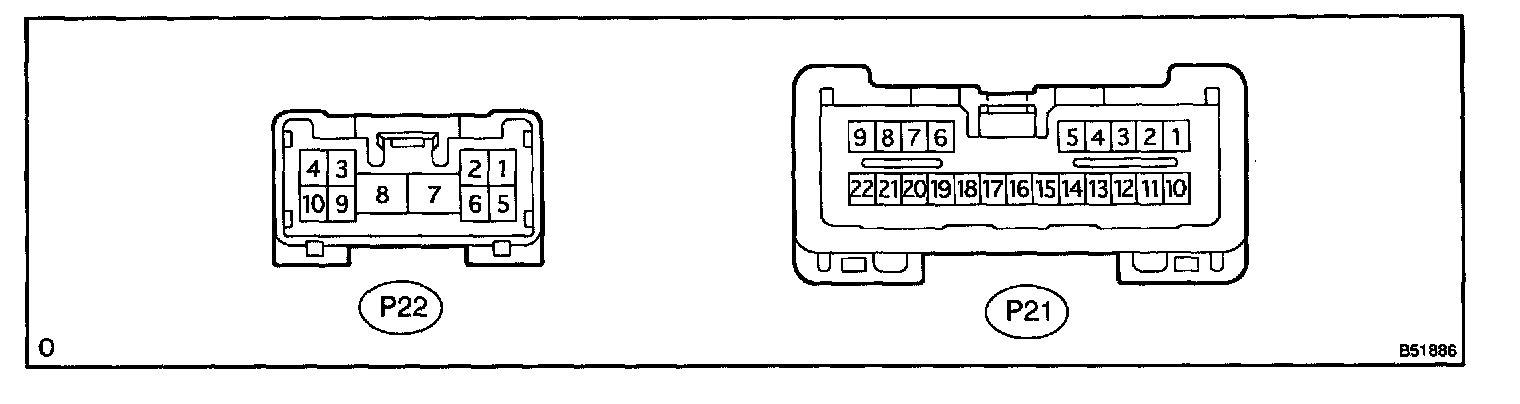

TERMINALS OF ECU




1. DRIVER SEAT ECU

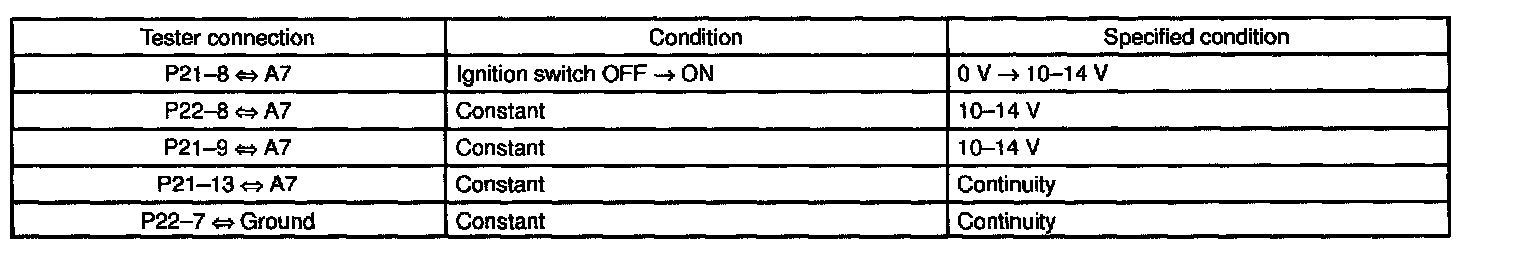

a. INSPECT RELAY OPERATION




1. Disconnect the connector from the power seat ECU and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to the other parts.

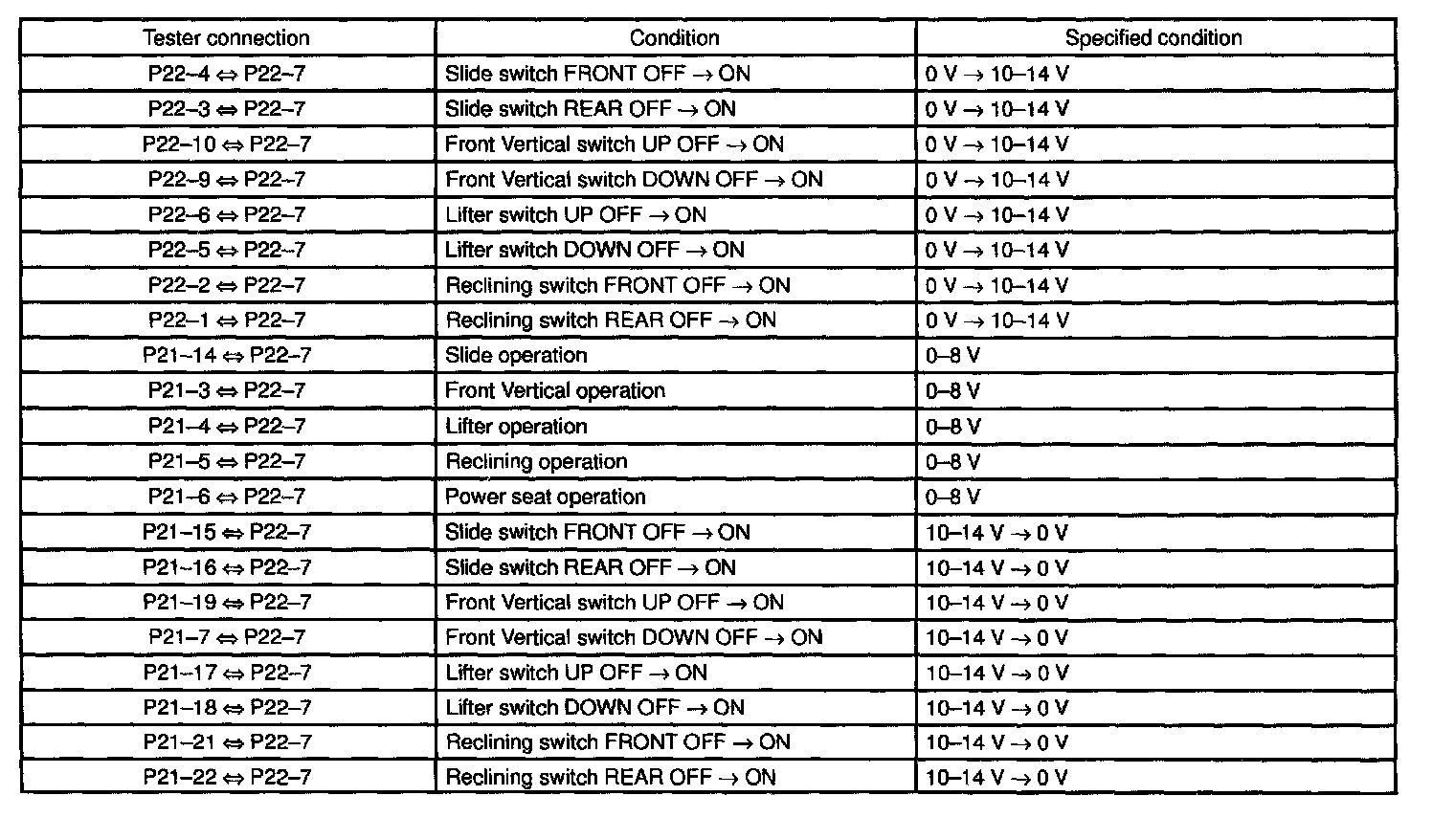

b. Connect wire harness side connector to the power seat ECU and inspect the connector from the back side.
If the circuit is not as specified, inspect the circuits connected to the other parts.
