Pre-Check

NOTE: This is the only information provided by the manufacturer for reading diagnostic trouble codes for this system.

PRE-CHECK




1. USING LEXUS HAND-HELD TESTER
a. Connect the LEXUS hand-held tester to the DLC3.

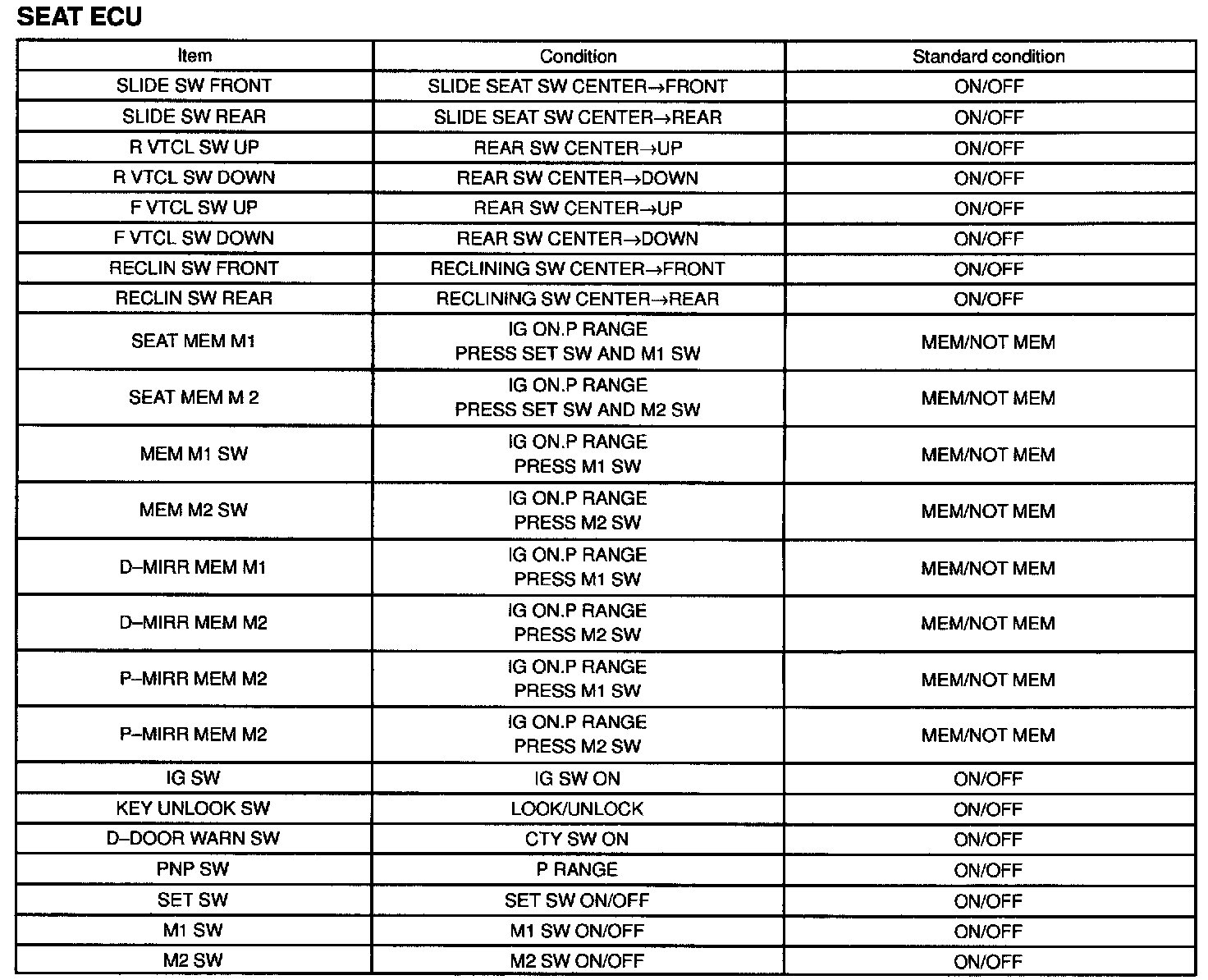

b. Read DATA MONITOR using hand-held tester.

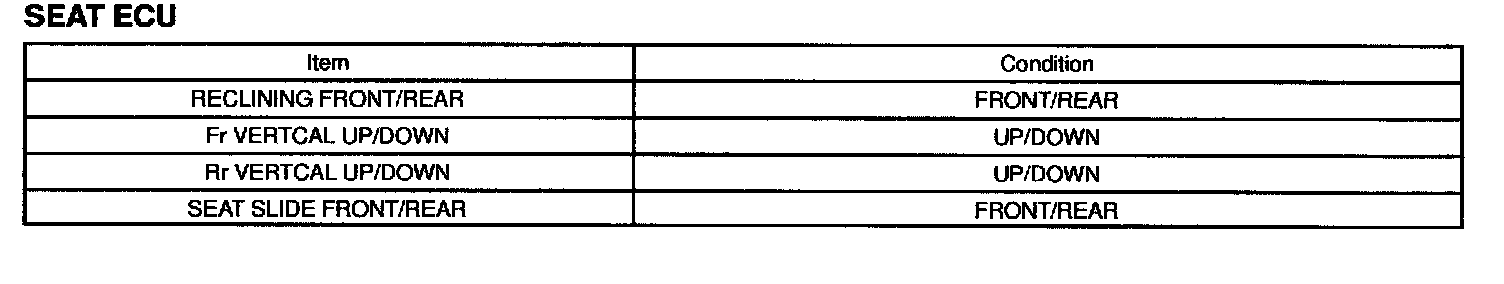

c. Enter into ACTIVE TEST function of LEXUS hand-held tester.
