Pinout Values and Diagnostic Parameters

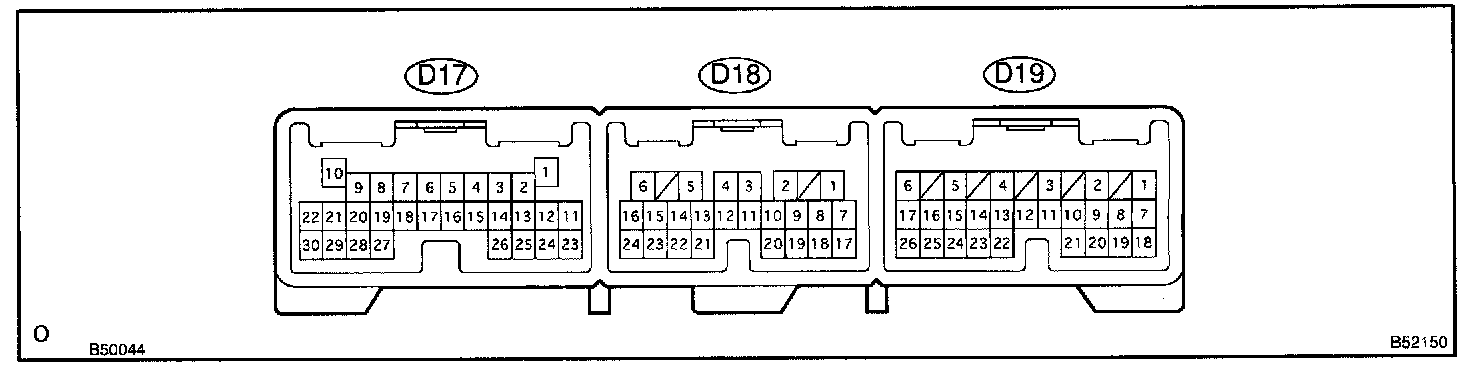

TERMINALS OF ECUTerminals Of ECU:
1. DRIVER DOOR ECU
a. INSPECT DOOR ECU

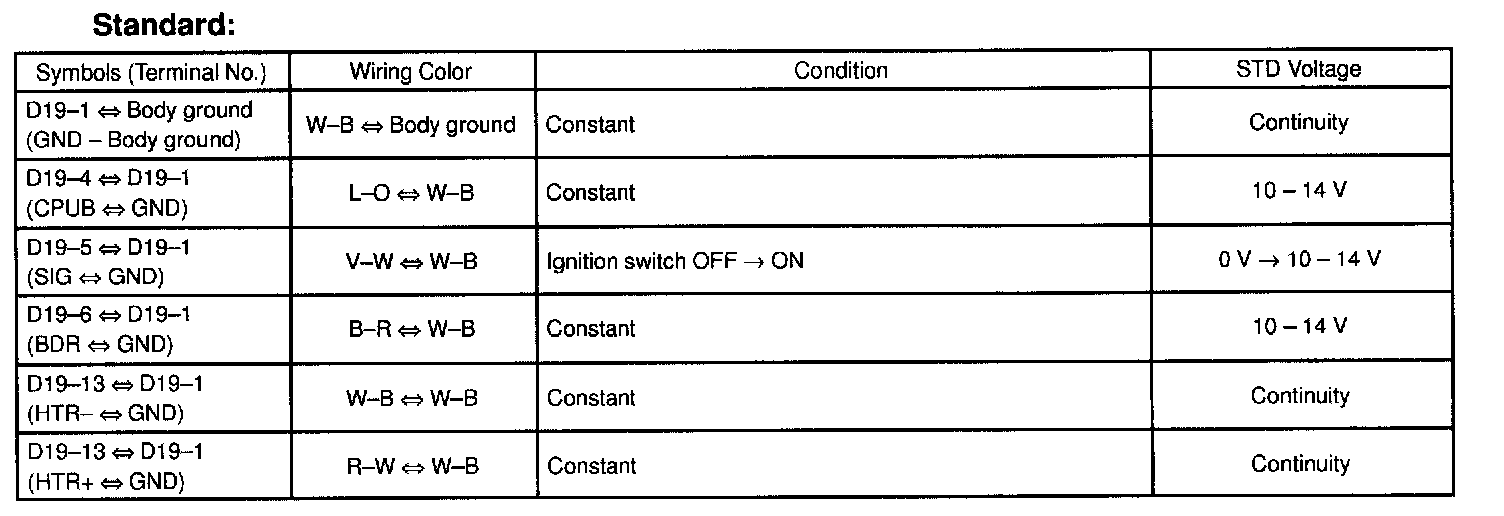

1. Check the voltage and continuity between each terminal of the vehicle's side connector.
HINT: If the value is not as specified, a malfunction exists in the vehicle side.

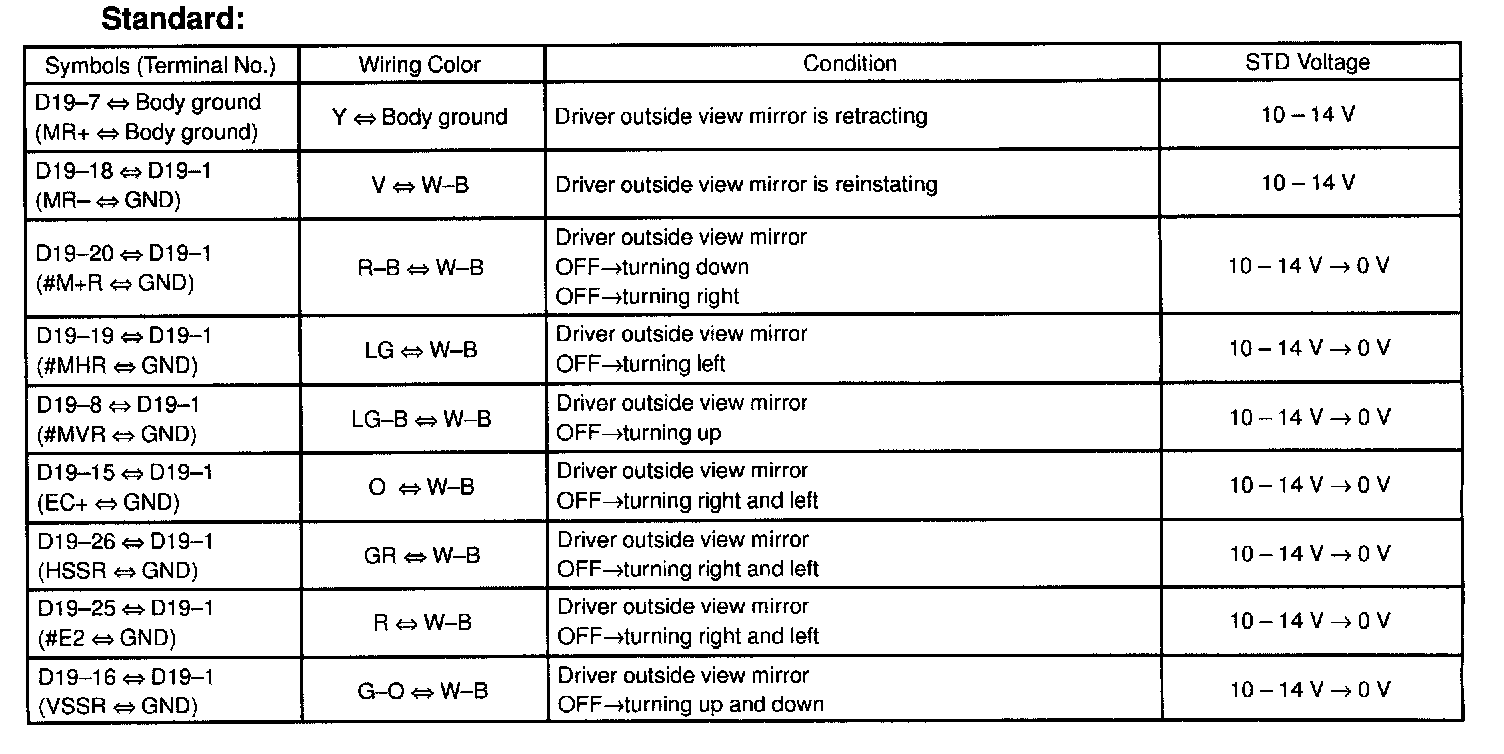

2. Connect connectors and check the voltage between each terminal of the connectors.
HINT: If the value is not as specified, a malfunction exists in the door ECU or the communication line

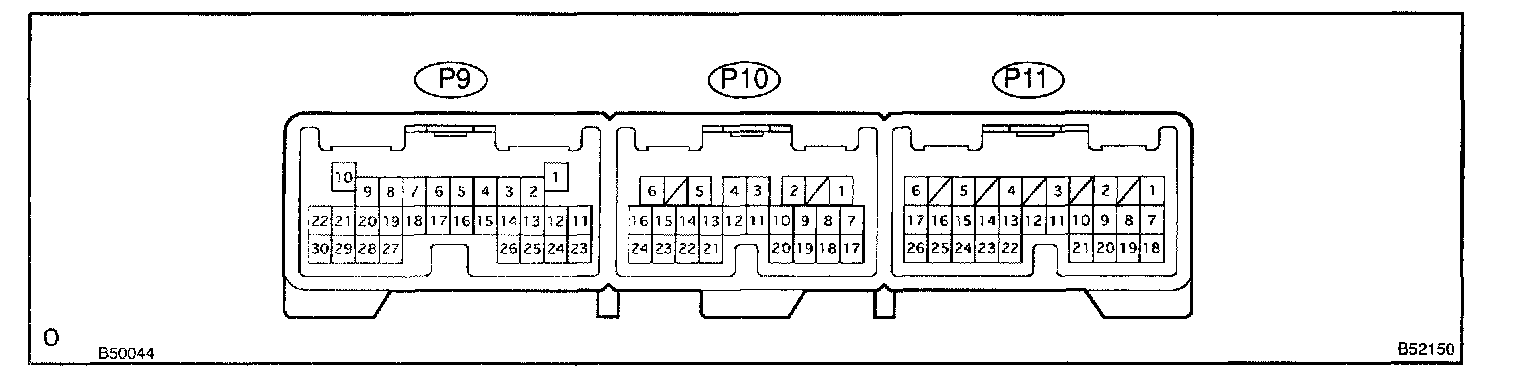

Terminals Of ECU:
2. PASSENGER DOOR ECU
a. INSPECT DOOR ECU

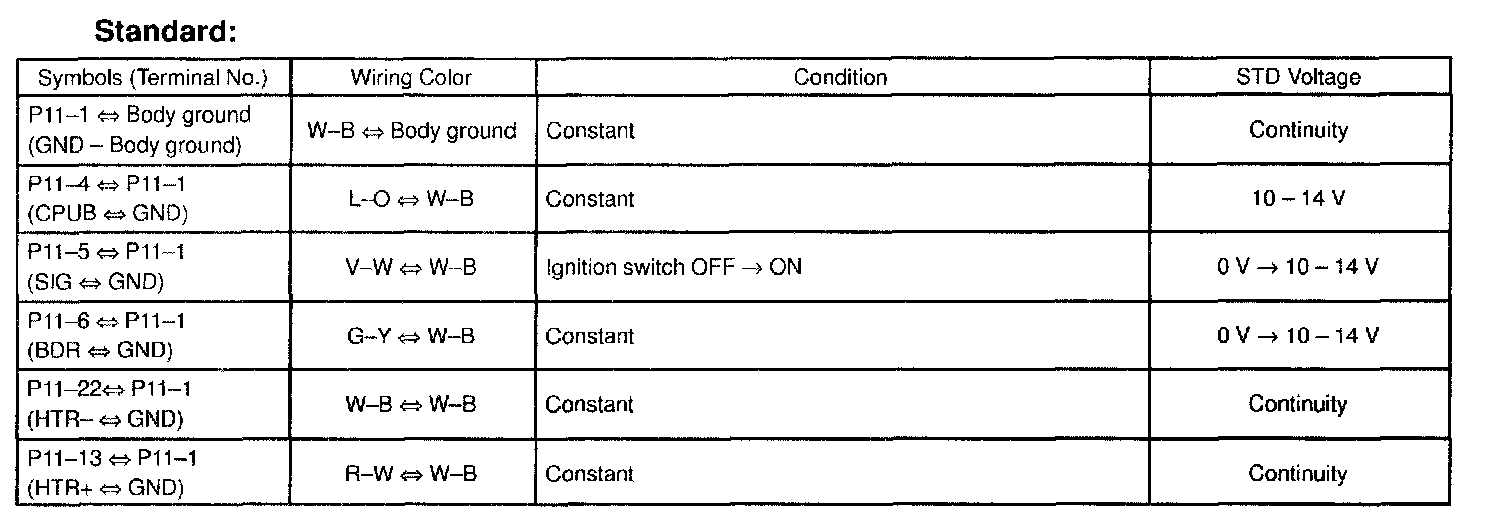

1. Check the voltage and continuity between each terminal of the vehicle's side connector.
HINT: If the value is not as specified, a malfunction exists in the vehicle side.

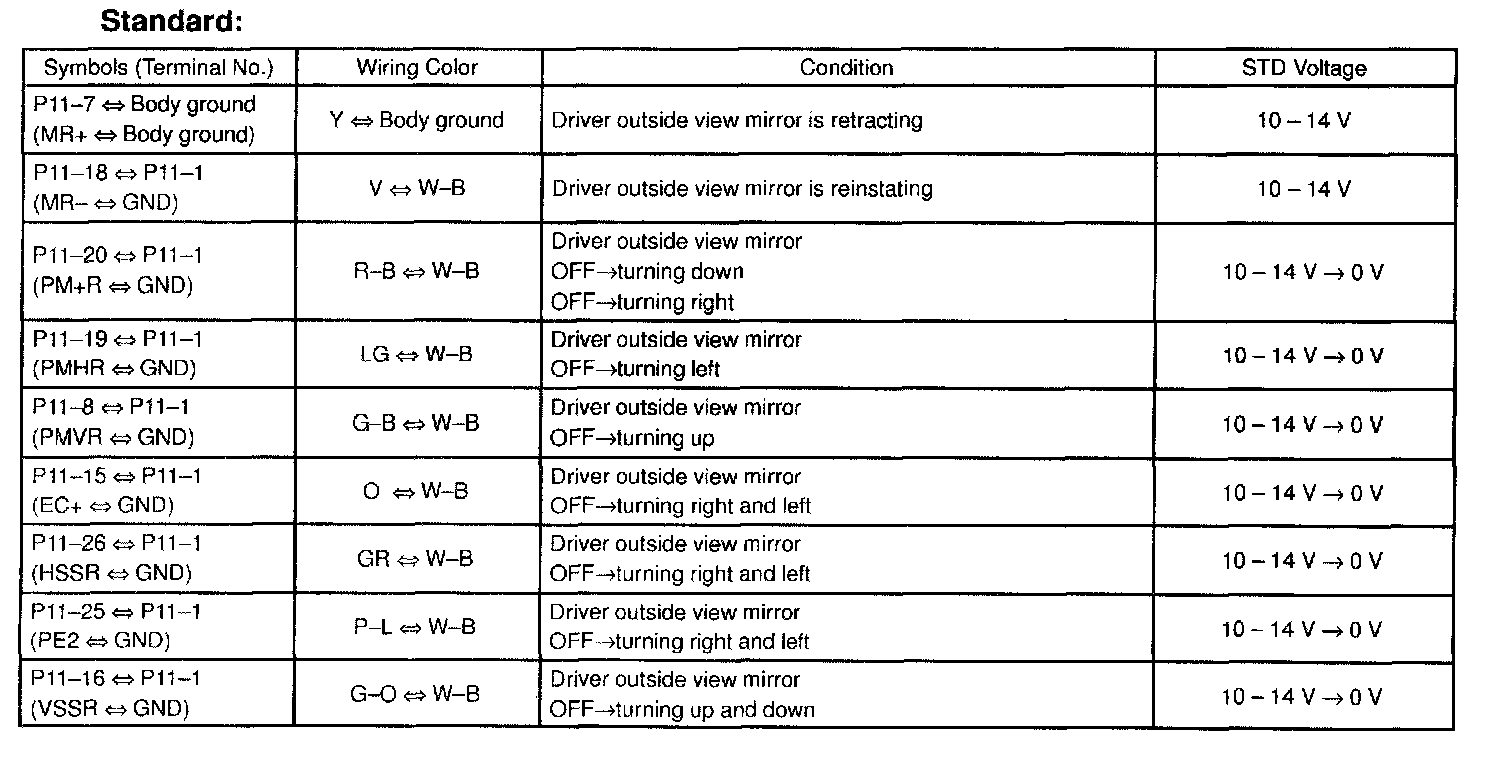

2. Connect connectors and check the voltage between each terminal of the connectors.
HINT: If the value is not as specified, a malfunction exists in the door ECU or the communication line.

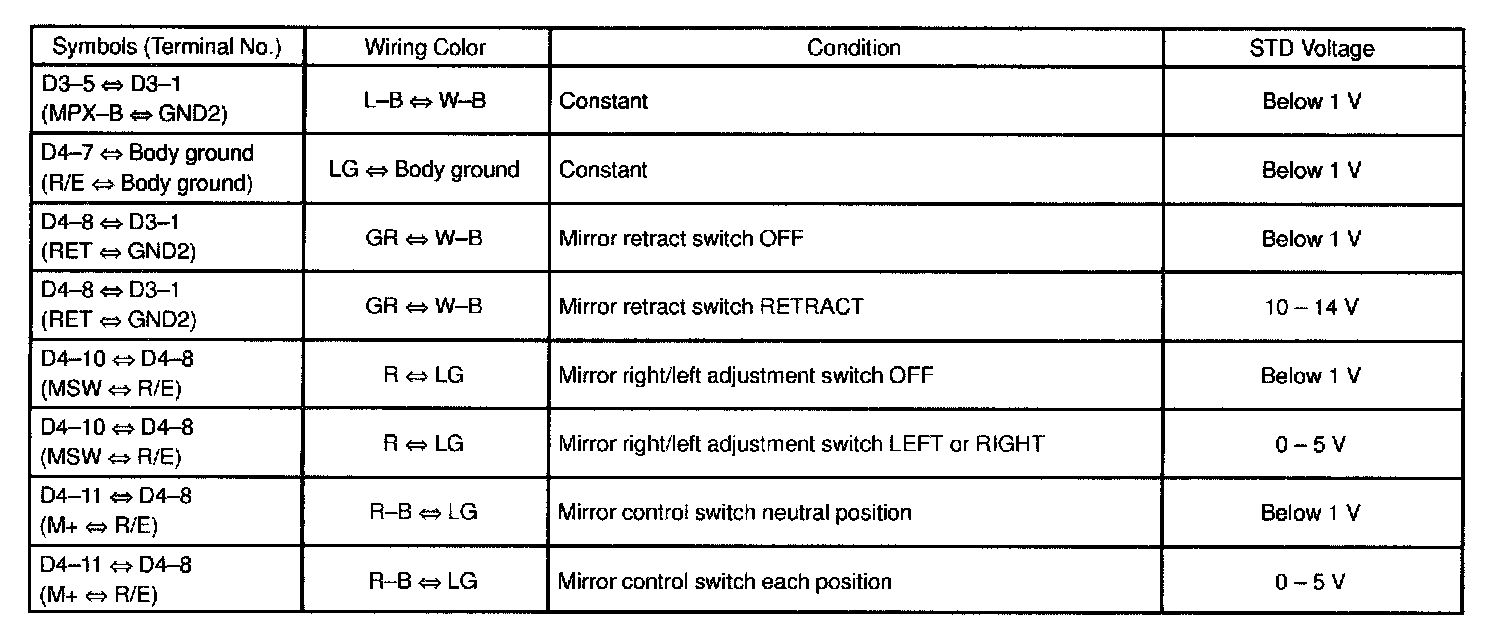

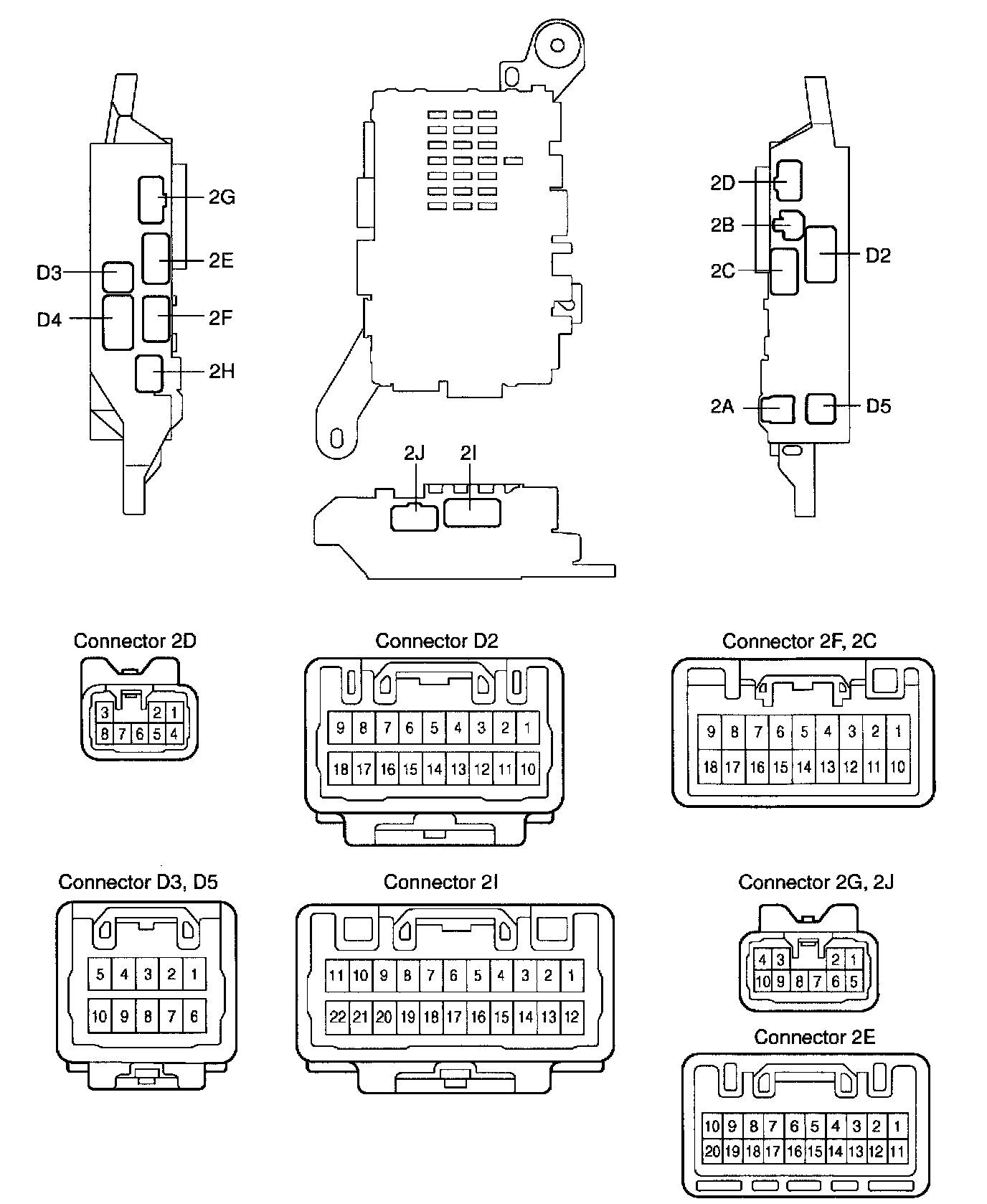

3. DRIVER SIDE J/B (DRIVER SIDE J/B ECU)
