Pinout Values and Diagnostic Parameters

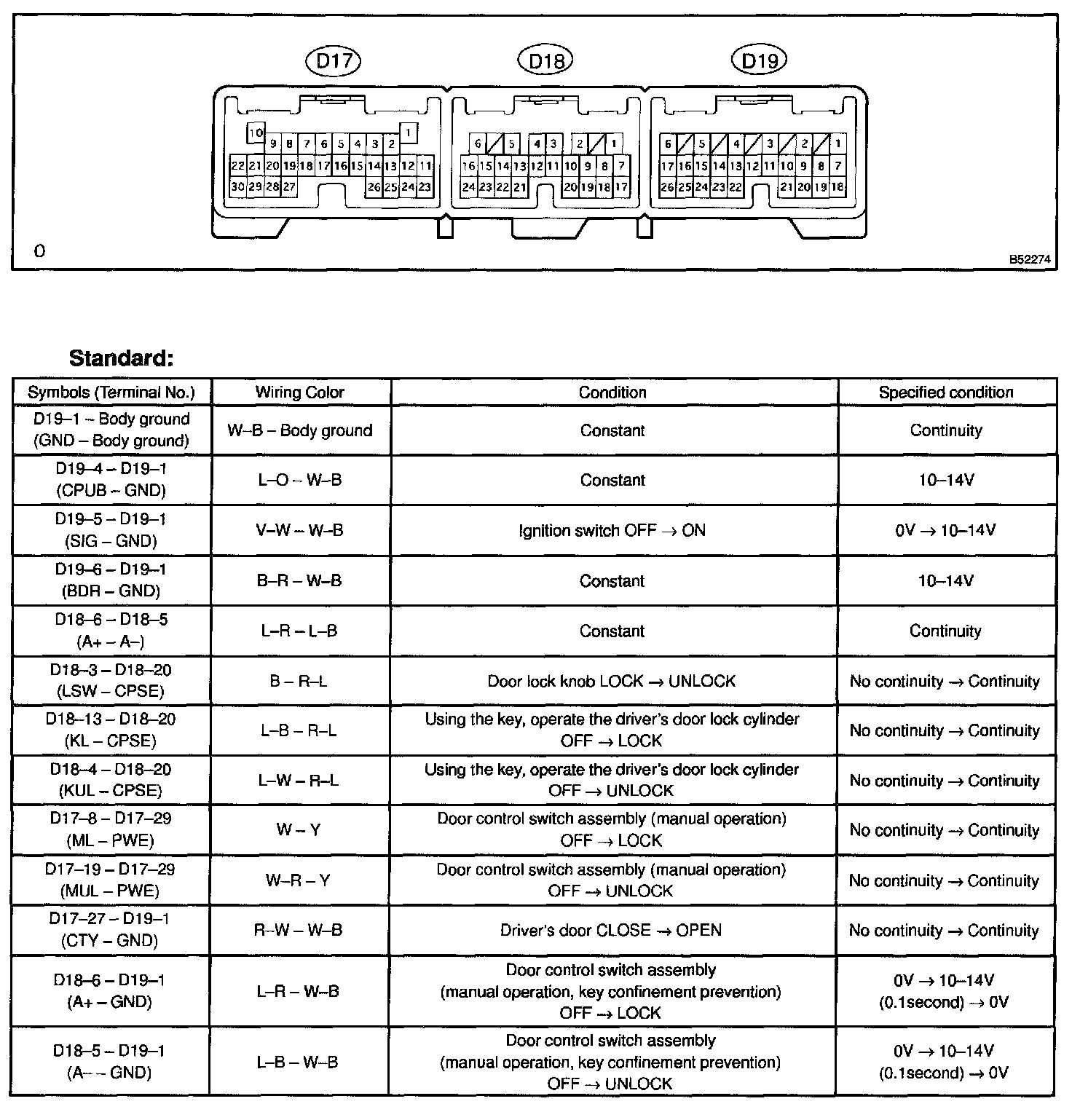

Terminals Of ECU - Multiplex Network Door Computer Front LH:

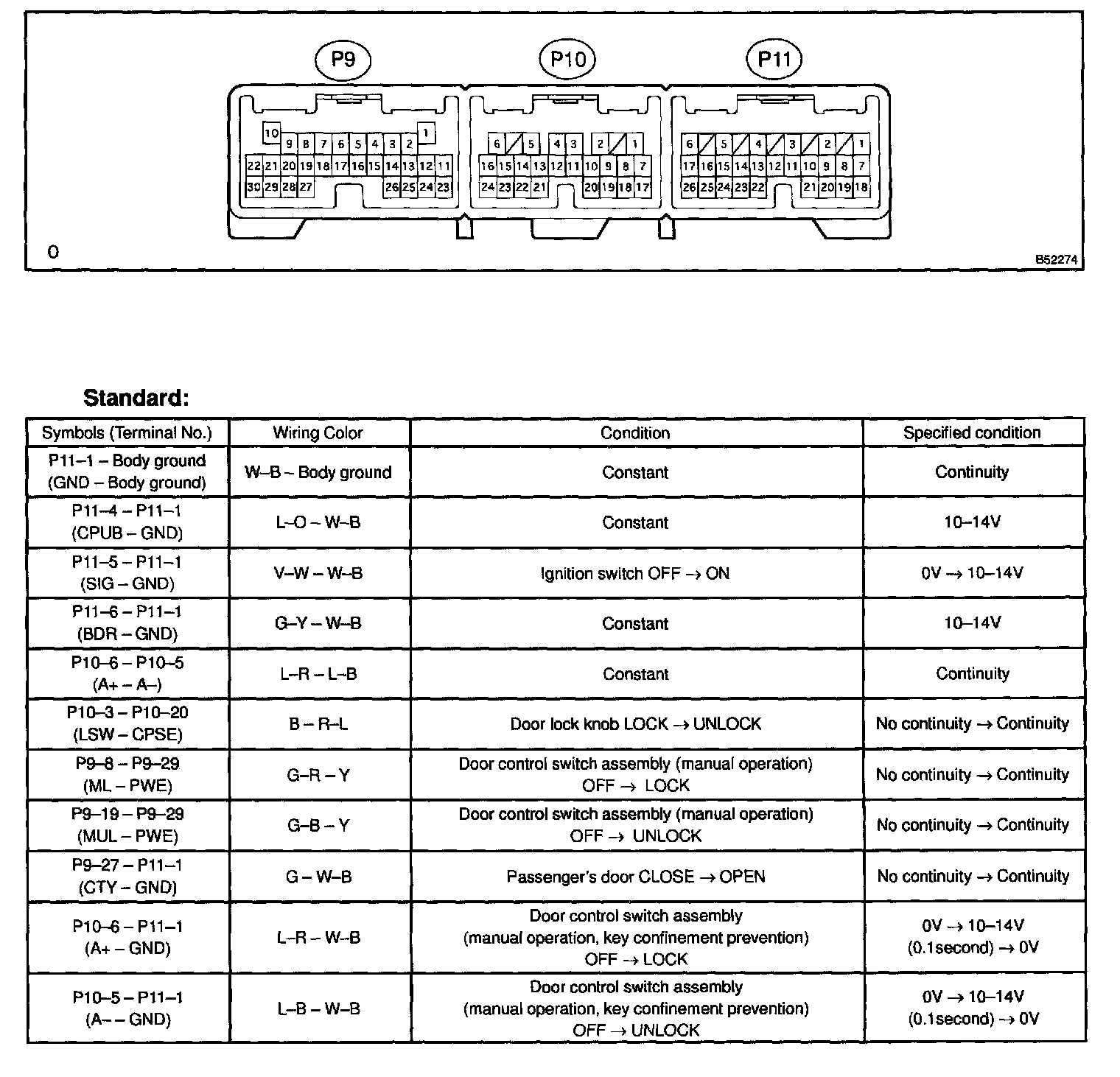

Terminals Of ECU - Multiplex Network Door Computer Front RH:



Terminals Of ECU - Theft Warning Computer:

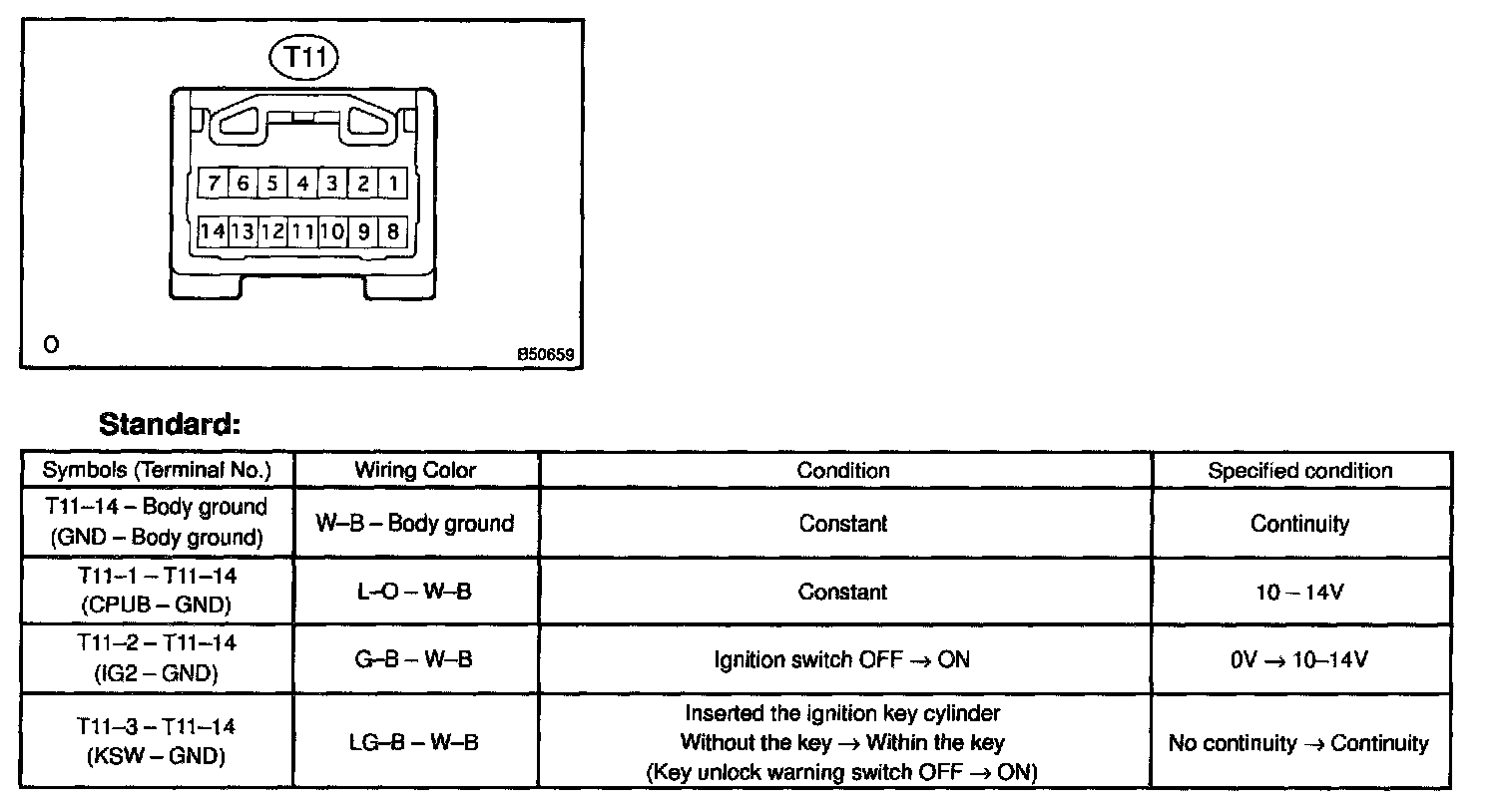

Terminals Of ECU - Transponder Key Computer Assembly:
