Trim Panel: Service and Repair

FRONT DOOR BELT MOULDING LH

Front Door Belt Moulding LH:

REPLACEMENT

HINT:
- Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.
- In the RH side, work in the same procedure as in the LH side.

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

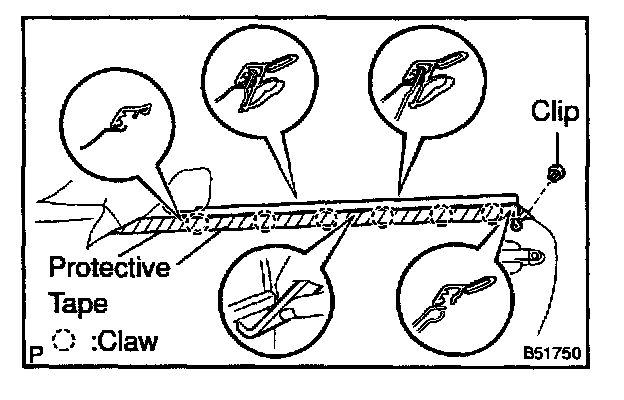

4. REMOVE FRONT DOOR BELT MOULDING LH
a. Remove the clip.
b. Put protective tape under the front door belt moulding assembly LH.
c. Using a moulding remover or scraper, remove the claws and front door belt moulding assembly LH.

HINT: Tape the scraper tip before use.
