Headliner: Service and Repair

REPLACEMENT

HINT: Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.

1. ROOF HALF-OPEN
a. Make the roof hart-open.

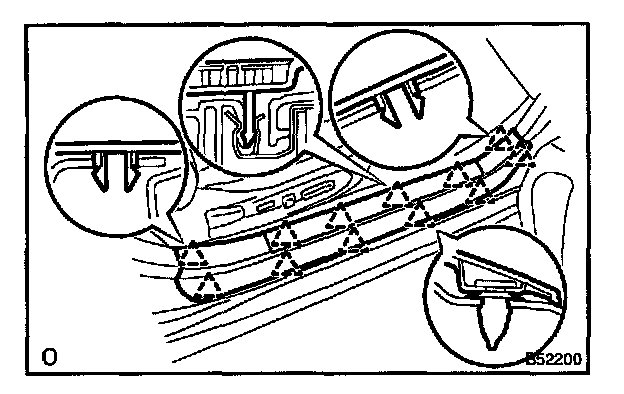

2. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
a. Using a screwdriver, remove the door scuff plate.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

3. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

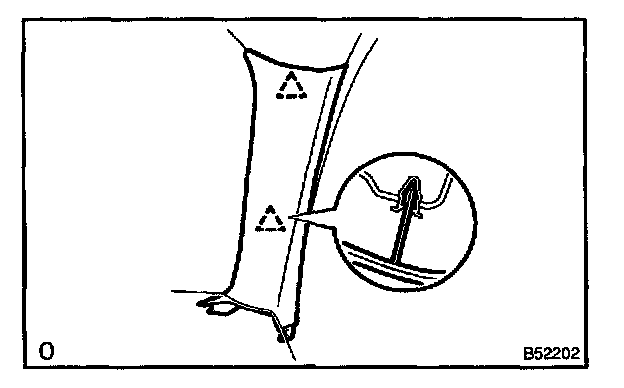

4. REMOVE FRONT DOOR OPENING TRIM COVER RH
a. Using a screwdriver, remove the front door opening trim cover.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

5. REMOVE FRONT DOOR OPENING TRIM COVER LH

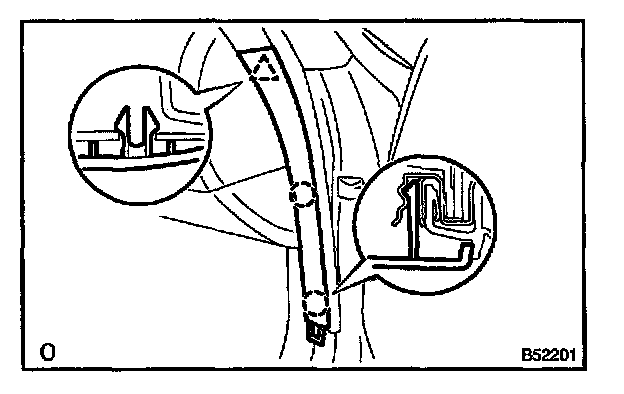

6. REMOVE FRONT PILLAR GARNISH RH
a. Using a screwdriver, remove the front pillar garnish.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

7. REMOVE FRONT PILLAR GARNISH LH

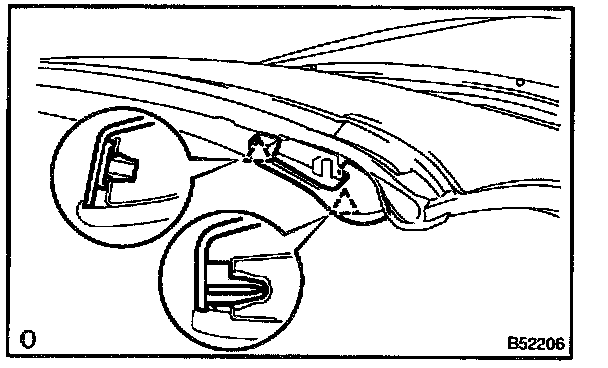

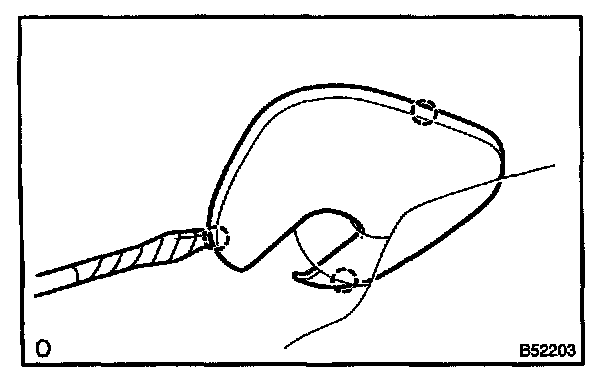

8. REMOVE VISOR BRACKET COVER RH
a. Using a screwdriver, remove the visor bracket cover.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

9. REMOVE VISOR BRACKET COVER LH
10. REMOVE RH VISOR ASSEMBLY
a. Remove the 2 screws and visor.
b. Employ the same manner described above to the other side.

11. REMOVE LH VISOR ASSEMBLY

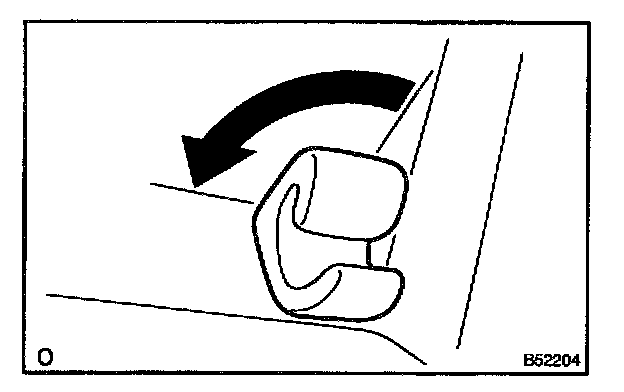

12. REMOVE VISOR HOLDER
a. Remove the holder of the sun visor by turning it to the left.

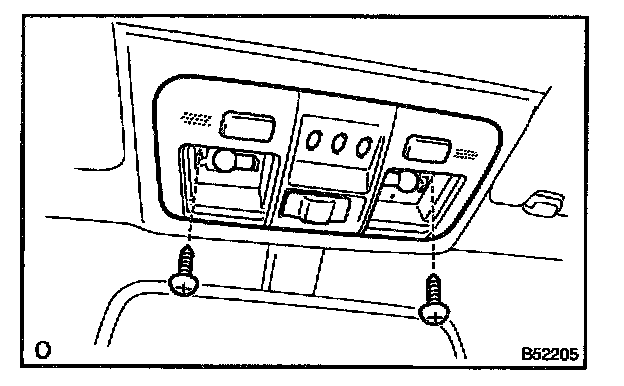

13. REMOVE MAP LAMP ASSEMBLY
a. Using a screwdriver, remove the courtesy lens.

HINT: Tape the screwdriver tip before use.

b. Remove the 2 screws and map lamp.




14. REMOVE ROOF FRONT CORNER HEADLINING RH
a. Using a screwdriver, remove the front corner headlining.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

15. REMOVE ROOF FRONT CORNER HEADLINING LH

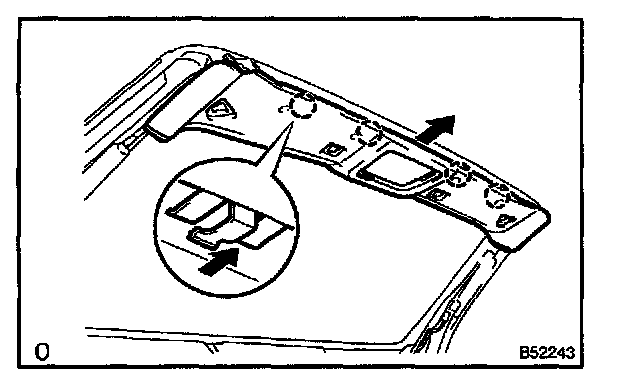

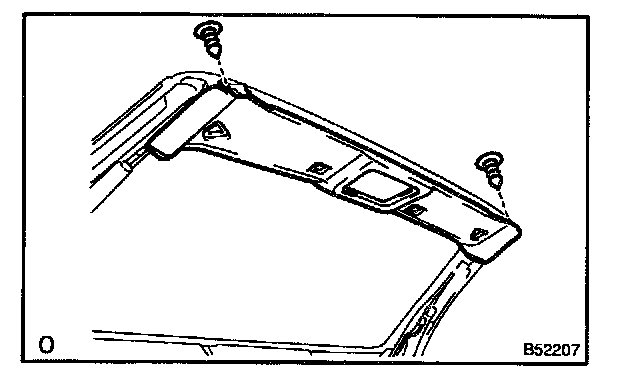

16. REMOVE ROOF HEADLINING ASSEMBLY
a. Remove the 2 clips.




b. Remove the headlining by taking it out in the vehicle's rear direction.

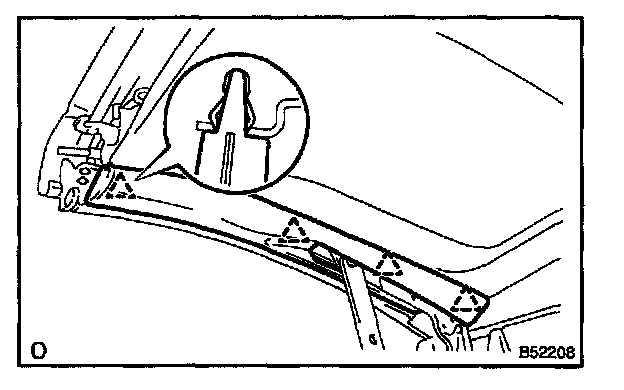

17. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH
a. Using a screwdriver, remove the roof side rail garnish.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.

18. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

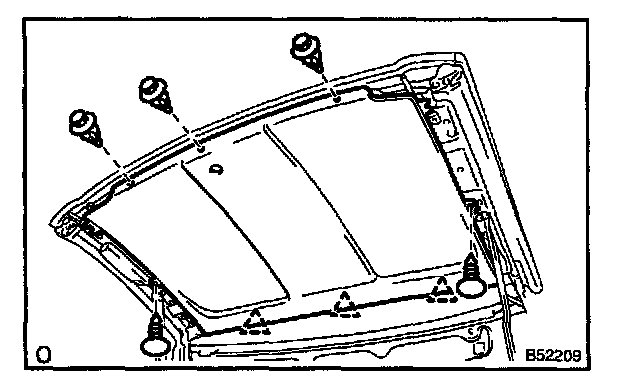

19. REMOVE SUN ROOF / REMOVABLE ROOF HEADLINING ASSEMBLY
a. Remove the 5 clips.
b. Using a screwdriver, remove the sun roof or removable roof headlining.

HINT: Tape the screwdriver tip before use.

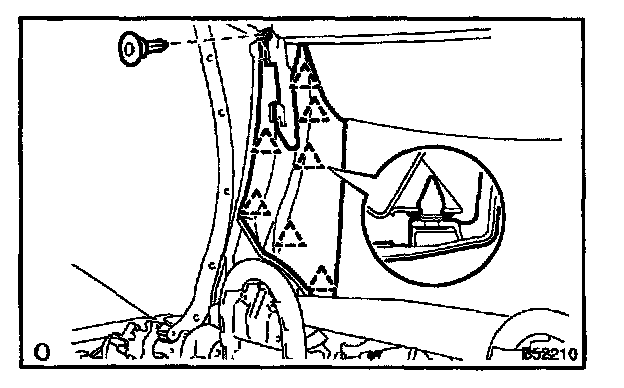

20. REMOVE ROOF SIDE GARNISH INNER RH
a. Remove the clip.
b. Using a screwdriver, remove the roof side garnish inner.

HINT: Tape the screwdriver tip before use.

c. Employ the same manner described above to the other side.

21. REMOVE ROOF SIDE GARNISH INNER LH

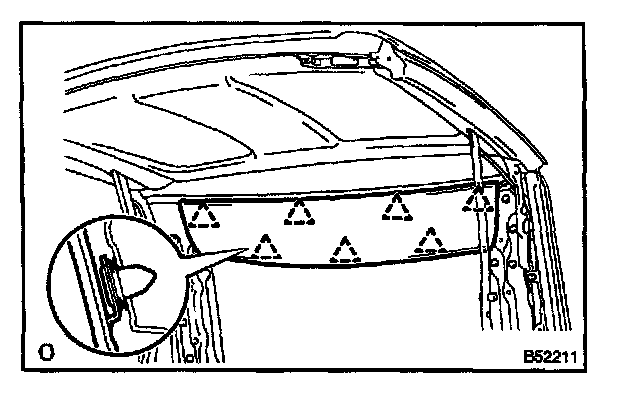

22. REMOVE ROOF HEADLINING ASSEMBLY REAR
a. Using a screwdriver, remove the roof headlining rear.

HINT: Tape the screwdriver tip before use.
