Lower Side Moulding / Trim: Service and Repair

Rocker Panel Moulding LH:

REPLACEMENT

HINT:
- Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.
- In the RH side, work in the same procedure as in the LH side.

1. REMOVE ROCKER PANEL MOULDING PROTECTOR NO.2
a. Remove the screw, 2 clips and rocker panel moulding protector No.2.

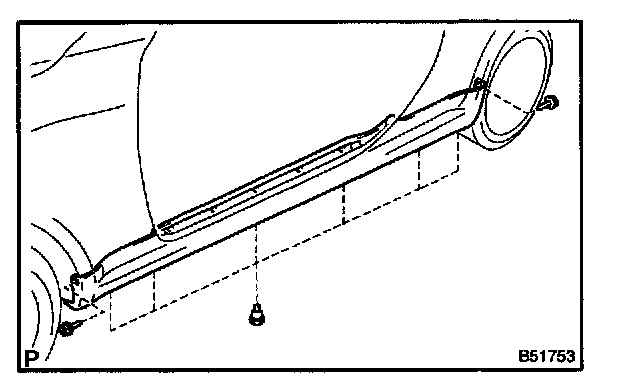

2. REMOVE ROCKER PANEL MOULDING LH




a. Remove the 2 screws and 6 clips from the rocker panel moulding LH.




b. Remove the 5 screws, 5 clips and rocker panel moulding LH.
