Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of ECU:

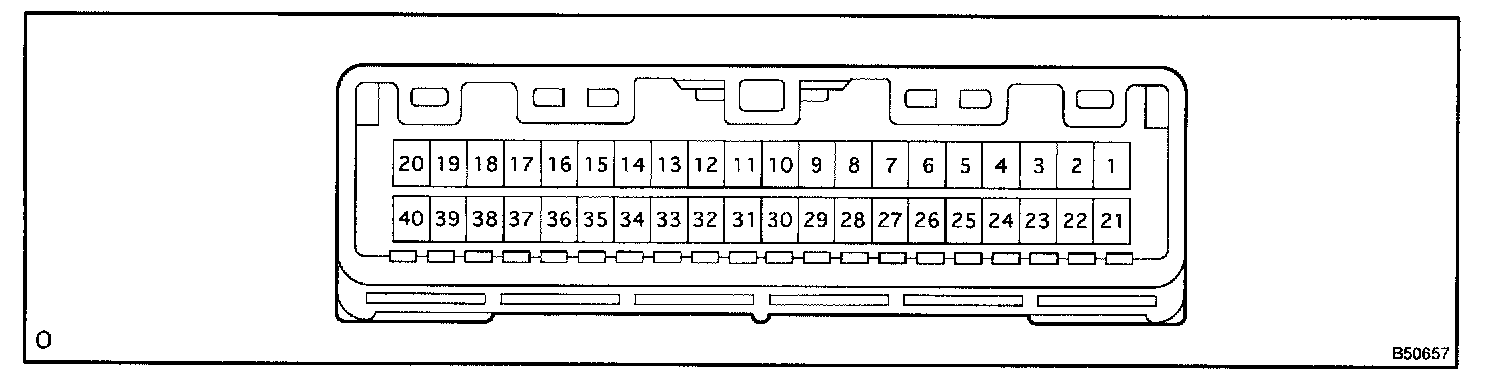

1. THEFT WARNING ECU
a. INSPECT THE ECU OPERATION

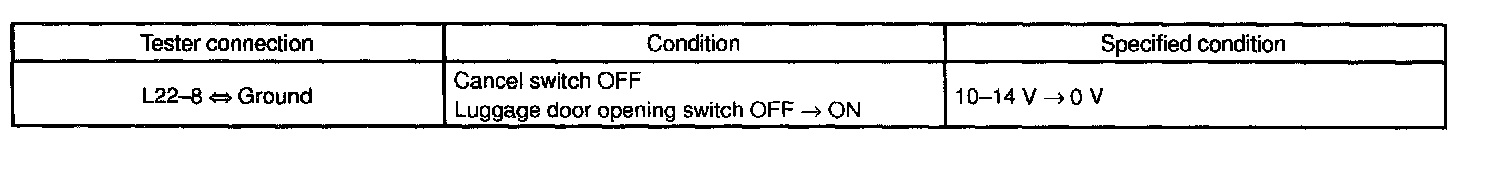

1. Disconnect the connector from the theft warning ECU and inspect the connector on the wire harness side.

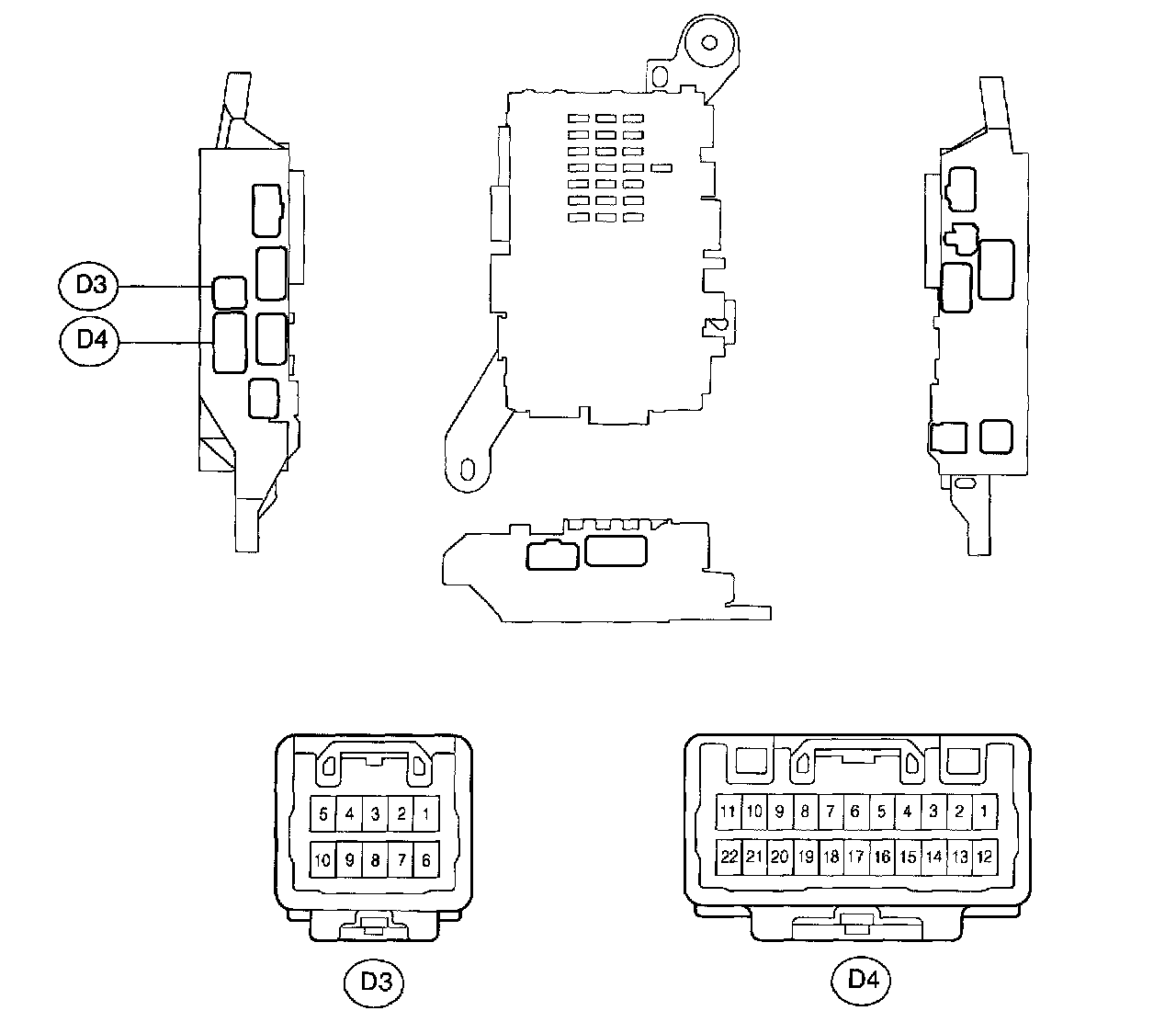

2. INSPECT DRIVER SIDE JUNCTION BLOCK
a. INSPECT ECU OPERATION

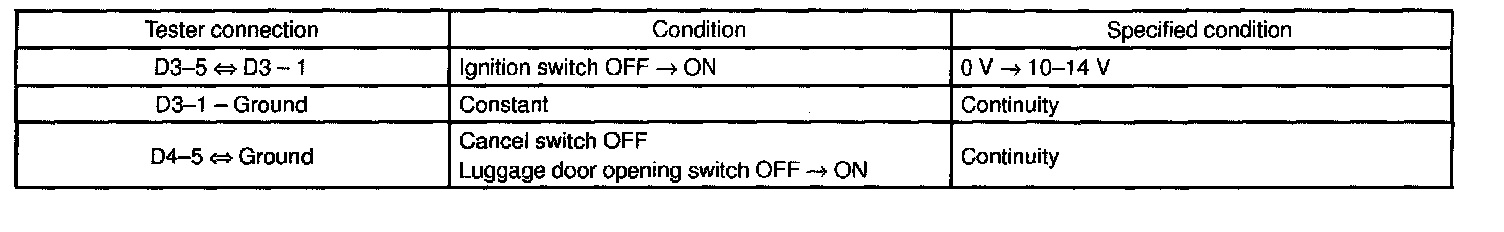

1. Disconnect the connector from the luggage door opening switch and inspect the connector on the wire harness side.
If the operation is not as specified, inspect the circuits connected to the other parts.
2. Connect wire harness side connector to the luggage door opening switch and inspect connector from the back side.
If the operation is not as specified, inspect the circuits connected to the other parts.
3. INSPECT LUGGAGE ROOM JUNCTION BLOCK
a. INSPECT ECU OPERATION

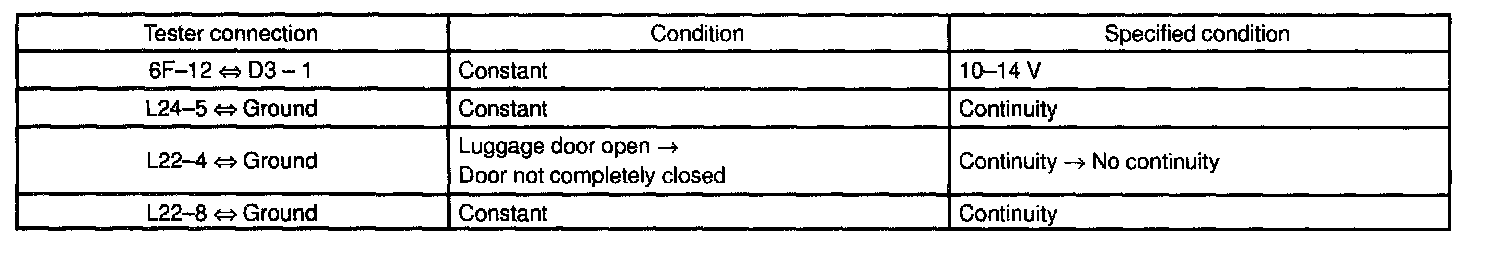

1. Disconnect the connector from the luggage door opening motor and inspect the connector on the wire harness side.
If the operation is not as specified, inspect the circuits connected to the other parts.
2. Connect wire harness side connector to the luggage door opening switch and inspect connector from the back side.
If the operation is not as specified, inspect the circuits connected to the other parts.
