Canada - Wheels/Tires - Spare Tire Storage Kit Installation

Bulletin
0444

Issue Date
2001-04-24

Market
Canada

Reference
BC-01-009

Model
SC430

Year Range
2002

Component
WT

Subject:
SPARE TIRE STORAGE KIT INSTALLATION

This service bulletin identifies the procedure to install a spare tire in a vehicle that is originally equipped with run-flat style tires.

APPLICABLE VEHICLES: 2002 model year SC430 vehicles.

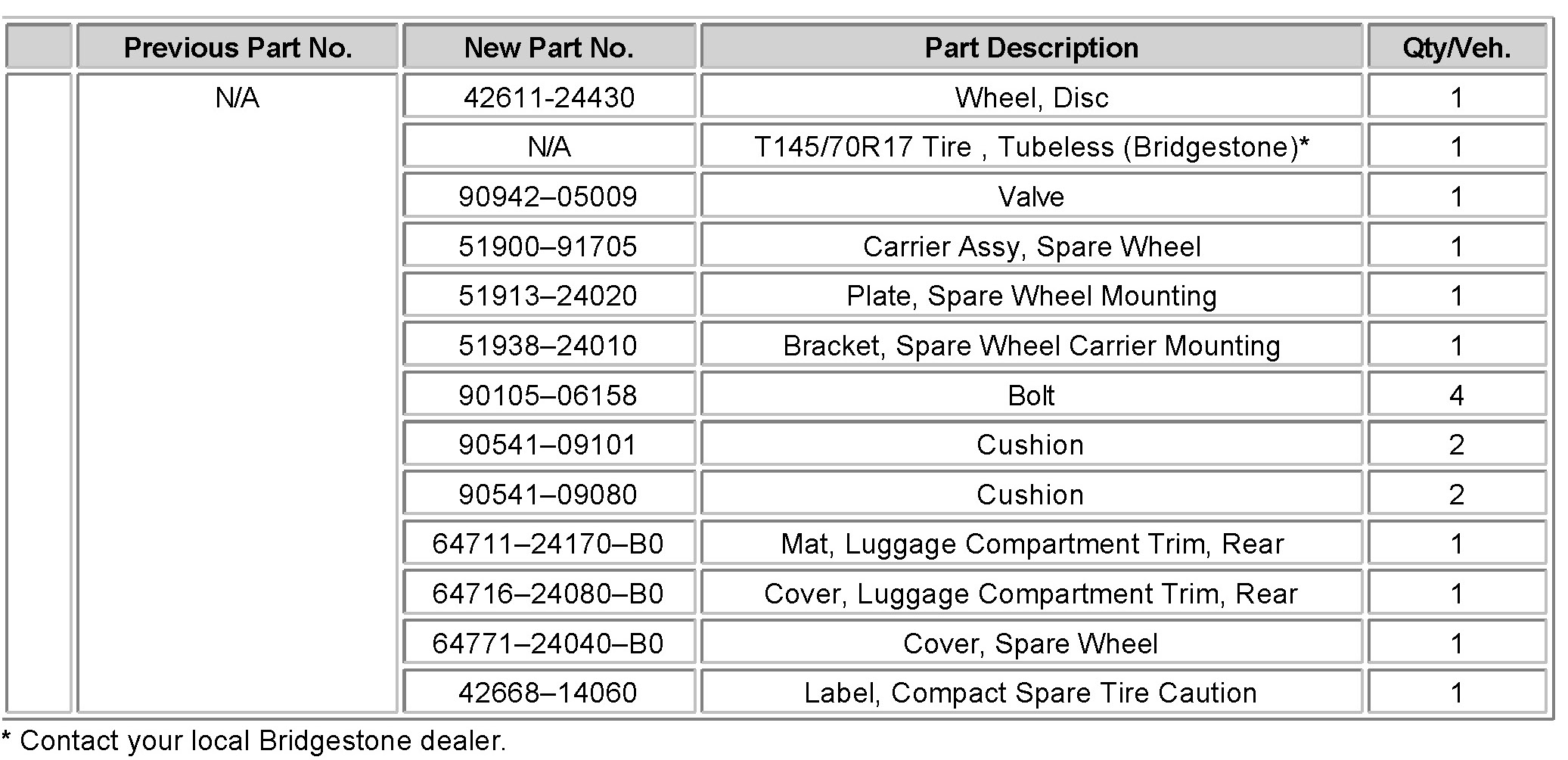

PART NUMBER INFORMATION:







FOR REMOVAL:







FOR INSTALLATION:

INSTALLATION PROCEDURE:

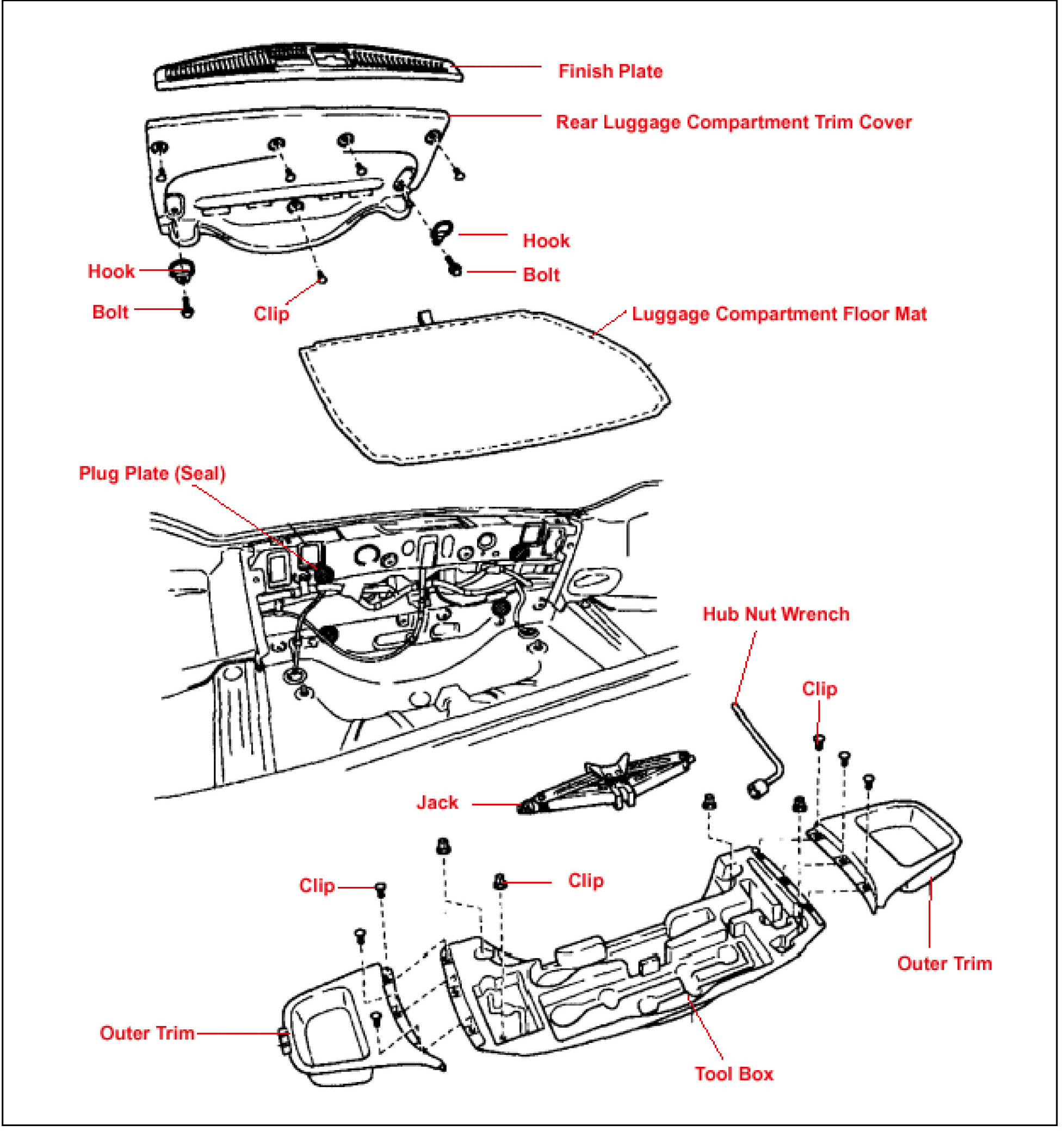

1. Remove the luggage compartment floor mat.
2. Remove the 6 clips from the left and right outer trim.
3. Remove the jack and hub nut wrench.
4. Remove the 4 clips and the tool box.
5. Remove the 2 bolts and the 2 hooks.
6. Remove the finish plate.
7. Remove the 5 clips and the rear luggage compartment trim cover.
8. Remove the 4 plug plates seals
9. Assemble the spare tire.
A. Install a valve (90942-05009) to a disc wheel (42611-24430)
B. Install the tire to the disc wheel.
C. Inflate the spare tire to 60 PSI (420 kPa; 4.2 kgf/cm2)

10. Install 2 cushions (90541-09101) to the holes located on the upper side of the panel.
11. Install 2 cushions (90541-09080) to the holes located on the lower side of the panel.
12. Install the mounting bracket (51938-24010) with 4 bolts (90105-06158). Torque 55 N-m (560 kgf-cm; 41 ft-lbf).
13. Install a rear luggage compartment trim cover (64716-24080) with the 4 clips.
14. Install the finish plate.
15. Install the 2 hooks with the 2 bolts.

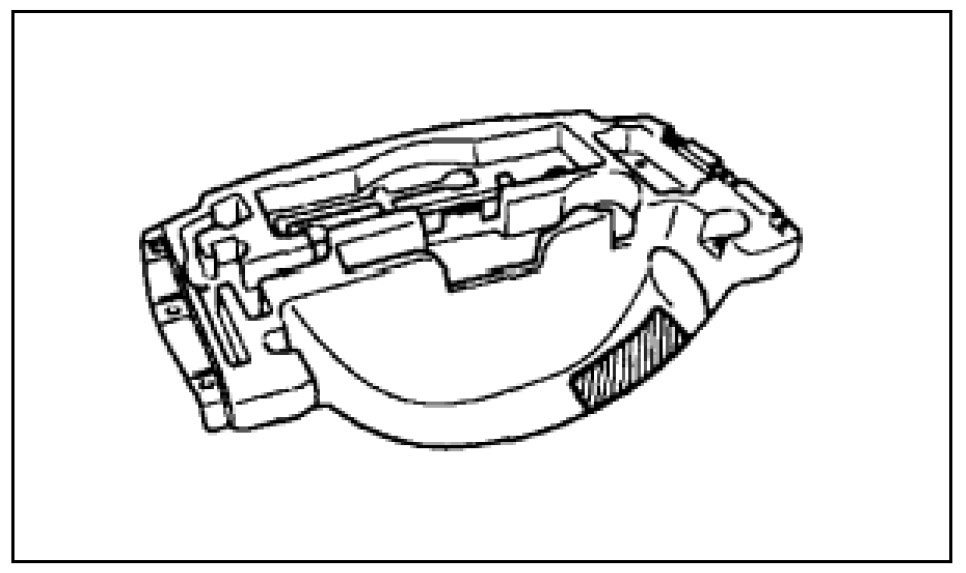

16. Affix the spare tire caution label (42668-14060) to the tool box as indicated in the illustration.
17. Install the tool box with the 4 clips.
18. Install the jack and hub nut wrench.
19. Install the left and right outer trims with the 6 clips.
20. Install the spare tire with a new spare wheel mounting plate (51913-24020) and spare wheel carrier assembly (51900-91705).
21. Install the luggage compartment floor mat (64711-24170) for the vehicle equipped with the spare tire.
22. Install the spare wheel cover (64771-24040) with the LEXUS mark towards the rear of the vehicle.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
