Luggage Compartment Door Panel Sub-Assembly

Luggage Compartment Door Panel Sub-Assy:

LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

REPLACEMENT

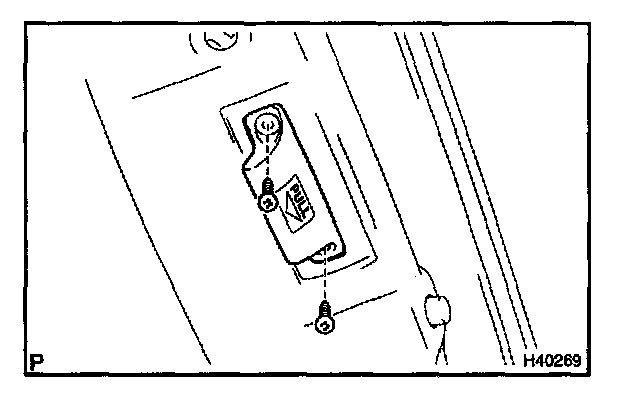

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
a. Remove the 2 screws and luggage compartment door assist grip.

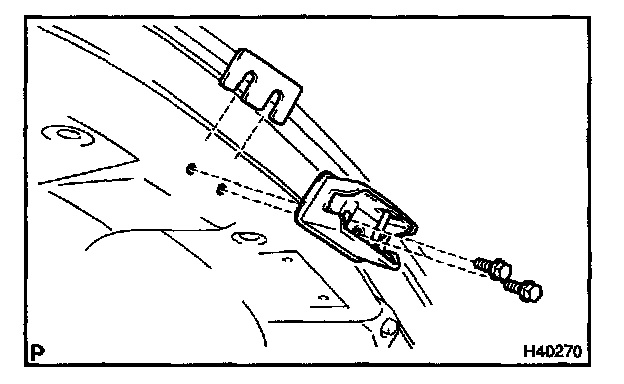

2. REMOVE LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY
a. Remove the 2 bolts and luggage compartment door striker assembly.

HINT: If there are some shims, store them.

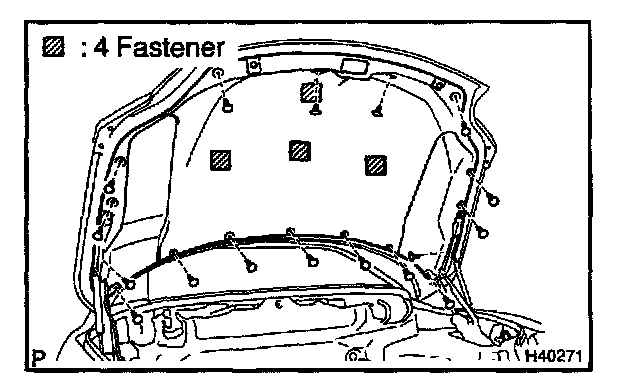

3. REMOVE LUGGAGE COMPARTMENT DOOR COVER
a. Using a clip remover, remove the 19 clips.
b. Disengage the 4 fasteners.
c. Remove the luggage compartment door cover.




4. REMOVE LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY
a. Disconnect the connector.
b. Using a clip remover, disengage the wire harness clamps.

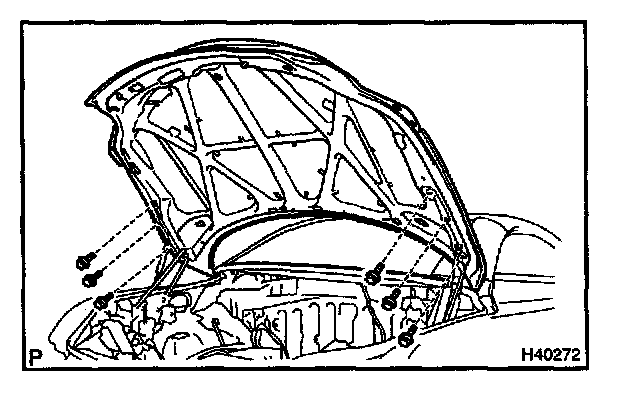

c. Remove the 6 bolts and luggage compartment door panel sub-assembly.




5. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE RH
a. Remove the 2 nuts.
b. Using a screwdriver, remove the back door garnish sub-assembly outside RH.

6. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE LH
7. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP
8. REMOVE BACK DOOR STOPPER LOWER
9. INSTALL BACK DOOR STOPPER LOWER

10. INSTALL LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

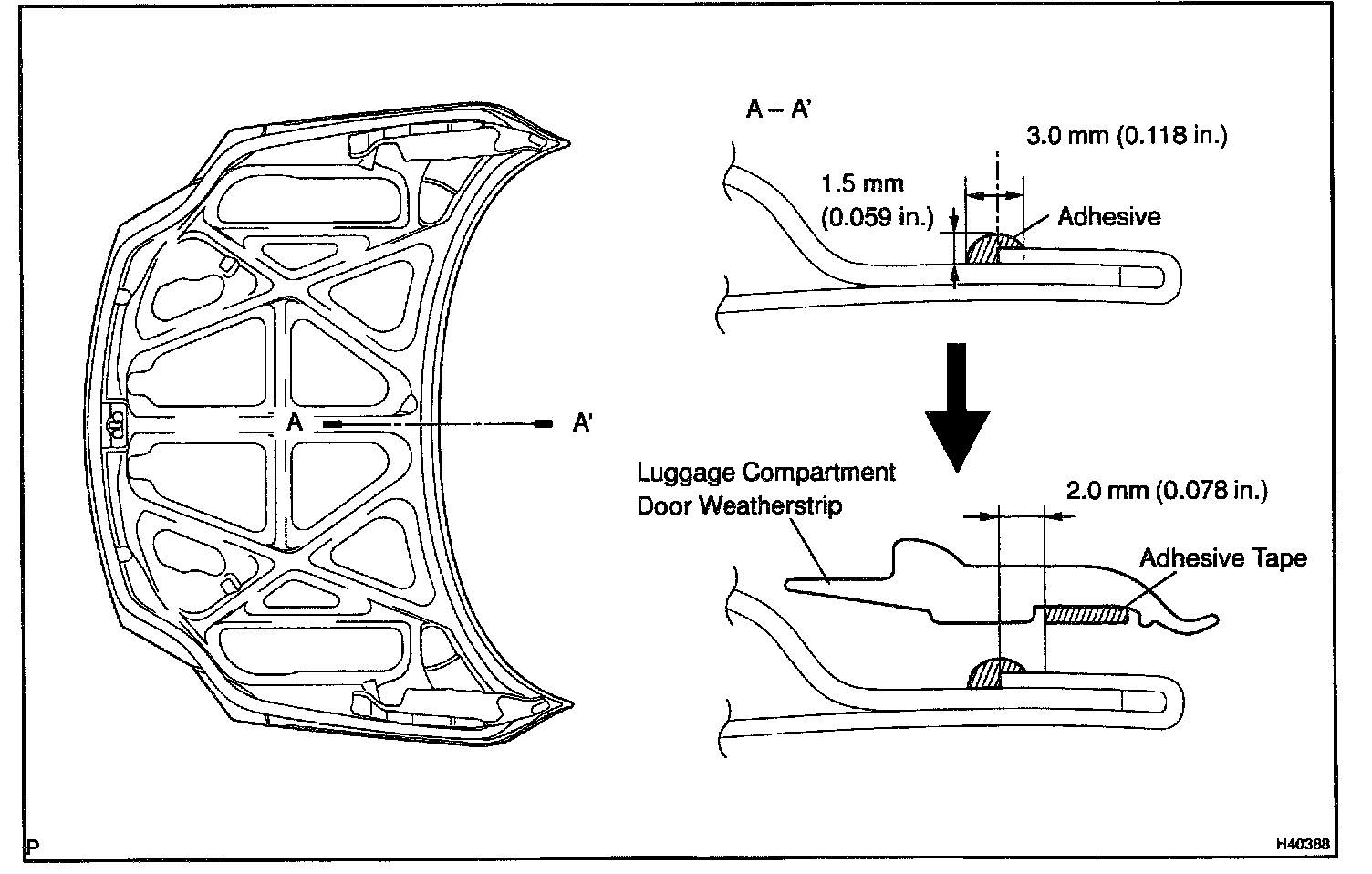

a. Coat the luggage compartment door panel with adhesive, as shown in the illustration.
Part No.YN-92, YOKOHAMA RUBBER CO., LTD or equivalent
Diameter: 3 mm (0.12 in.)




b. Install the weatherstrip to the luggage compartment door panel.

11. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE LH
12. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE RH




13. INSTALL LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

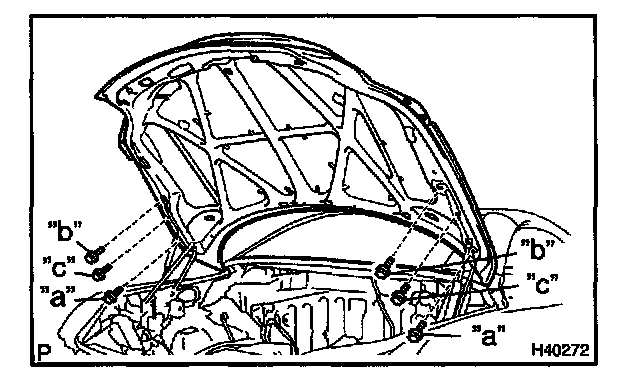

a. Install 6 bolts in the order "a", "b" and "c".

Torque: 22 N.m (224 kgf.cm, 16 ft.lbf)

b. Install the wire harness clamps.
c. Connect the connector.

14. INSTALL LUGGAGE COMPARTMENT DOOR COVER
15. INSTALL LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

16. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
17. REMOVE REAR FLOOR FINISH PLATE
18. REMOVE SPARE WHEEL COVER ASSEMBLY
19. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
20. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
21. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
22. REMOVE TOOL BOX COVER
23. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY
24. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
25. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH
26. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY LH
27. REMOVE TONNEAU COVER ASSEMBLY
28. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
29. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
30. REMOVE REAR FLOOR FINISH SIDE PLATE RH
31. REMOVE REAR FLOOR FINISH SIDE PLATE LH
32. REMOVE LUGGAGE COMPARTMENT LAMP ASSEMBLY NO.1
33. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH
34. REMOVE DOOR INSIDE HANDLE BEZEL
35. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH
36. ADJUST LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY
37. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE LH
38. INSTALL DOOR INSIDE HANDLE BEZEL
39. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
40. INSTALL LUGGAGE COMPARTMENT LAMP ASSEMBLY NO.1
41. INSTALL REAR FLOOR FINISH SIDE PLATE LH
42. INSTALL REAR FLOOR FINISH SIDE PLATE RH
43. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
44. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
45. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
46. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH
47. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY LH
48. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH
49. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY
50. INSTALL TOOL BOX COVER
51. INSTALL TONNEAU COVER ASSEMBLY
52. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR
53. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
54. INSTALL SPARE WHEEL COVER ASSEMBLY
55. INSTALL REAR FLOOR FINISH PLATE
