Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of ECU:
1. THEFT WARNING ECU
a. INSPECT ECU OPERATION

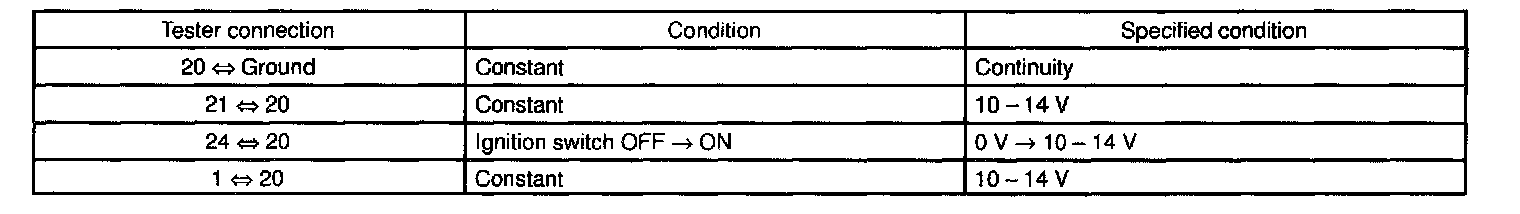

1. Disconnect the connector from the theft warning ECU and inspect the connector on the wire harness side.
2. INSPECT DRIVER JUNCTION BLOCK
a. INSPECT ECU OPERATION

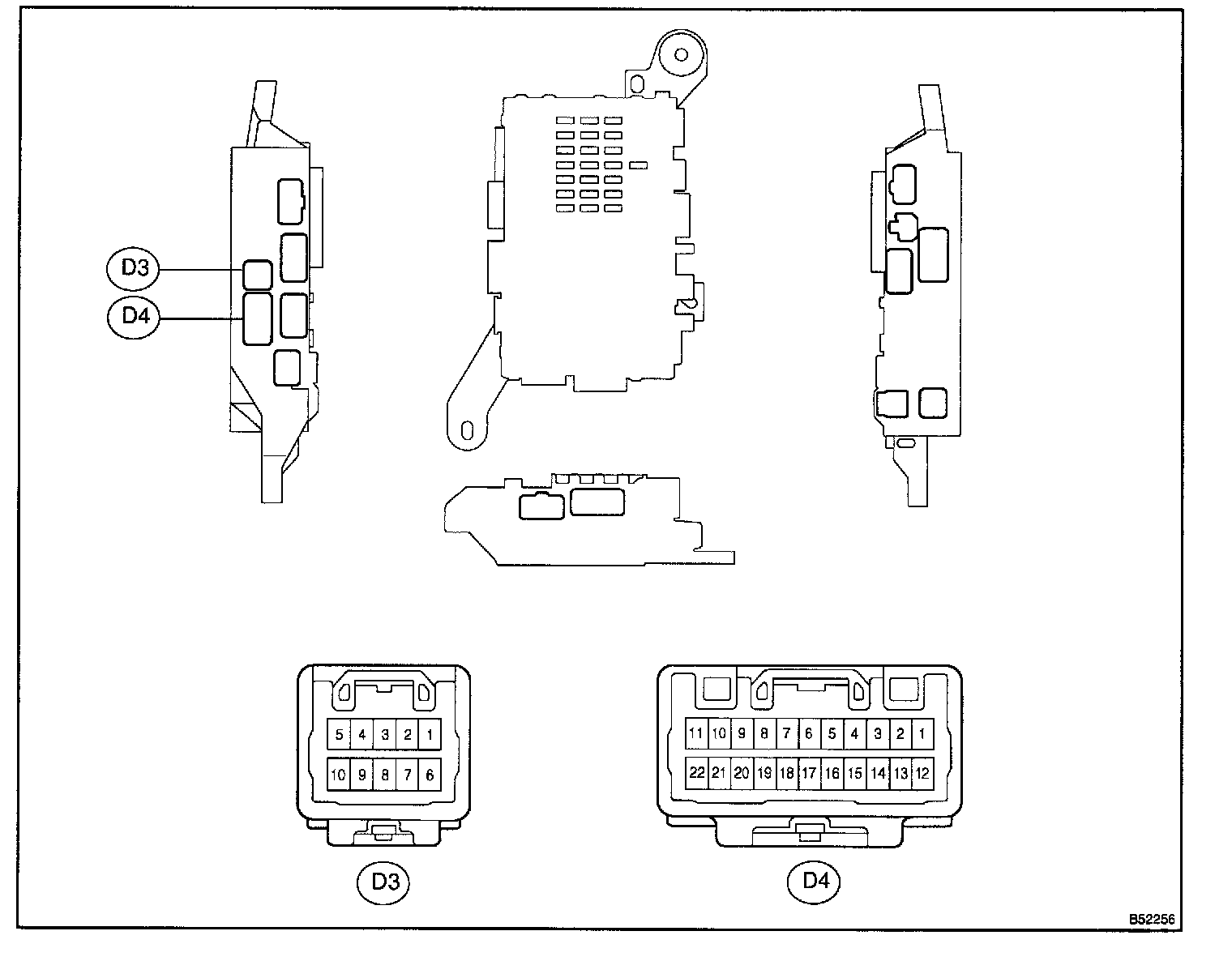

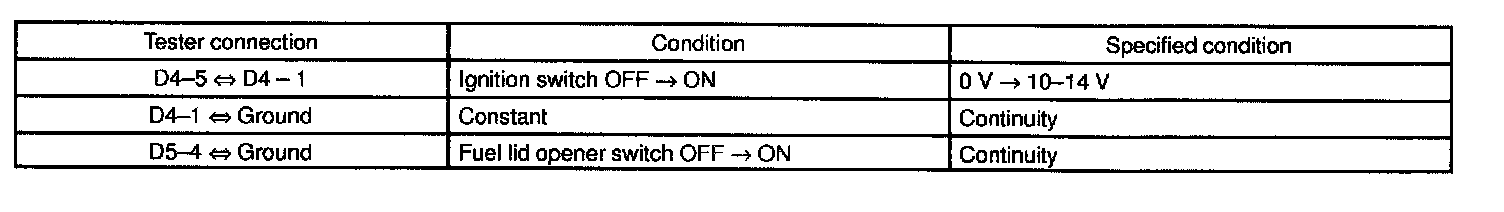

1. Disconnect the connector from the driver side junction block and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to the other parts.
2. Connect wire harness side connector to the luggage room junction block and inspect connector from the back side.
If the circuit is not as specified, inspect the circuits connected to the other parts.
3. INSPECT LUGGAGE ROOM JUNCTION BLOCK
a. INSPECT ECU OPERATION

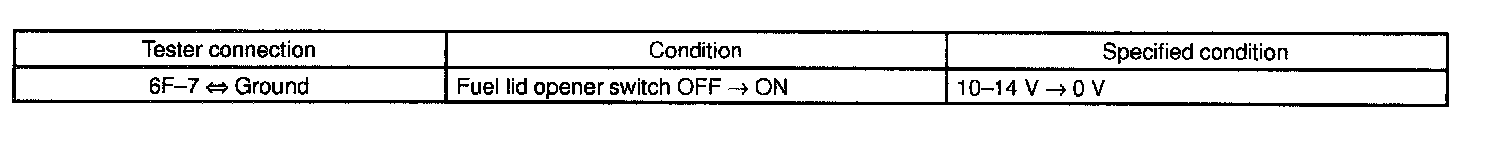

1. Disconnect the connector from the luggage door opening switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to the other parts.

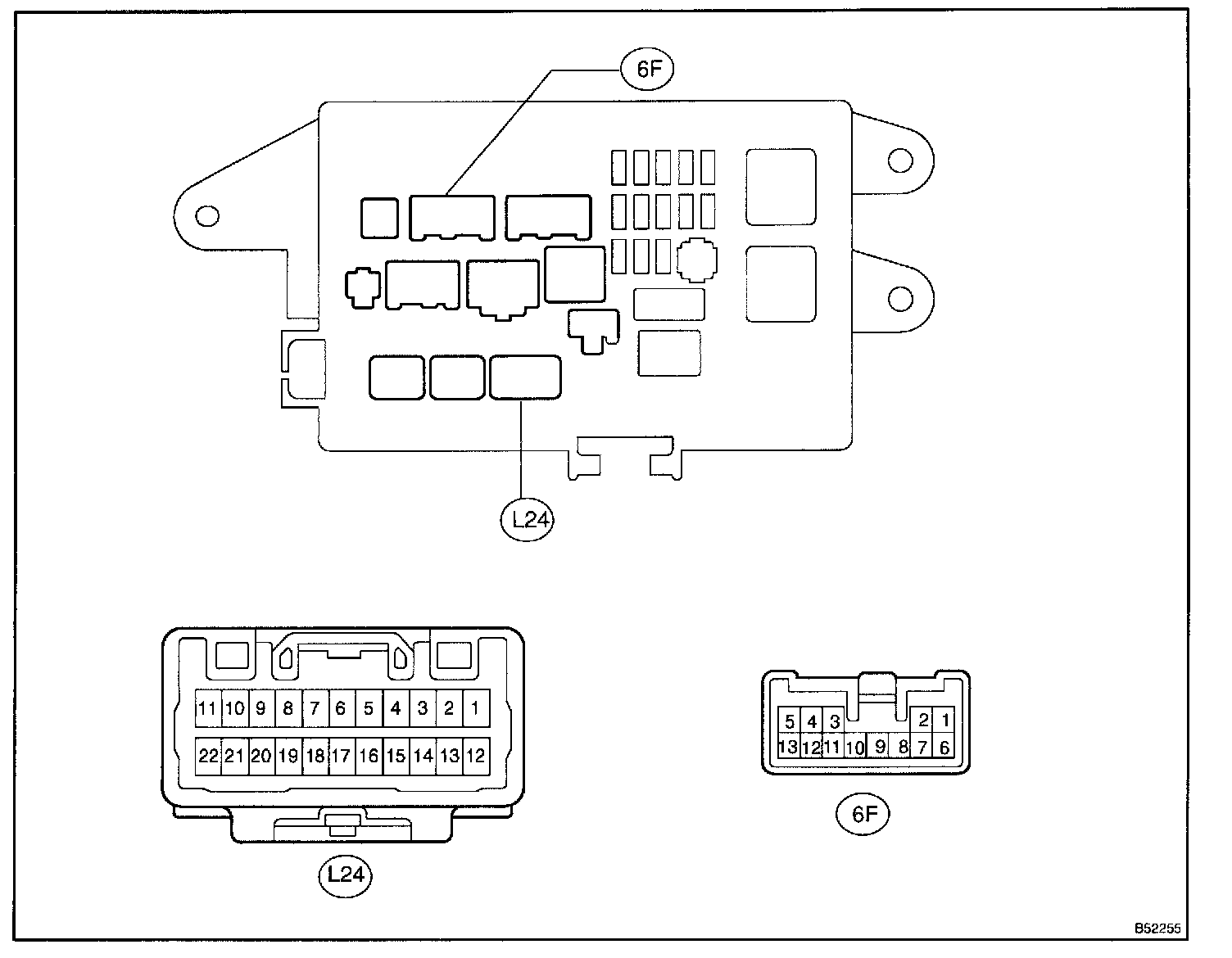

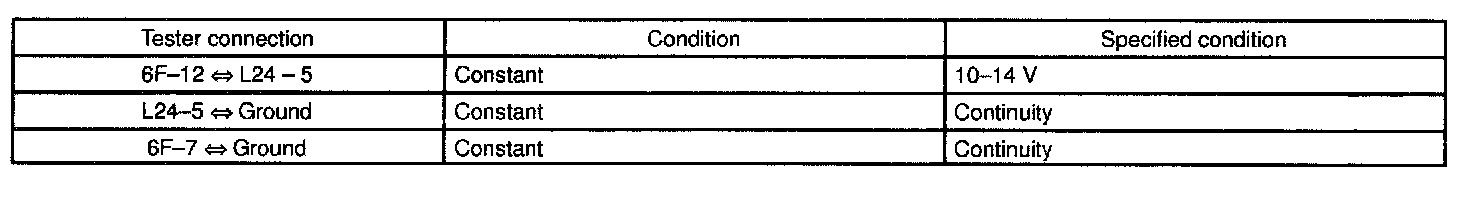

2. Connect wire harness side connector to LUGGAGE ROOM JUNCTION BLOCK ASSEMBLY and inspect connector from the back side.
If the circuit is not as specified, inspect the circuits connected to the other parts.
