Removal and Replacement
REPLACEMENTHINT: Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.
1. REMOVE RADIATOR GRILLE
a. Remove the 3 bolts and radiator grille.
2. REMOVE FRONT FENDER LINER LH

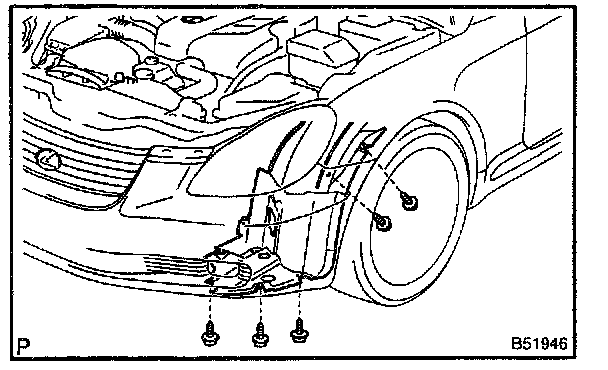

a. Remove the 5 screws and a part of the front fender liner LH.
HINT: Remove the screw and the front fender liner LH within the range that the front bumper cover can be removed.
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER

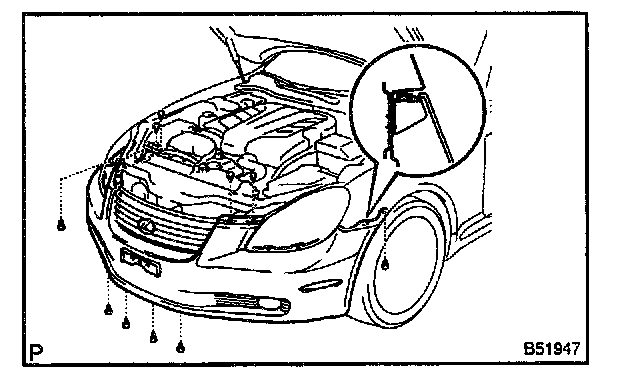

a. Remove the 6 screws and 4 clips.
b. Remove the hook and front bumper cover.
c. Disconnect the fog lamp connector.
d. Disconnect the side turn signal lamp connector.
e. Disconnect the washer hose.
5. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSEMBLY LH
a. Remove the clamp.

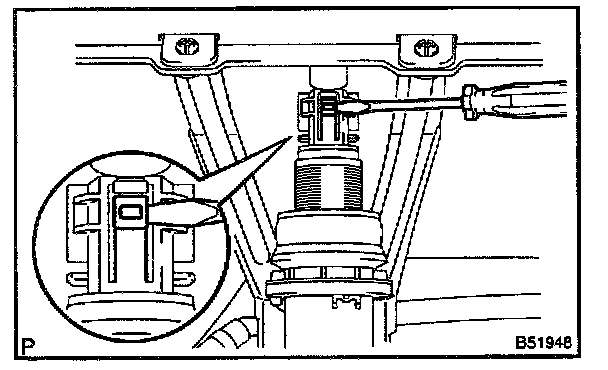

b. Using a screwdriver, pull out the front washer nozzle.
c. Remove the 2 clips, bolt and head lamp washer actuator.
6. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSEMBLY RH
7. REMOVE FOG LAMP LAMP UNIT LH
8. REMOVE FOG LAMP LAMP UNIT RH
9. REMOVE FRONT BUMPER HOLE COVER LH
10. REMOVE FRONT BUMPER HOLE COVER RH
11. REMOVE SIDE TURN SIGNAL LAMP ASSEMBLY LH
12. REMOVE SIDE TURN SIGNAL LAMP ASSEMBLY RH
13. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
