Sound of Cassette Tape and CD Only is Not Heard From Speakers

SOUND OF CASSETTE TAPE AND CD ONLY IS NOT HEARD FROM SPEAKERS

Wiring Diagram - Power Source Circuit:




Wiring Diagram - Speaker Circuit:

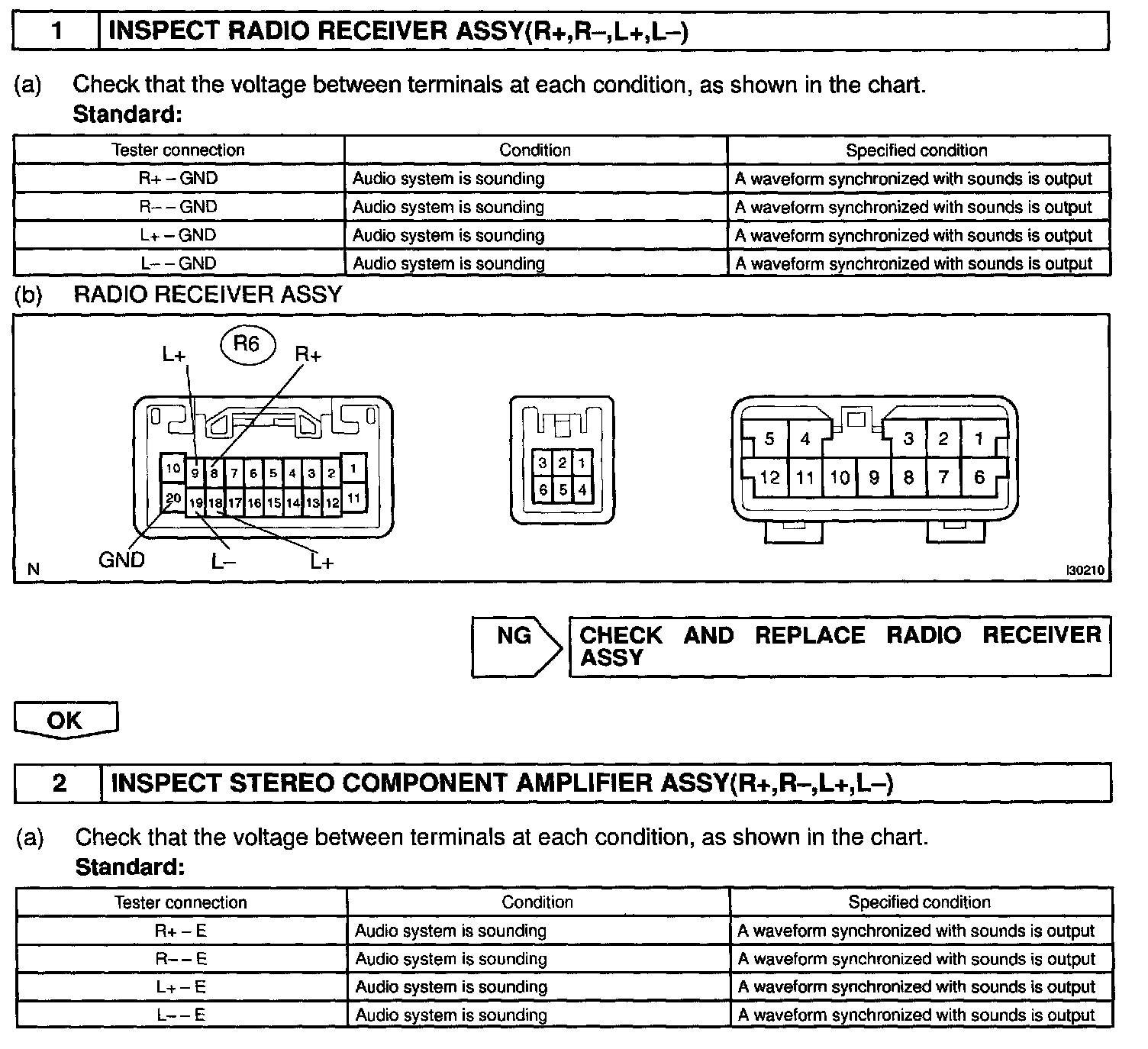

Step 1 - 2:

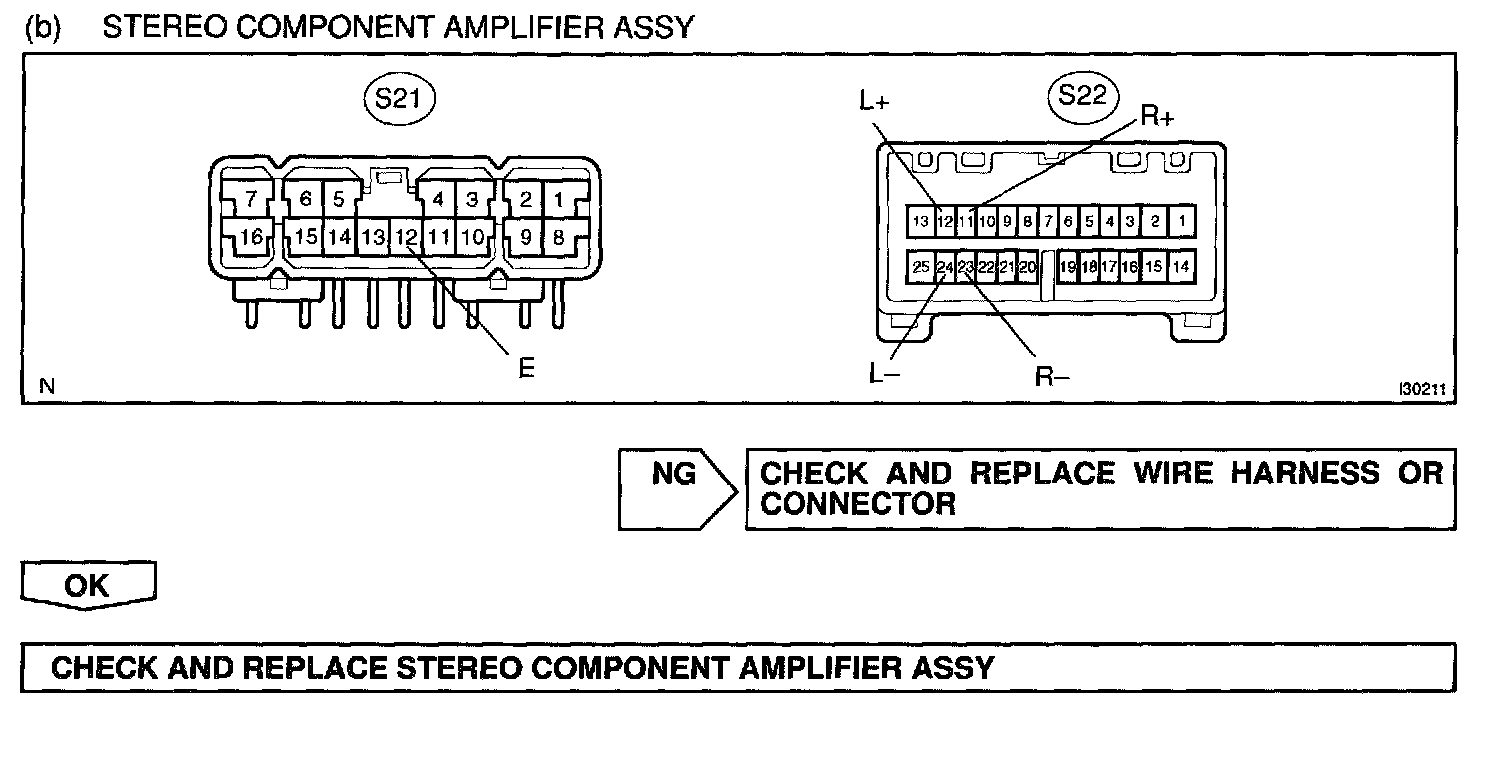

Step 2 (Continued):




INSPECTION PROCEDURE
