FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2002
>>
SC 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Radio Broadcast Cannot Be Received (Poor Reception)
Radio Broadcast Cannot Be Received (Poor Reception)
RADIO BROADCAST CANNOT BE RECEIVED (BAD RECEPTION. NOISE OCCURS)

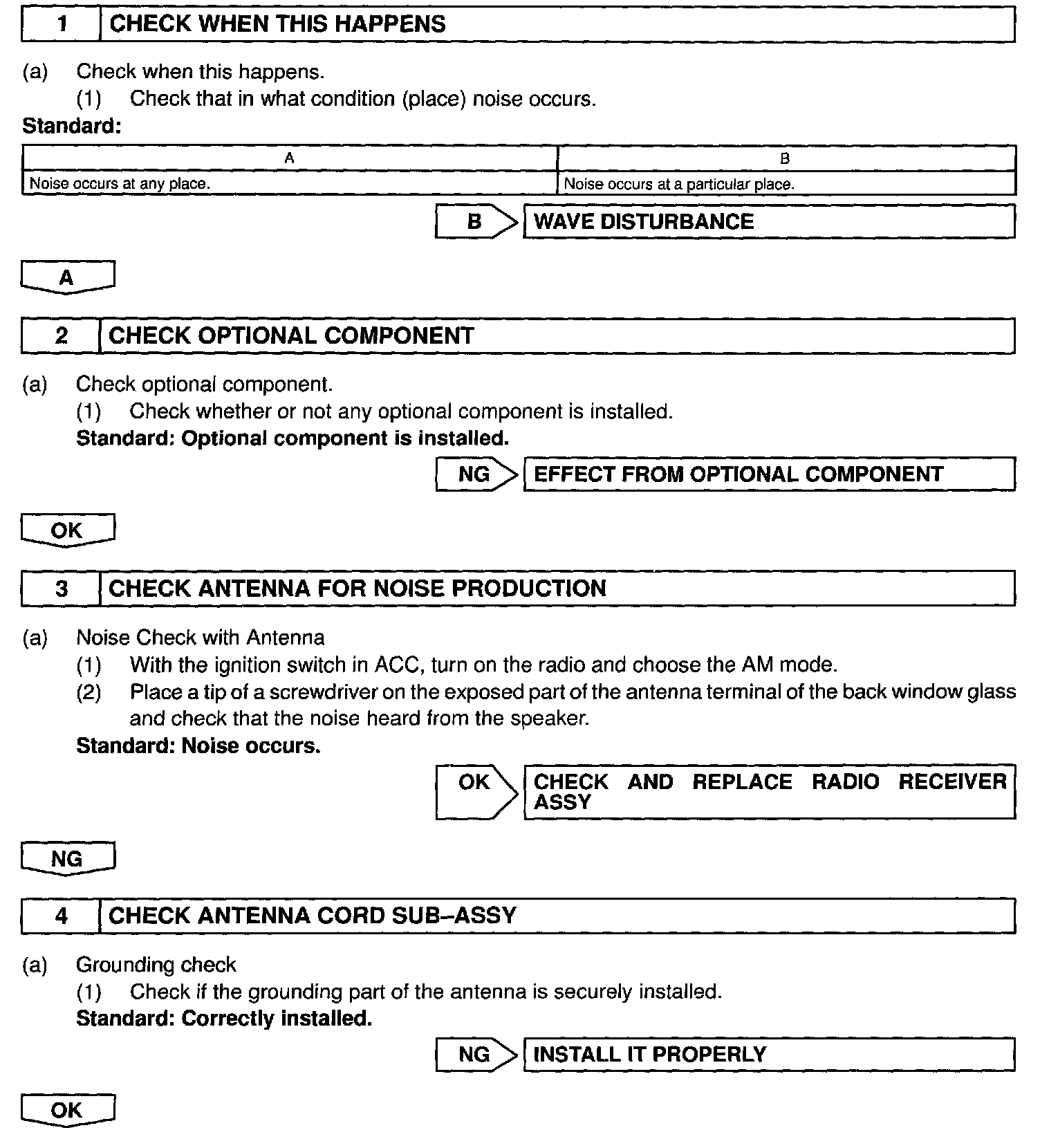

Step 1 - 4:

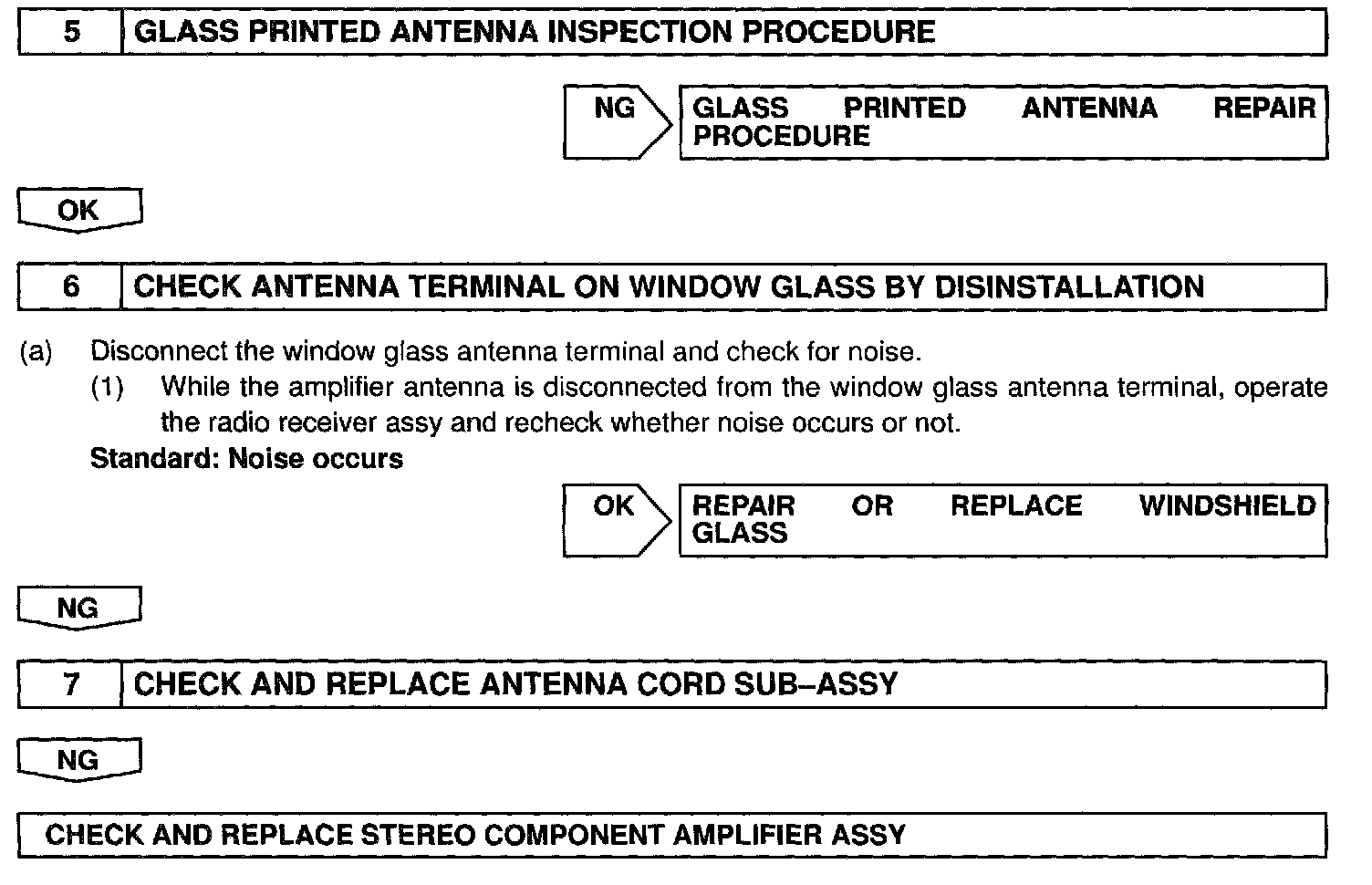

Step 5 - 7:
INSPECTION PROCEDURE
