CD Cannot Be Inserted Or Is Ejected Right After Insertion

CD CANNOT BE INSERTED/IS EJECTED RIGHT AFTER INSERTION/CANNOT BE PLAYED

Wiring Diagram:

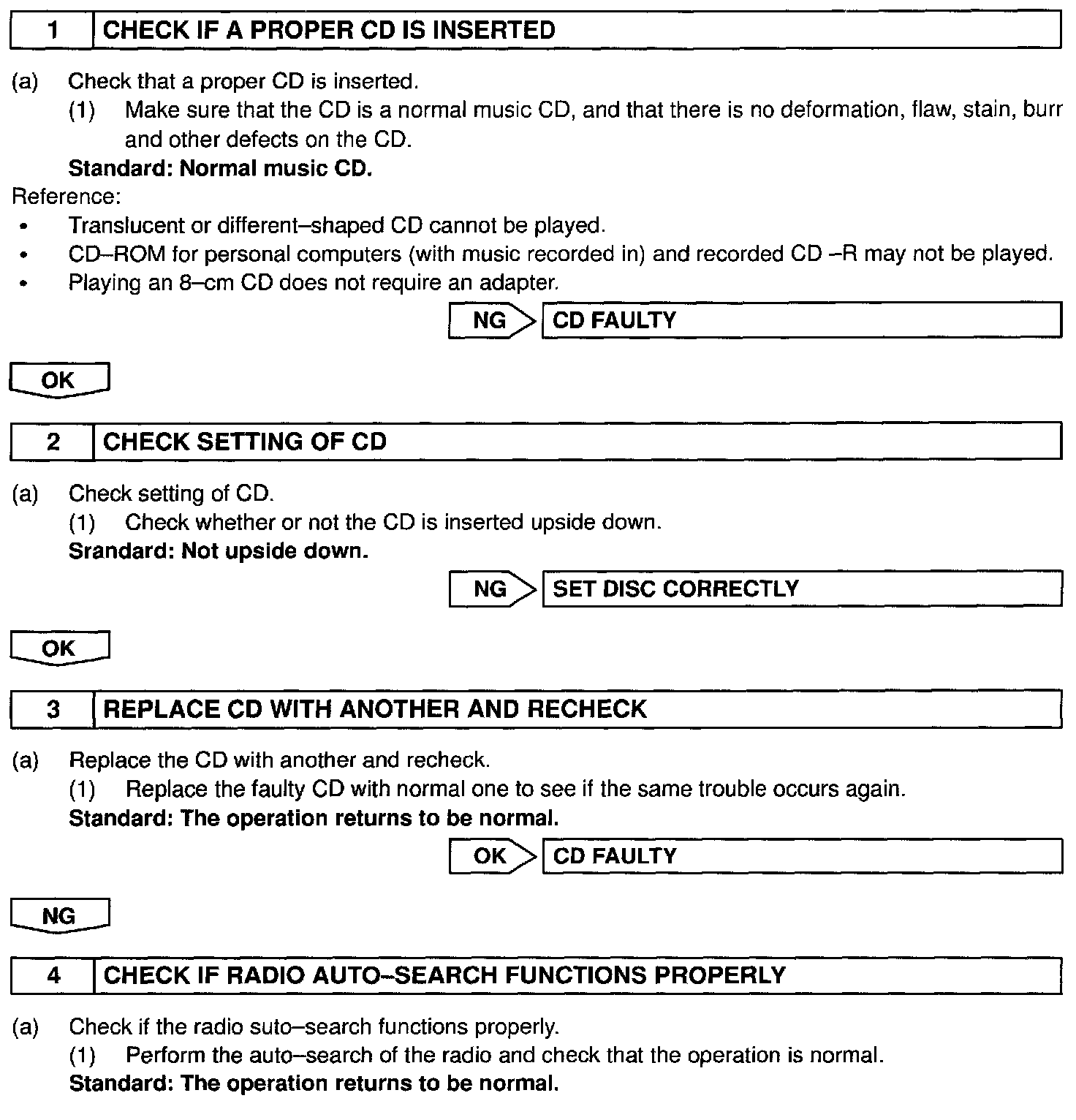

Step 1 - 4:

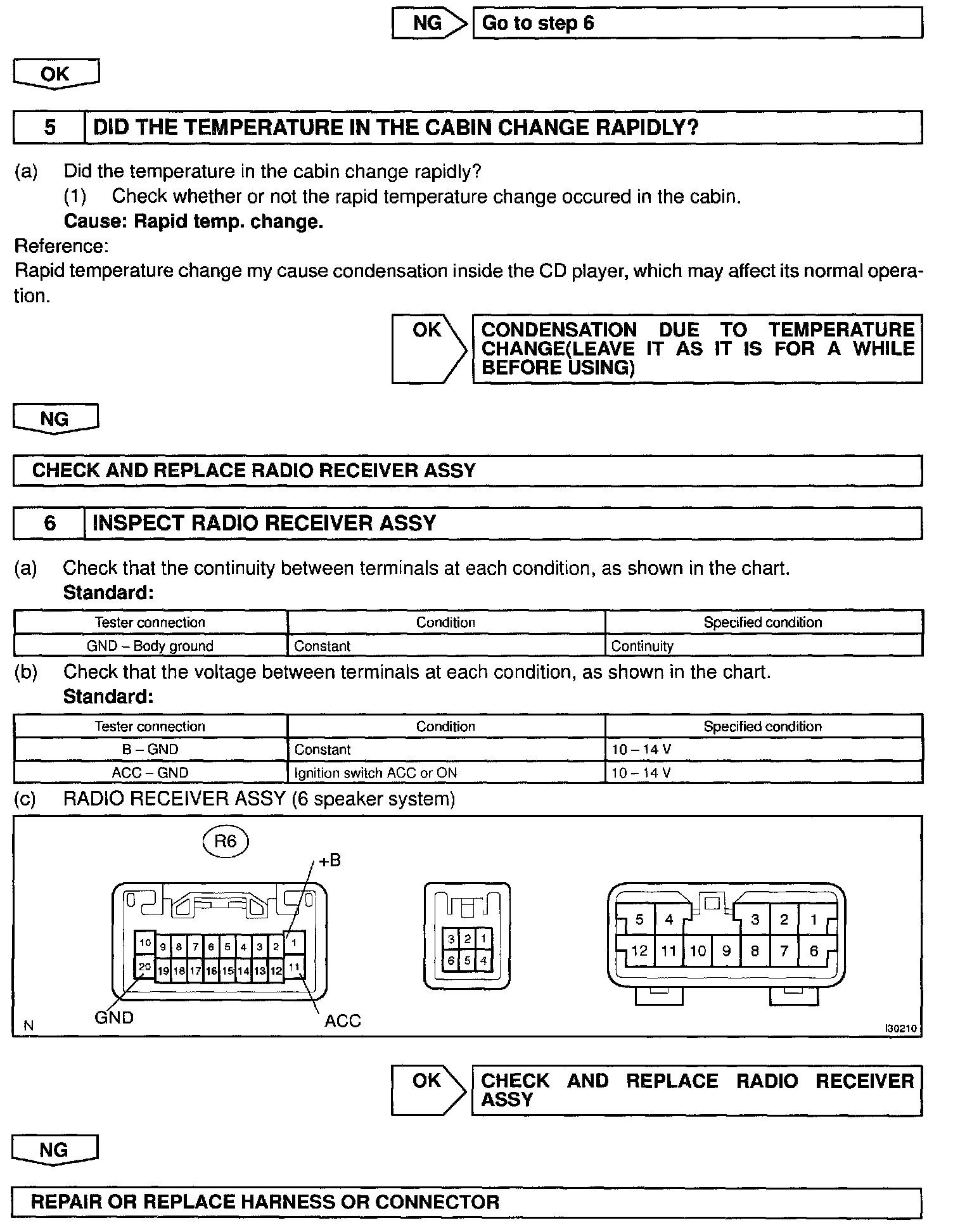

Step 4 (Continued) - 6:




INSPECTION PROCEDURE
