Home >> Lexus >> 2002 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Sound Levelizer Function is Abnormal Operation

Automatic Sound Levelizer Function is Abnormal Operation

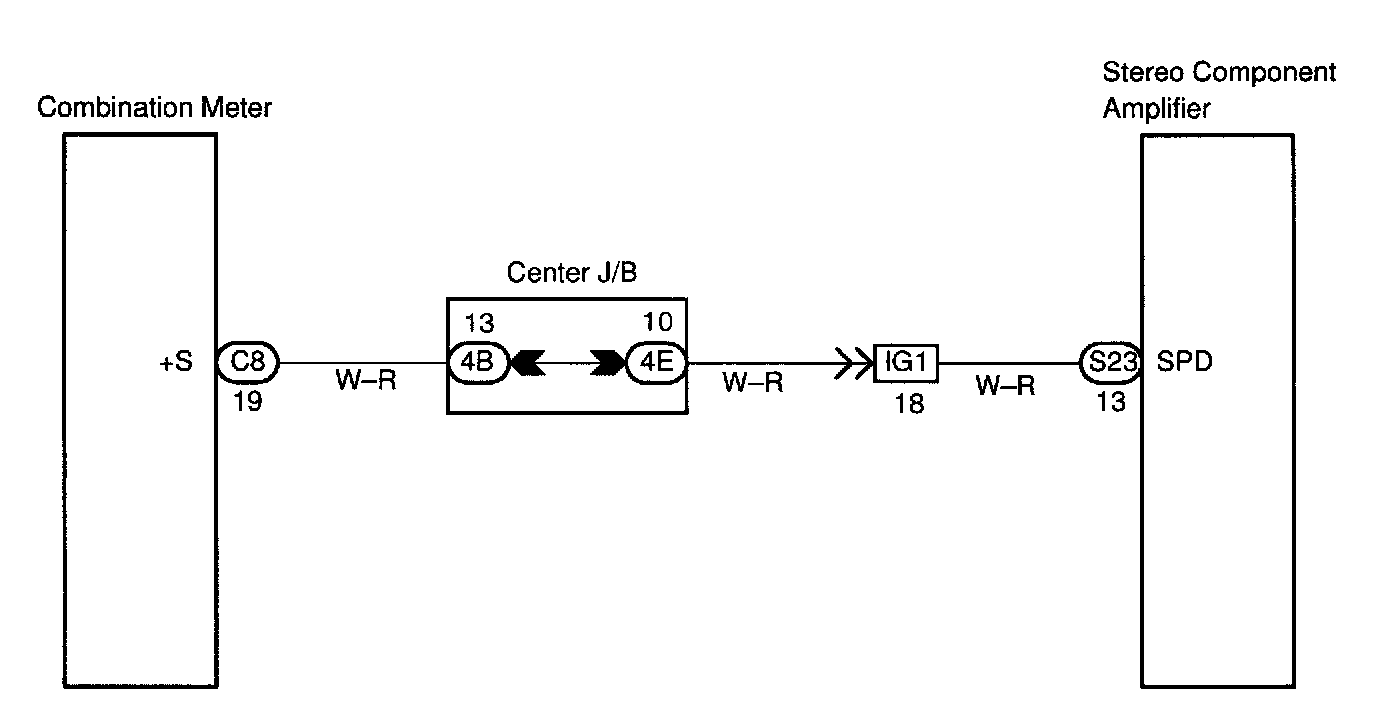

Wiring Diagram:

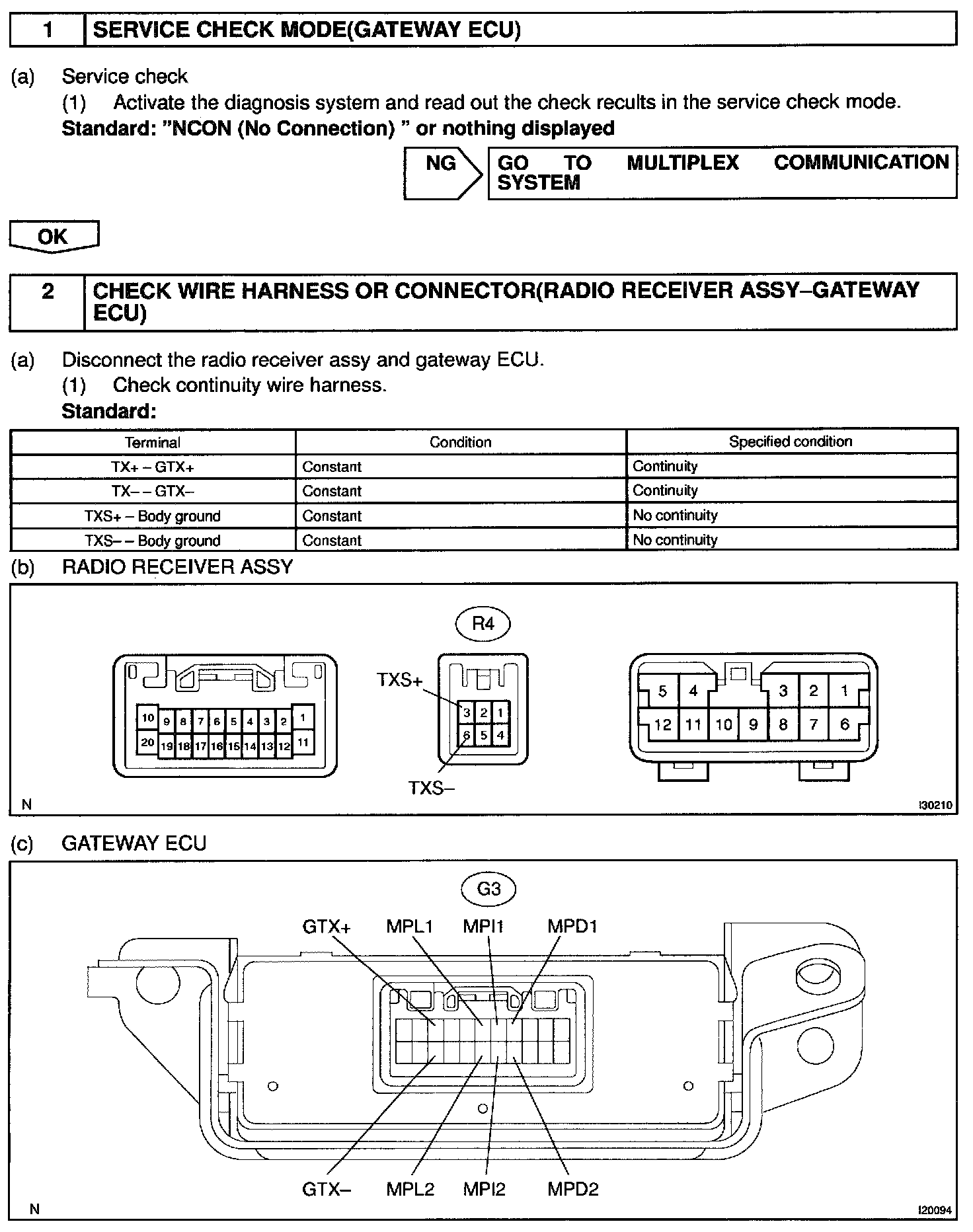

Step 1 - 2:

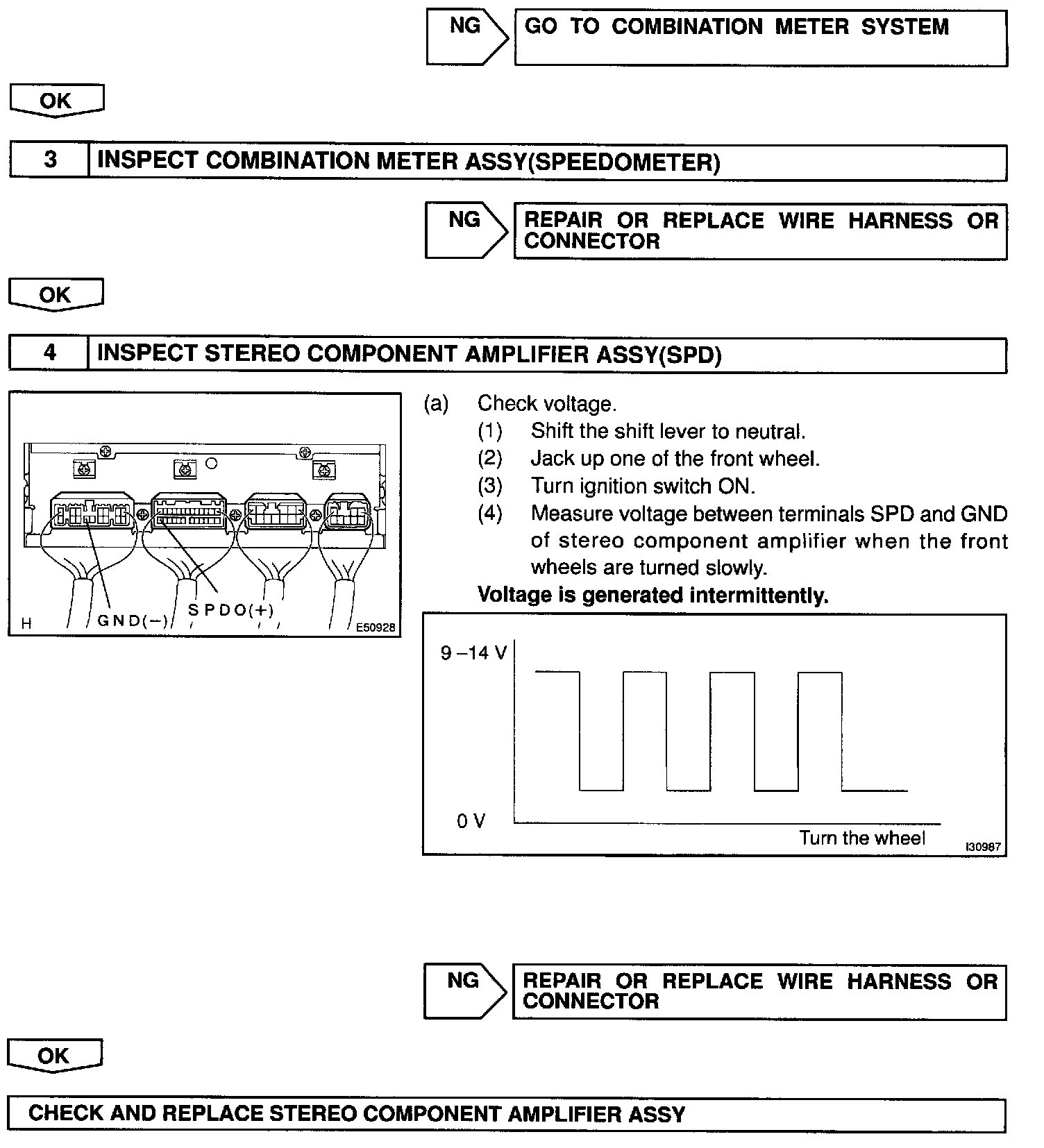

Step 2 (Continued) - 4:




INSPECTION PROCEDURE
