Audio Door Does Not Operate

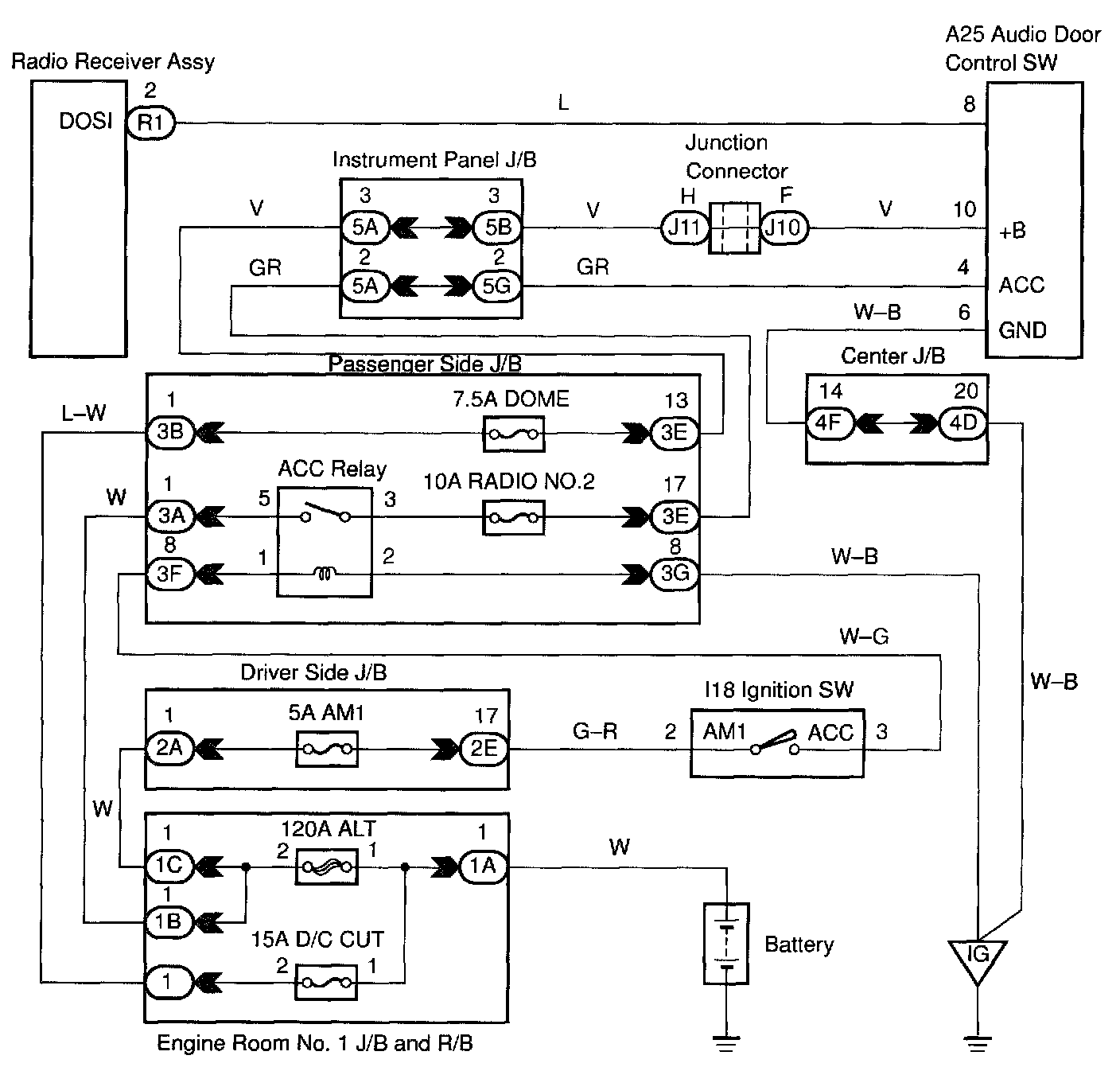

Wiring Diagram:

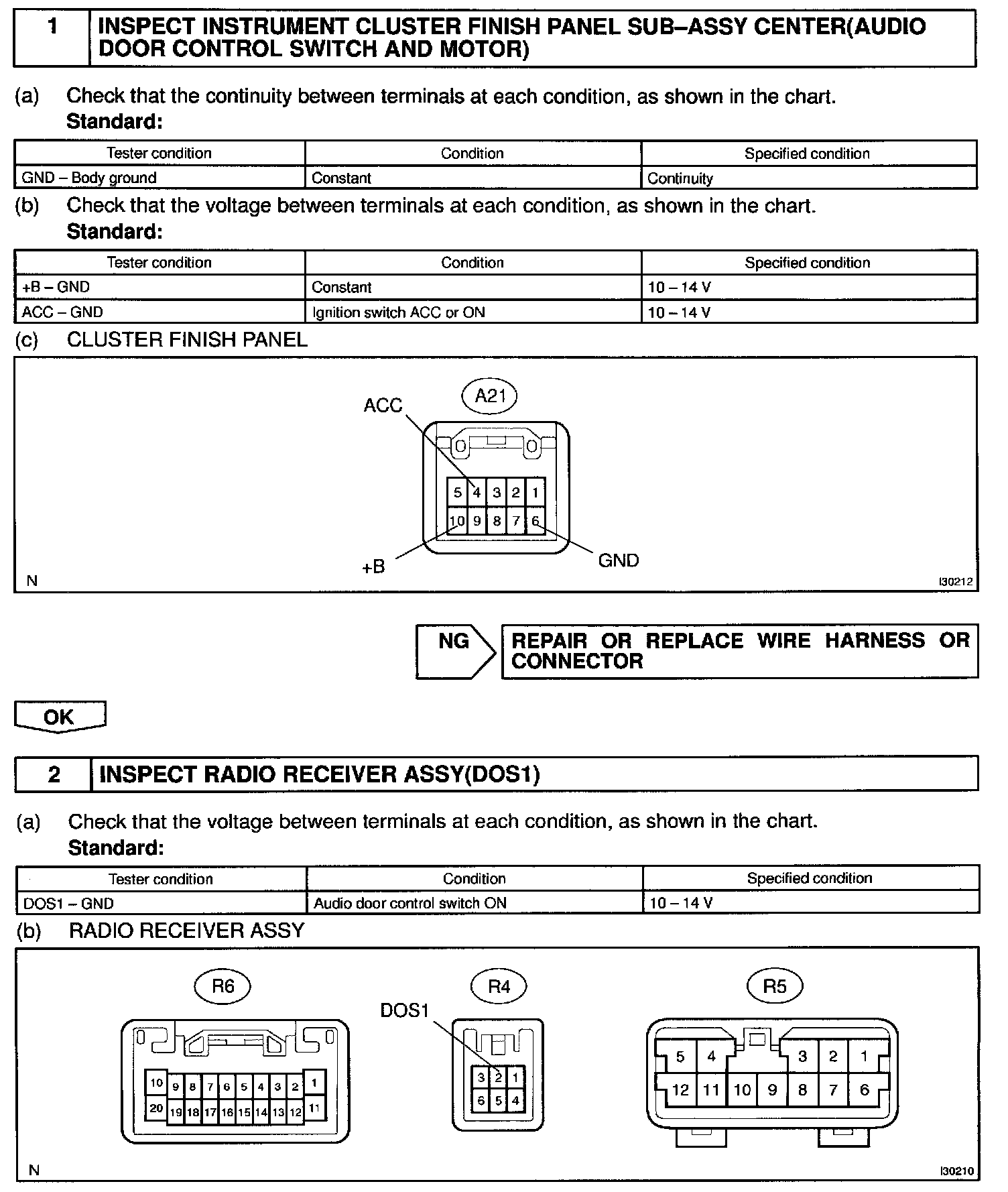

Step 1 - 2:

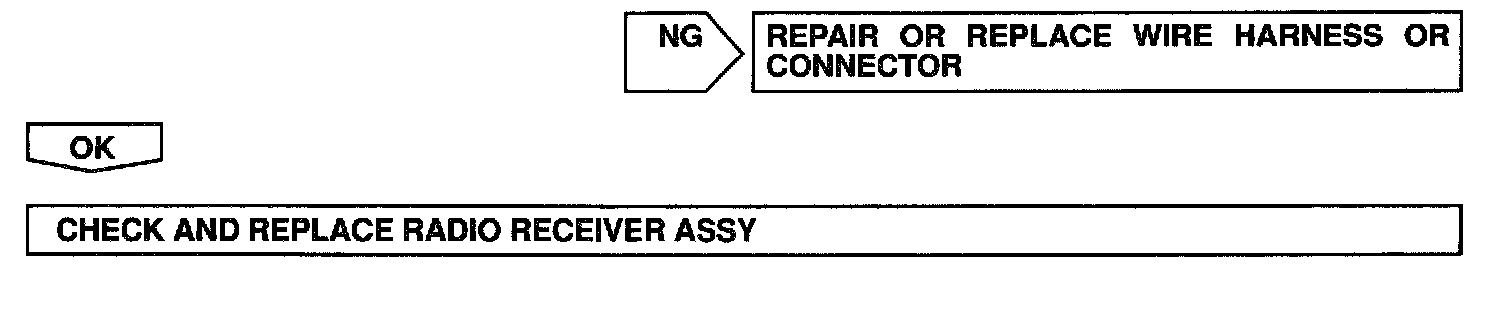

Step 2 (Continued):




INSPECTION PROCEDURE
