Display and Switch Operation is Normal

ALTHOUGH "POWER" IS PRESSED, NO SOUND IS HEARD (DISPLAY AND SWITCH OPERATION IS NORMAL)

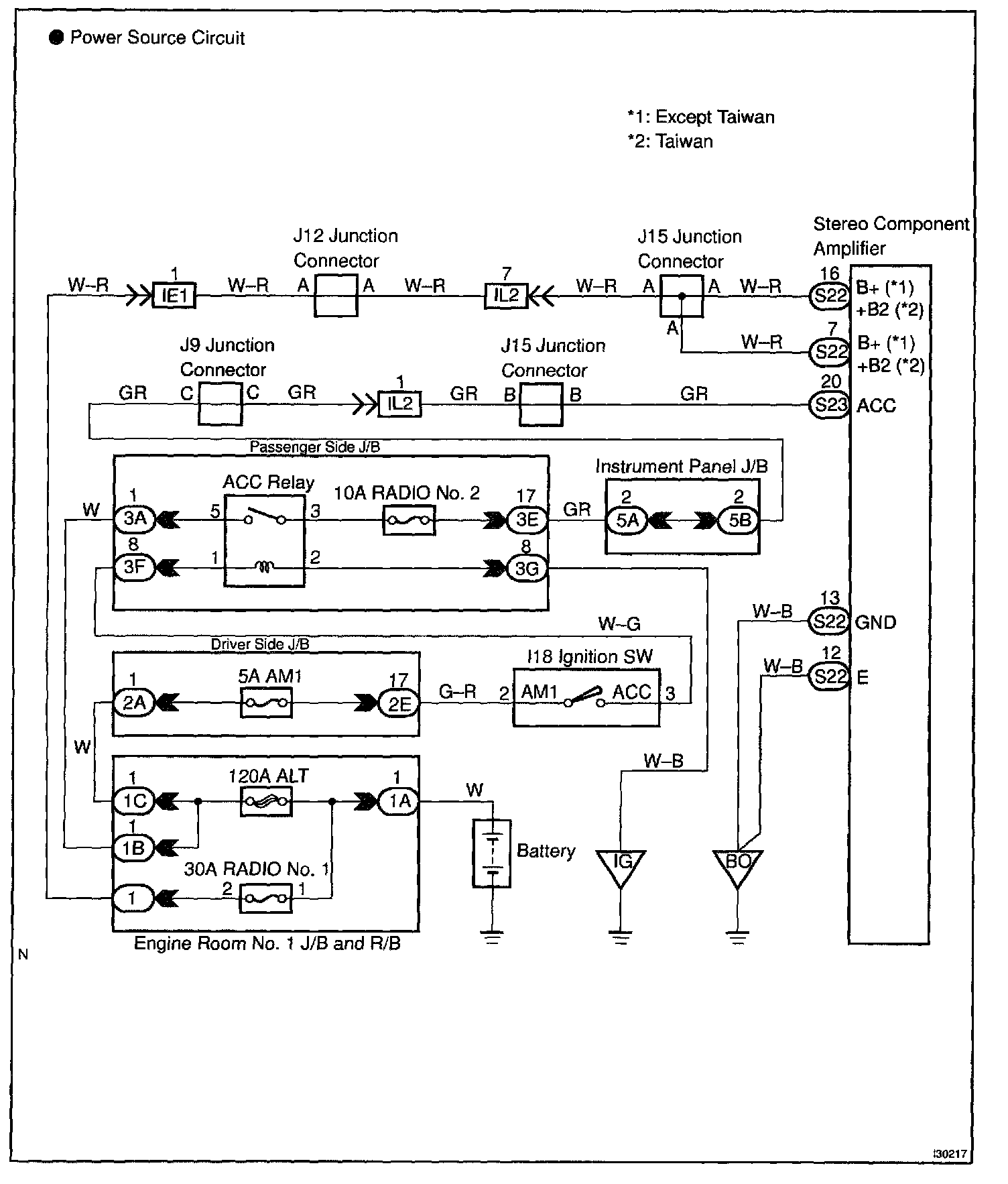

Wiring Diagram - Power Source Circuit:

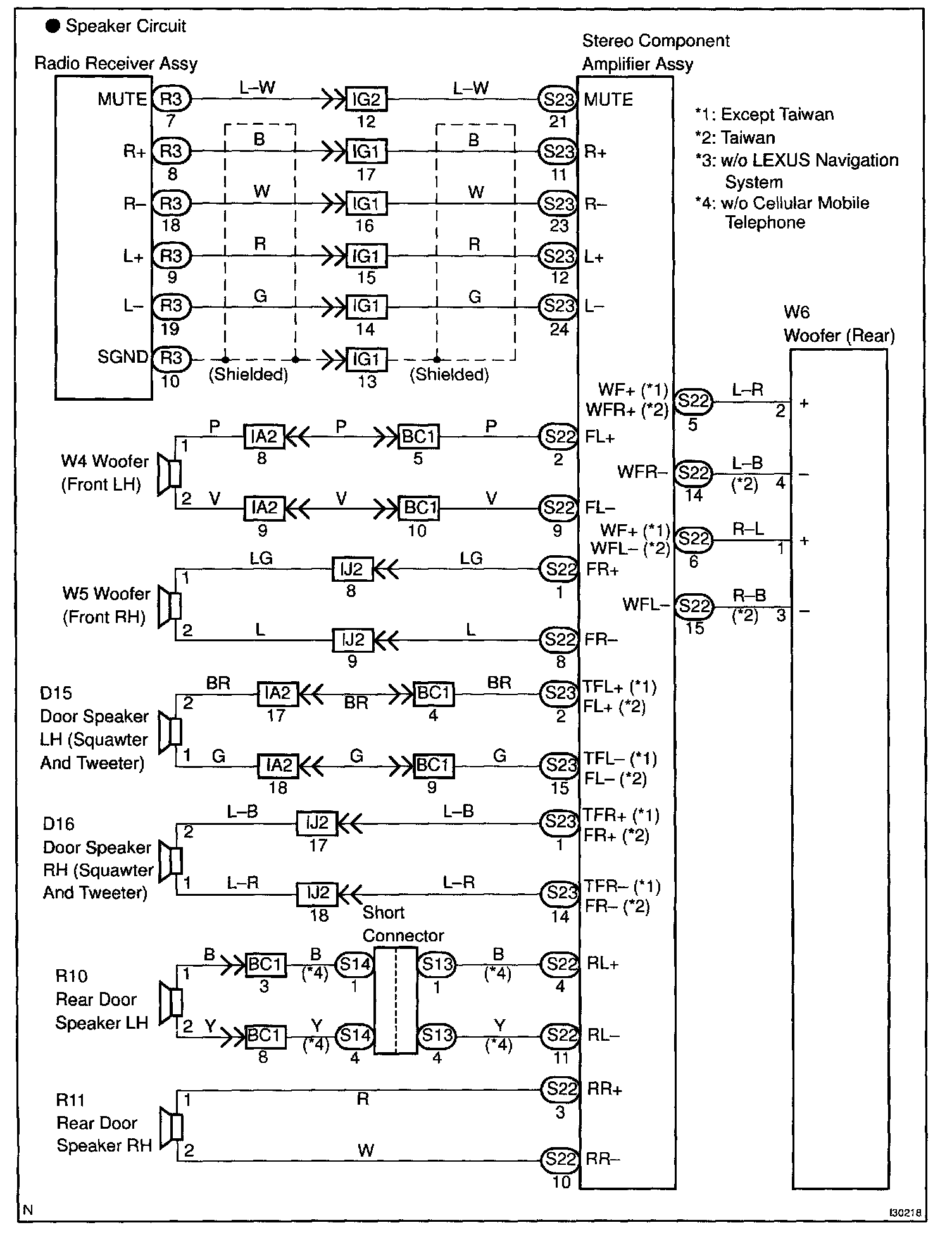

Wiring Diagram - Speaker Circuit:

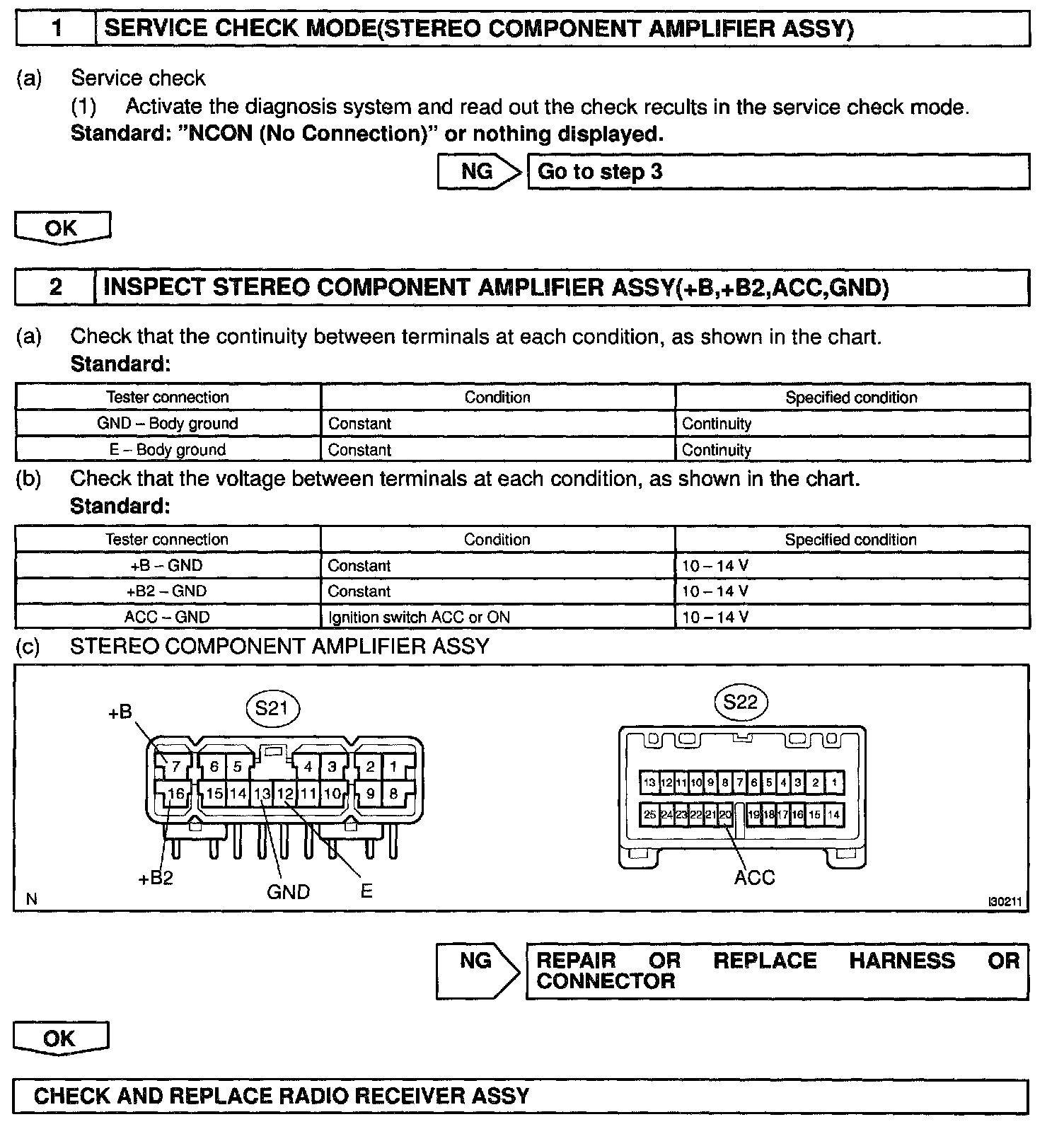

Step 1 - 2:

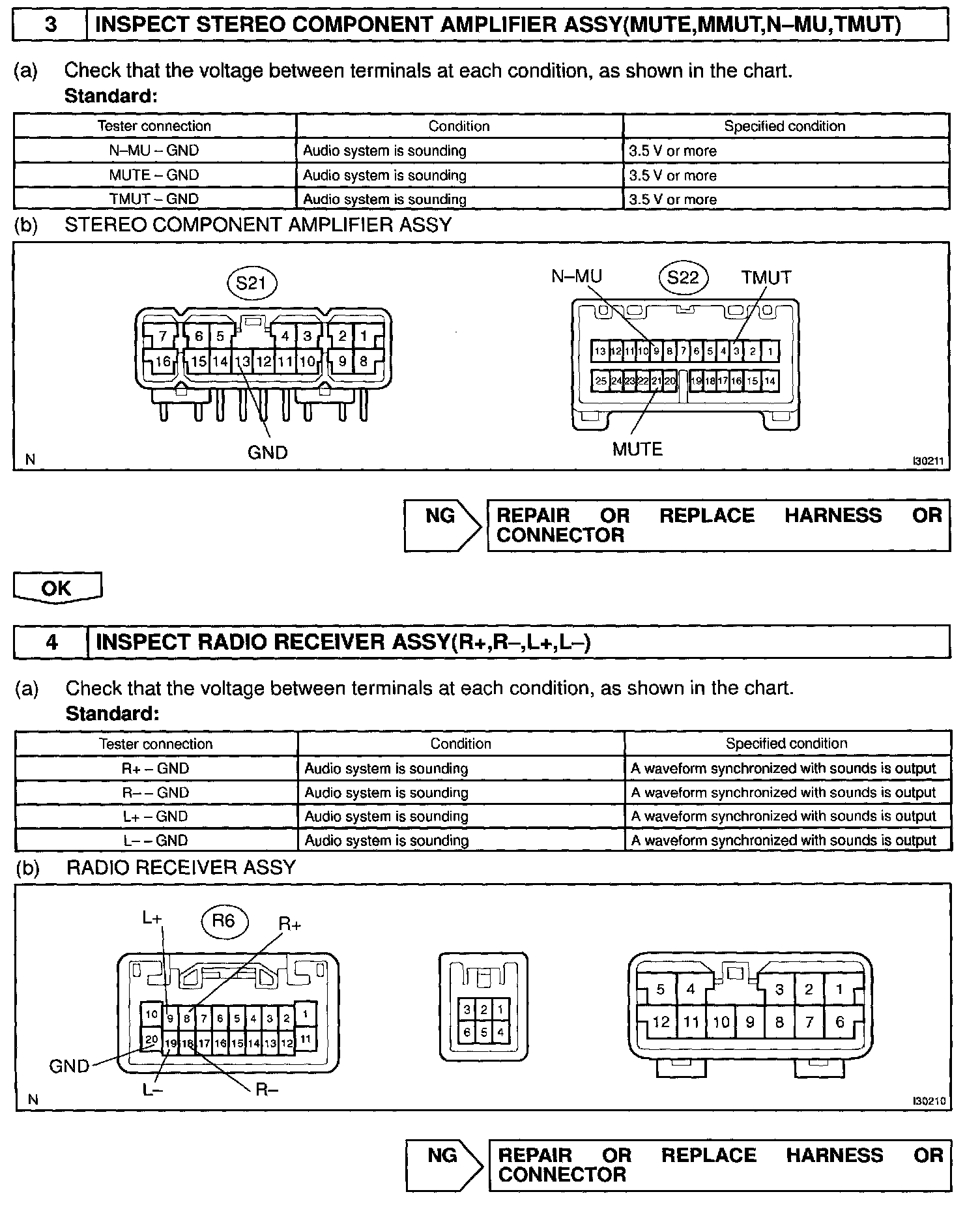

Step 3 - 4:

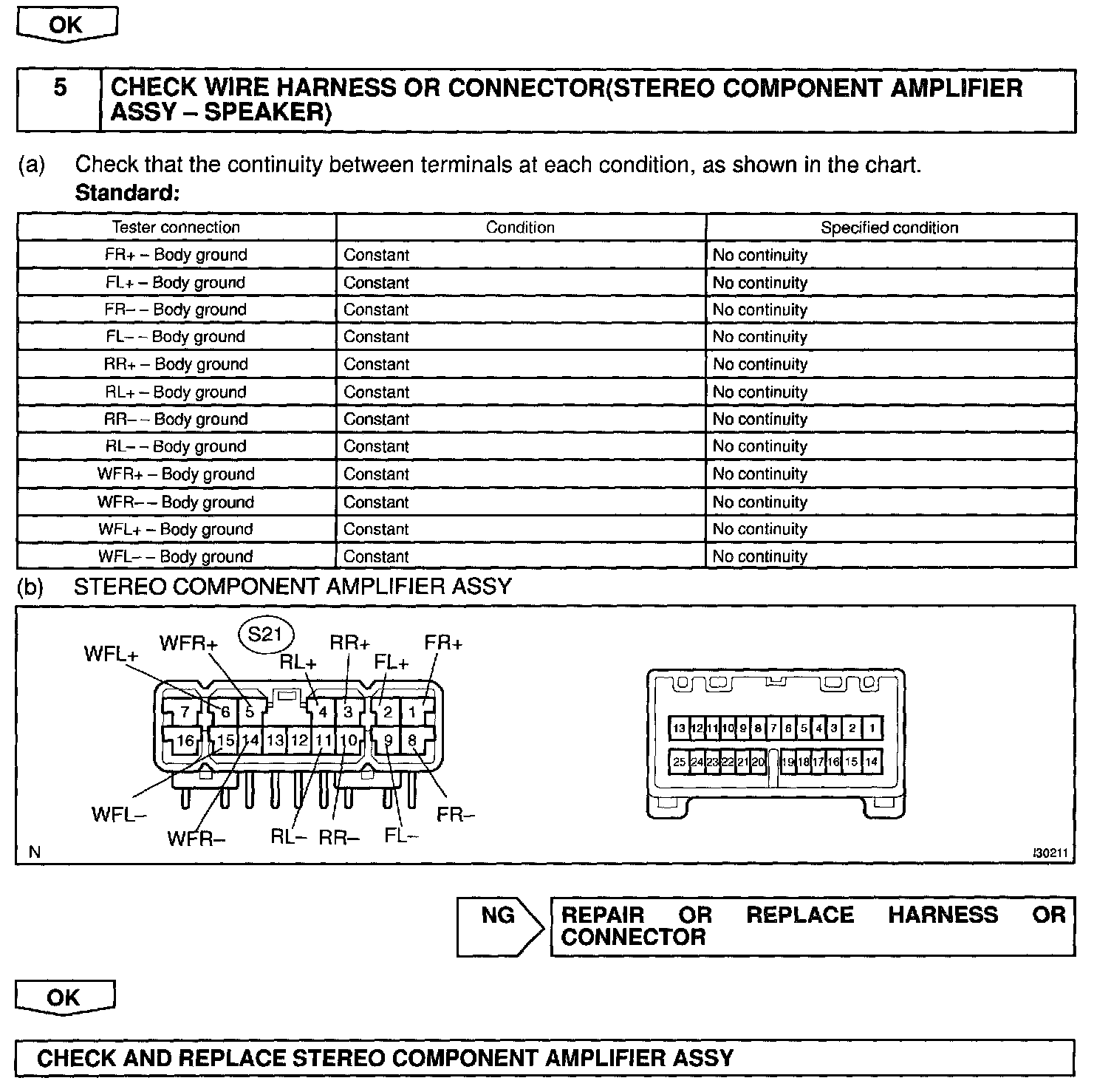

Step 4 (Continued) - 5:

INSPECTION PROCEDURE
