Pinout Values and Diagnostic Parameters

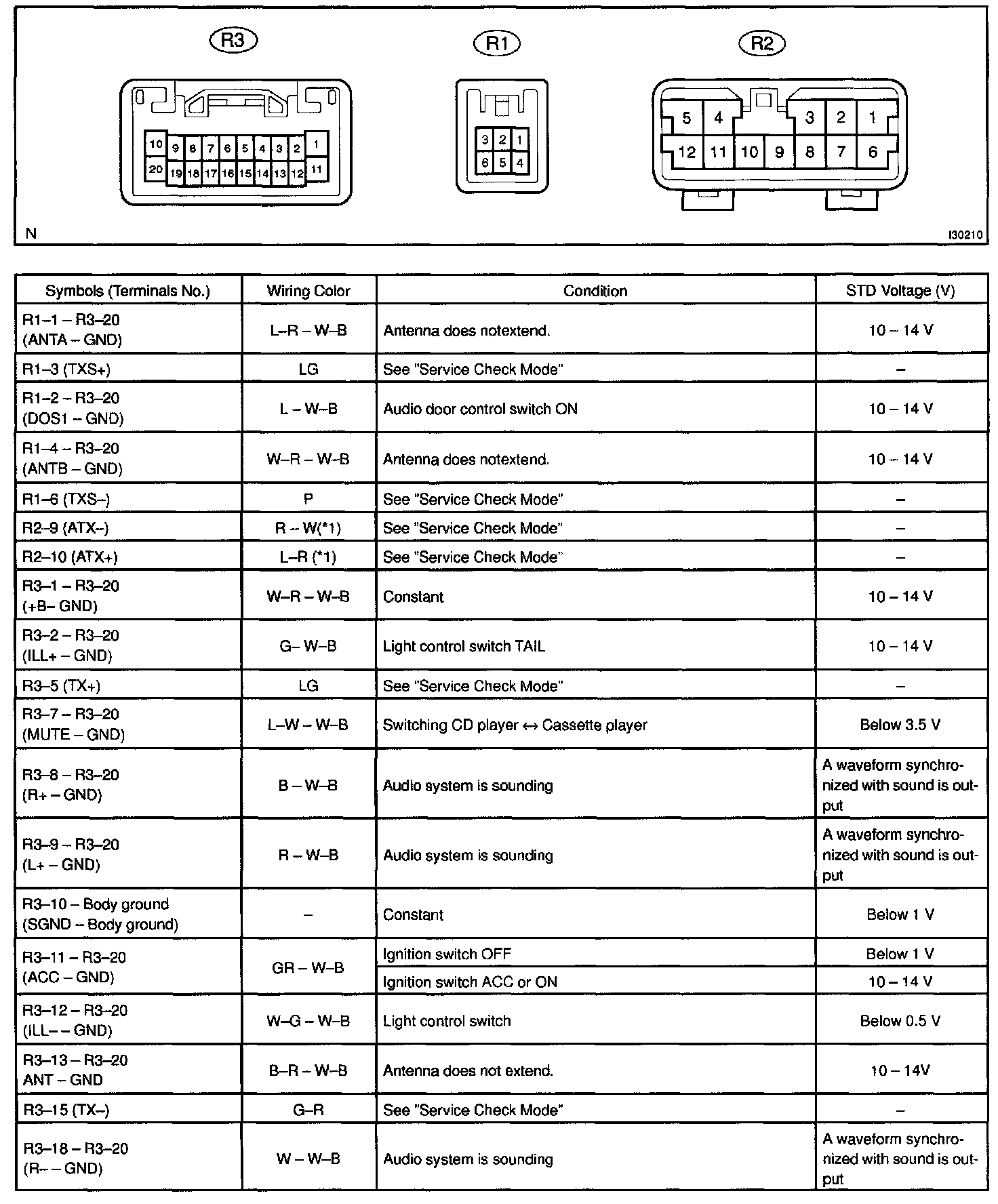

Terminals Of ECU/Pinouts - Radio Receiver Assy Part 1:

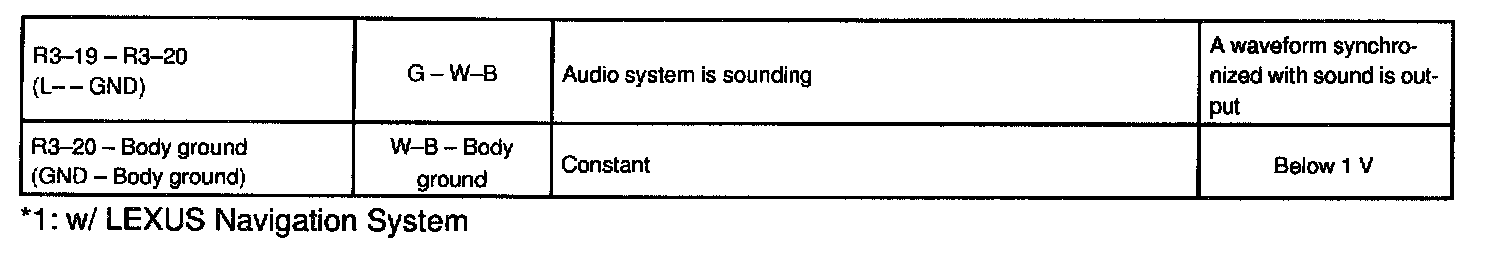

Pinouts Part 2:

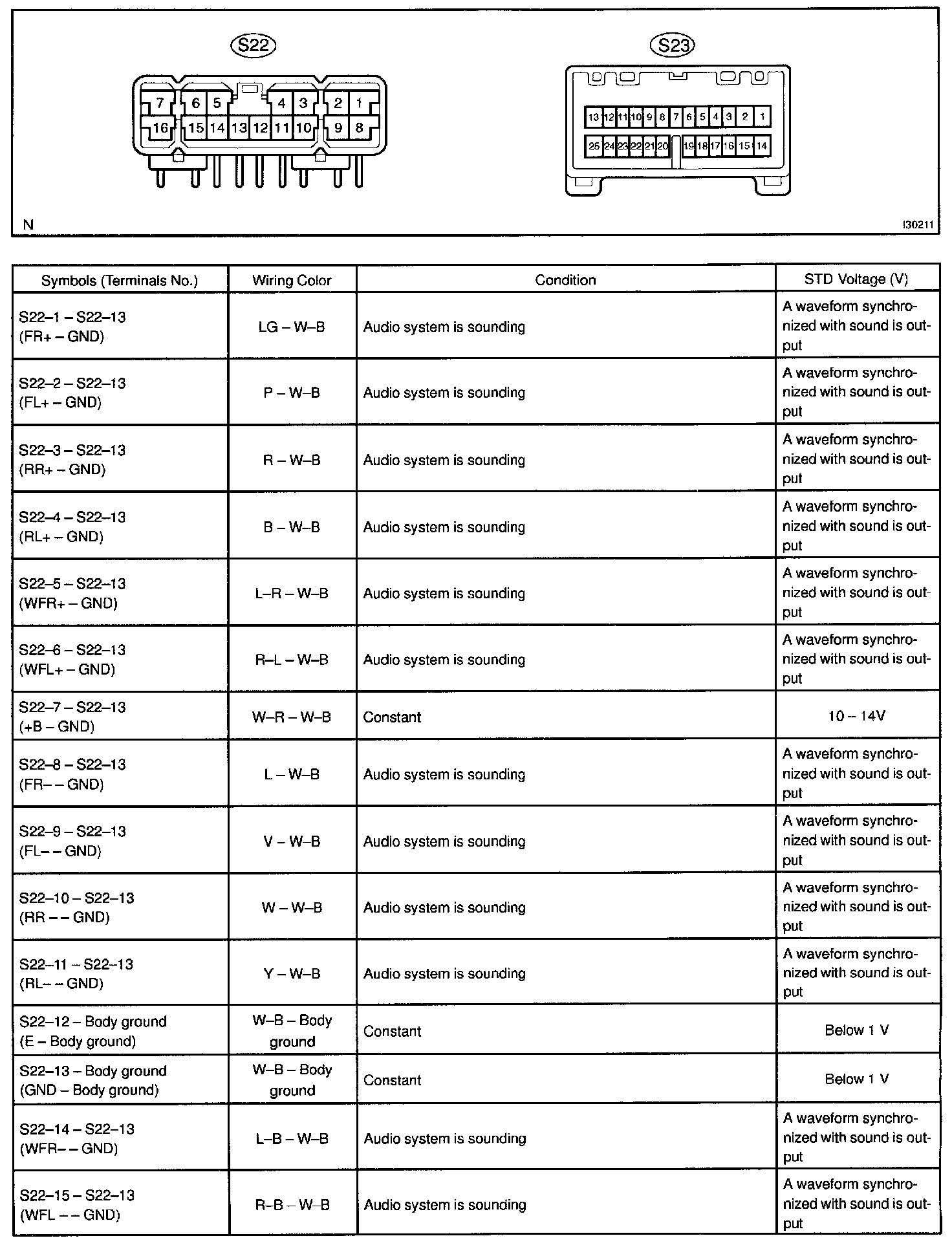

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy Part 1:

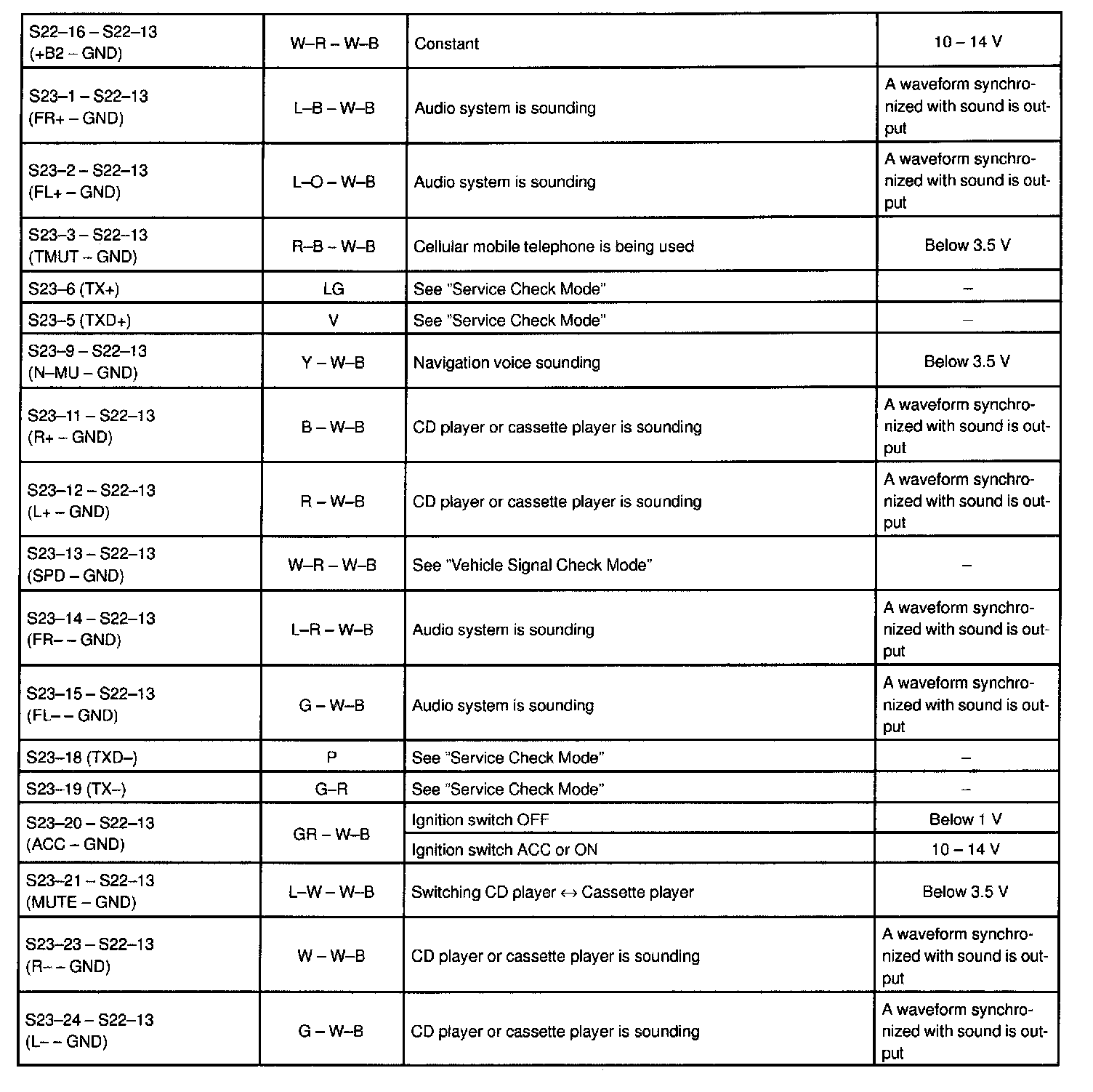

Pinouts Part 2:

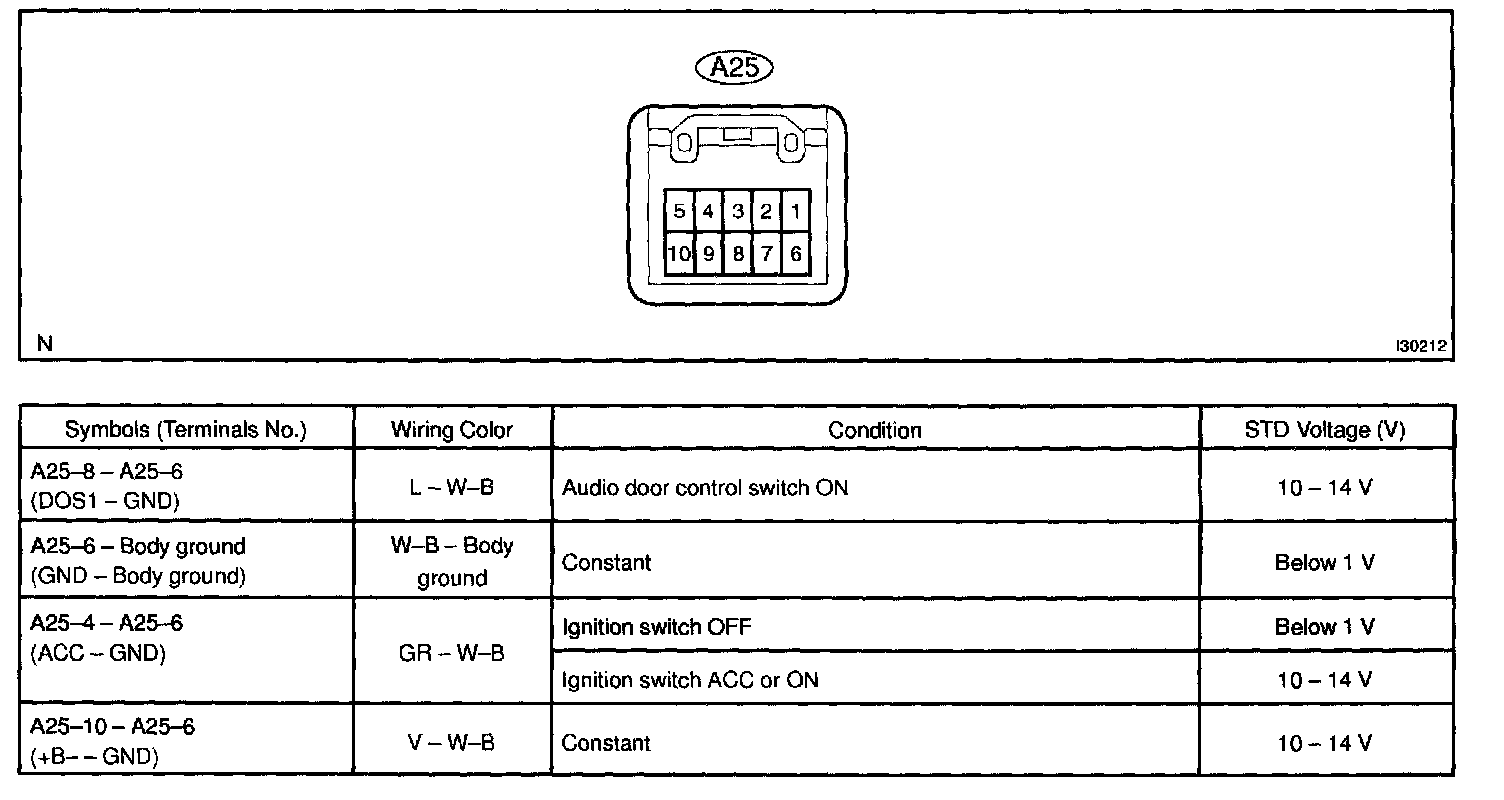

Terminals Of ECU - Audio Door Control Switch:

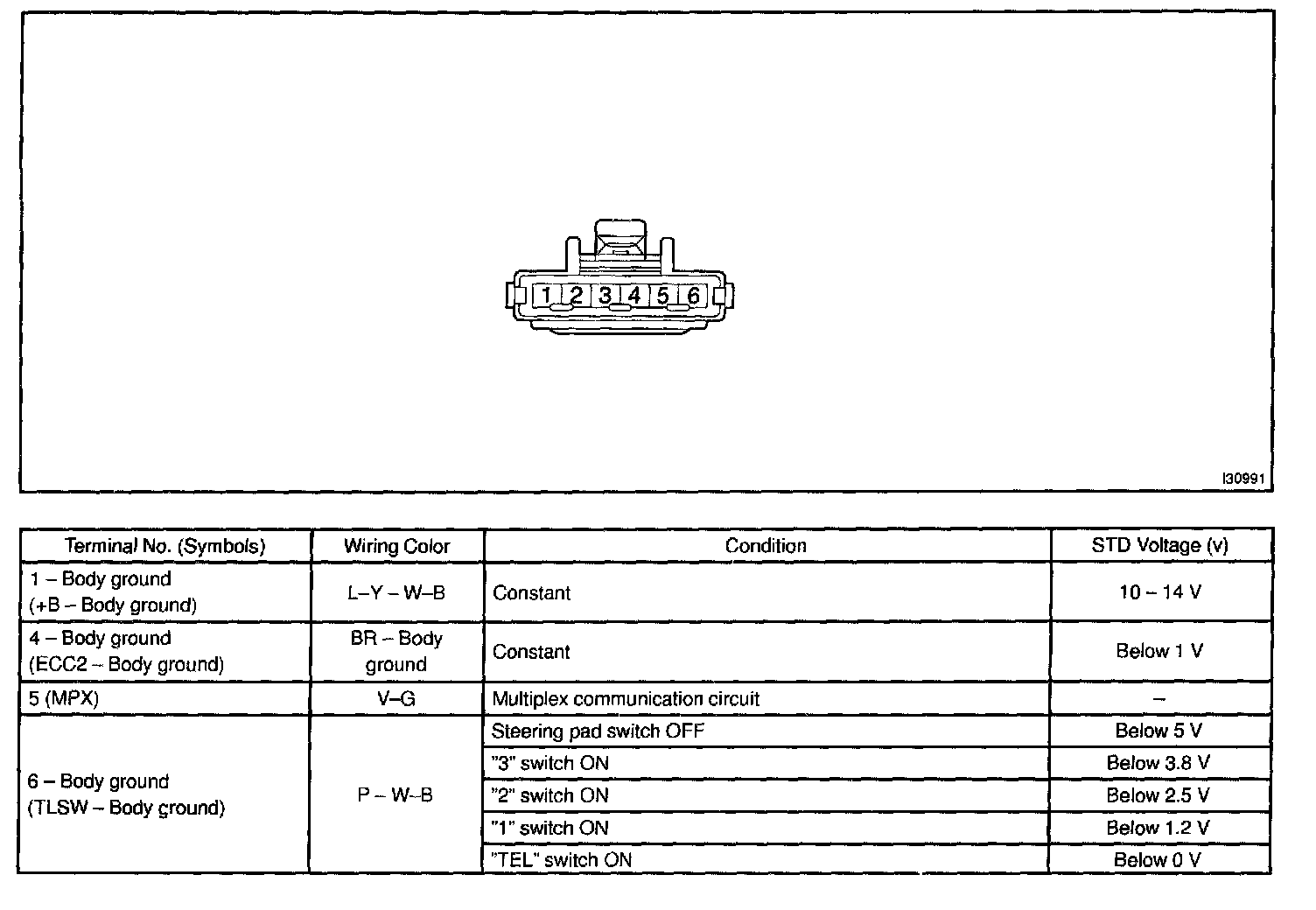

Terminals Of ECU - Steering Pad Switch Modulator:
