When Pressing Any Switches, The Screen Remains Black
When Pressing Any Switches, The Screen Remains Black
BLACK SCREEN APPEARS WHEN "MAP", "MENU" OR "DESTINATION" SWITCH PRESSED

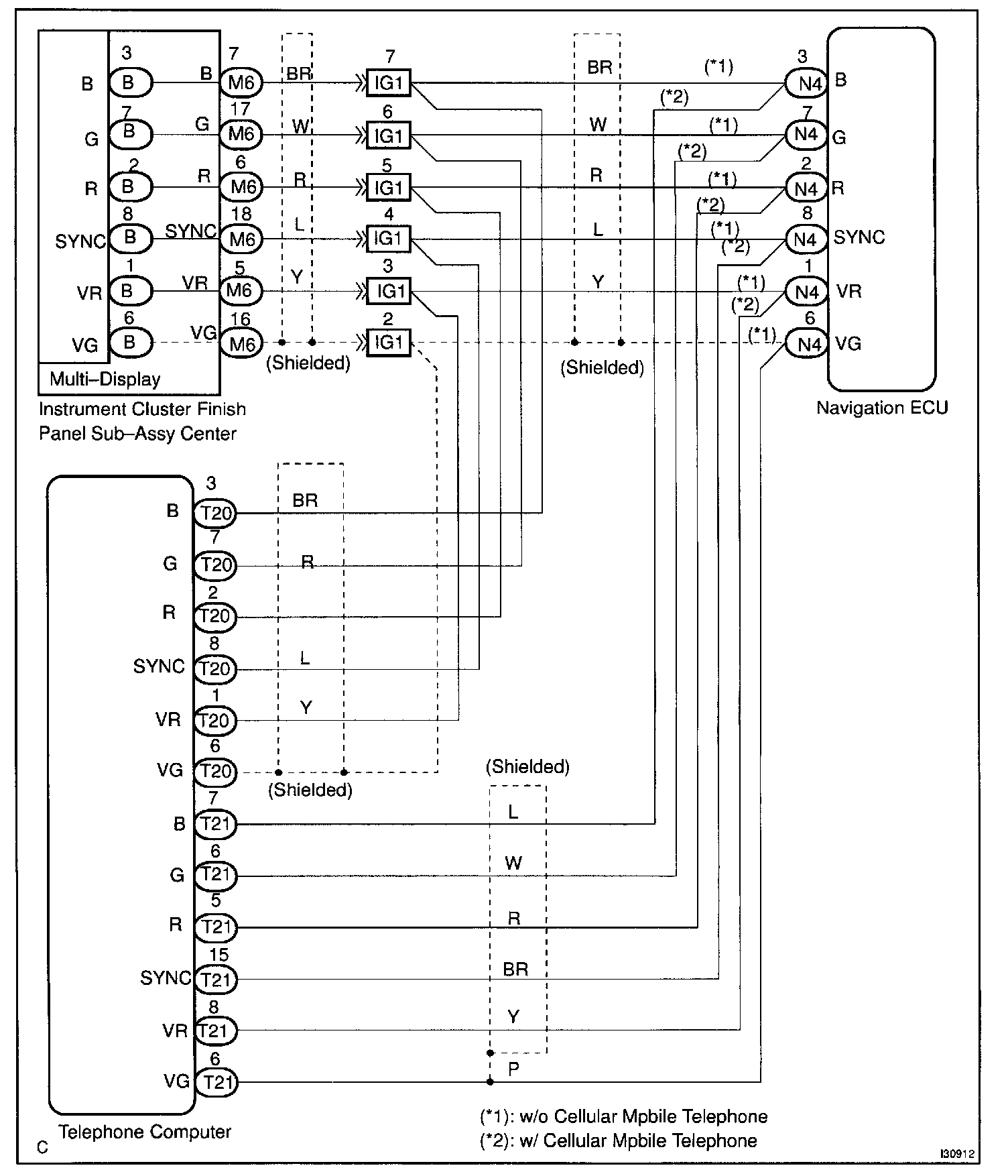

Wiring Diagram:

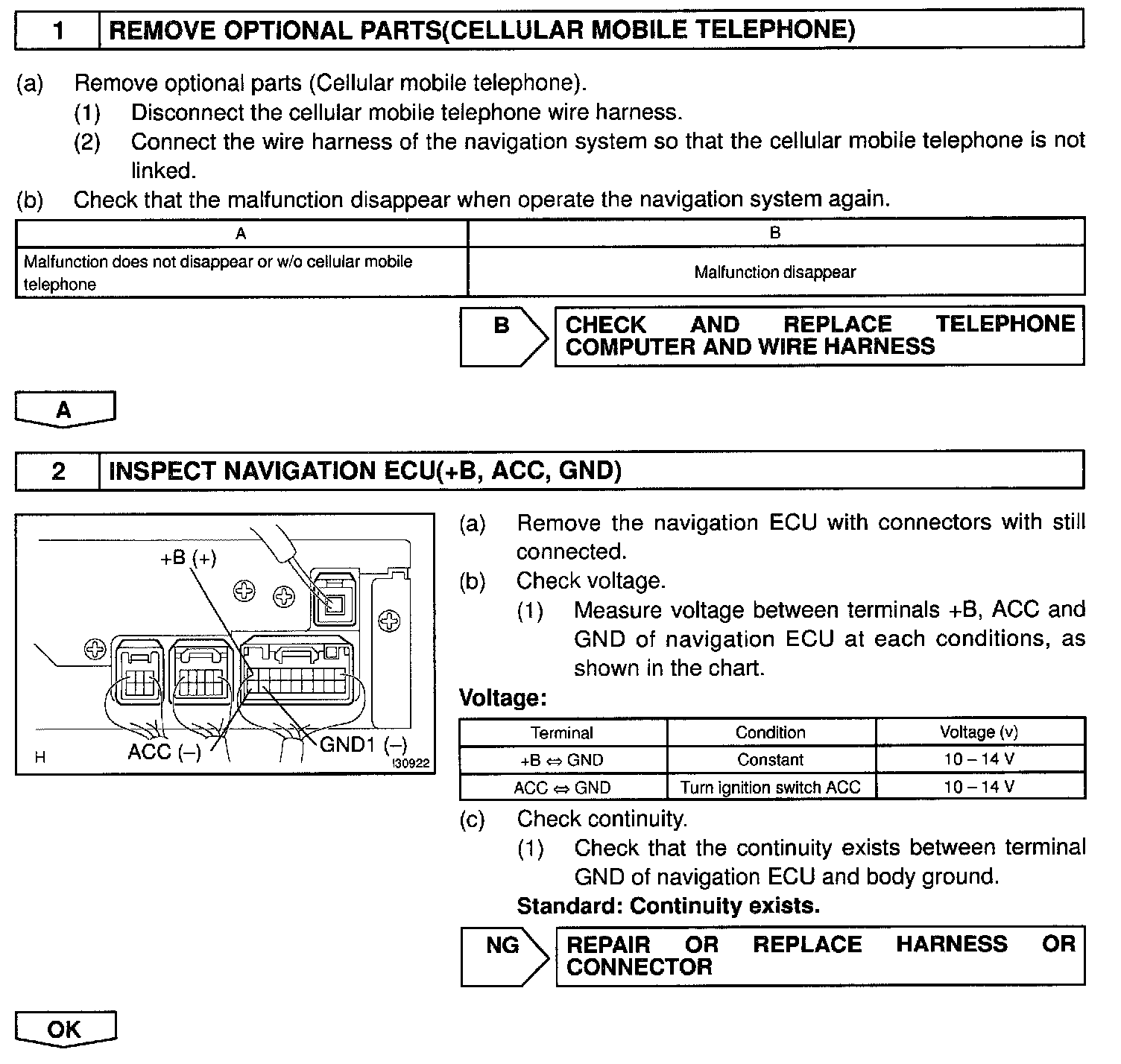

Step 1 - 2:

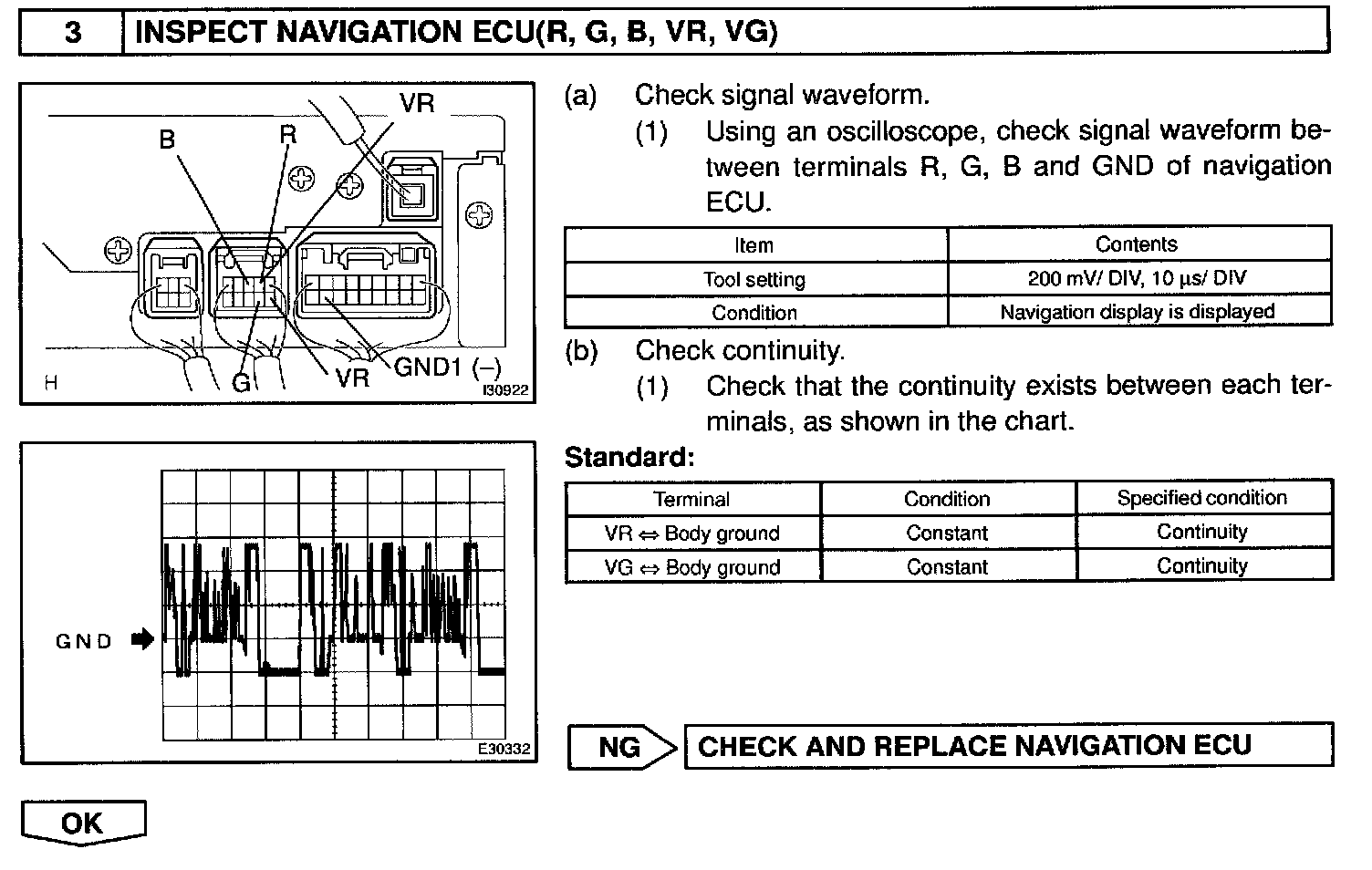

Step 3:

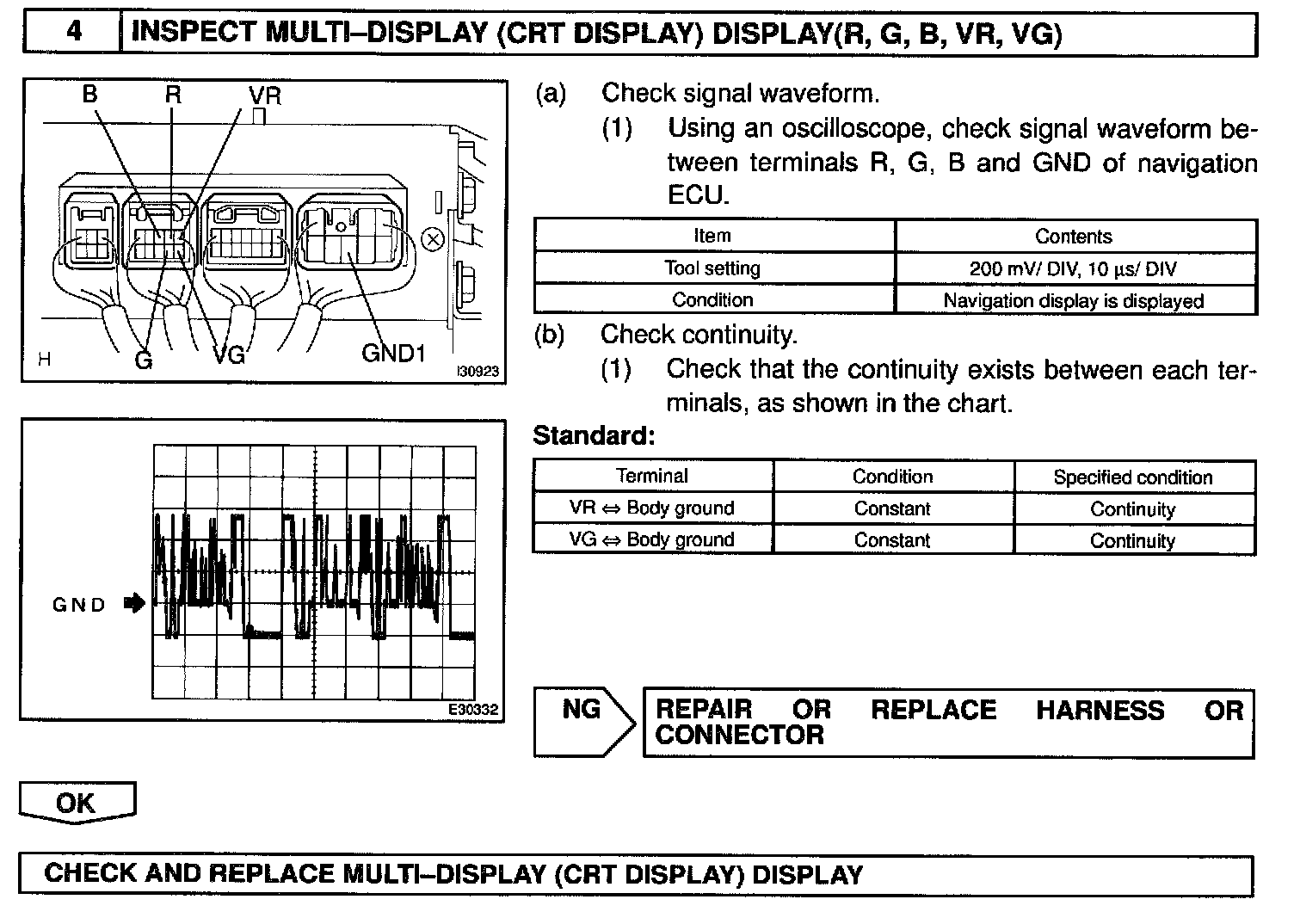

Step 4:
INSPECTION PROCEDURE
