Vehicle Position Mark Rotates Without Control

VEHICLE POSITION MARK ROTATES WITHOUT CONTROL (MAP ROTATES WITHOUT CONTROL)

Wiring Diagram:

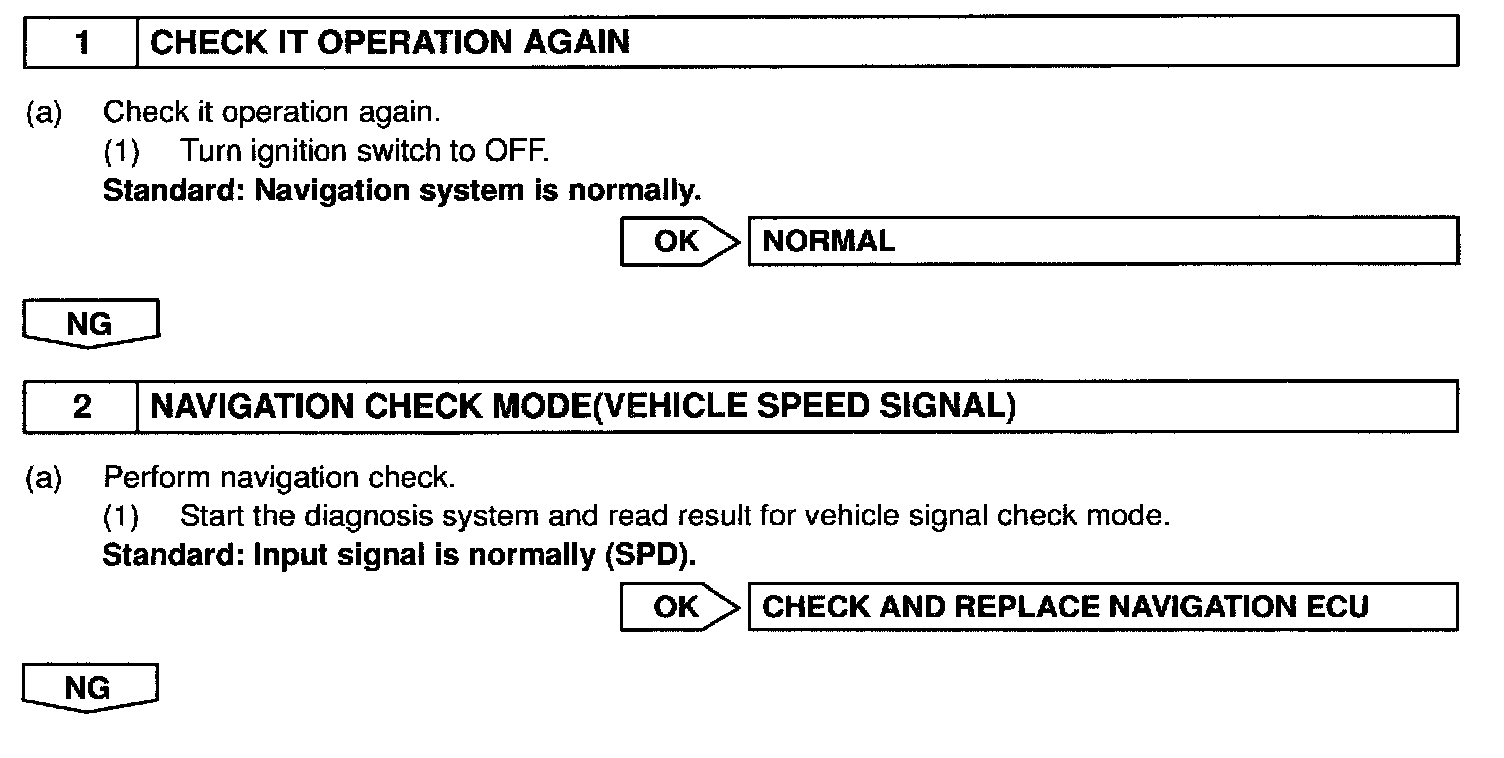

Step 1 - 2:

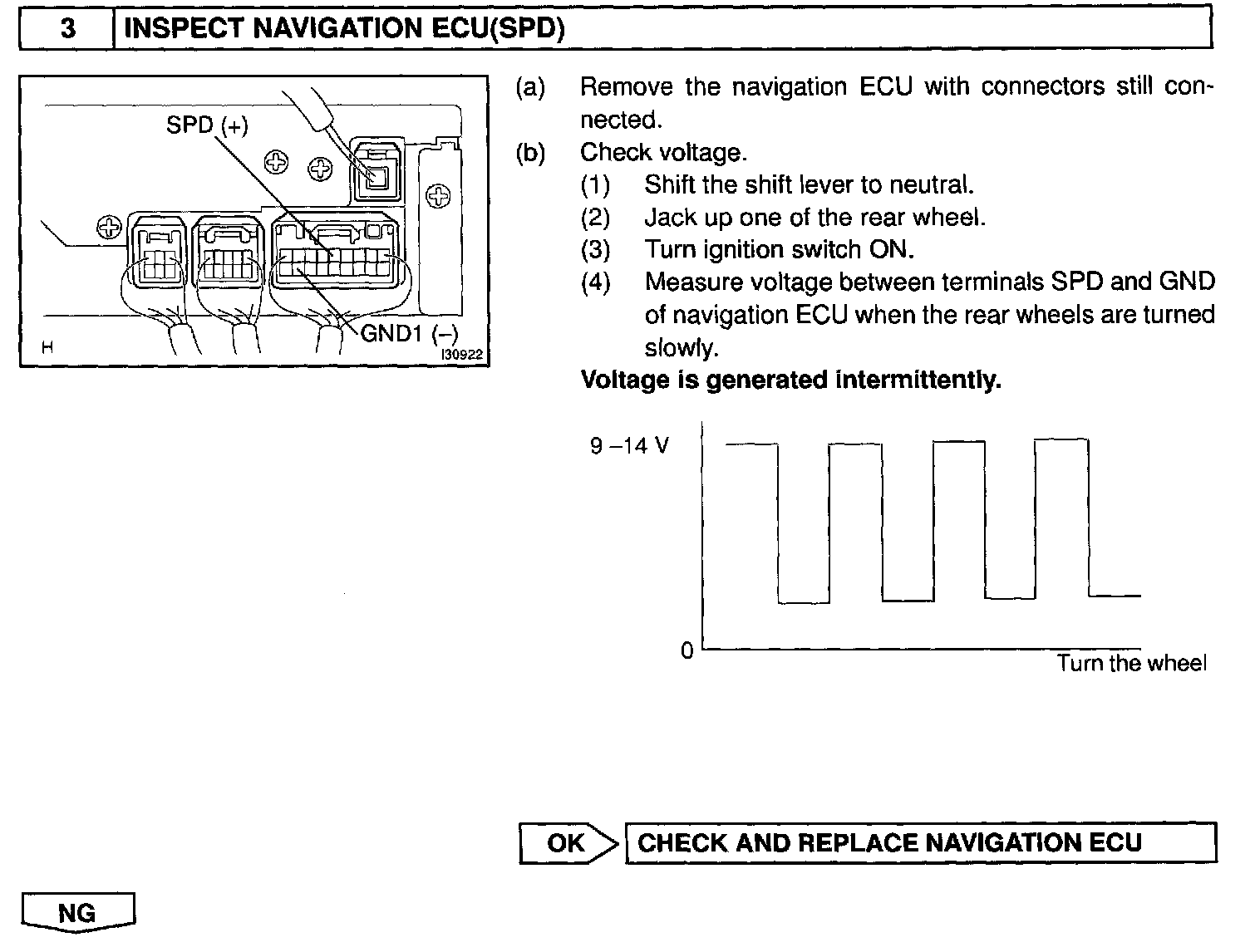

Step 3:

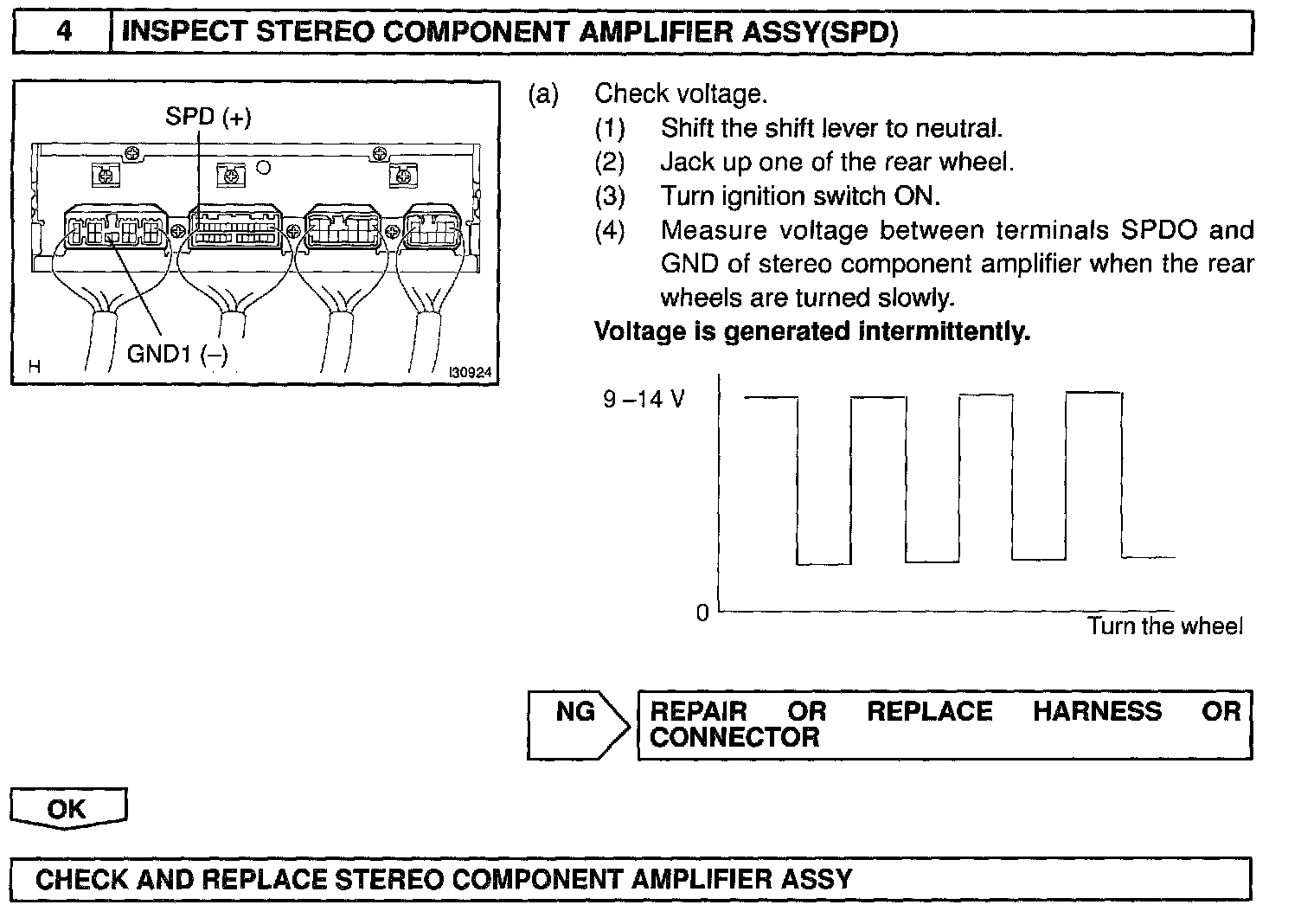

Step 4:




INSPECTION PROCEDURE
