Vehicle Position Is Deviated From Correct Point Badly
Vehicle Position Is Deviated From Correct Point Badly

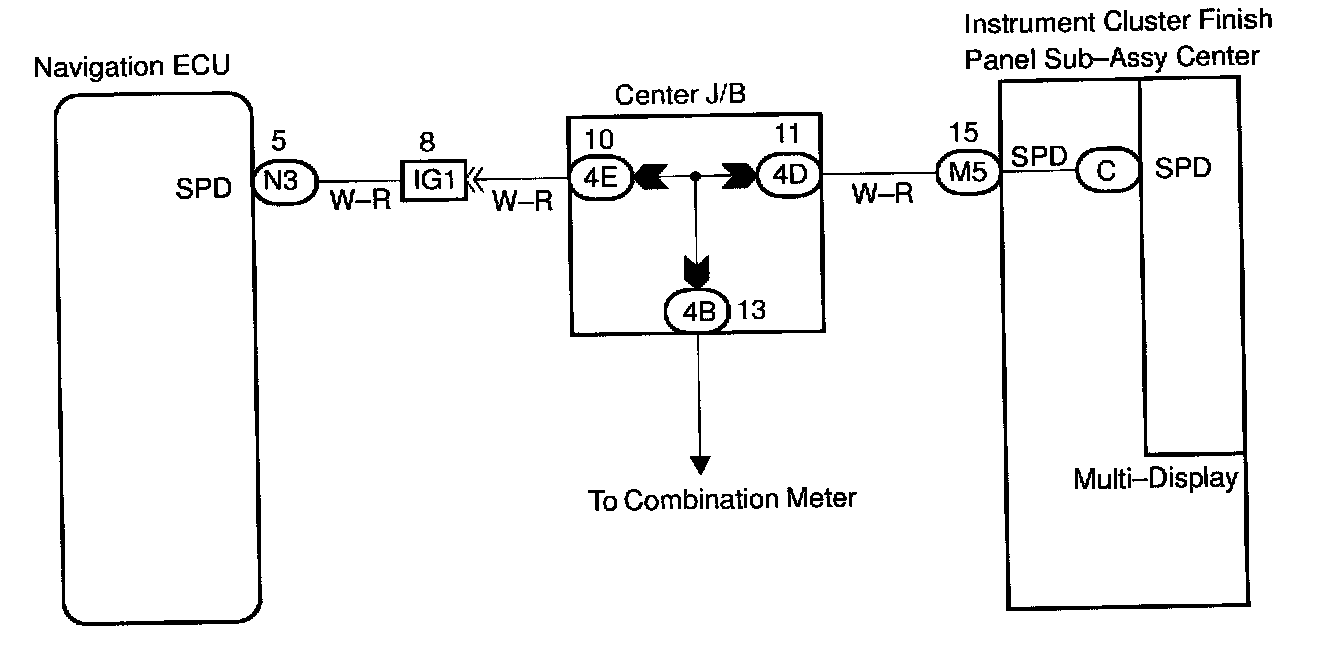

Wiring Diagram:

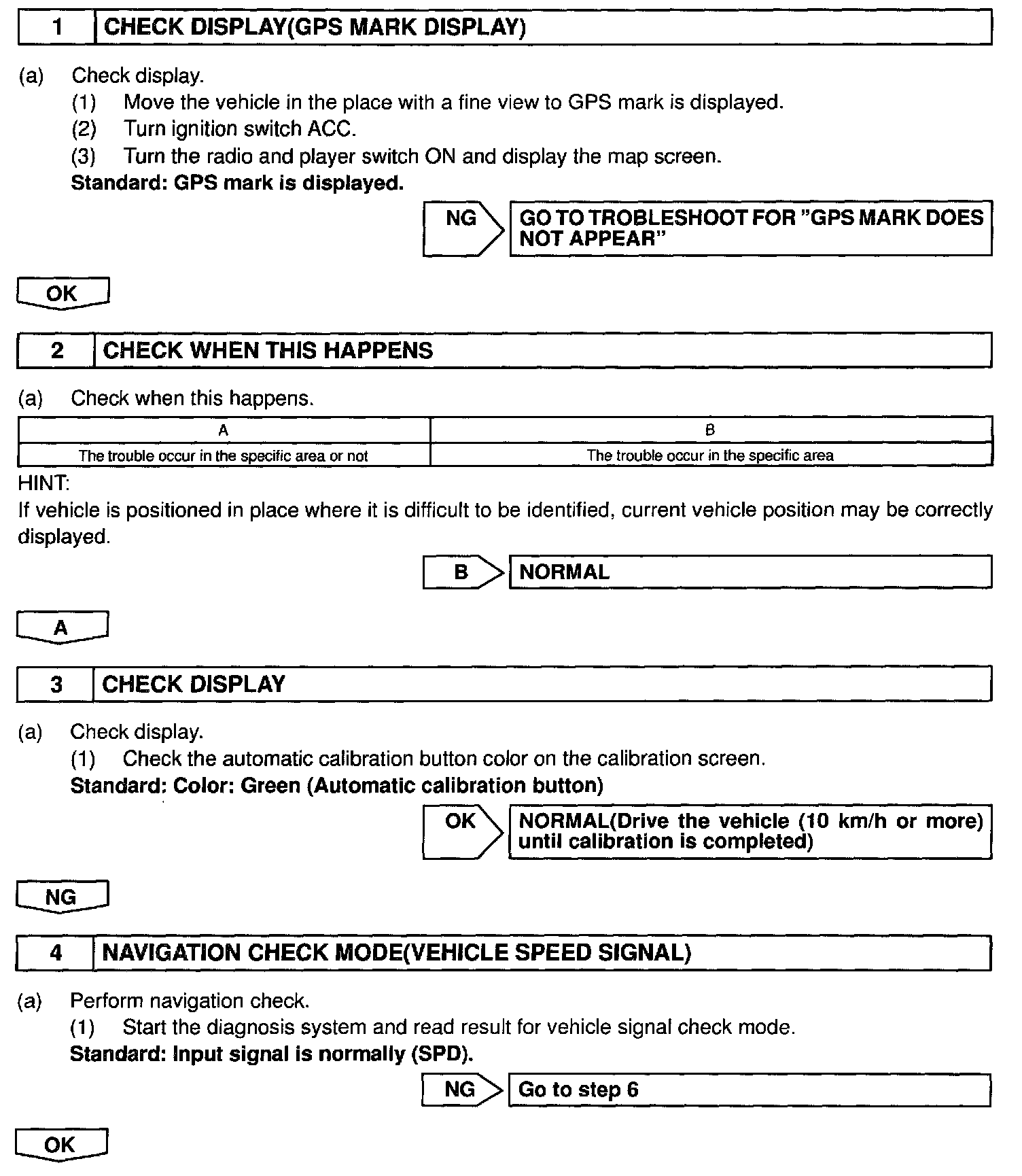

Step 1 - 4:
Step 5 - 6:

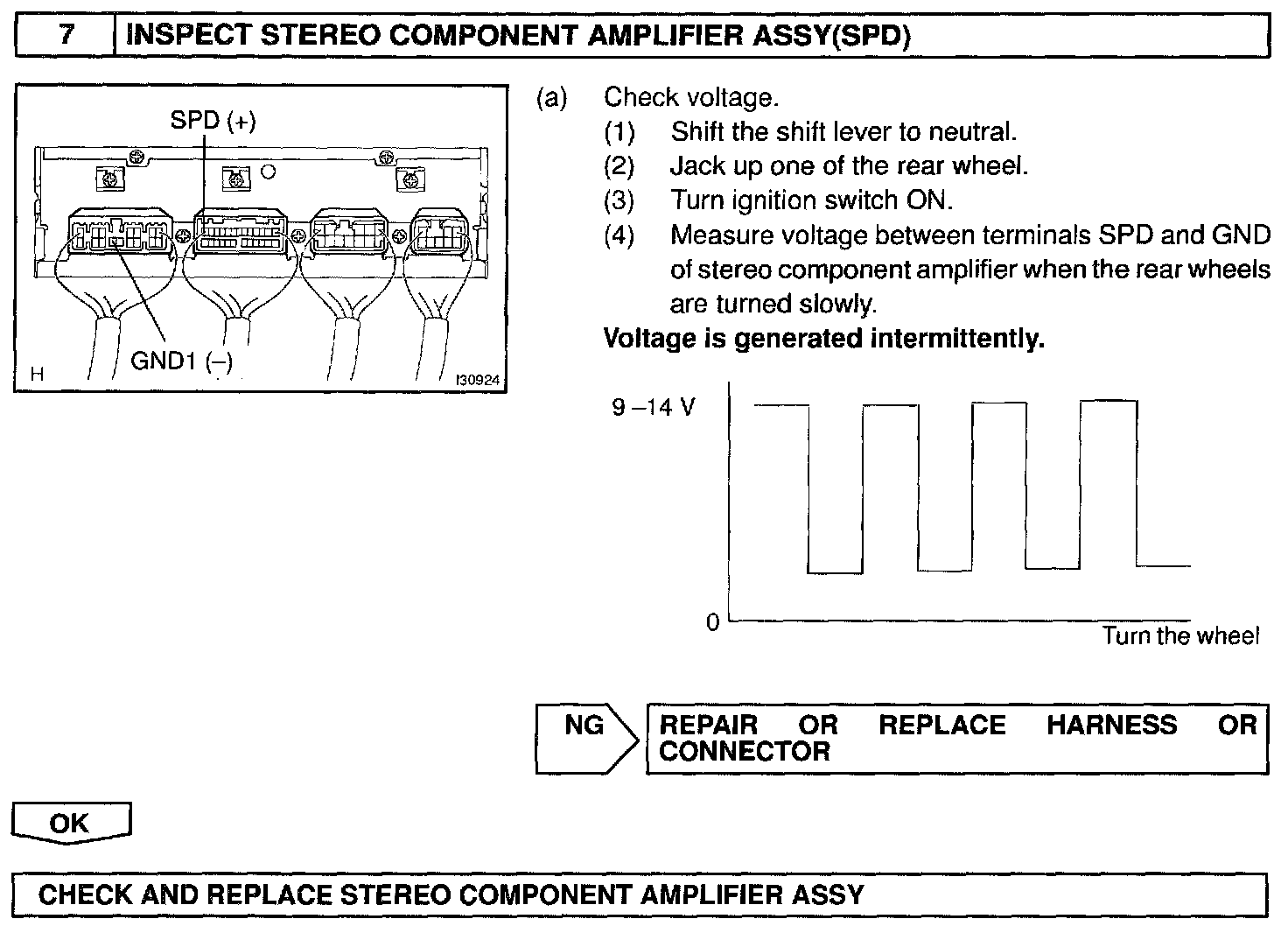

Step 7:
INSPECTION PROCEDURE
