Door of Multi-Display Stops During Open/Close Operation

DOOR OF MULTI-DISPLAY UNEXPECTEDLY STOP DURING OPEN/CLOSE OPERATION

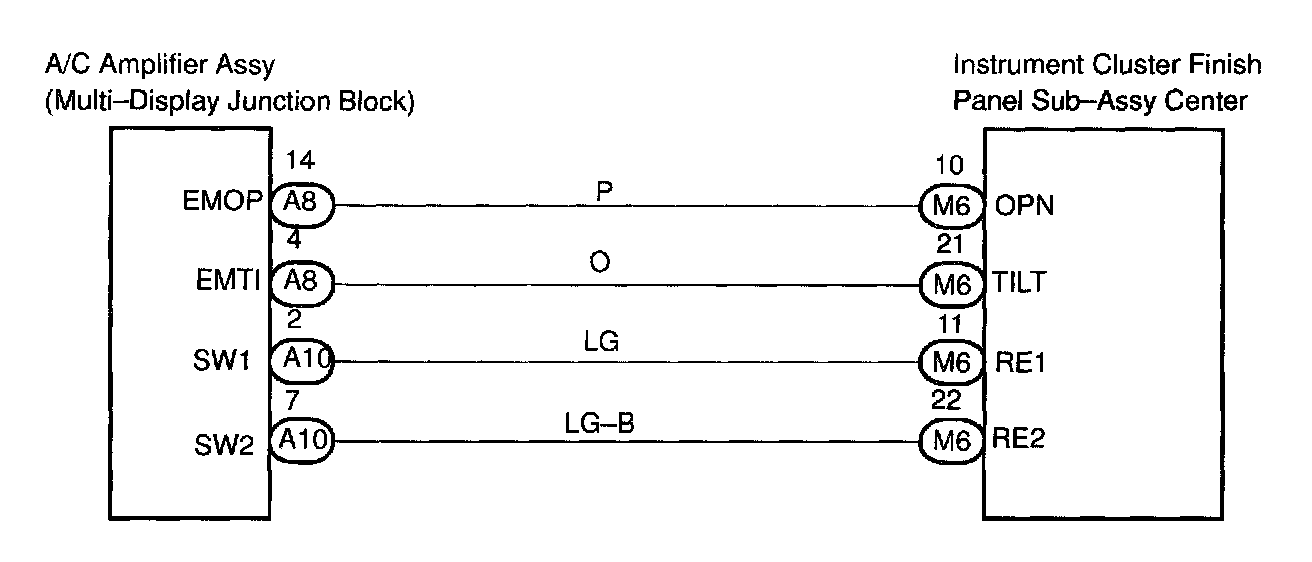

Wiring Diagram:

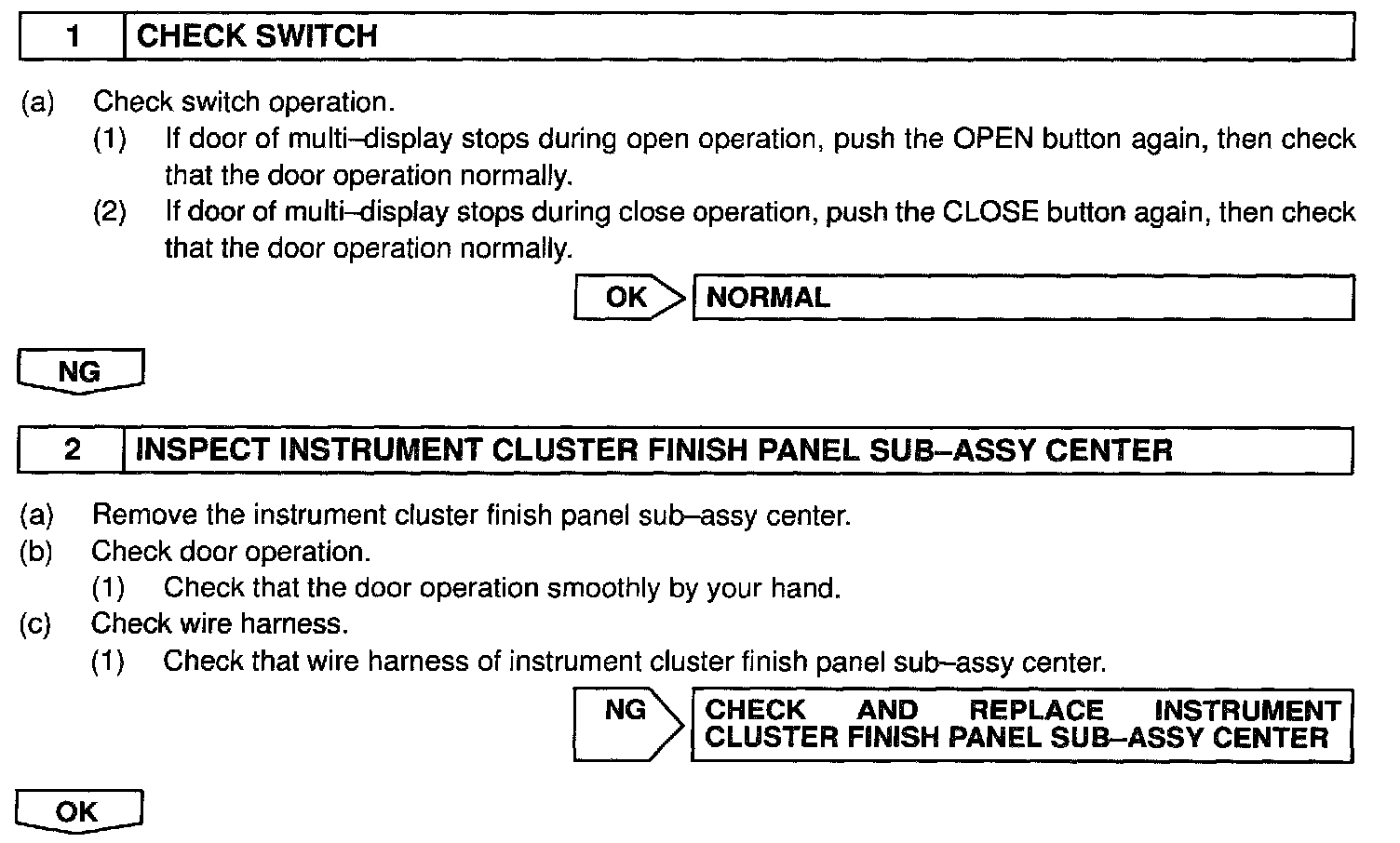

Step 1 - 2:

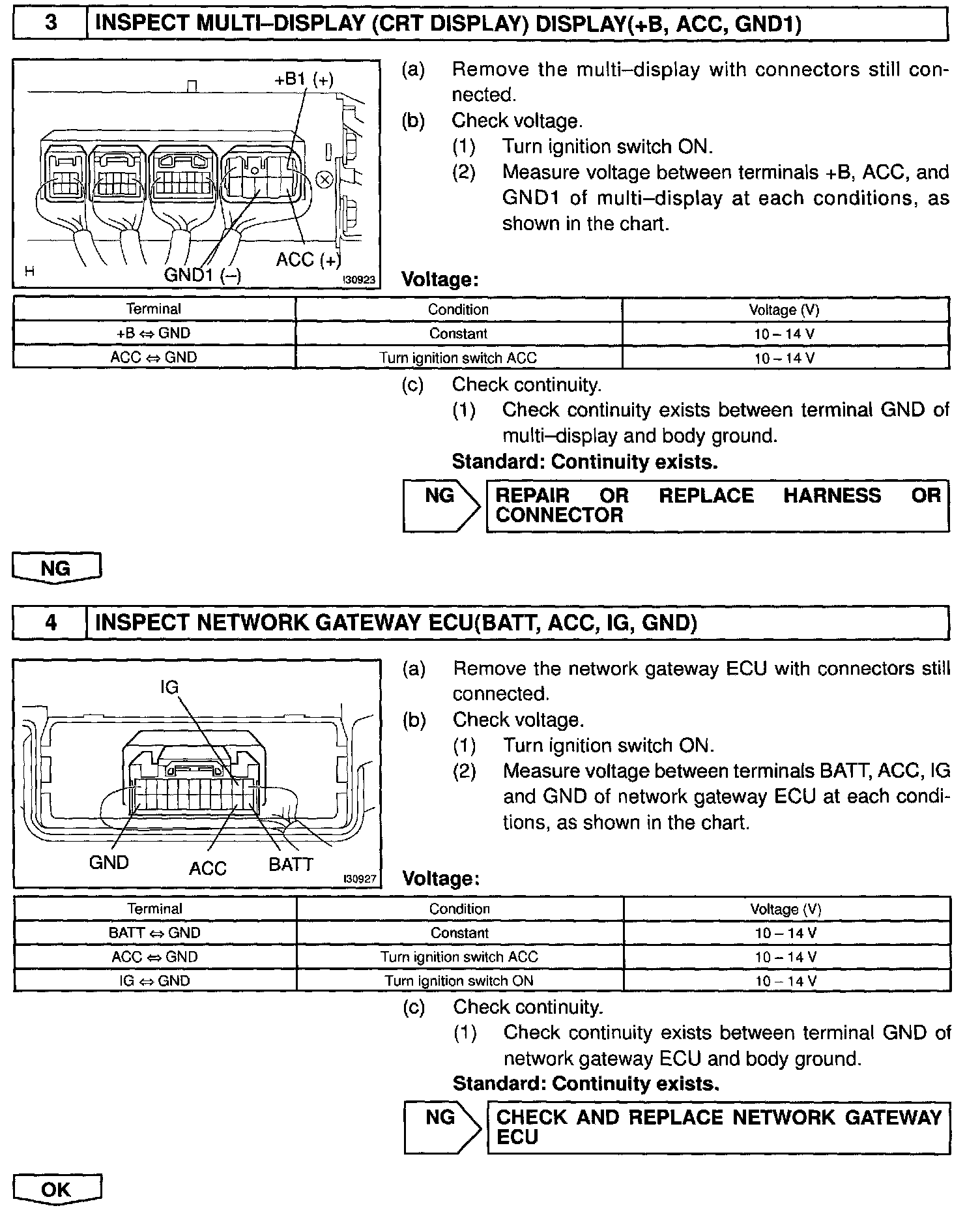

Step 3 - 4:




Step 5 - 7:

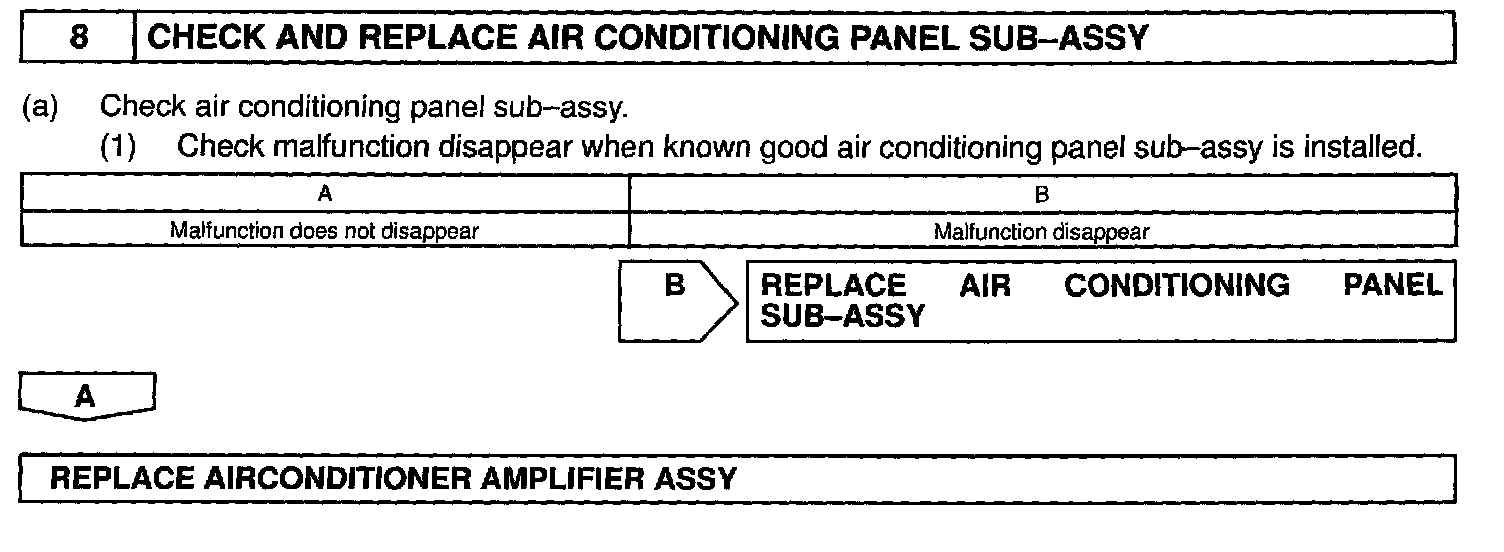

Step 8:




INSPECTION PROCEDURE
