Theft Deterrent System
TERMINALS OF ECUTerminals Of ECU:

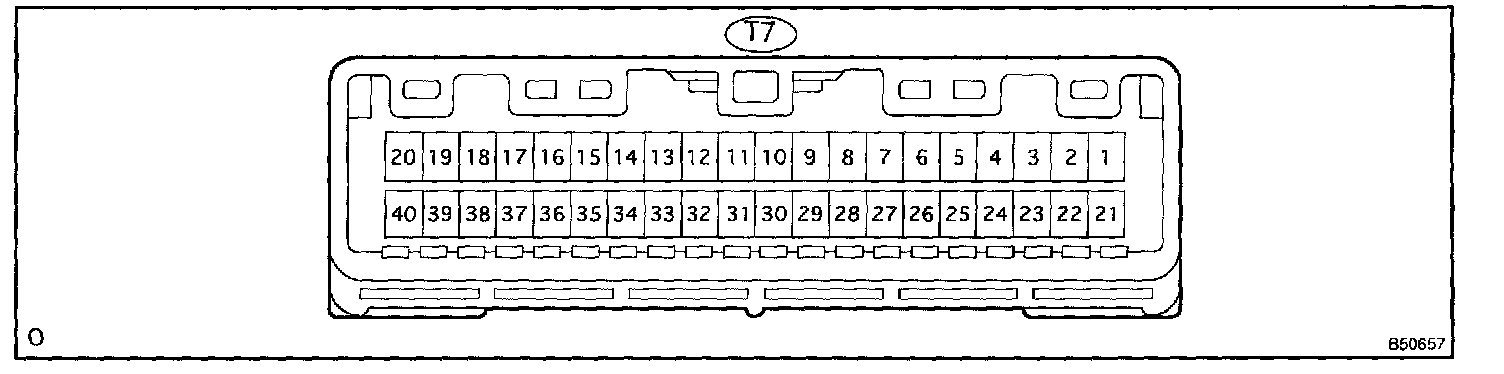

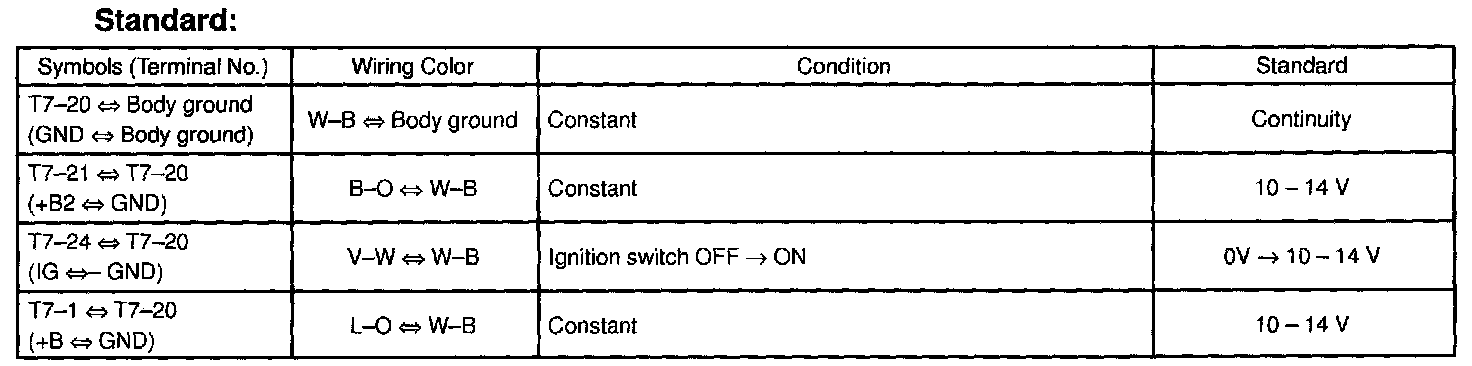

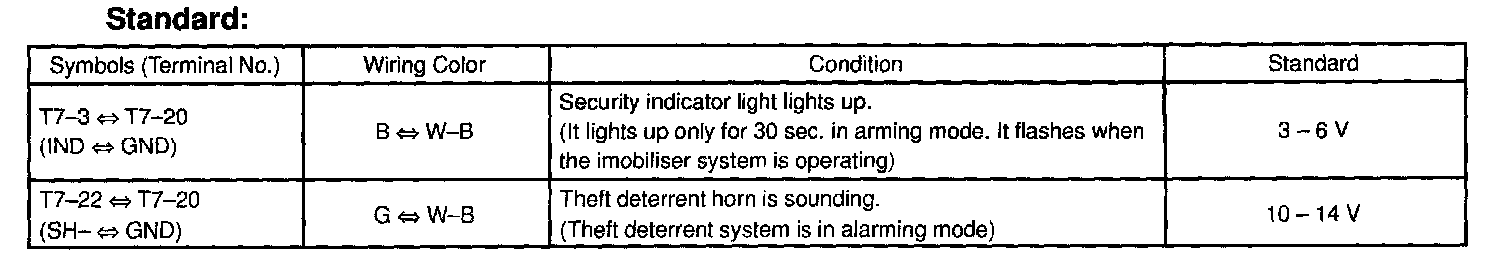

1. THEFT WARNING ECU
a. Disconnect the ECU connector.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
c. Disconnect the ECU connector.
HINT: If the value is not as specified the vehicle's side may be defective.
Terminals Of ECU:

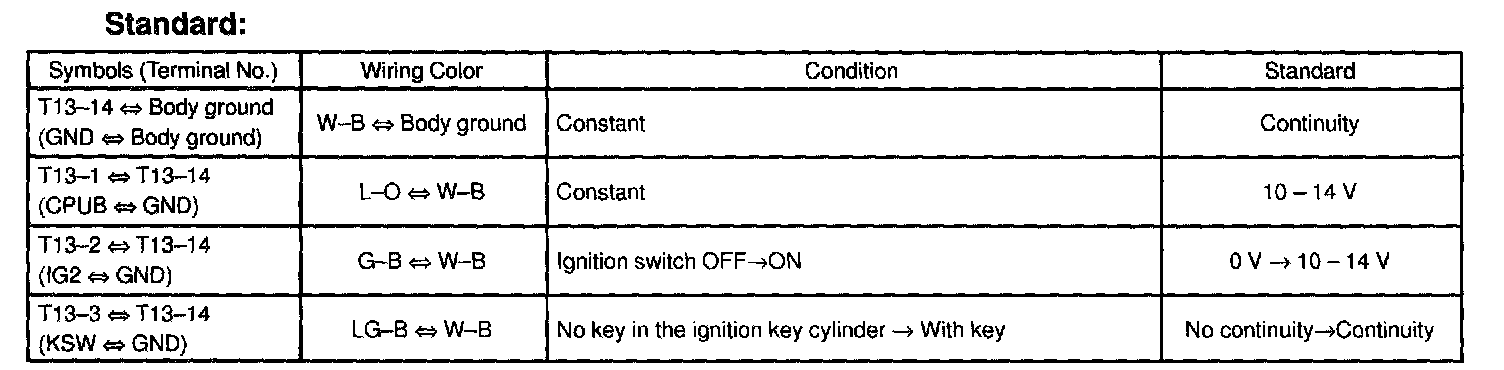

2. TRANSPONDER KEY ECU
a. Disconnect the transponder key ECU connector.
Terminals Of ECU:

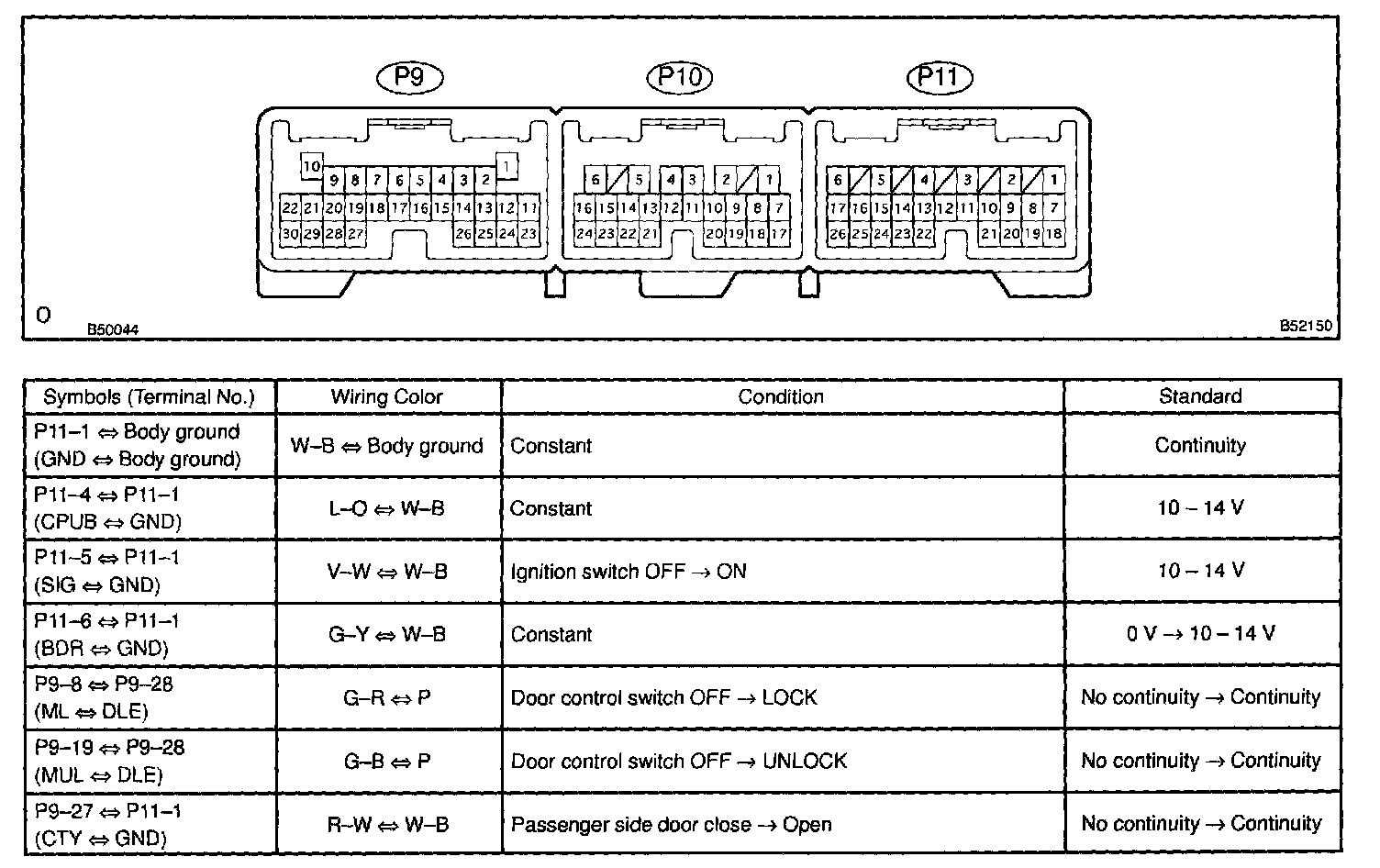

3. DRIVER DOOR ECU
Terminals Of ECU:
4. PASSENGER DOOR ECU
5. CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

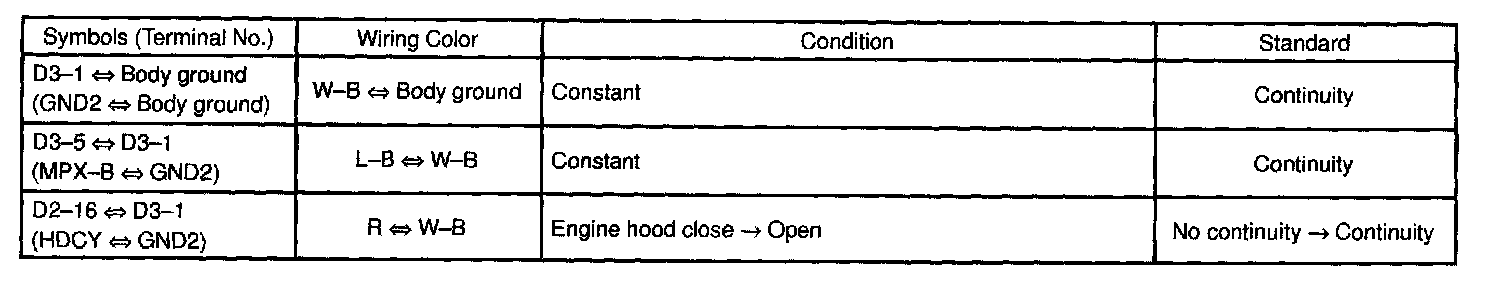

a. Disconnect the J/B connectors D2 and D3.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
6. CHECK LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)

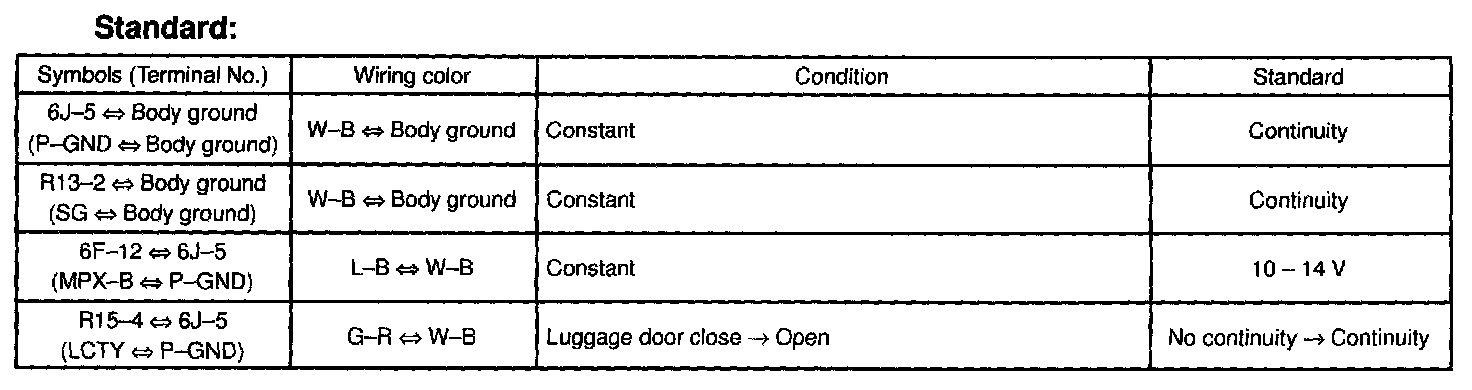

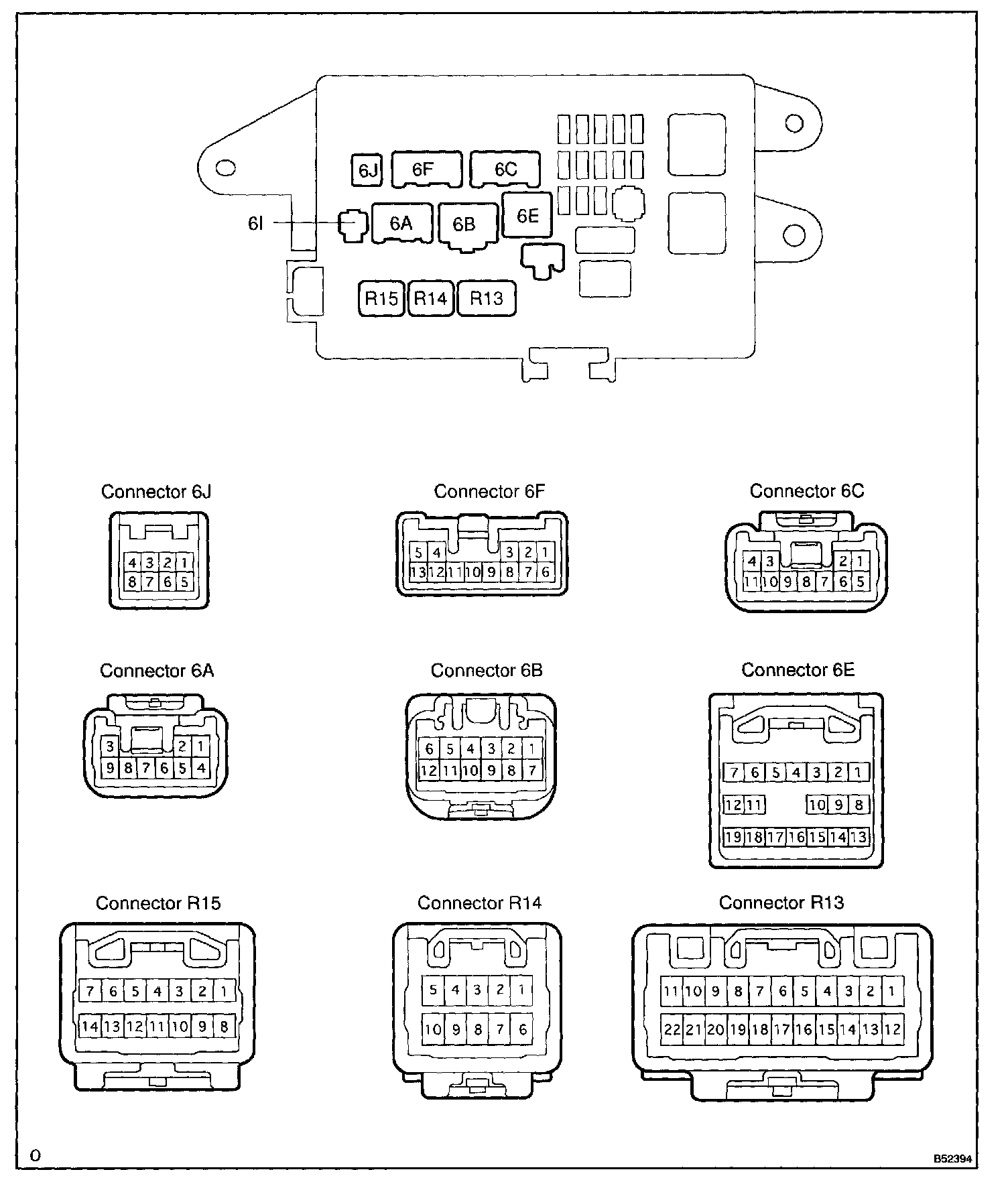

a. Disconnect the J/B connectors 6F, 6J, R13 and R15.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
HINT: If the value is not as specified the vehicle's side may be defective.
