Engine Immobilizer System

TERMINALS OF ECU

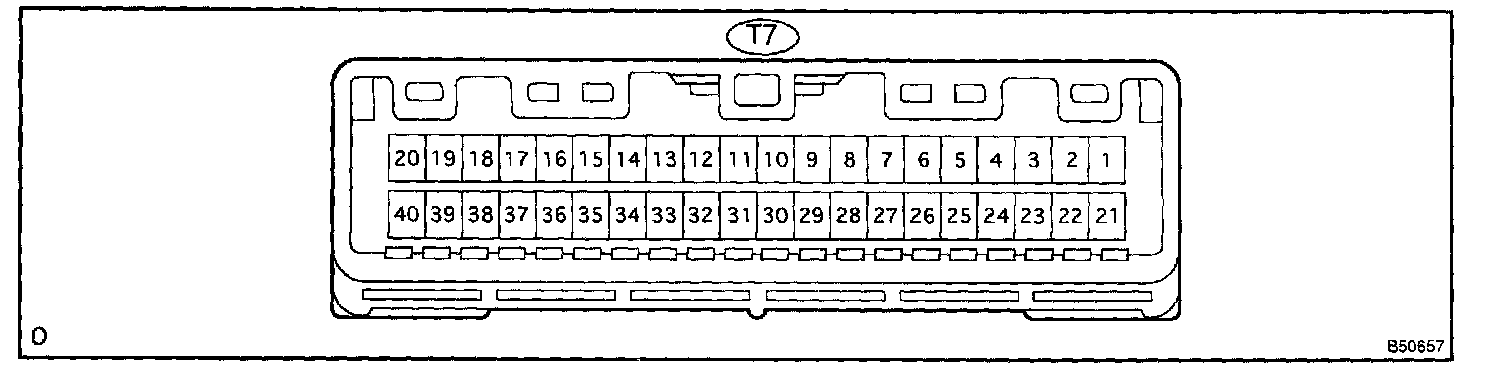

Terminals Of ECU:

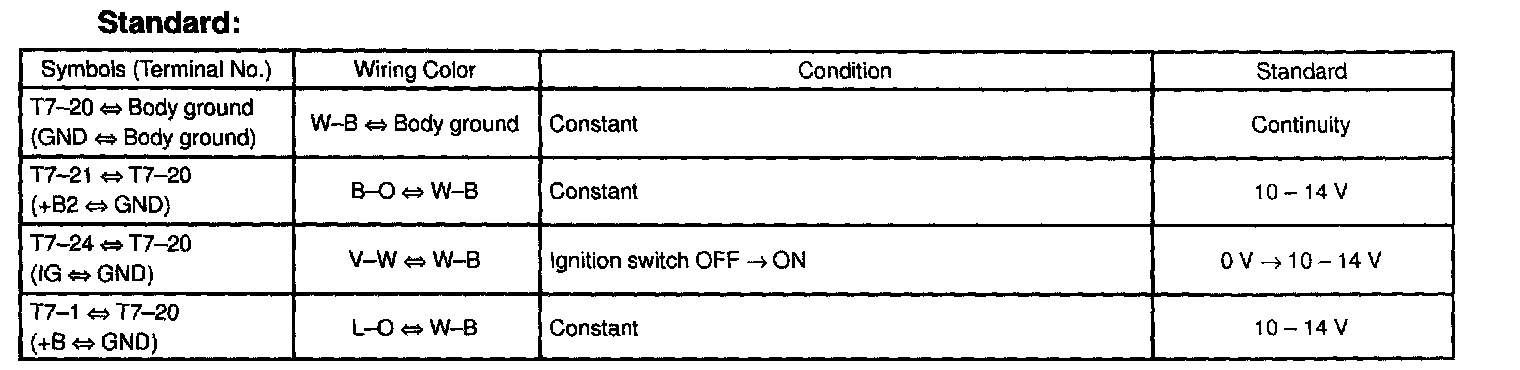

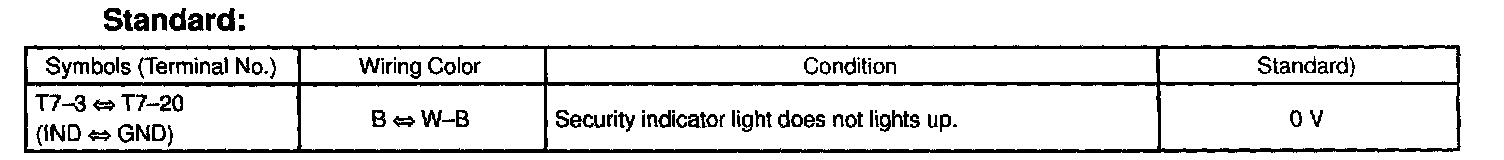

1. THEFT WARNING ECU




a. Disconnect the theft warning ECU connector.




b. Connect the theft warning ECU connector.

Terminals Of ECU:

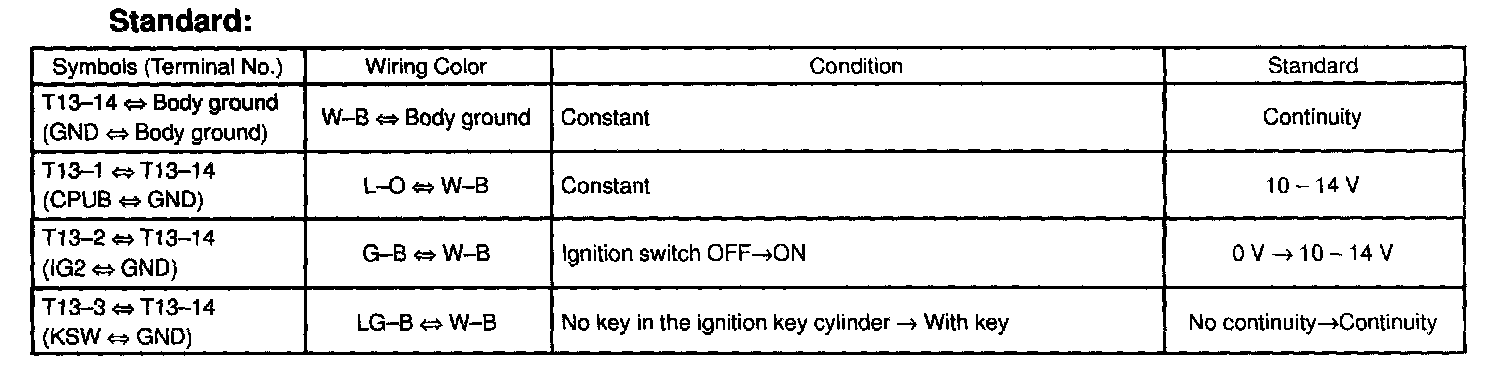

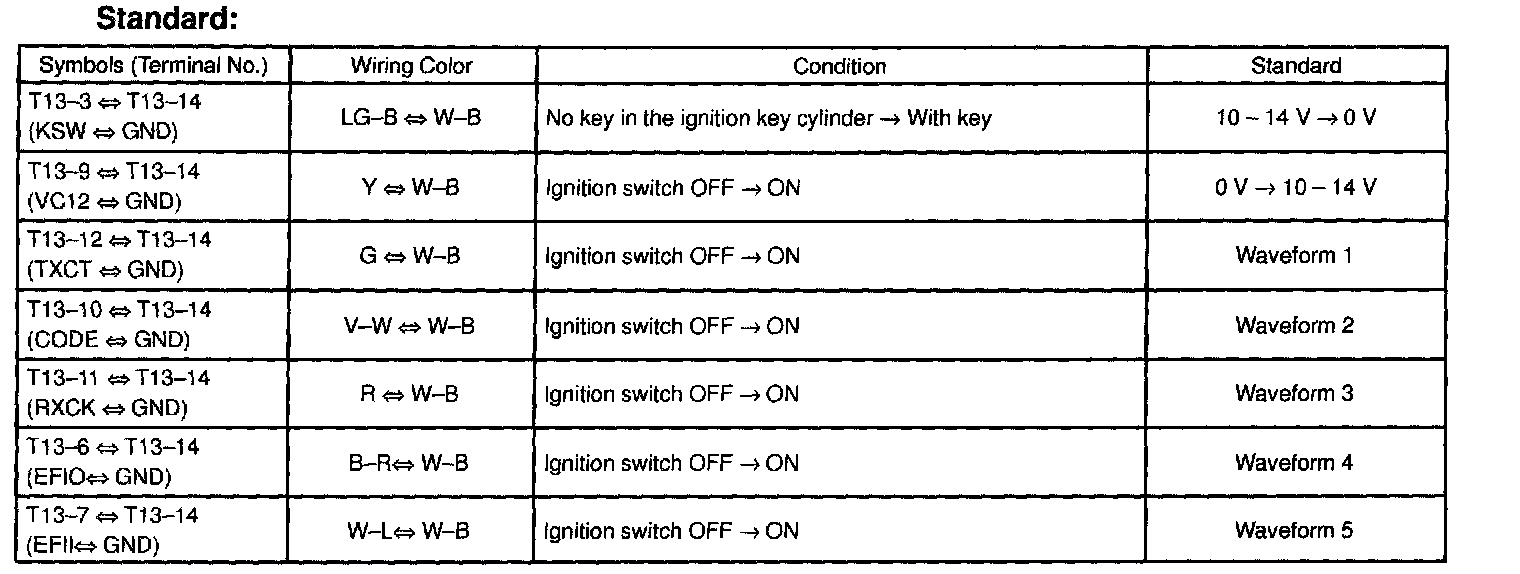

2. TRANSPONDER KEY ECU

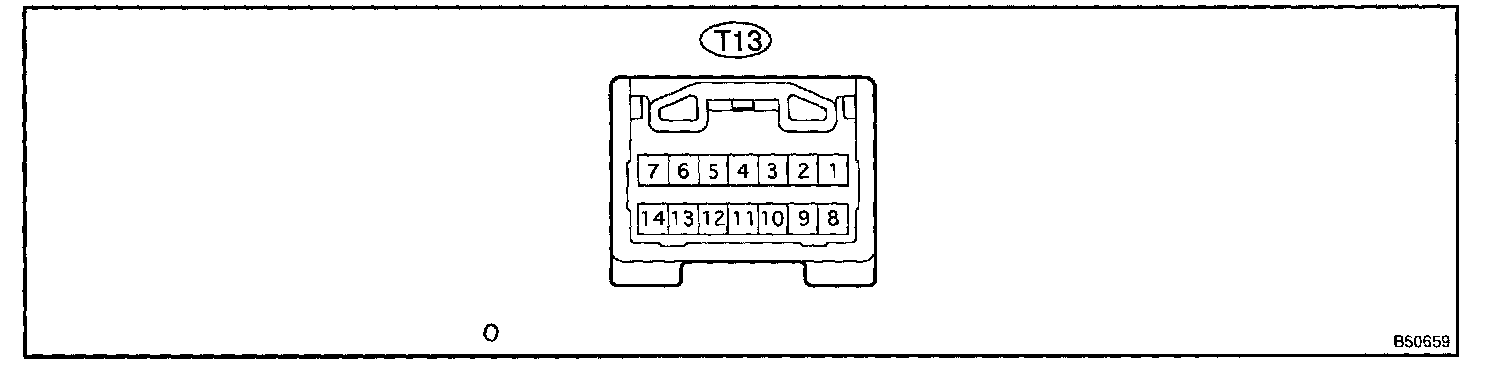

a. Disconnect the transponder key ECU connector.




b. Connect the transponder key ECU connector.

c. Inspect using oscilloscope.

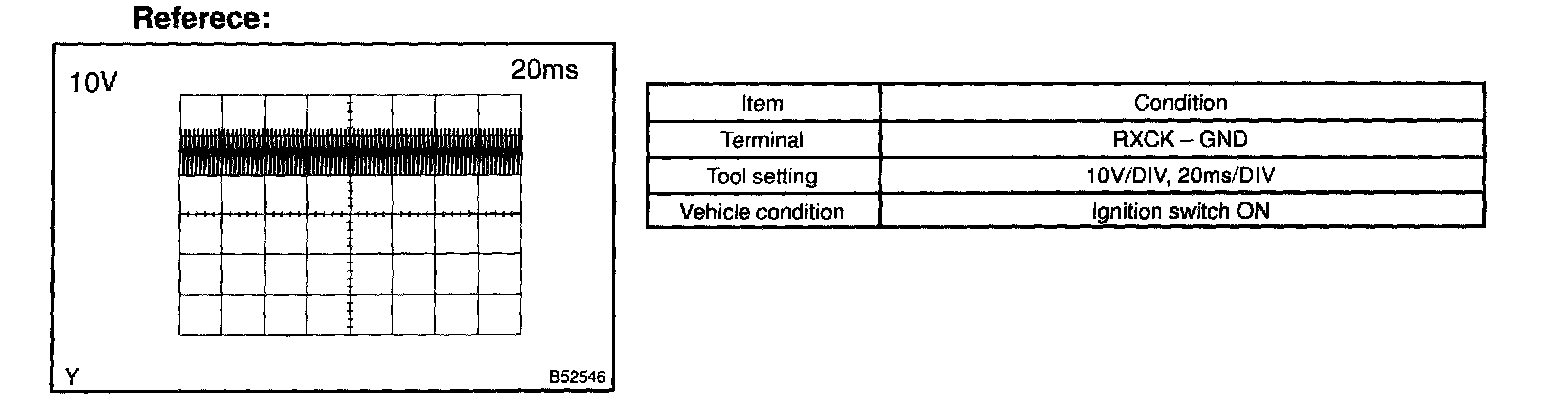

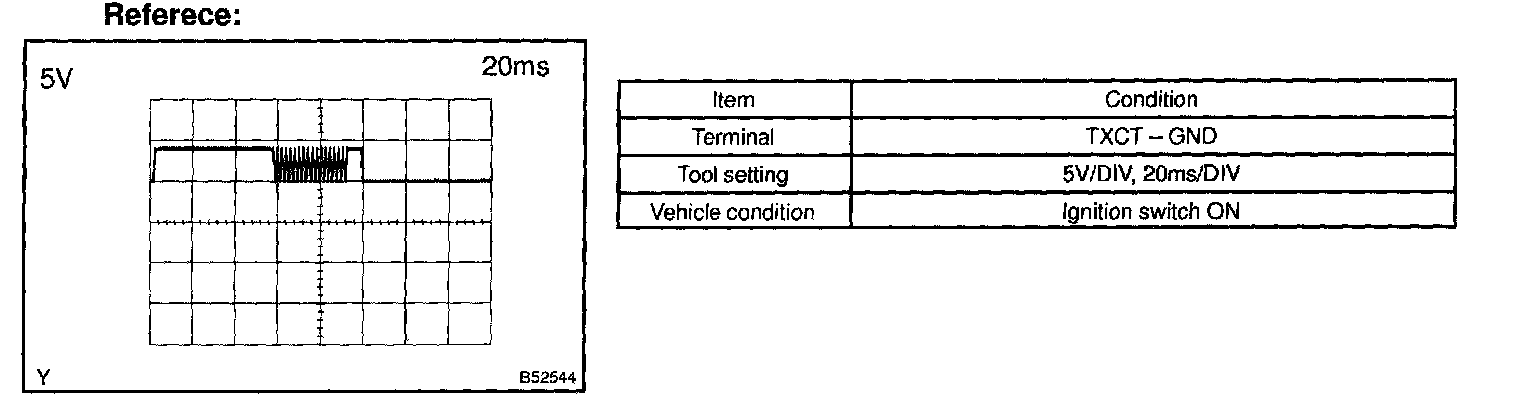

d. Waveform 1

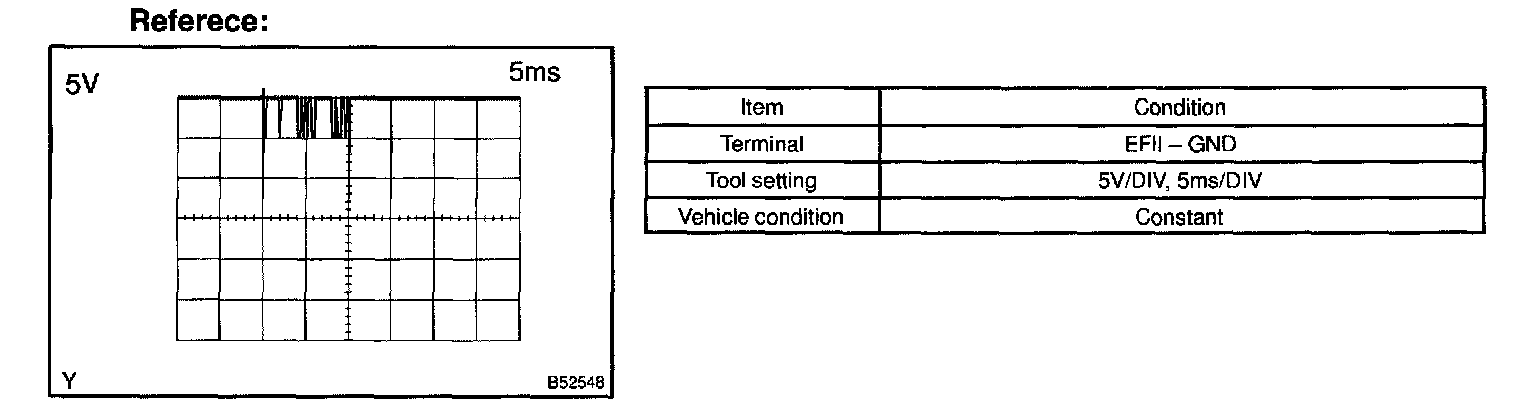

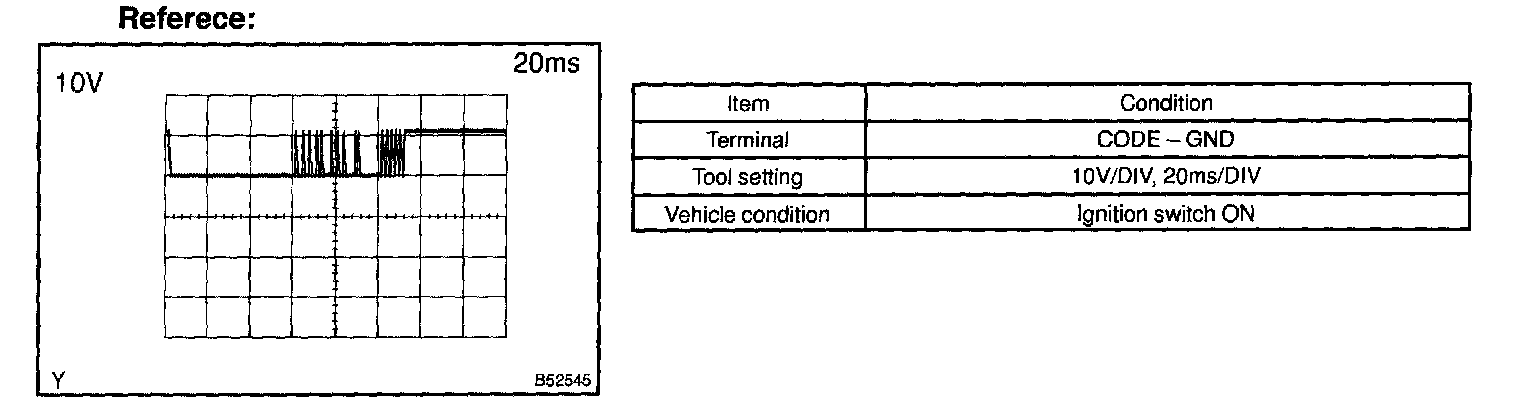

e. Waveform 2




f. Waveform 3

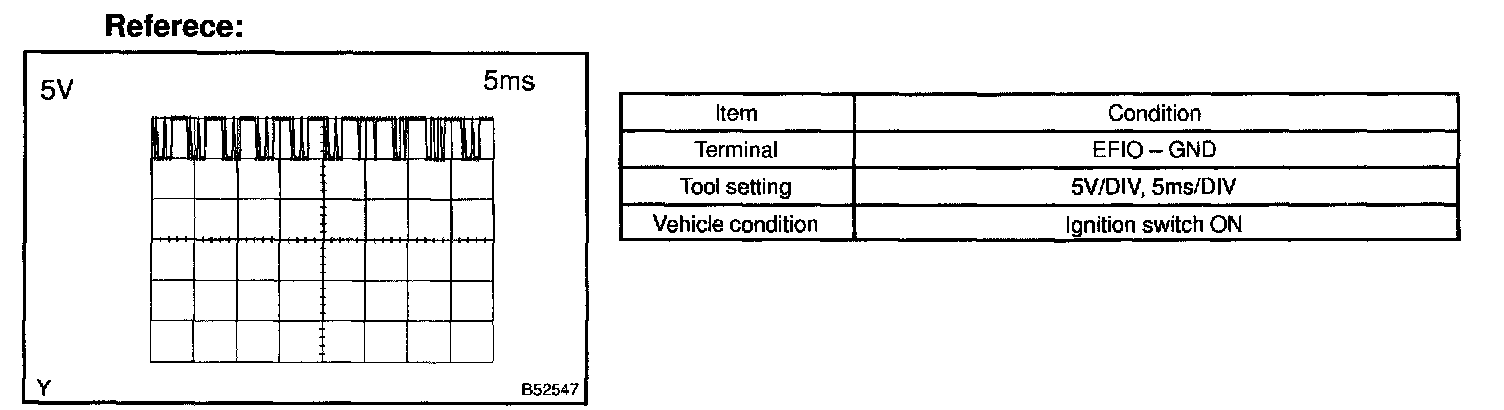

g. Waveform 4




h. Waveform 5

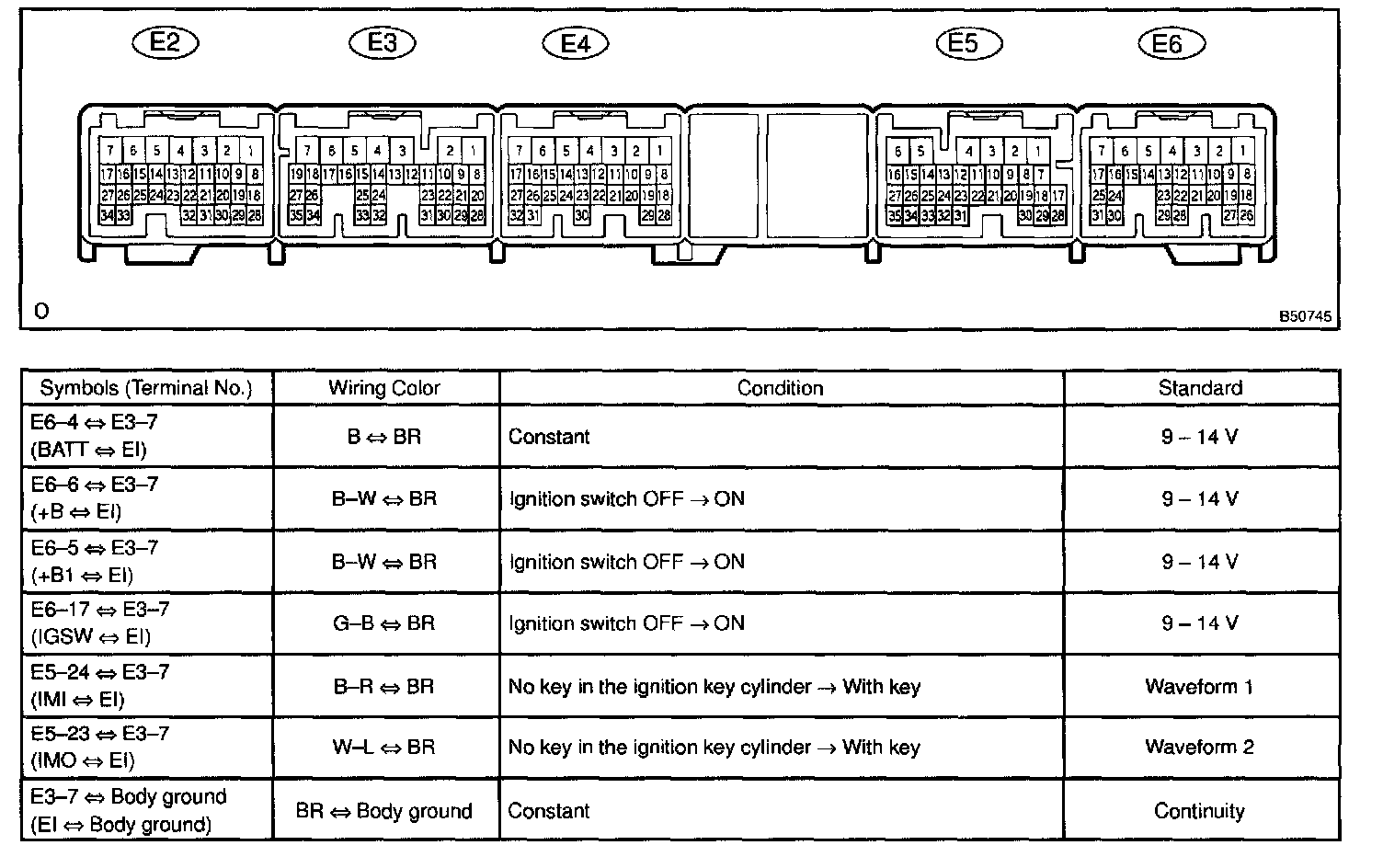

Terminals Of ECM:

3. ECM

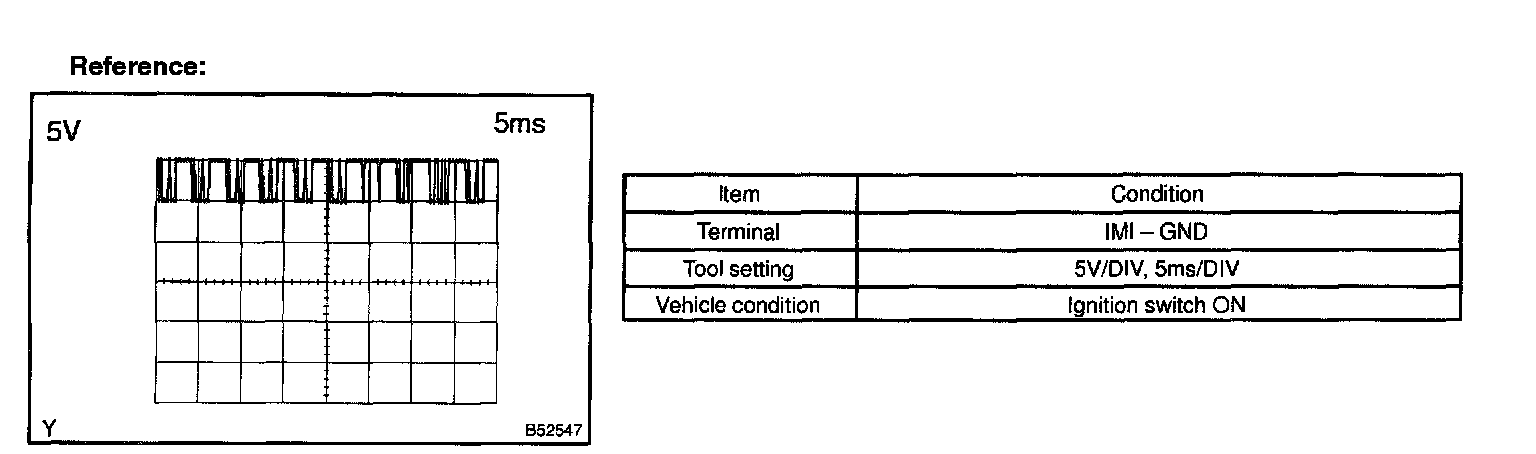

b. Waveform 4




c. Waveform 5
