Initial Inspection

ON-VEHICLE INSPECTION

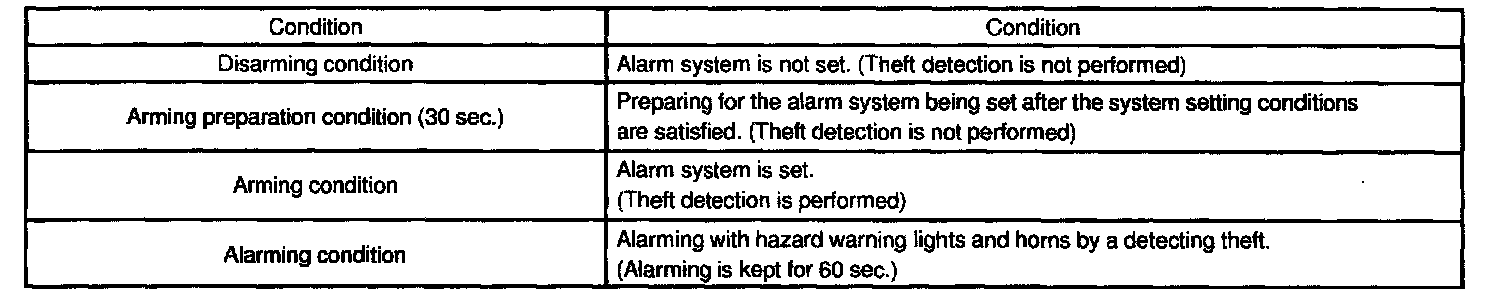

1. DESCRIPTION OF AUTOMATIC ALARMING CONDITION

2. INSPECT AUTOMATIC ALARM OPERATION

HINT:
- Wireless operation written in this text shows the door control transmitter switch operation and each operation as well.
- Wireless operation written in this text shows the operation of the "LOCK/UNLOCK/TRUNK OPEN".
- All doors written in text shows "2-door".

a. Disarming condition -> Disarming preparation condition (lock all doors in any of the following methods with no key in the ignition switch lock cylinder).
1. Lock all the doors via the key operation when all doors, hood and luggage door are closed.
2. Lock all doors via the wireless operation when all doors, hood and luggage door are closed.
3. With the locking knob of all doors in the LOCK, close all doors, hood and luggage door.

b. Arming preparation condition -> Arming condition (30 seconds have elapsed since the disarming preparation condition)

c. Arming condition -> Alarming condition (alarming functions when any of the following conditions is satisfied)
1. Any of the doors is opened.
2. Any of the doors is unlocked by any ways except the key or wireless operation.
3. The luggage door is opened by any ways except the key or wireless operation.
4. The hood is opened.
5. The battery is reconnected.

d. Alarming (arming) condition -> Disarming condition (if any of the following condition is satisfied during the arming condition, it enters into the disarming condition. Also, if any of the following conditions is satisfied during the alarming condition, it stops alarming and enters into the disarming condition.)
1. All doors are unlocked by the wireless operation. Or, the luggage door is opened by the wireless operation.
2. All doors are unlocked by the key operation. Or, the luggage door is opened by the key operation.
3. Insert the key into the ignition switch lock cylinder and turn the ignition switch ON.

e. Alarming condition (after the condition (c) has been satisfied, it starts the alarming condition, such as the hazard light's flashing and the horn's sounding for 60 seconds, and the doors are locked forcibly (in case that any of the doors is unlocked).

HINT: It transfers into the arming condition when 60 seconds have elapsed since the alarming condition starts.

f. Disarming preparation condition -> Disarming condition (if any of the following conditions is satisfied during the disarming preparation condition, it enters into the disarming condition.
1. Any of all doors is unlocked.
2. Any of all doors and the luggage door is opened.
3. The hood is opened.
4. The key is inserted into the ignition switch lock cylinder.
5. The battery is reconnected.
6. The ignition switch is turned ON.

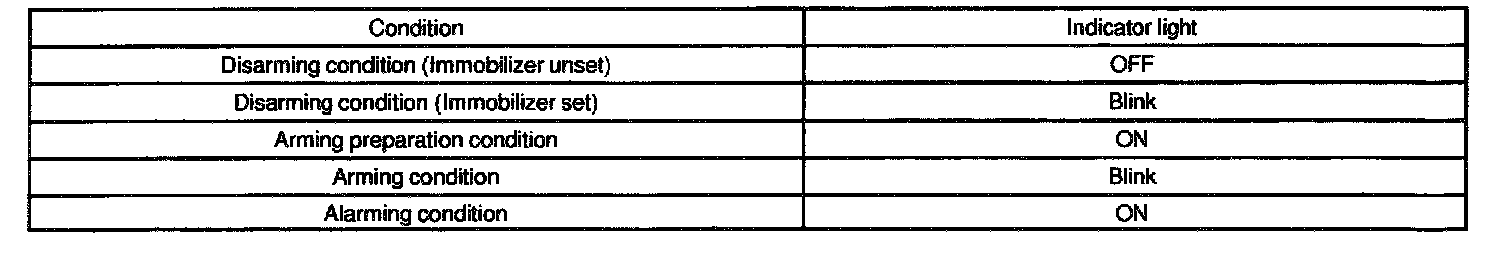

3. CHECK OUTPUTS OF INDICATOR




a. Check that the indicator light comes on in the following condition.
