5 - Theft Deterrent Horn Circuit

CIRCUIT DESCRIPTION

Warning system operation conditions of the horn's and theft deterrent horn's intermittently sounding and the hazard warning lights blinking.

NOTE: Troubleshooting should be proceed with after a confirmation that the theft deterrent horn system is turned on by the customizing function.

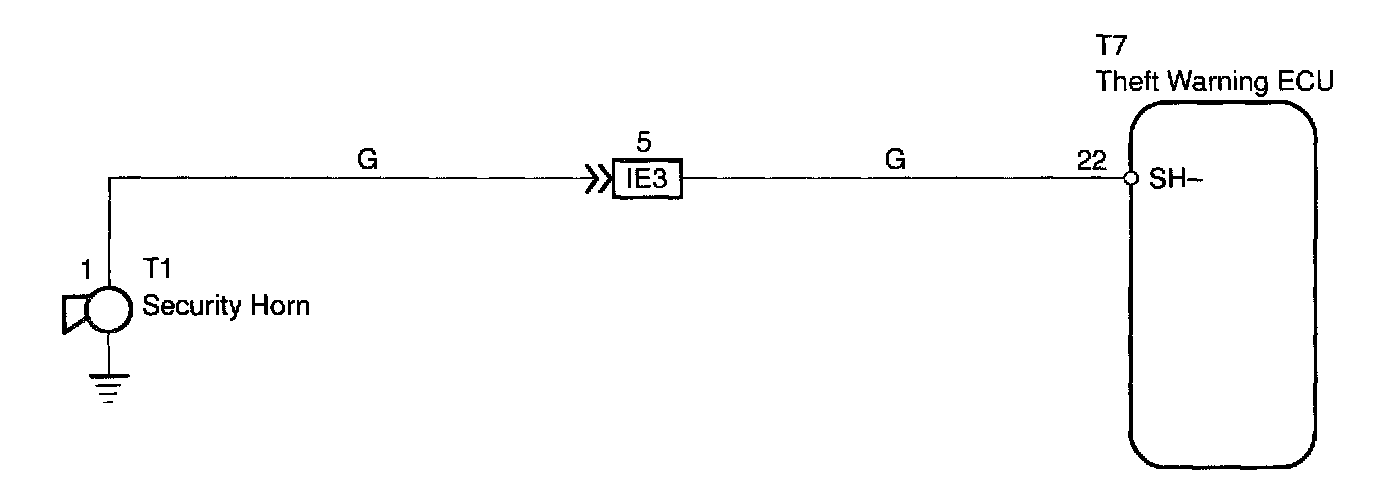

Wiring Diagram:

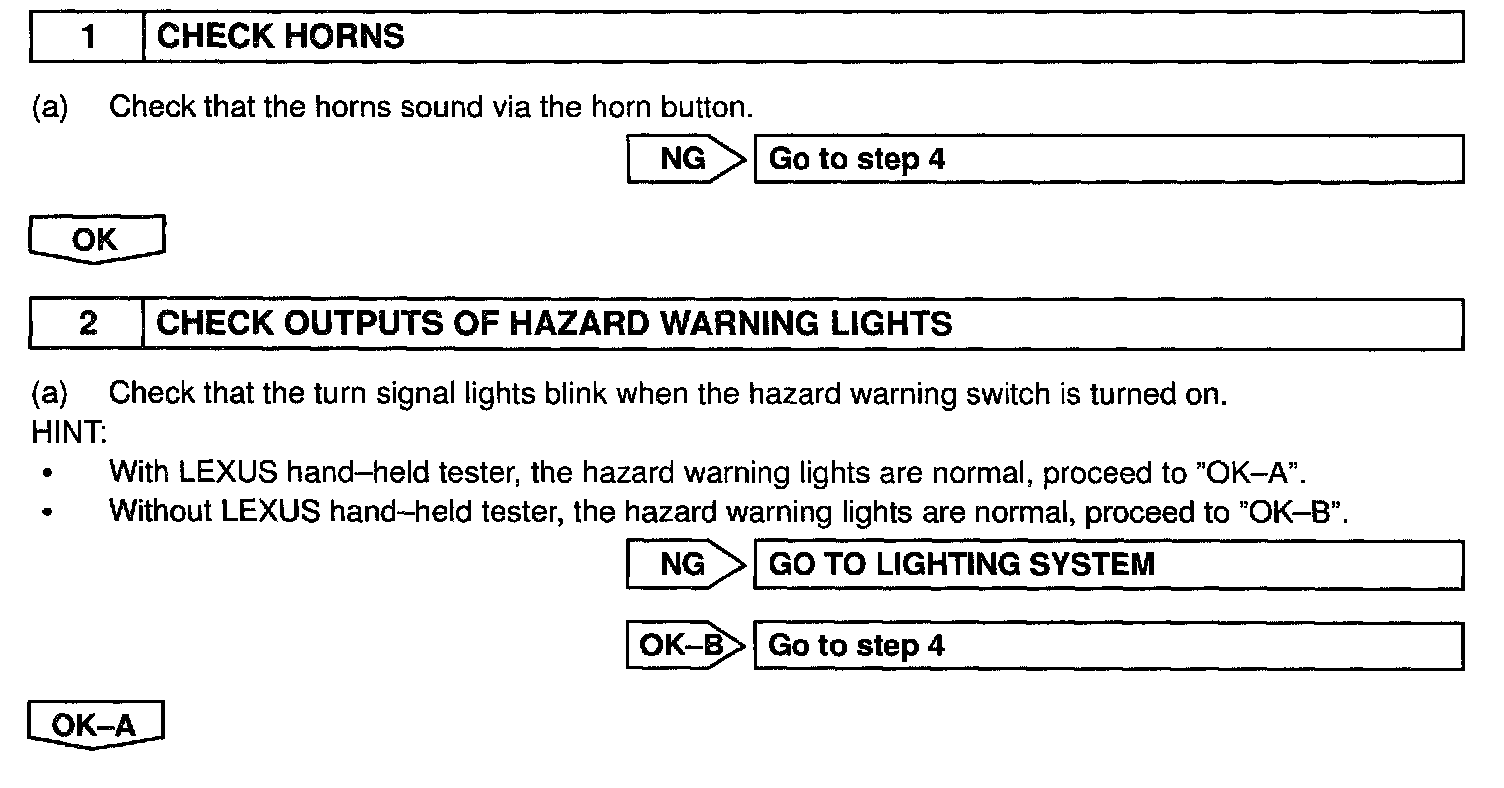

Step 1 - 2:

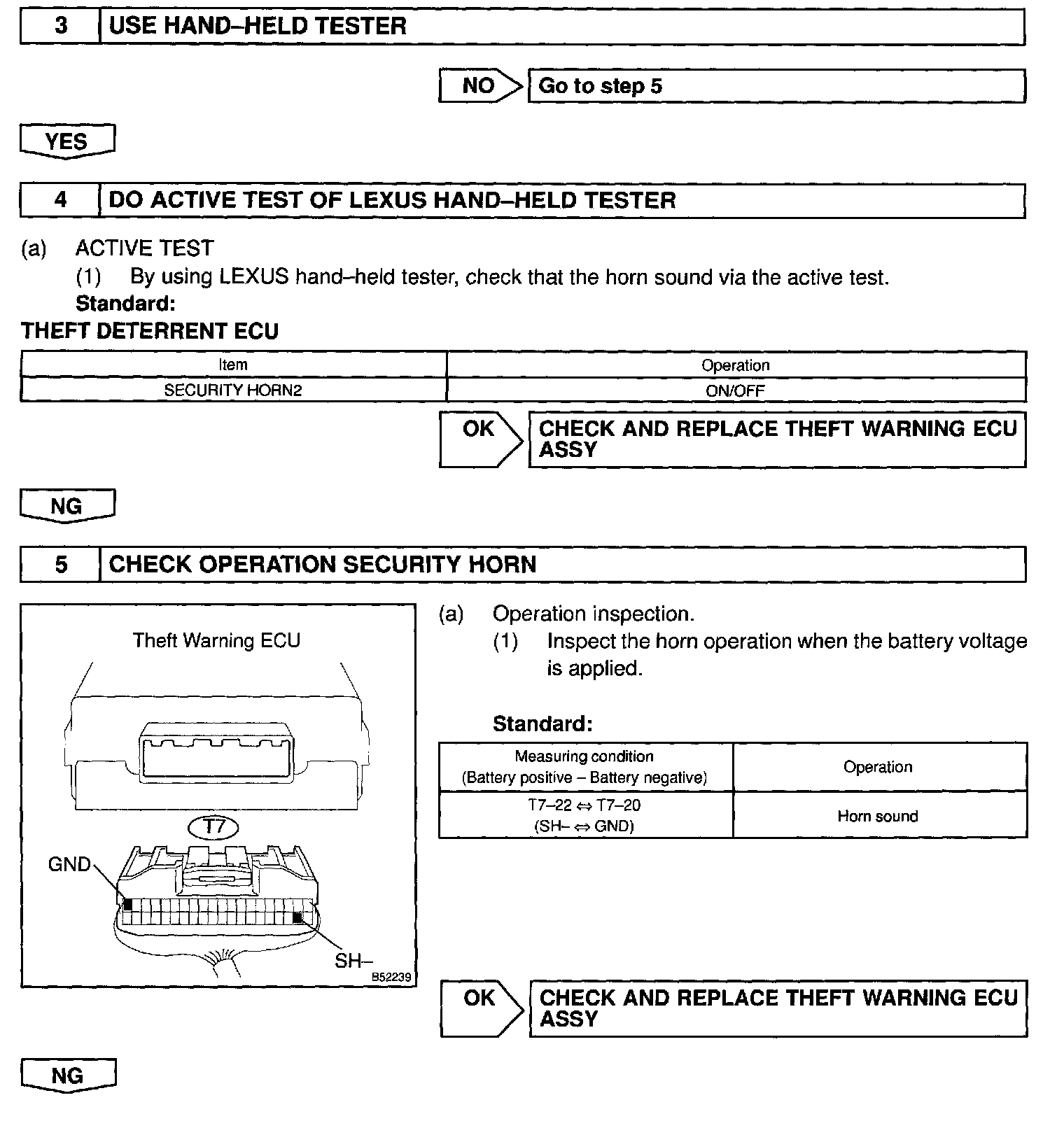

Step 3 - 5:

Step 6:

INSPECTION PROCEDURE
