W/ HOLDER ANTENNA ASSY

REPLACEMENT

1. REMOVE TONNEAU COVER STOPPER SUB-ASSY RH
2. REMOVE REAR FLOOR FINISH PLATE
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH
6. REMOVE SPARE WHEEL COVER ASSY
7. REMOVE TOOL BOX COVER
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR
9. REMOVE TONNEAU COVER ASSY
10. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER
11. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
12. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH

13. REMOVE W/HOLDER ANTENNA ASSY

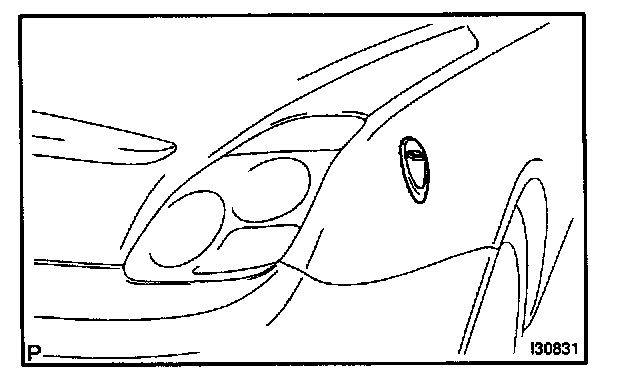

a. Remove the antenna nut and antenna ornament.




b. Disconnect the connector and antenna cord plug from the W/ holder antenna assy.
c. Remove the nut and w/ holder antenna assy.
