P1755

DTC P1755 LINEAR SOLENOID FOR LOCK-UP CONTROL CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

Duty Ratio:

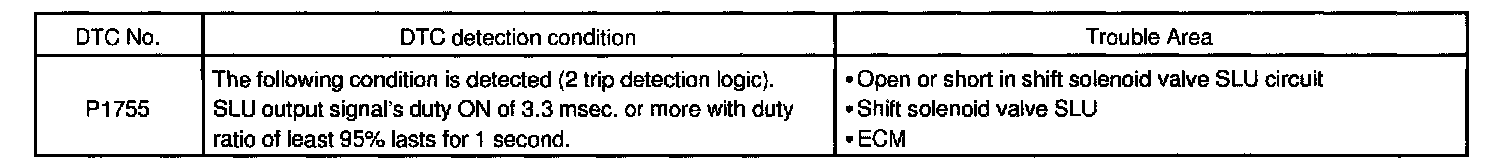

DTC Detection Condition:

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation

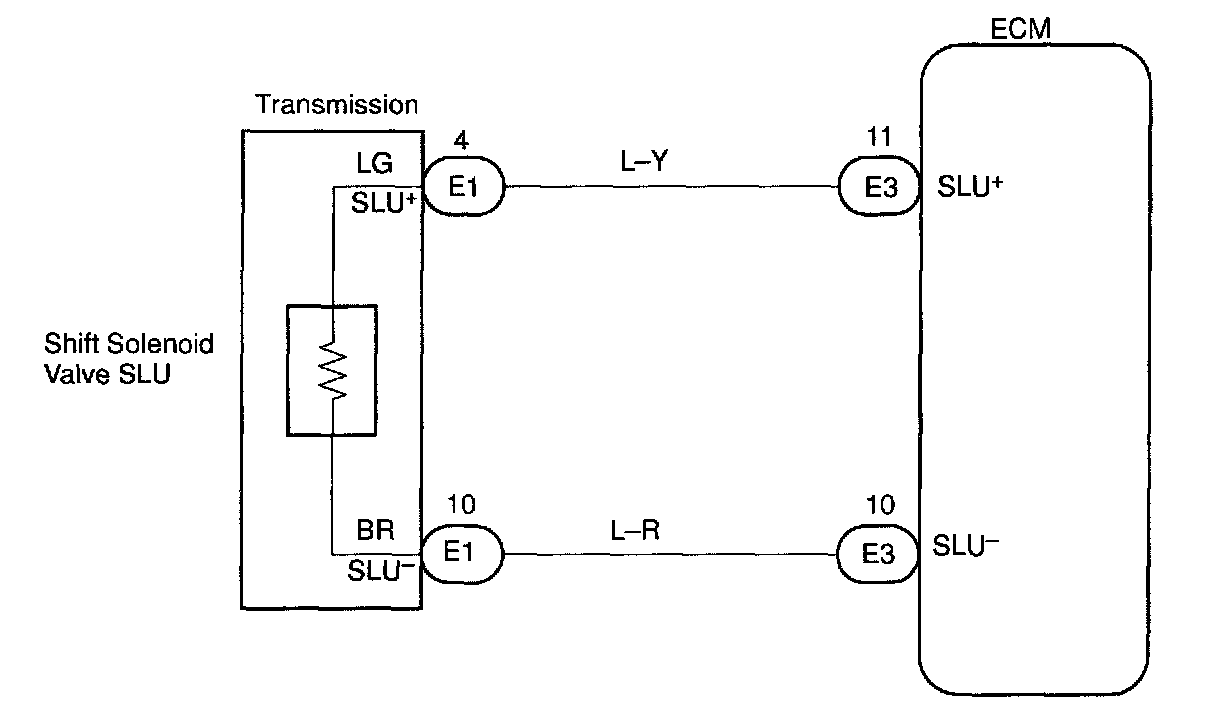

Wiring Diagram:

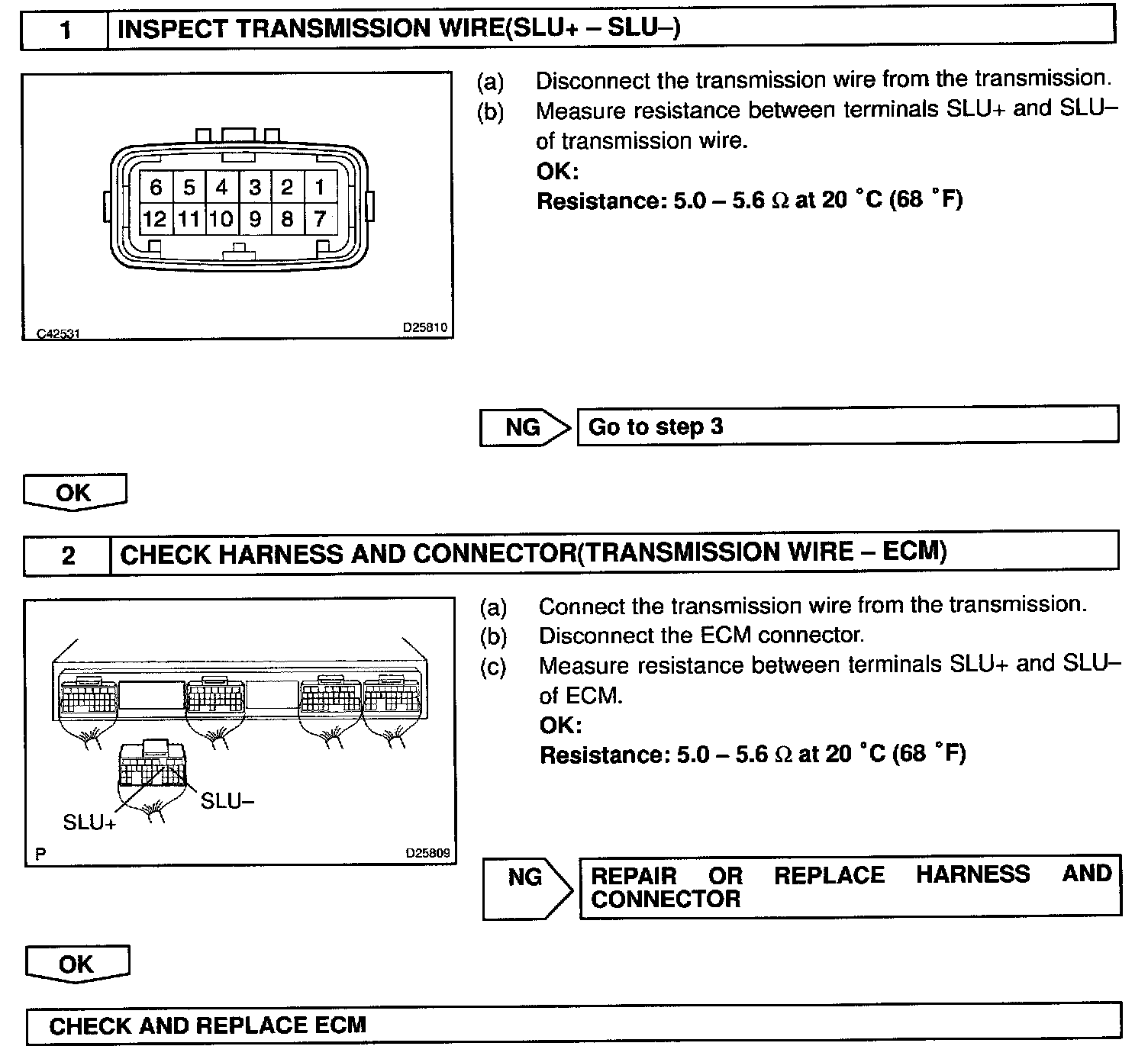

Step 1 - 2:

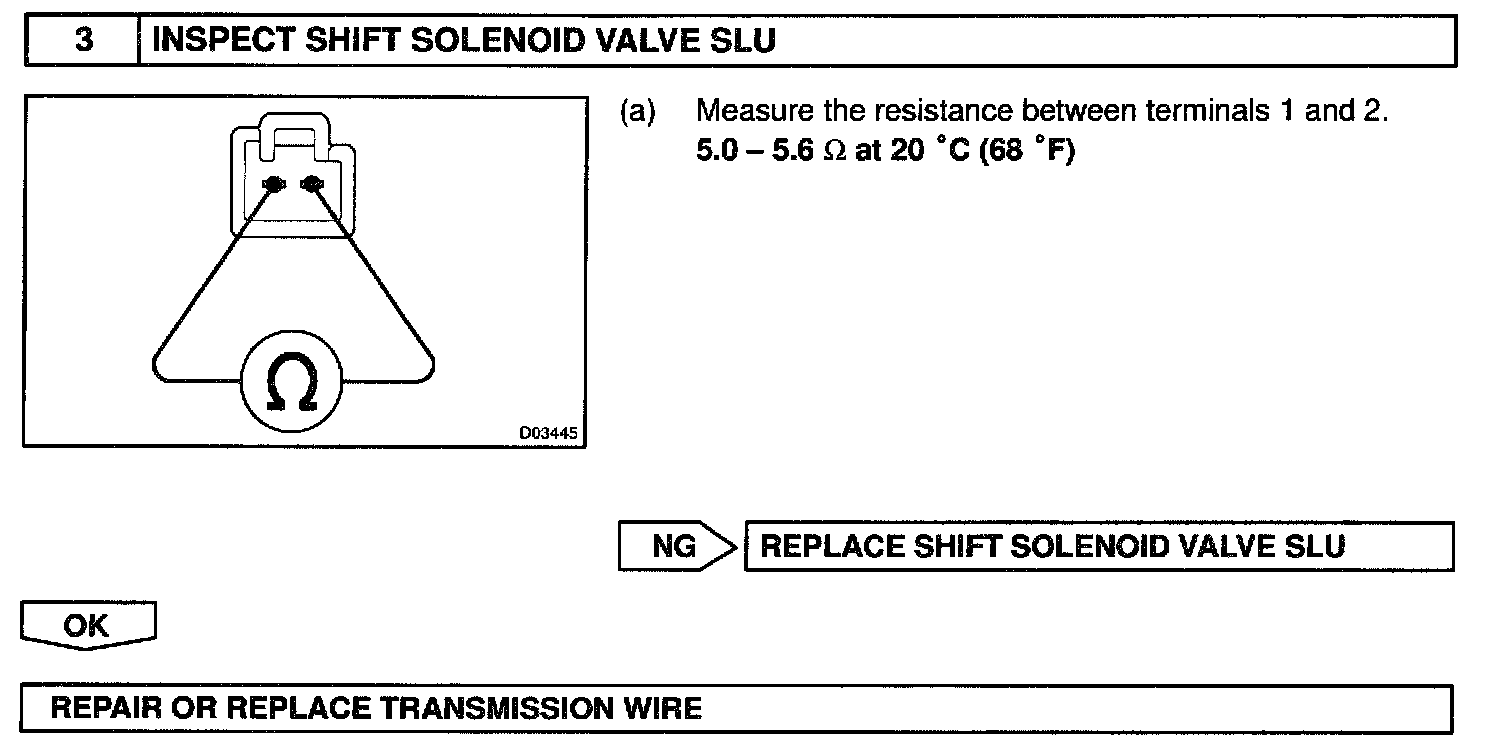

Step 3:

INSPECTION PROCEDURE
