DTC P1656 OCV CIRCUIT MALFUNCTION (BANK 1)

CIRCUIT DESCRIPTION

DTC Detection Condition:

DTC VVT system controls the intake valve timing to proper timing in response to driving condition.

ECM controls Oil Control Valve (OCV) to make the intake valve timing properly, and oil pressure controlled with OCV is supplied to the VVT controller, and then VVT controller changes relative position between the camshaft and the crankshaft.

Wiring Diagram:

Step 1 - 2:

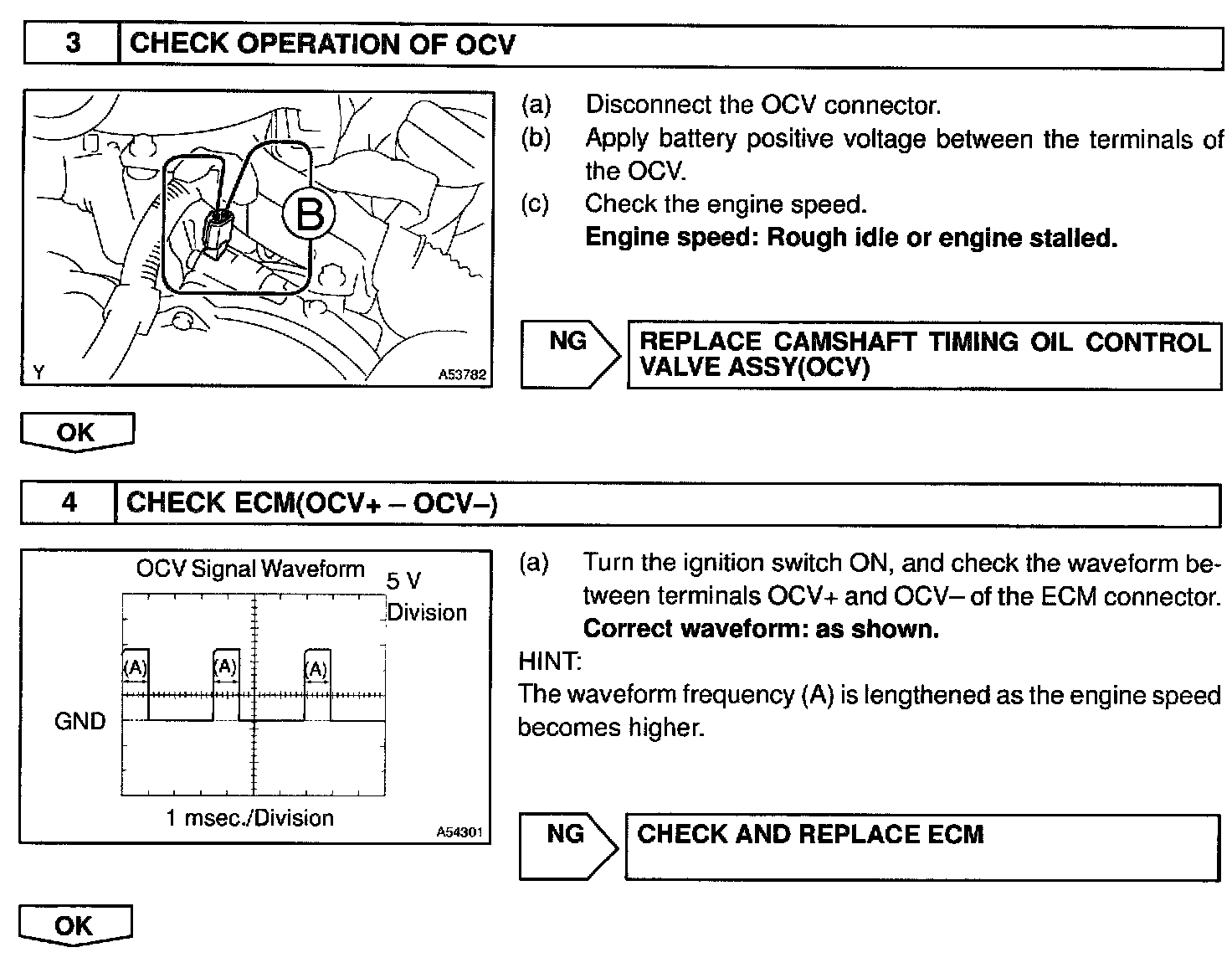

Step 3 - 4:

Step 5:

INSPECTION PROCEDURE

CHECK FOR INTERMITTENT PROBLEMS

LEXUS hand-held tester only:
By putting the vehicle's ECM in the check mode, the 1 trip detection logic is possible instead of the 2 trip detection logic and sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.
1. Clear the DTC.
2. Set the check mode.
3. Perform a simulation test.
4. Check the connector and terminal.
5. Handle the connector.
