P1566

DTC P1566 INPUT SIGNAL CIRCUIT ABNORMAL

CIRCUIT DESCRIPTION

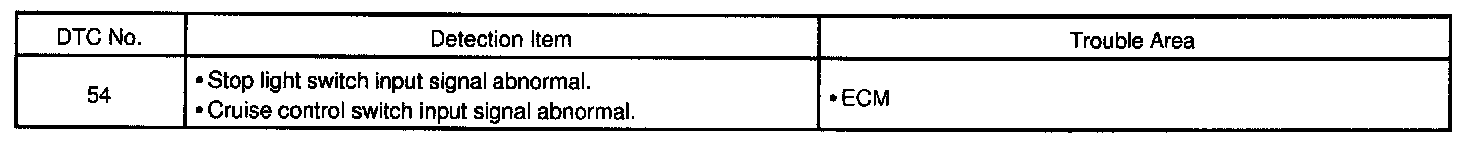

Detection Item:

This circuit indicates failure of the stop light switch signal and the cruise control signal inside the ECM.

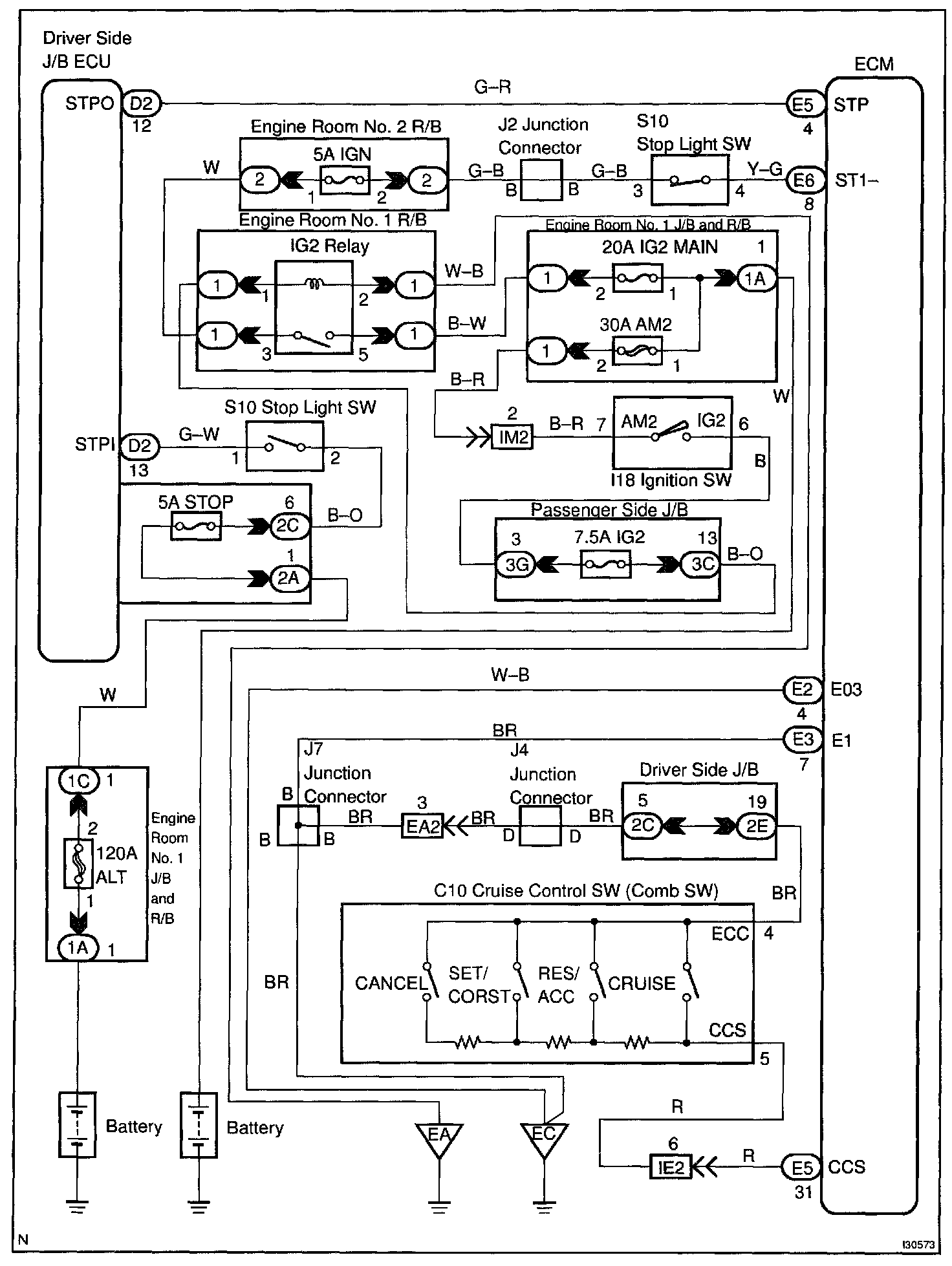

Wiring Diagram:

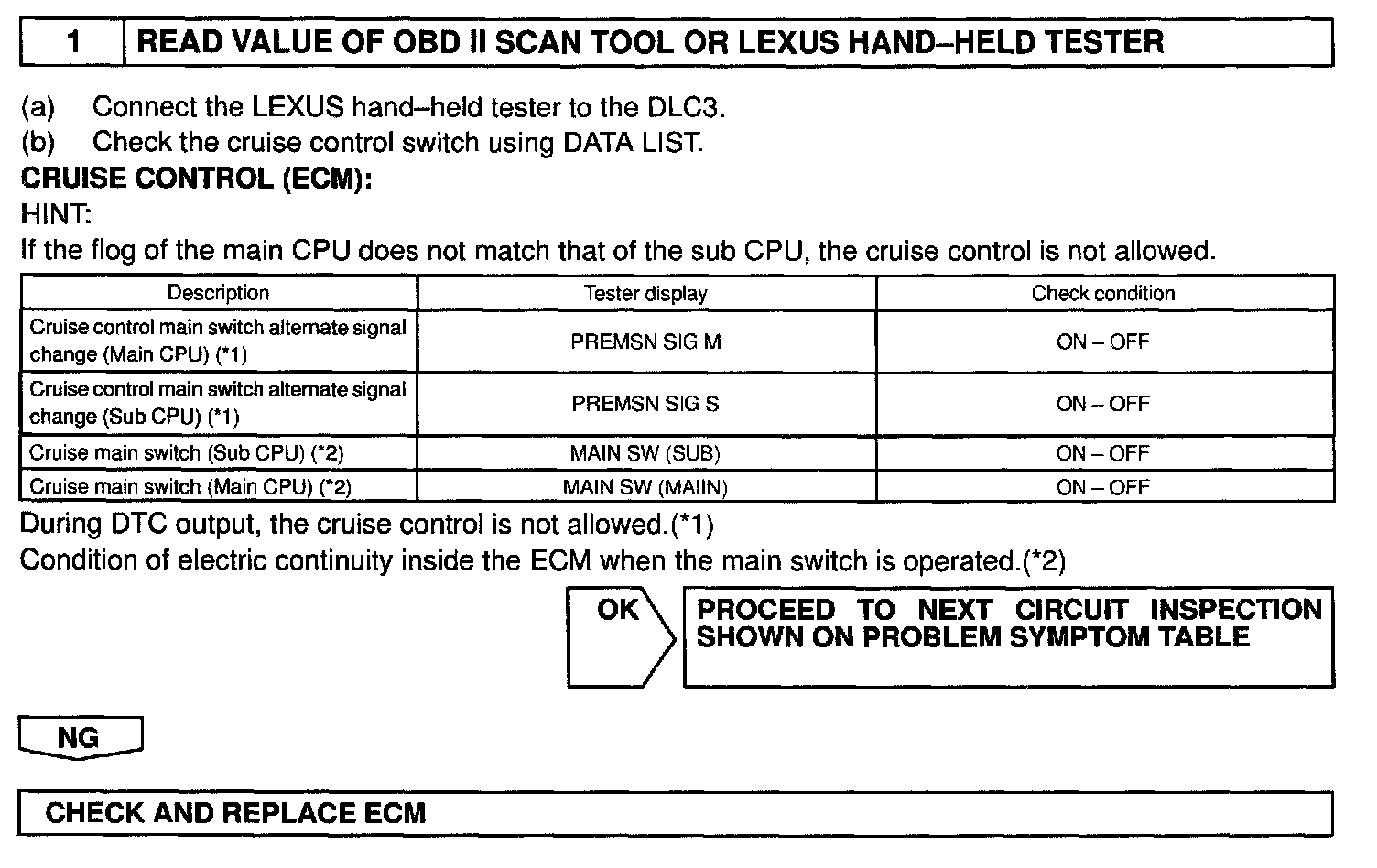

Step 1:

INSPECTION PROCEDURE
