P1128

DTC P1128 THROTTLE CONTROL MOTOR LOCK MALFUNCTION

CIRCUIT DESCRIPTION

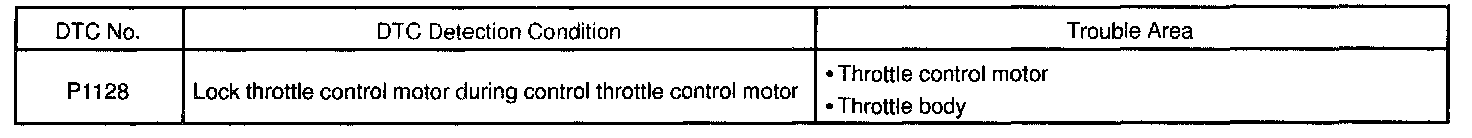

DTC Detection Condition:

Throttle motor is operated by the ECM and it opens and closes the throttle valve. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body and it provides feedback to the ECM to control the throttle motor in order the throttle valve opening angle properly in response to driving condition. If this DTC is stored, the ECM shuts down the power for the throttle motor, and the throttle valve is fully closed by the return spring.

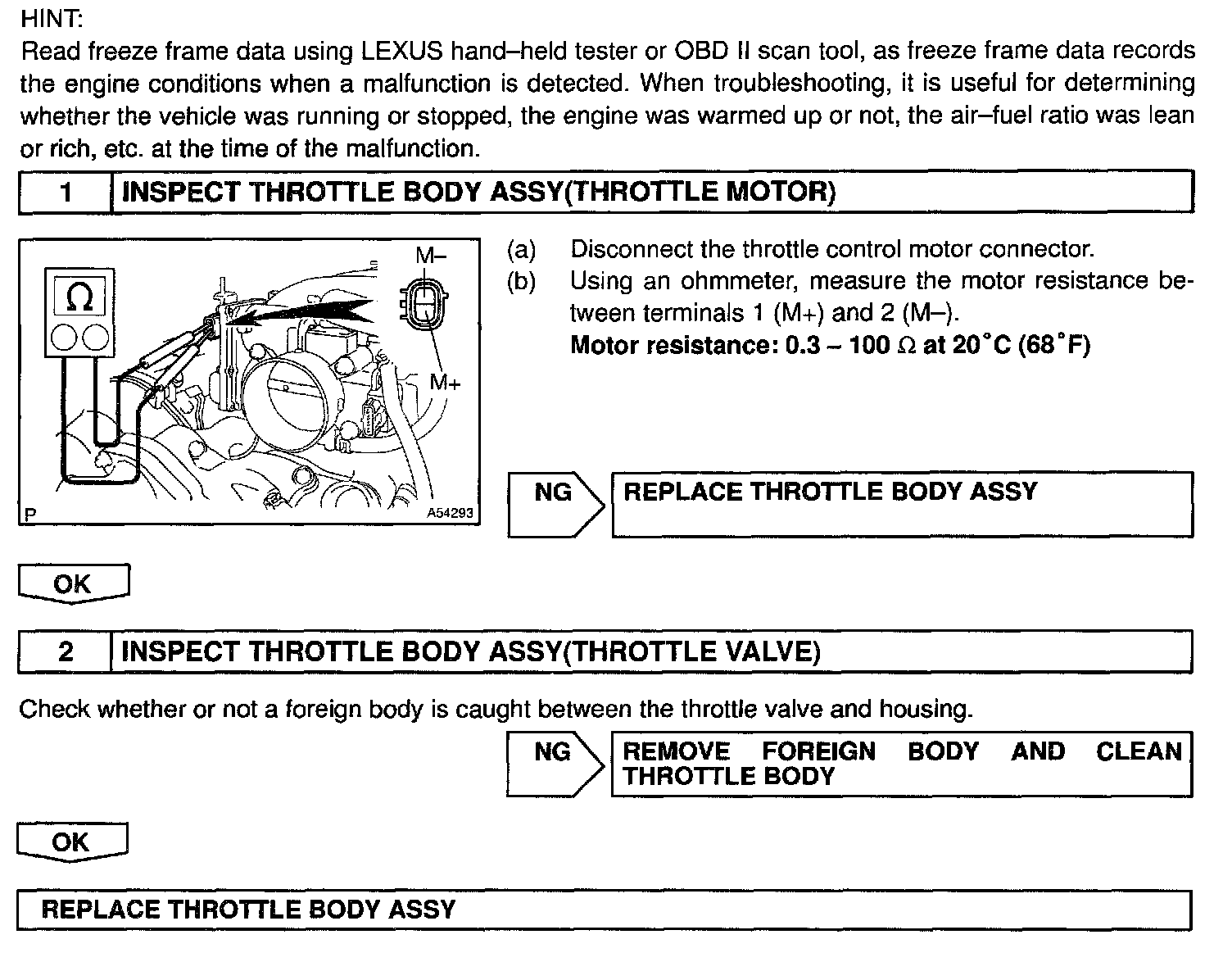

Step 1 - 2:

INSPECTION PROCEDURE
