P0770

DTC P0770 SHIFT SOLENOID E MALFUNCTION

SYSTEM DESCRIPTION

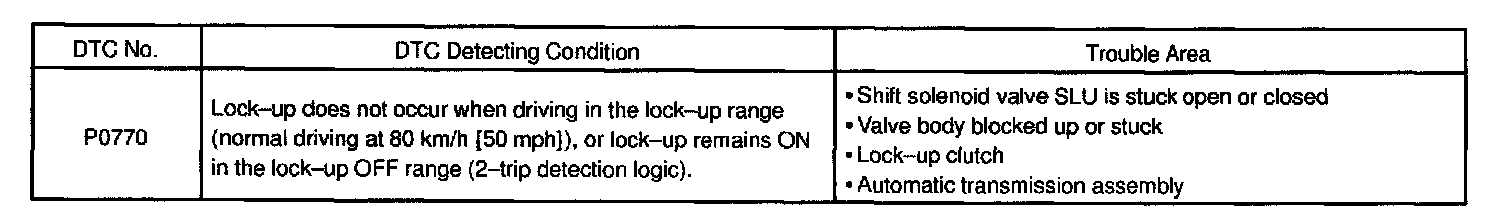

DTC Detecting Condition:

The ECM uses the signals from the Throttle Position Sensor and Air-flow Meter to monitor the engagement condition of the lock-up clutch.

Then the ECM compares the engagement condition of the lock-up clutch with the lock-up schedule in the ECM memory to detect mechanical trouble of the shift solenoid valve SLU, valve body, torque converter clutch and automatic transmission assembly (clutch, brake or gear etc.).

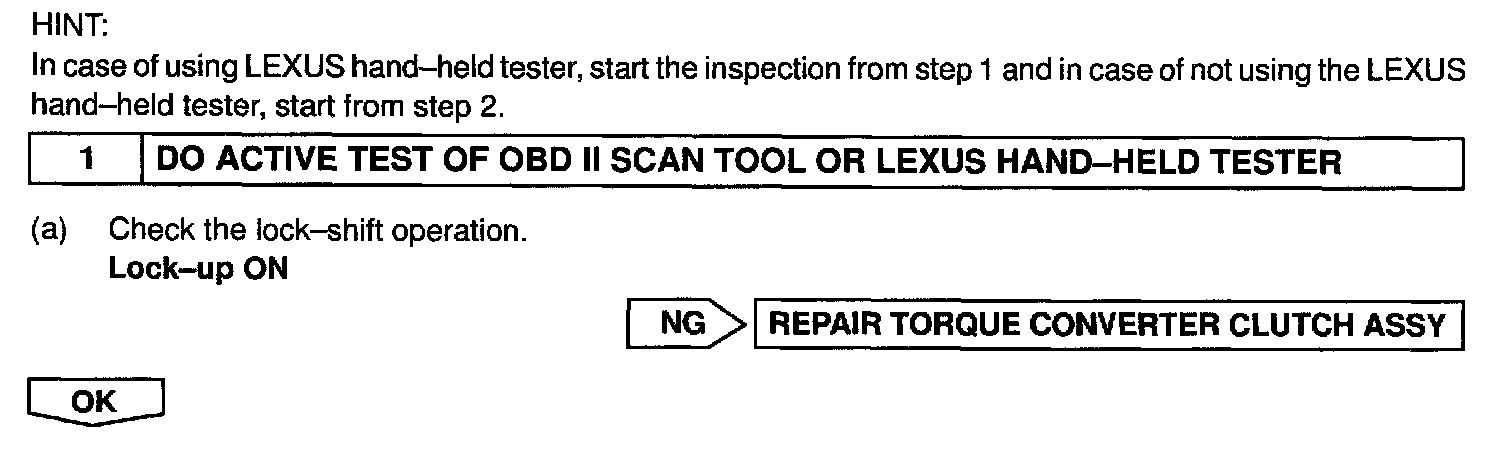

Step 1:

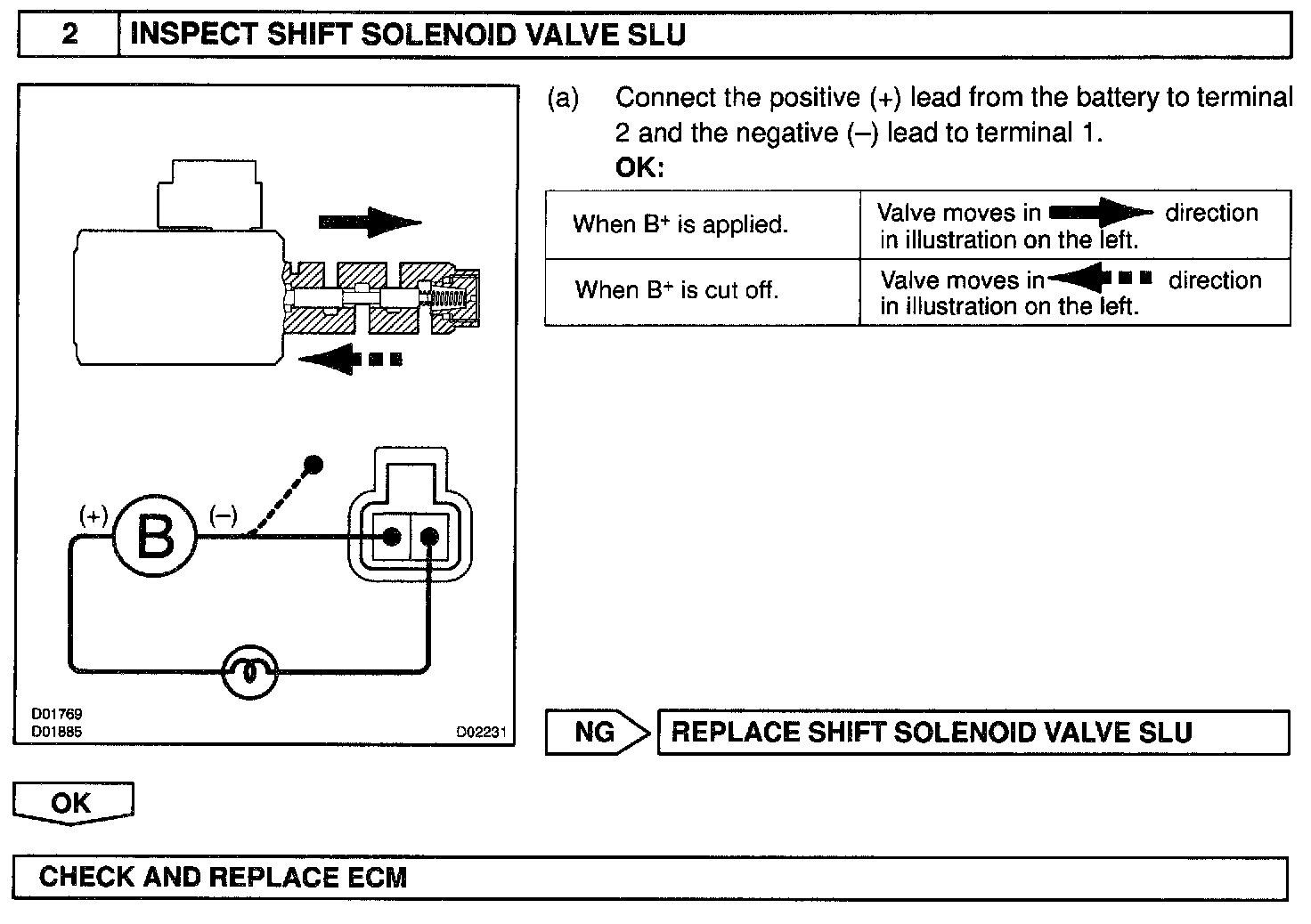

Step 2:

INSPECTION PROCEDURE
