Troubleshooting

DTC P0768 SHIFT SOLENOID D ELECTRICAL MALFUNCTION

CIRCUIT DESCRIPTION

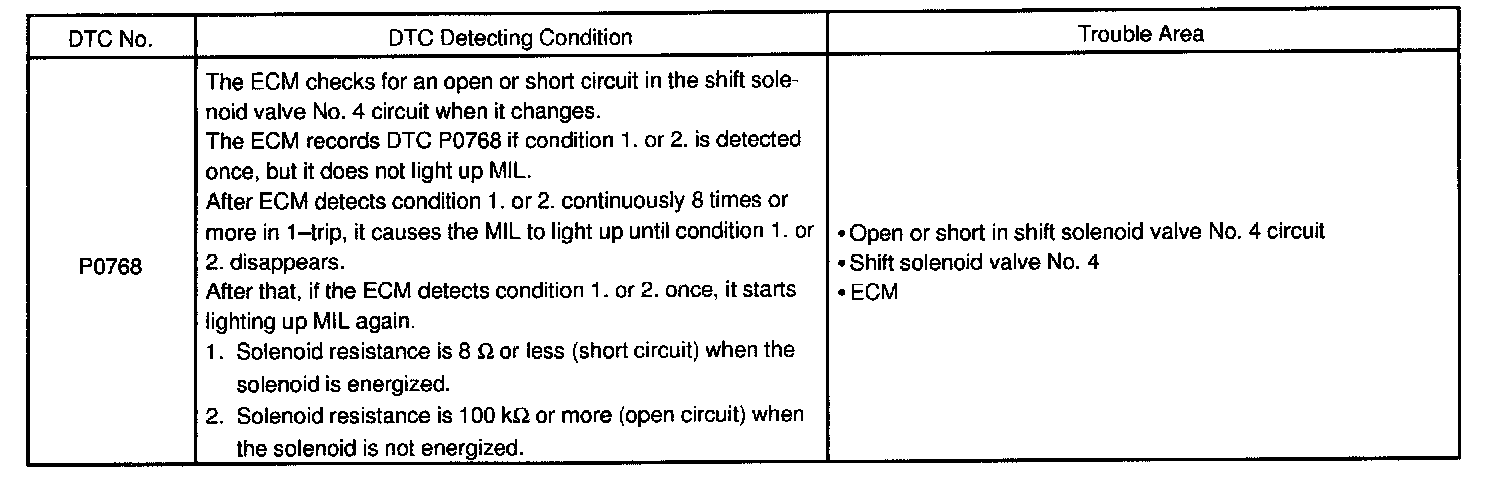

DTC Detecting Condition:

Shift solenoid valve No.4 is controlled by ECM and it switches ON and OFF of the O/D direct clutch.

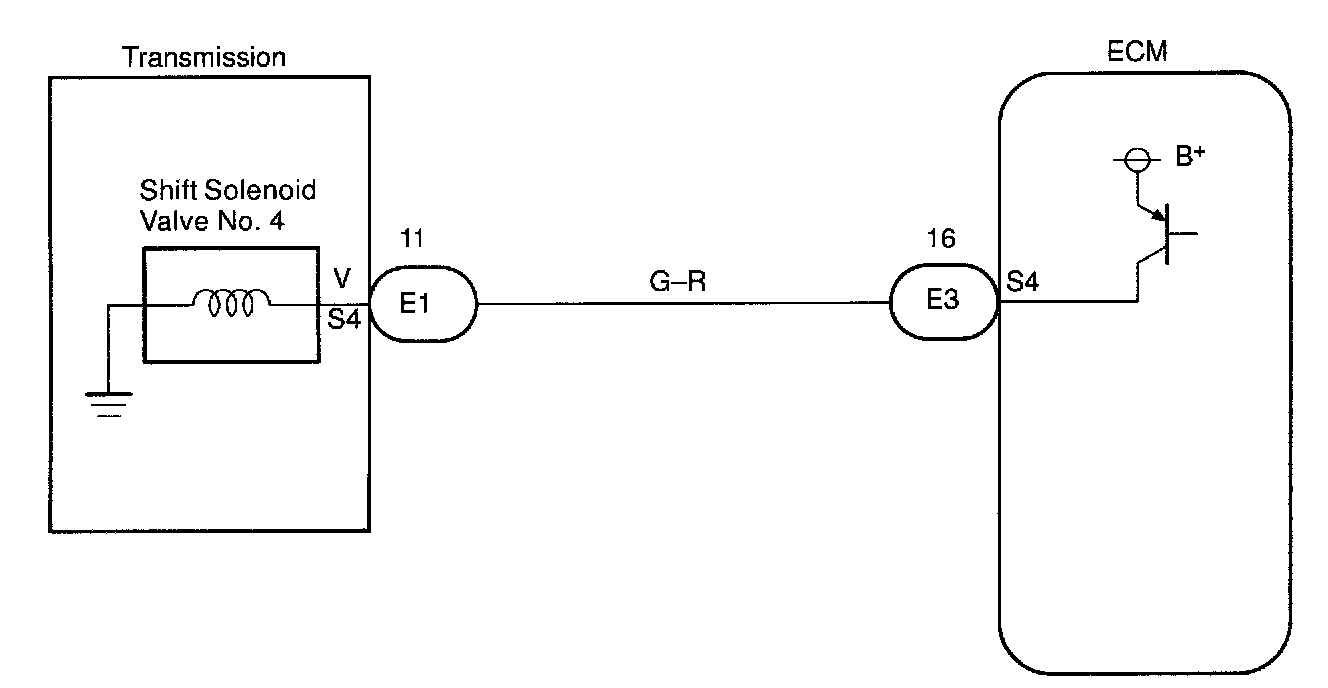

Wiring Diagram:

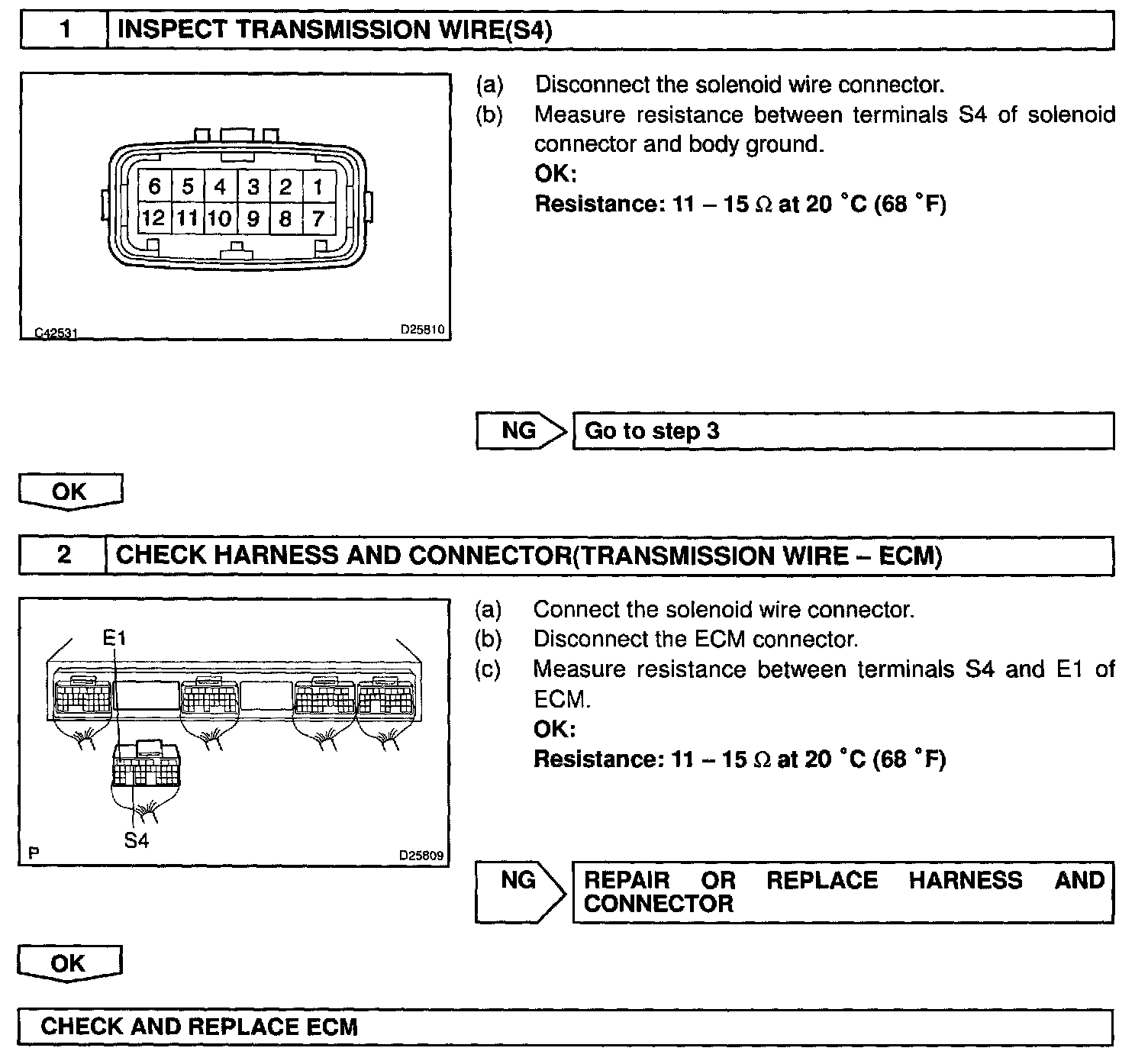

Step 1 - 2:

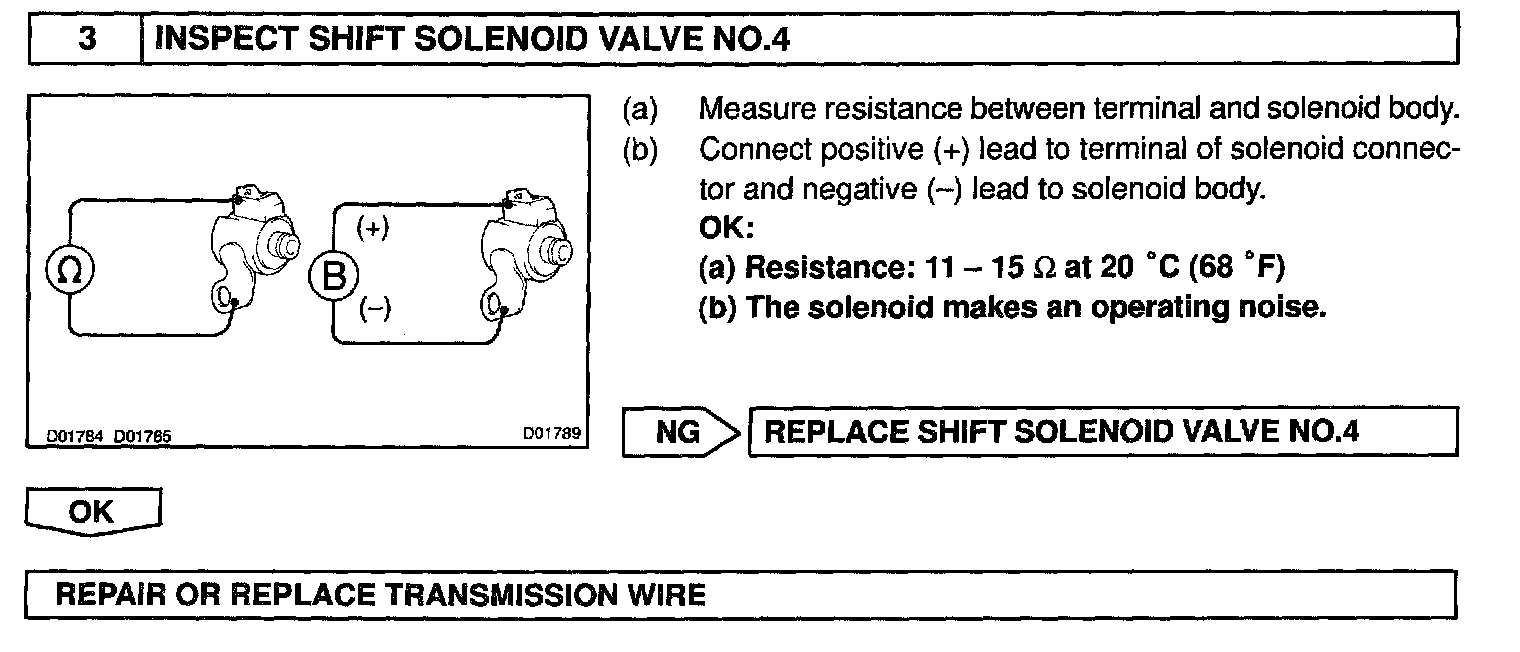

Step 3:

INSPECTION PROCEDURE
