Troubleshooting

DTC P0121 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT RANGE/PERFORMANCE PROBLEM

CIRCUIT DESCRIPTION

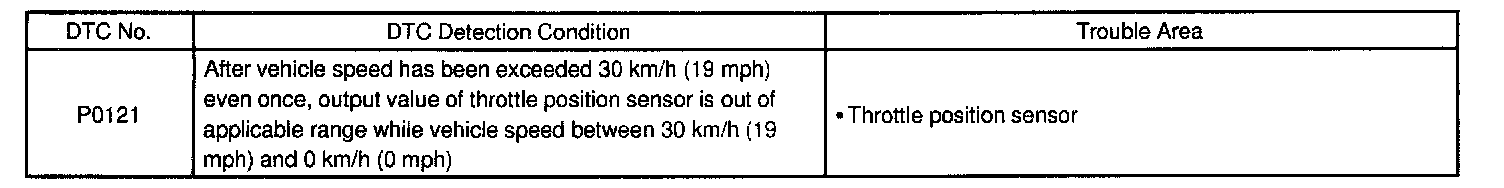

DTC Detection Condition:

Throttle position sensor is mounted on the throttle body and it has 2 sensors to detect the throttle opening angle and the malfunction of the throttle position sensor's own.

The voltage applied to terminals VTA and VTA2 of the ECM changes between 0 V and 5 V in proportion to the opening angle of the throttle valve.

The ECM judges the current opening angle of the throttle valve from these signals input from terminals VTA and VTA2, and the ECM controls the throttle motor to make the throttle valve angle properly in response to the driving condition.

If this DTC is stored, the ECM cuts the power down for the throttle motor, and the throttle valve is fully closed by the return spring.

Step 1:

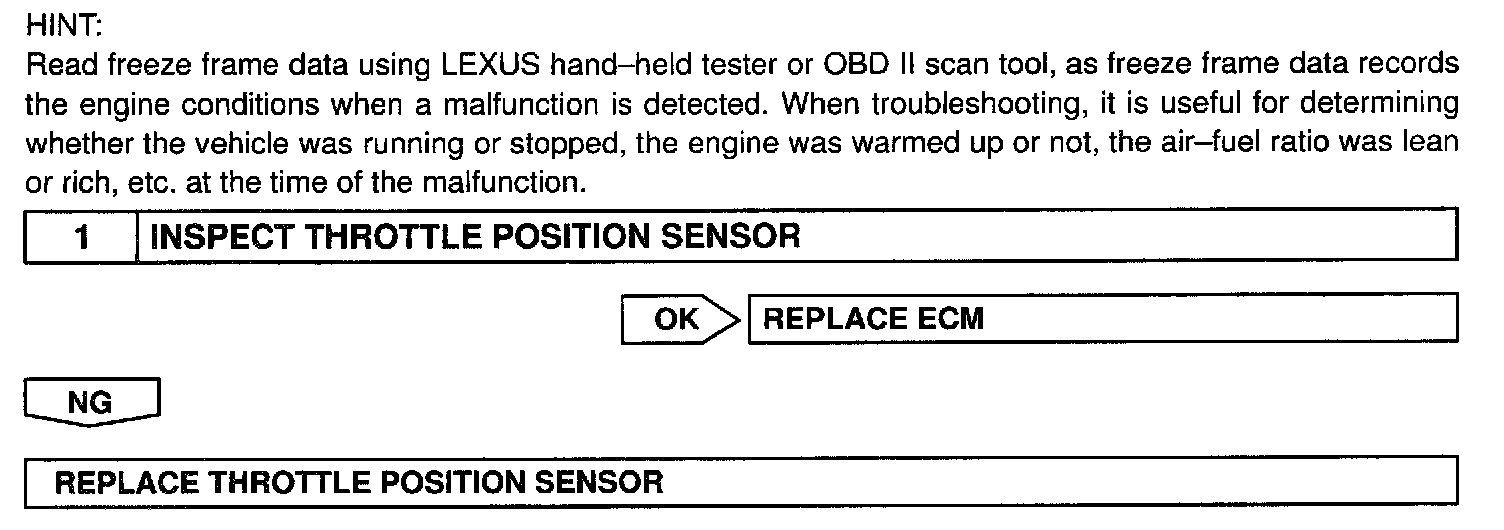

INSPECTION PROCEDURE
